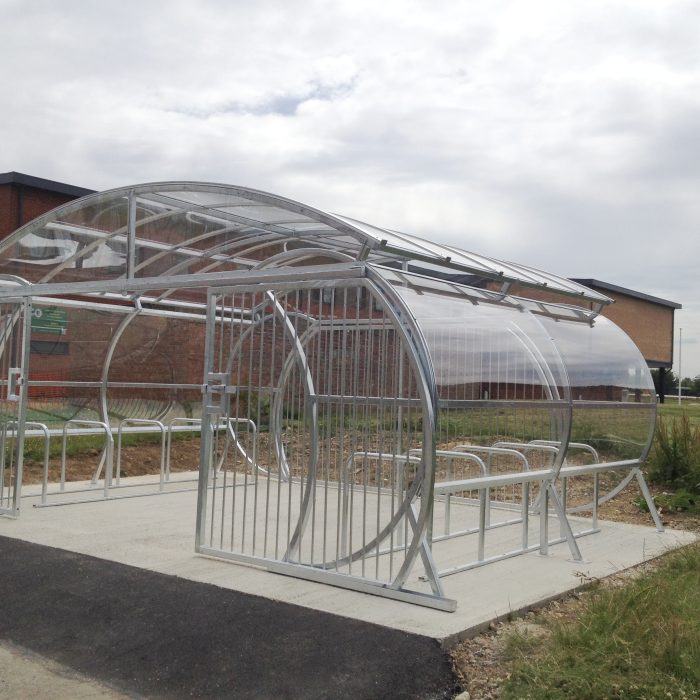

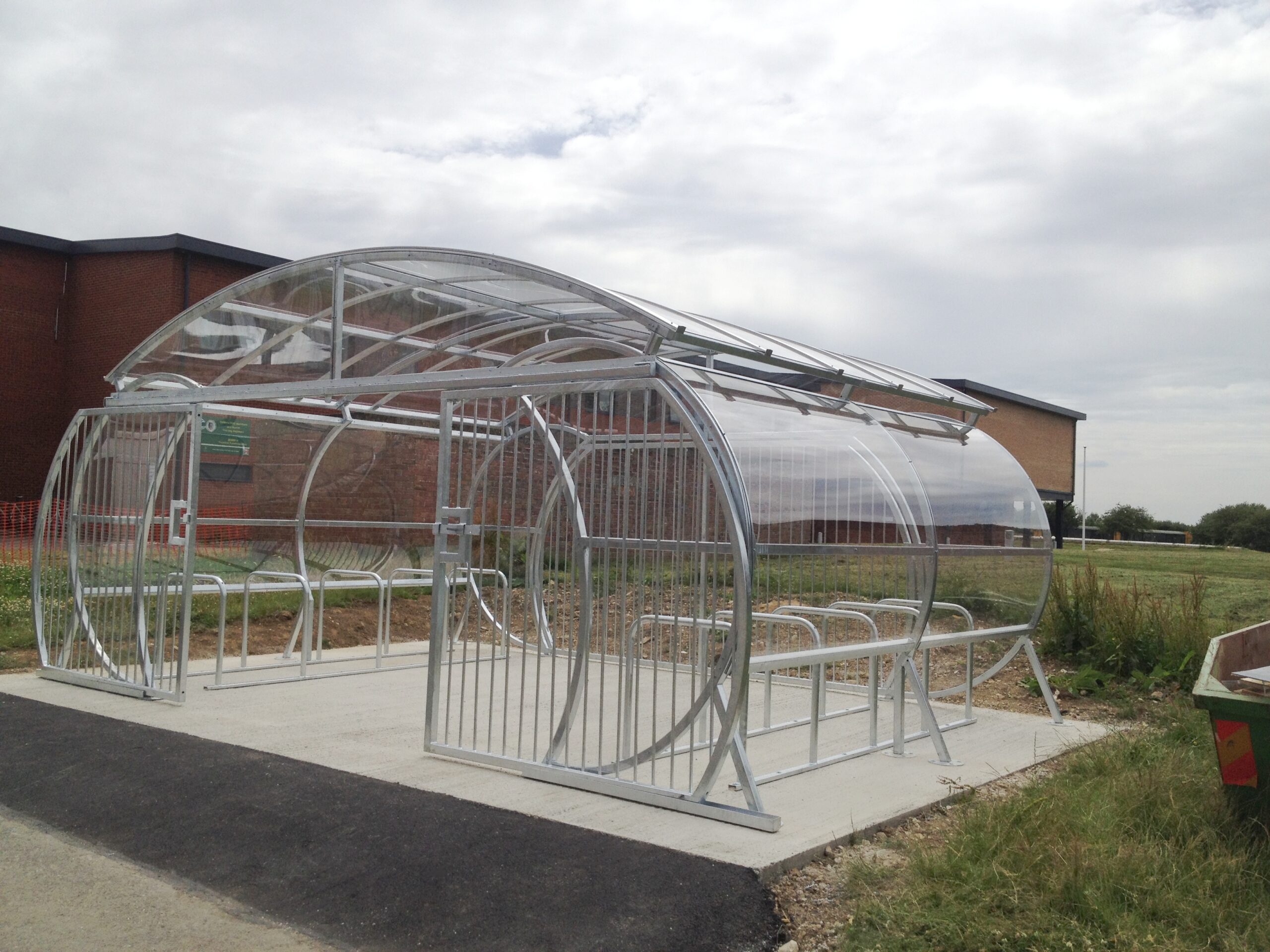

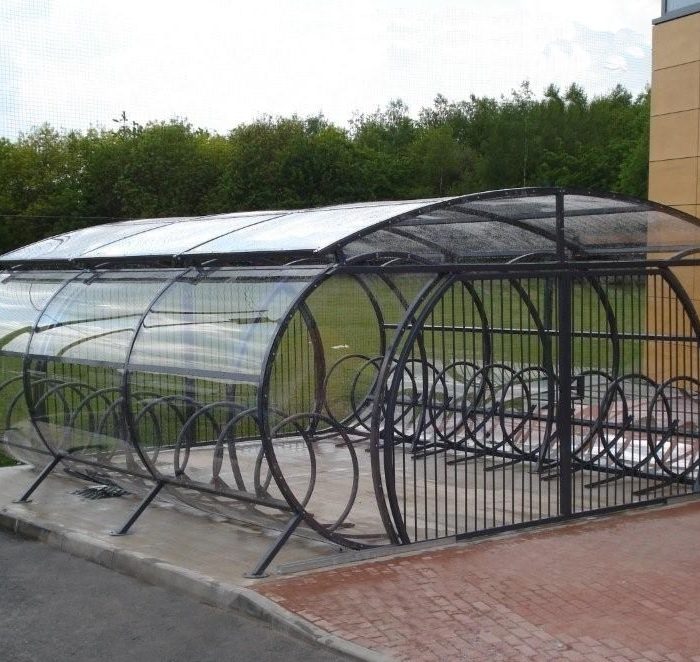

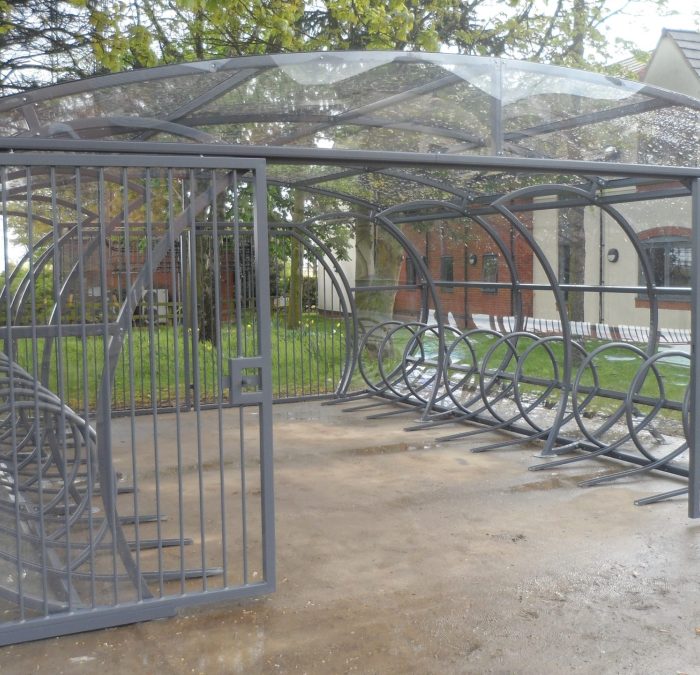

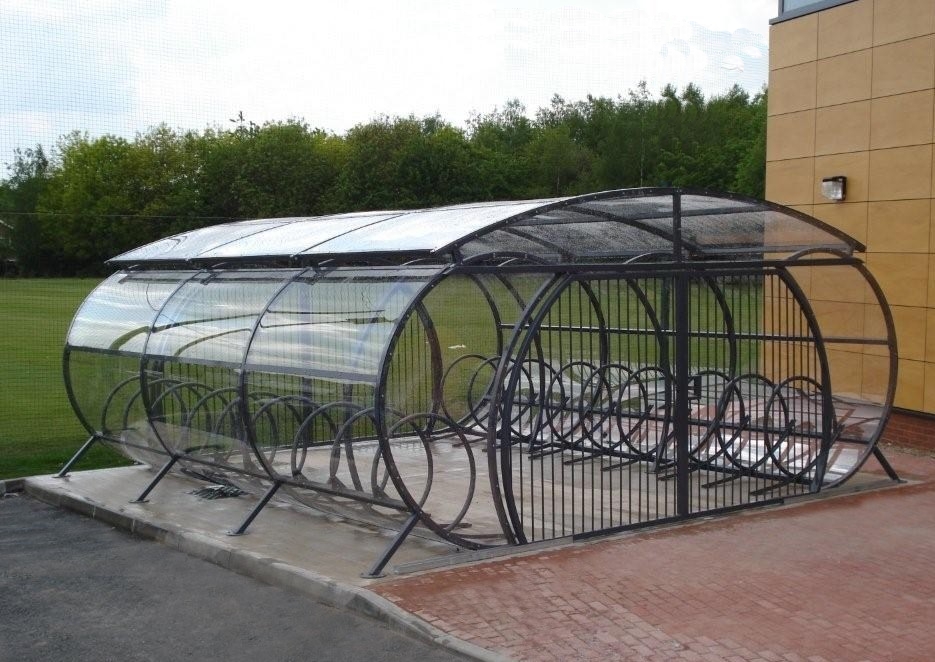

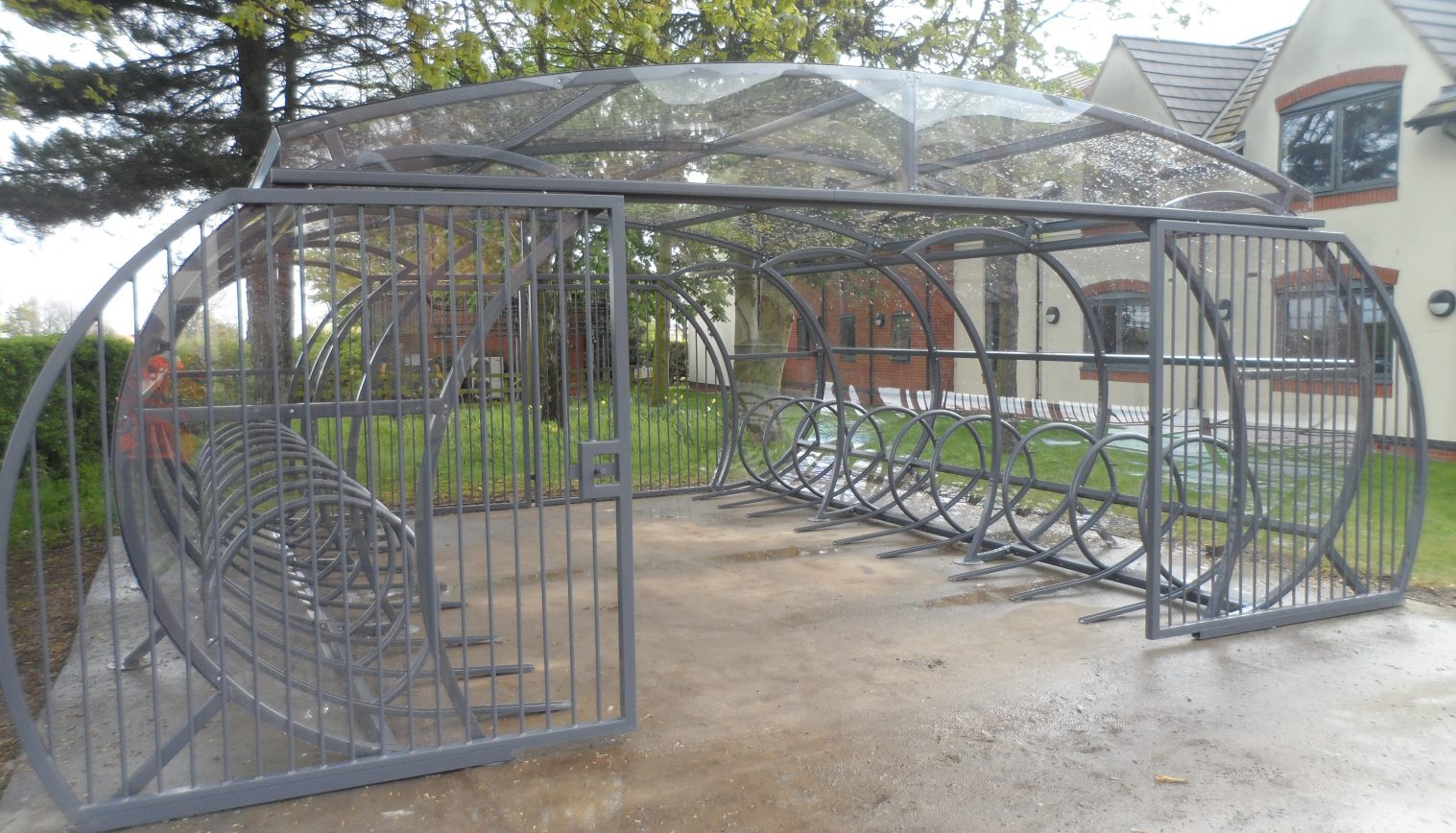

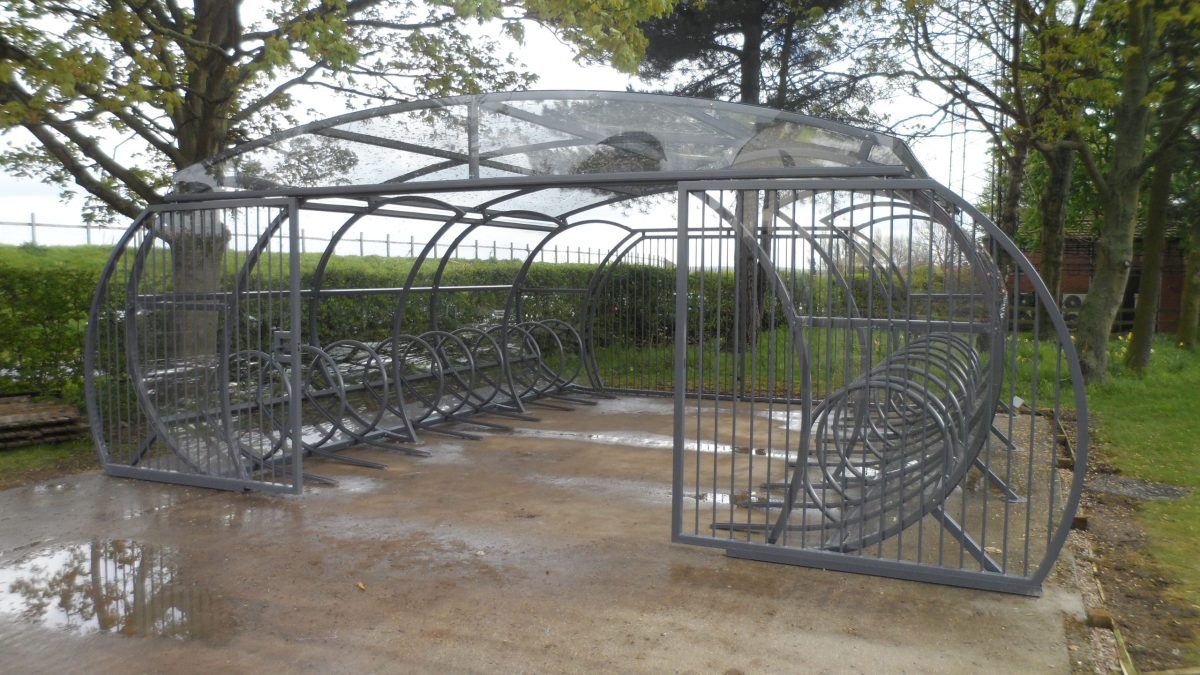

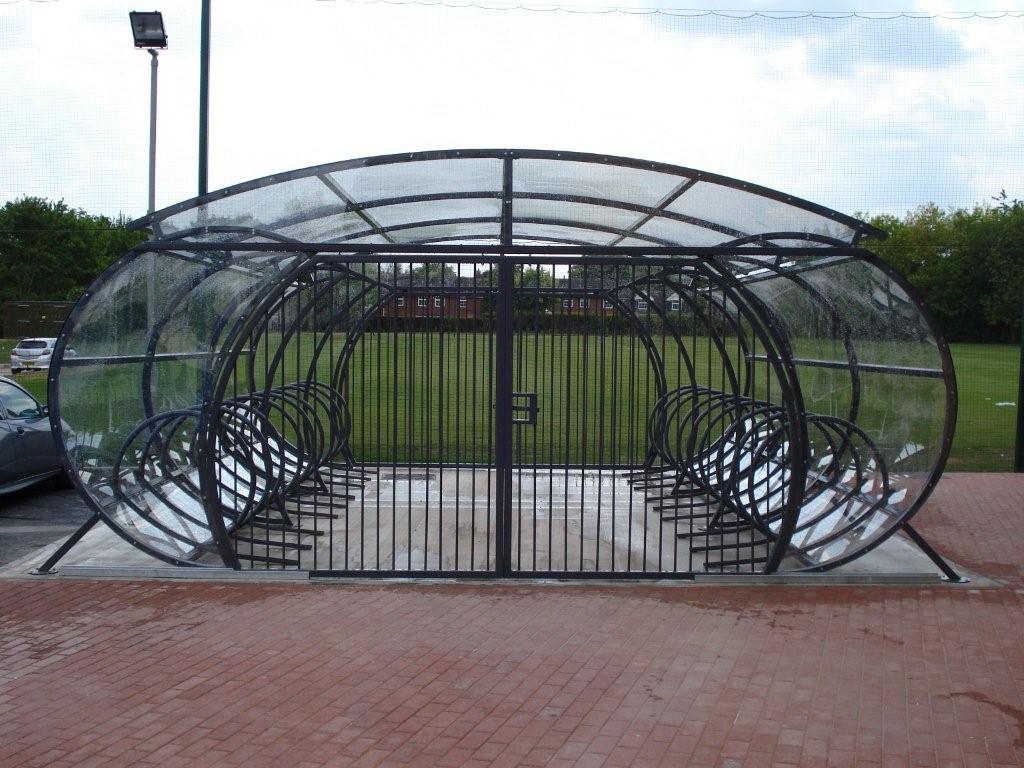

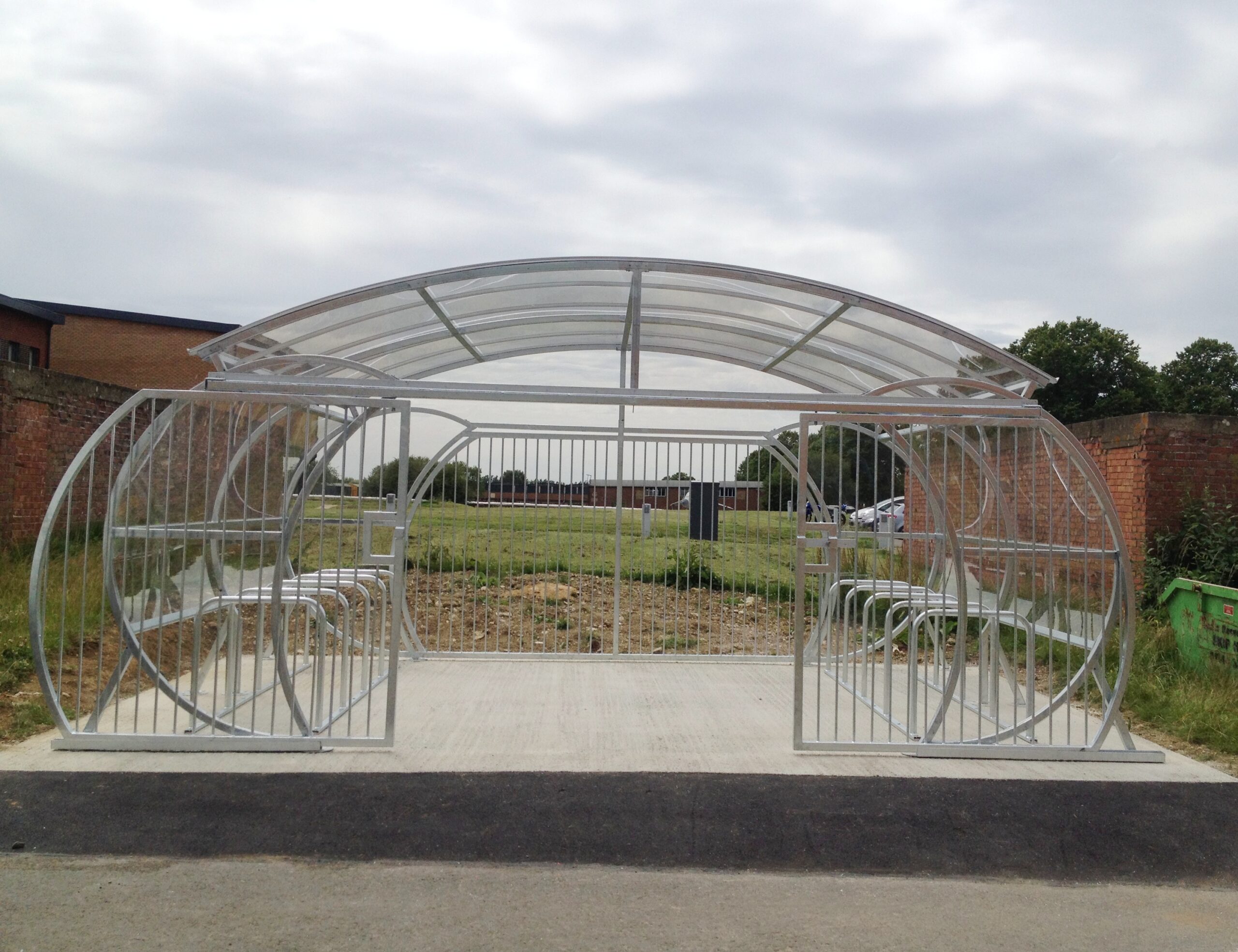

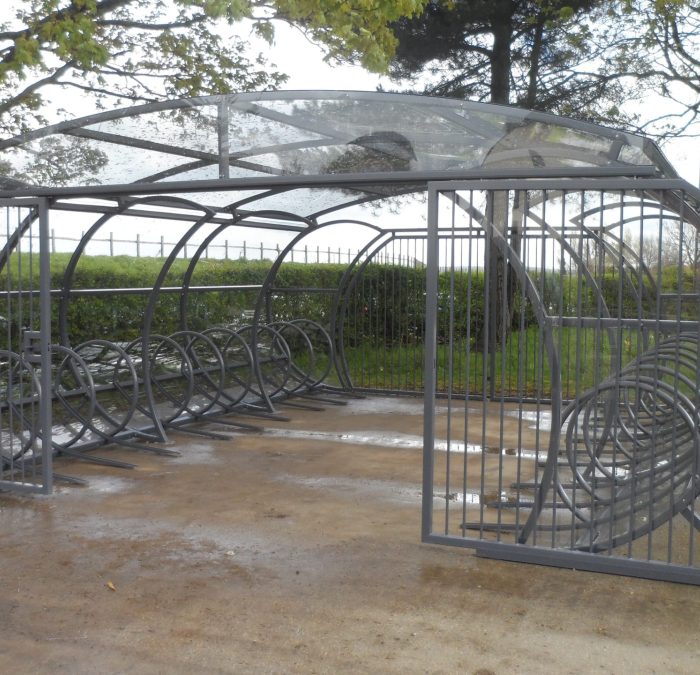

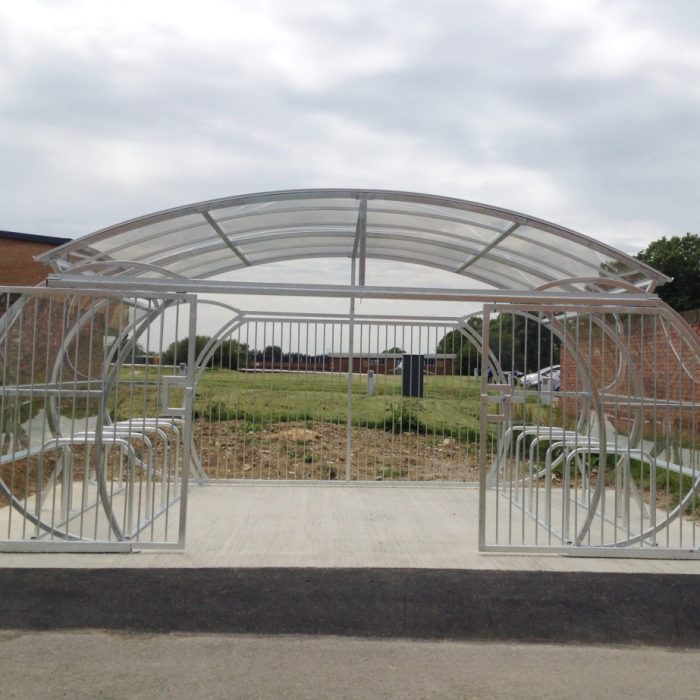

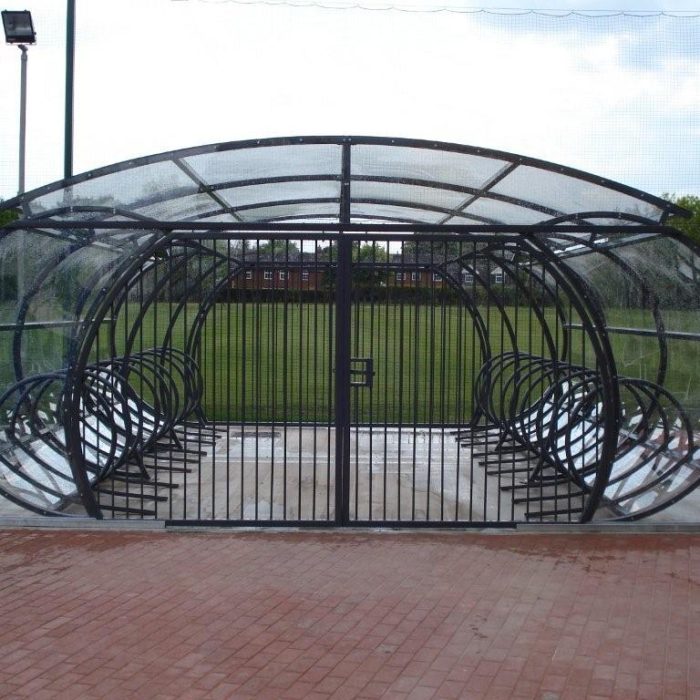

The Witton Cycle Compound is a robust construction, which is covered by 5mm polycarbonate panels. The Witton uses a unique clamping system on the edge of the shelter. These clamps dramatically reduce the need to drill holes therefore avoiding water leakage and bulging of the panels.

A standard Witton compound measures 6.2m x 4.2m and can hold up to 20 bikes. The Witton benefits from steel lockable gates as well as a no crawl under perimeter providing high security for bikes.

All our products are fitted by our fully trained installation teams who will take great pride in ensuring that your shelter is fitted to your satisfaction.

Features & Benefits:

  • Unique clamping system to avoid water leakage into compound
  • Robust steel construction with polycarbonate panels
  • True modular design allowing extensions to be added easily when needed – with no drilling or welding required
  • Clear view polycarbonate sheeting giving all round visibility
  • Designed to offer ultimate security for bikes – designed with a no-crawl-under perimeter to stop unauthorised entry.
  • Anti climb end frames to deter vandals
  • Gates can be fitted with locking devices for extra security
  • Up to a 25 year life expectancy
  • Base plate fixing to your existing concrete area.
  • Adjustable feet, allowing us to install this on uneven ground
  • Available galvanised, powder coated or galvanised and powder coated

Design & Specification

Downloads:

Download our technical files for the Witton Cycle Comnpound including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Witton Cycle Compound Technical Specification Sheet

Technical File Downloads:

Specification:

Resistant to Breakage
The Witton benefits from 5mm solid polycarbonate panels which have ultimate impact resistance and are clear for ultimate all round visibility.

Weather Resistance
During the manufacture of polycarbonate sheeting a layer of UV absorber is co-extruded onto the front and sides forming a strong barrier against UV radiation.

Choice of Colour
The framework is available powder coated to any standard RAL colour, other non standard RAL colours are available on request (please note additional costs may apply).

Maintenance
Our shelters require only periodic cleaning. To clean the roof we recommend a solution of warm water & a non-abrasive cleaner. For more information please see the maintenance schedule which is found in your After Sales pack.

Unique Clamping System
Our shelters use a unique clamping system which reduces the need to drill holes therefore avoiding water leakage and bulging of the panels which makes them longer lasting and more weather proof.

Adjustable Feet

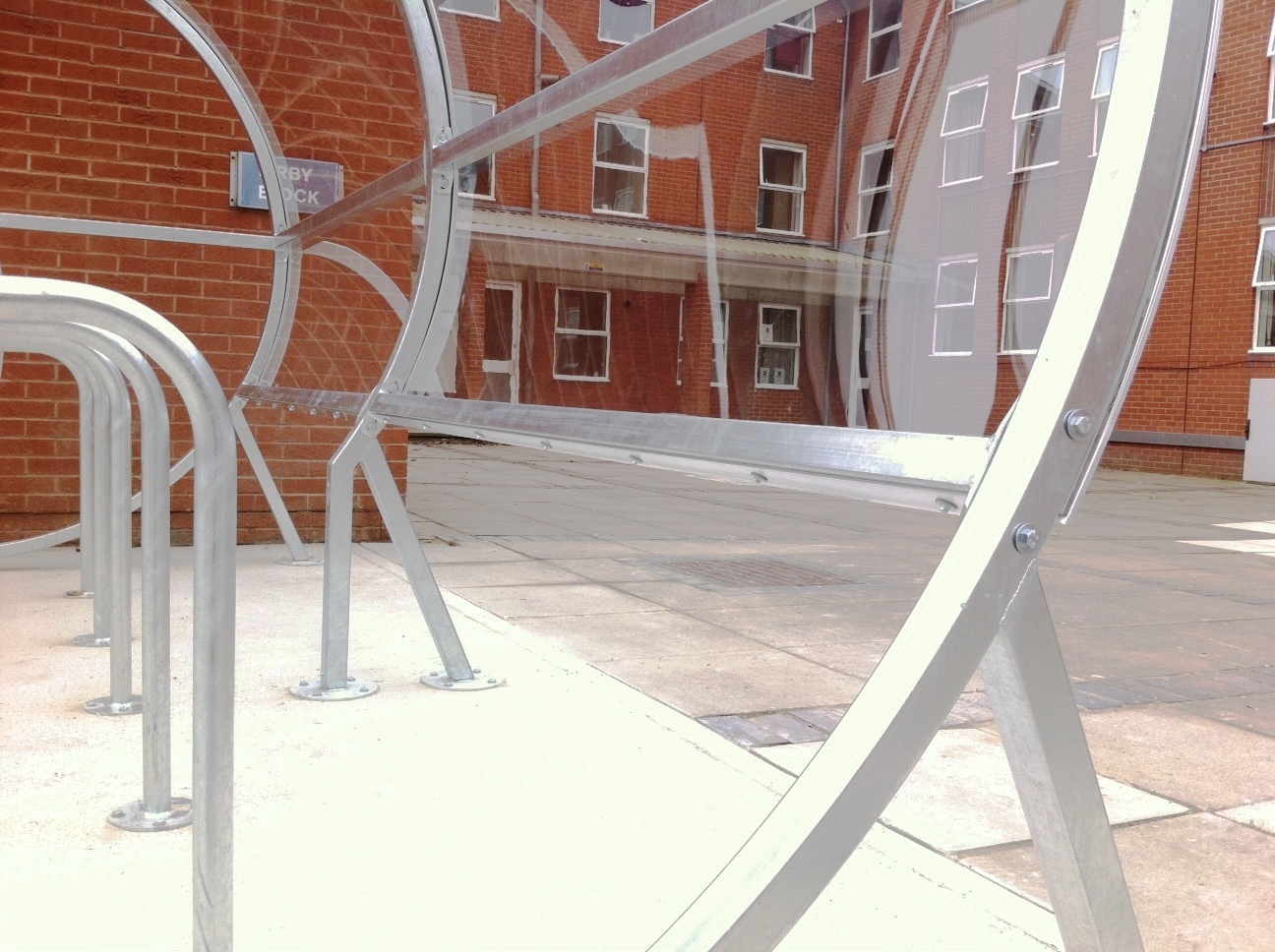

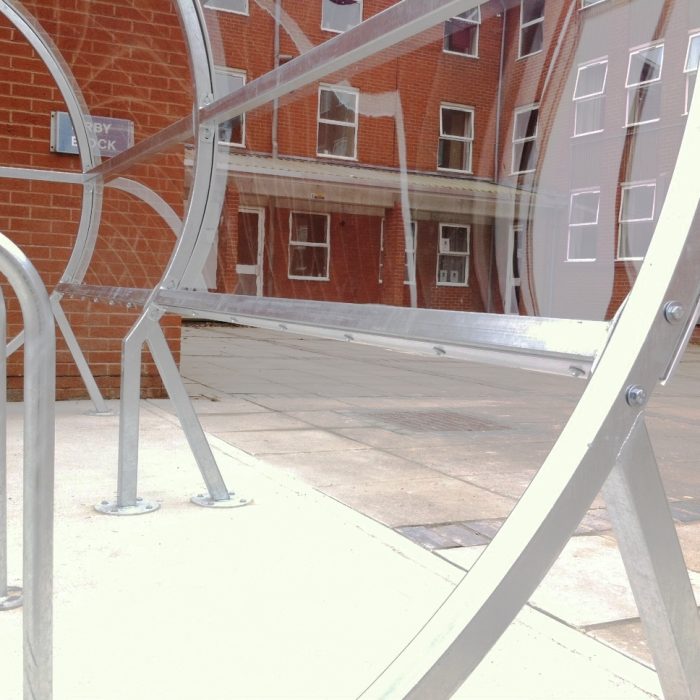

The feet of the shelters are bolted to the floor with base plates. Adjustable feet are used to keep the shelter level even when fixed to an uneven surface.

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

The Steel frame is available powder coated to a range of standard RAL colours. Other non-standard RAL colours are available on request at an additional cost

To view the full range of RAL colours please click here > RAL Colours
