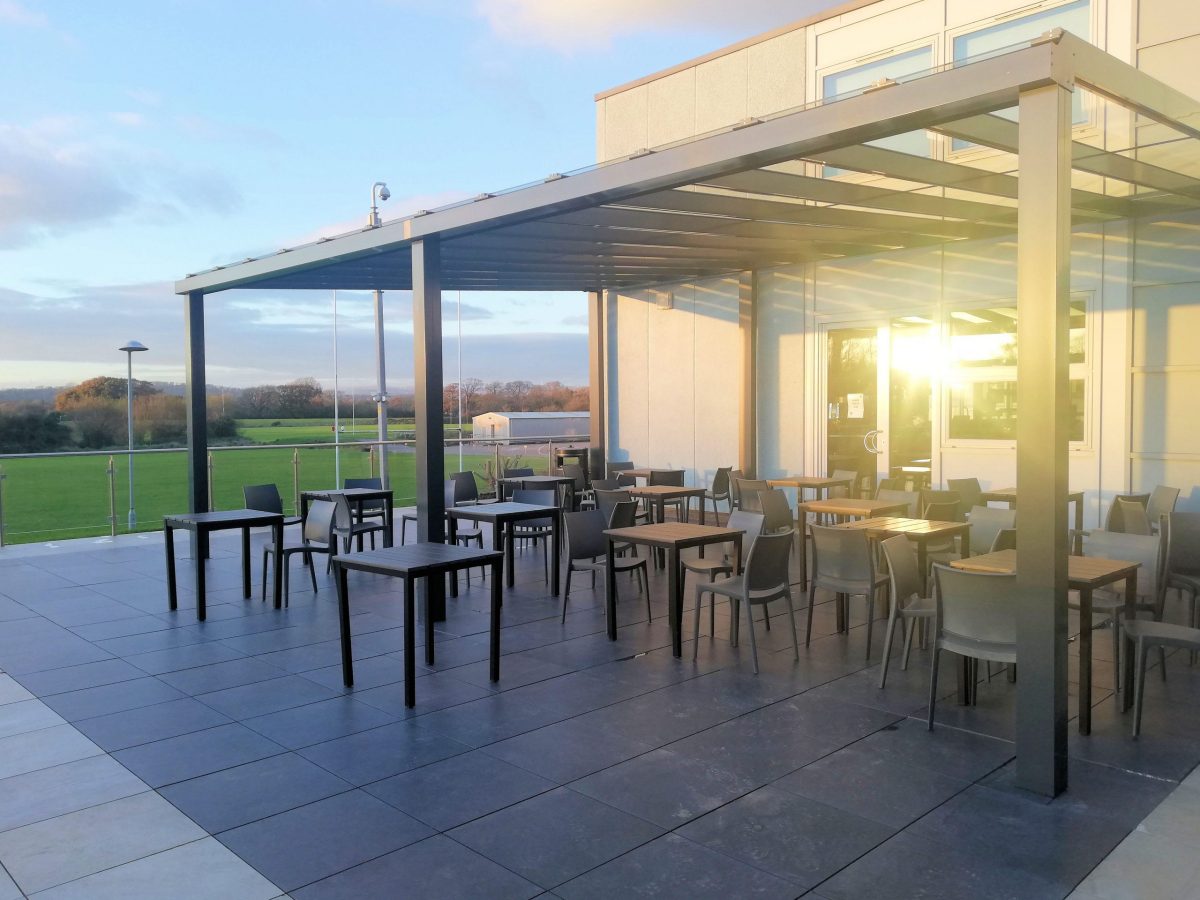

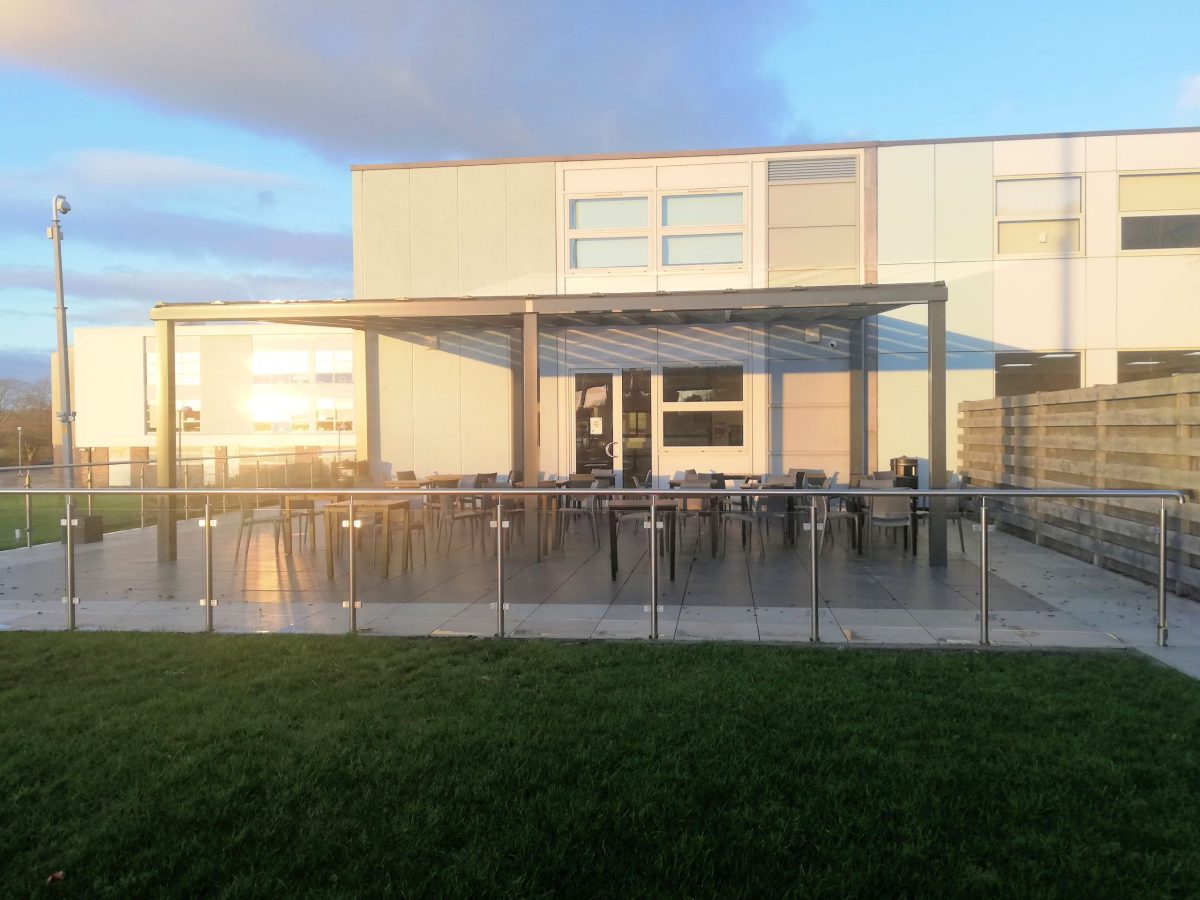

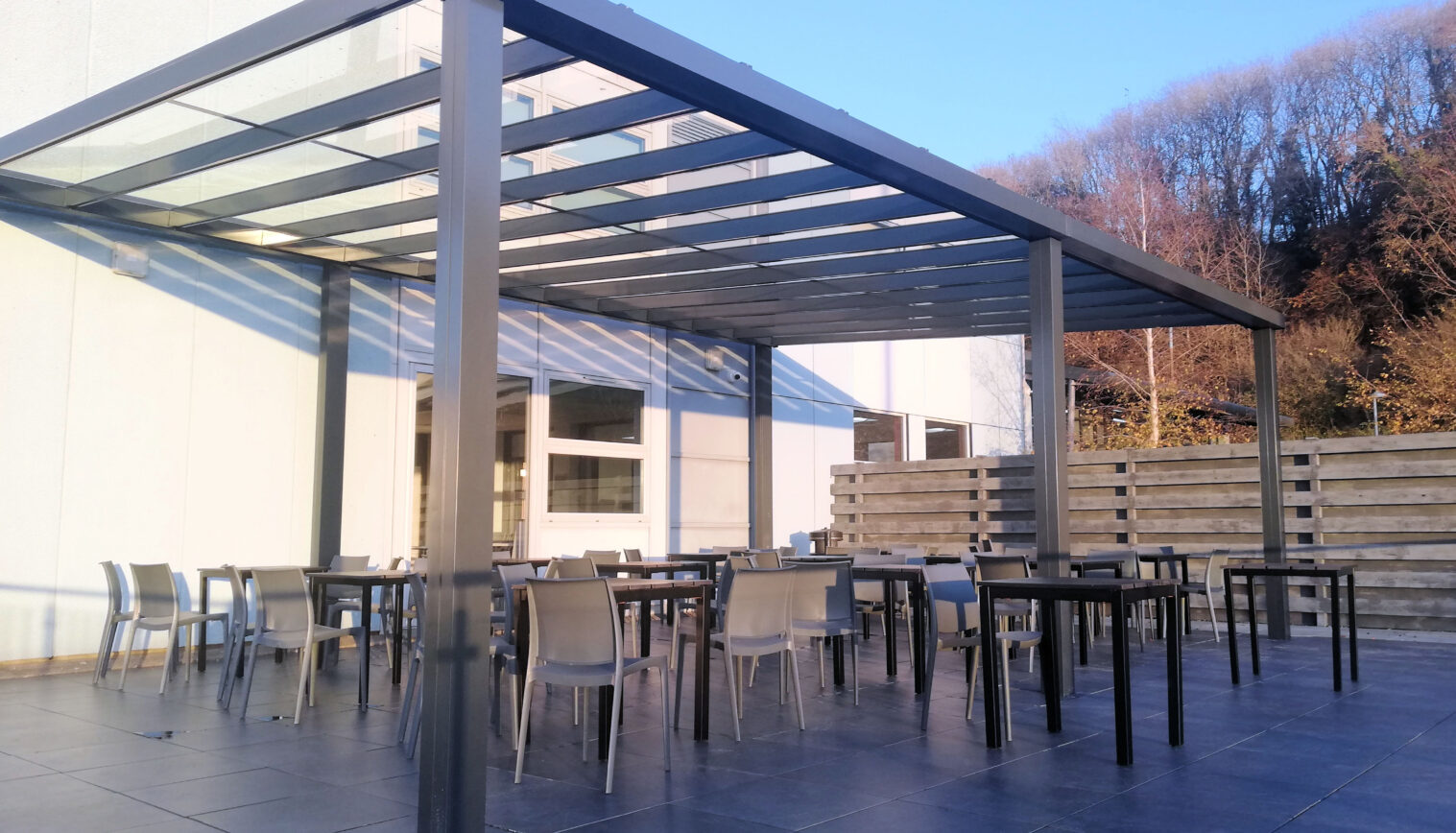

The Ashton Wall Mounted Canopy is a high quality, fully aluminium system with a big span of 6 metres between posts and a maximum projection of 6 metres. Supplied with a 10 year guarantee, the Ashton is supplied powder coated in Anthracite Grey (RAL 7016) as standard however, it is available in any RAL colour* to match your existing environment and has a life expectancy of up to 25 years.

The ornate profiles create a stylish appearance and all cabling for additional extras such as heating and lighting can be hidden from view within the profiles so not to disrupt the aesthetics of this attractive canopy. The roof is glazed with 8mm toughened glass which is extremely durable and class 0 fire rated.

The Ashton is the ideal solution for those that require a large span and projection in a commercial setting. It is ideal for many uses such as an outdoor dining canopy, a relaxation canopy within hotels and residential settings. It is perfect for the leisure and hospitality sector due to its high-class appearance and ability to cover large areas with a big span of up to 6m and unlimited length.

If you would like to enclose your wall mounted glass canopy, you can do so with glass side panels which are available with the Ashton. Sliding lockable doors can also be added to transform the Ashton into a glass room with can be used to extend your dining space all year round, hold leisure activities outside such as exercise, yoga and relaxation classes. It would also be perfect for use as an enclosed garden room within care homes and hospitals for patients that are in rehabilitation, providing a place where they can relax, unwind and recover.

In addition, heating and lighting can also be added to the Ashton wall mounted canopy to make use during the colder months even more enjoyable.

Features & Benefits:

  • Unlimited Length – To enable you to cover the whole length of the building if required
  • Large Projection – Up to a 6m projection with 6m spacing between posts for an almost uninterrupted view
  • Contemporary Design – With large profiles and a decorative guttering cover to soften the design whilst still keeping it modern
  • Integral Guttering – Hidden integral aluminium guttering for ease of maintenance and a seamless appearance
  • Aluminium Construction – The canopy is made completely from aluminium for strength and durability
  • *Choice of Frame Colours – The aluminium frame is supplied in Anthracite Grey (RAL 7016) as standard however, you can choose any other RAL colour at an additional cost
  • Roof Panels  – The roof is covered with 8mm toughened glass panels
  • Also Available as a Freestanding Structure – The Ashton can be transformed into a freestanding canopy with the use of steel or aluminium rear posts
  • 10 Year Guarantee – For complete peace of mind, plus up to a 25 year life expectancy
  • Versatile in Use – The Ashton can be used to cover outside dining areas, relaxation and recover areas in hospitals and care homes and exercise, yoga and dance classes within hotels, spas and leisure centres
  • Upgrades Available – Including glass side panels, glass sliding doors which are lockable, infrared wall mounted heaters and integrated LED lights

Design & Specification

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Ashton Wall Mounted Canopy Specification Sheet

Technical File Downloads:

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

The aluminium frame is supplied in Anthracite (RAL 7016) as standard however, it is available in any RAL colour at an additional cost. Please click here to view our standard RAL colours.

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
