Coniston Wall Mounted Canopy

Coniston Wall Mounted Canopy

The Coniston Wall Mounted Canopy is Able Canopies’ most popular product due to its versatility, durability and large projection.

The Coniston creates shelter from rain and snow and shade from the sun with high UV protection; it also helps to keep your building’s interior cool by shading windows and deterring unwanted heat and glare indoors during the bright or sunny weather.

As it is a wall mounted canopy, it offers uninterrupted cover from inside to outside; this is of particular benefit to Early Years Settings and Primary schools as it allows year-round free-flow play and outdoor learning, whatever the weather is doing.

It is a fully aluminium canopy system which does not use any uPVC – giving you a canopy with ultimate strength and longevity with a life expectancy of up to 25 years. We offer a 10 year guarantee on the Coniston giving you extra peace of mind that you are investing in a product which is built to last.

The Coniston can be any length, there really is no limit and it can wrap around the complete perimeter of your building. It can project up to 6 metres from its supporting wall, allowing you to shelter large areas easily with a minimum amount of posts, and for the most cost effective price.

This wall mounted canopy benefits from robust integral aluminium guttering which means the Coniston can be installed extremely quickly with minimum disruption to you, and it means gutter maintenance has never been easier!

Our Coniston canopy has a contemporary and high-class appearance and features 35mm structured polycarbonate roof panels which are available in a clear or opal and offers high UV protection, blocking in excess of 98% of UV rays. The aluminium framework comes in white as standard to give a clean, fresh finish which suits most surroundings; however, you can have your Coniston powdercoated to any RAL colour at an additional cost.

The Coniston has been designed not only with longevity but also safety in mind.

We only use high quality 35mm polycarbonate panels from the UK’s leading manufacturer – Brett Martin, ensuring our systems are classified as non-fragile and comply with the ACR[M]001:2014 ‘Test for Non-Fragility of Profiled Sheeting Roofing Assemblies’, achieving a B classification which is the highest rating possible for a polycarbonate roof.

This means that our 35mm roofing system has passed a ‘drop test’, which replicates the load of a person accidentally falling onto the roof assembly. This involves retaining a dropped load after two drops and that there are no signs of any damage to the roof assembly that will affect the roof’s long-term weather resistance. However, although our polycarbonate panels are light in weight and up to 200 times stronger than glass, it is important to remember that the polycarbonate sheets should never be walked on without the use of boards.

There is no requirement in current building regulations to specify a non-fragile roofing system for a canopy, although we would always recommend our high quality 35mm system which has been designed to withstand the worst of the British weather, including high winds and snow loading. You can find out more detailed information on pages 10-14 of our latest brochure.

You can rest assured that you will be investing in a safe, well designed and robust canopy that has a full 10 year guarantee and an overall life expectancy of 25 years.

Read more about the Coniston here.

Features & Benefits

  • Full 10 Year Guarantee and a 25 year Life Expectancy – Offering you complete peace of mind that your canopy will last for many years to come.
  • Fully Aluminium System – The canopy is constructed from aluminium with heavy duty structural aluminium roof bars – for ultimate strength
  • Stainless Steel Fixings – All of the fixings used in the construction are 316 marine grade stainless steel, ensuring total resistance to corrosion and longevity
  • Integral Aluminium Guttering – With aluminium downpipes, ensuring the quickest installation possible for minimal disruption, and gives a sleek finish which is also stronger than an external gutter system.
  • 35mm Structured Polycarbonate Panels – These are light weight yet up to 200 times stronger than glass. These panels offer high UV protection and the best insulation properties available (1.2w/mk) (much better than sealed, triple glazed units). Available in clear or opal.
  • Fire Performance – The panels meet the European standards BS476 Part 7 with a class 1fire rating and EN 13501 B-S1, D0.
  • Strong Roof System – Roof strong enough to be walked upon as a means of escape and maintenance (with use of boards)

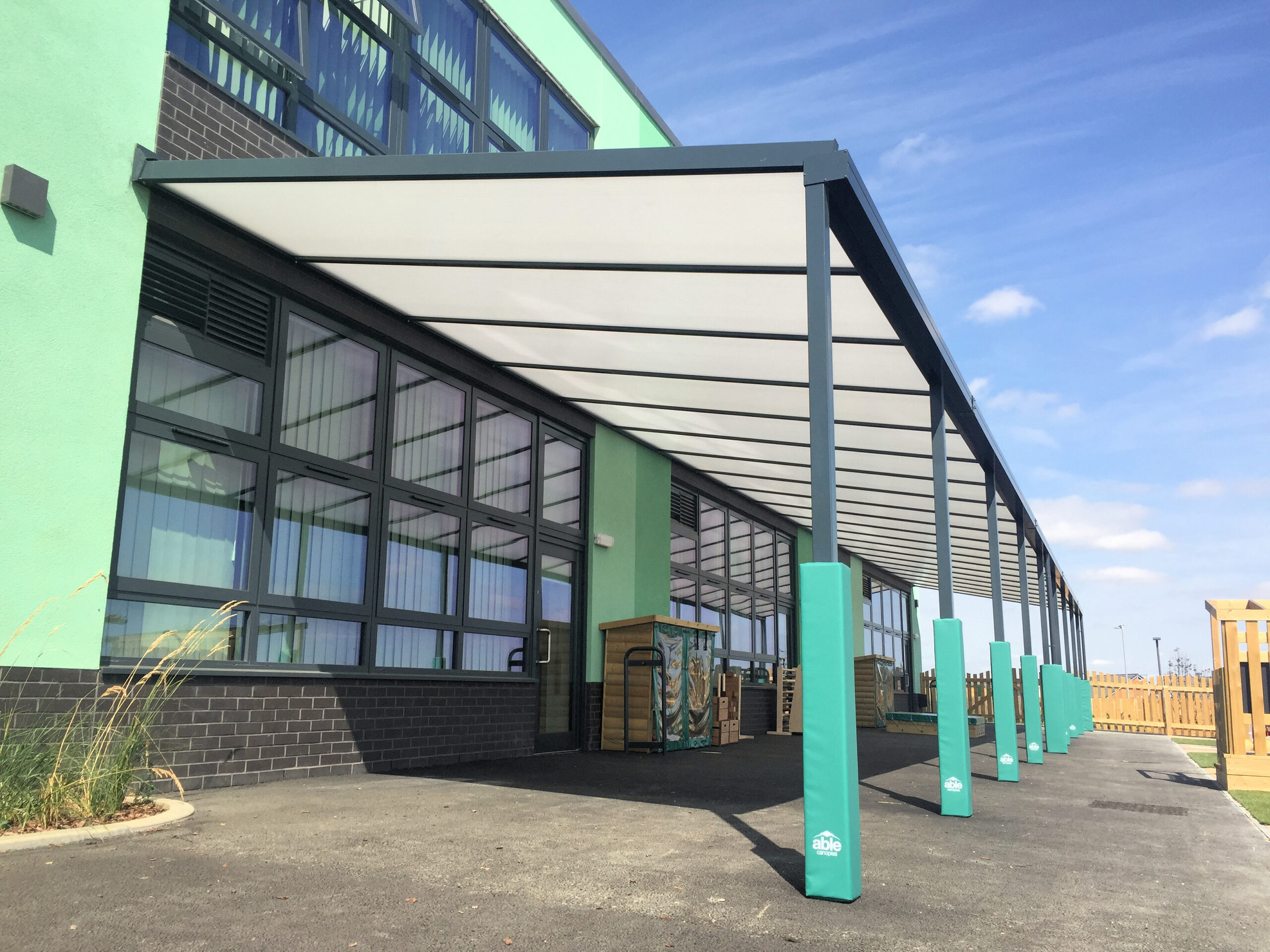

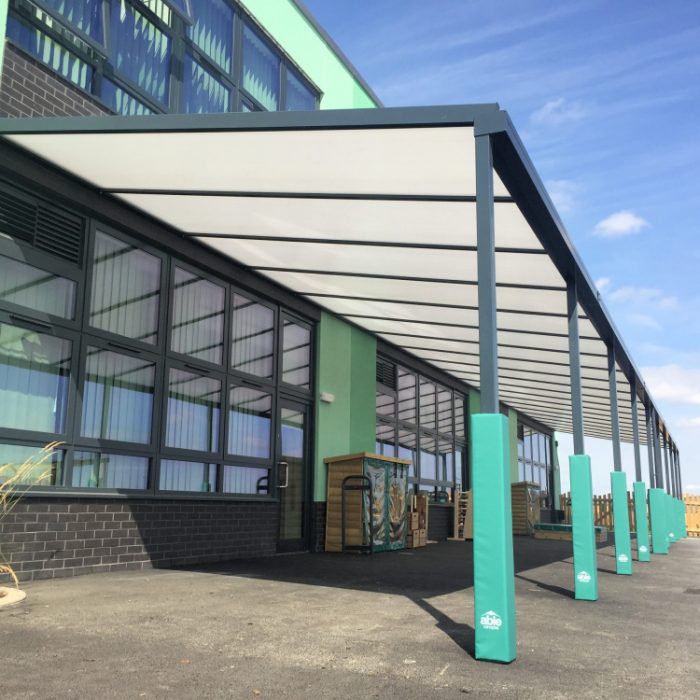

  • Free Post Pads* – Create a safer play environment with post pads which protect your pupils from “bumping” into the posts. * (subject to terms and conditions).
  • Streamlined Design – With clean fresh lines – a simplified design which is of a higher quality and has an eye catching and attractive appearance
  • In excess of 98% UV Protection – During the manufacture of our polycarbonate panels, a layer of UV absorber is coextruded onto the panels which forms a barrier giving high UV protection from the sun – protecting both those underneath the canopy, and the panels themselves for increased longevity.

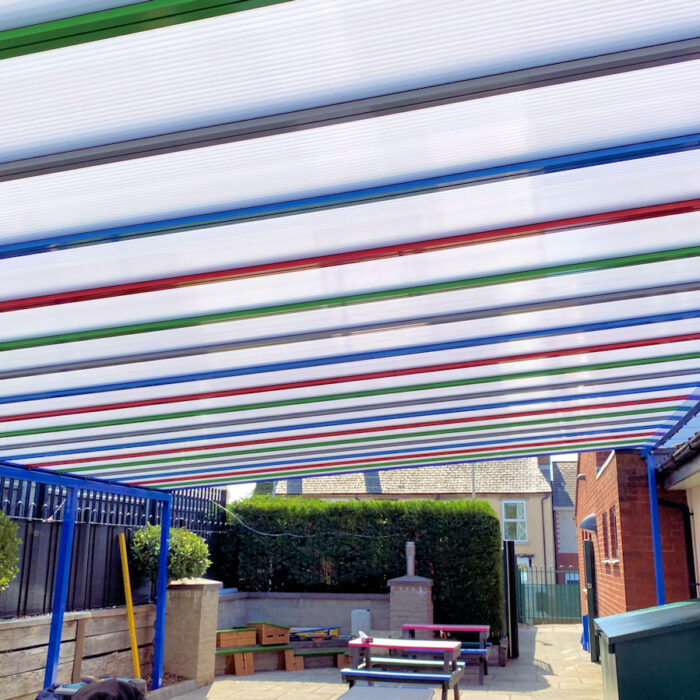

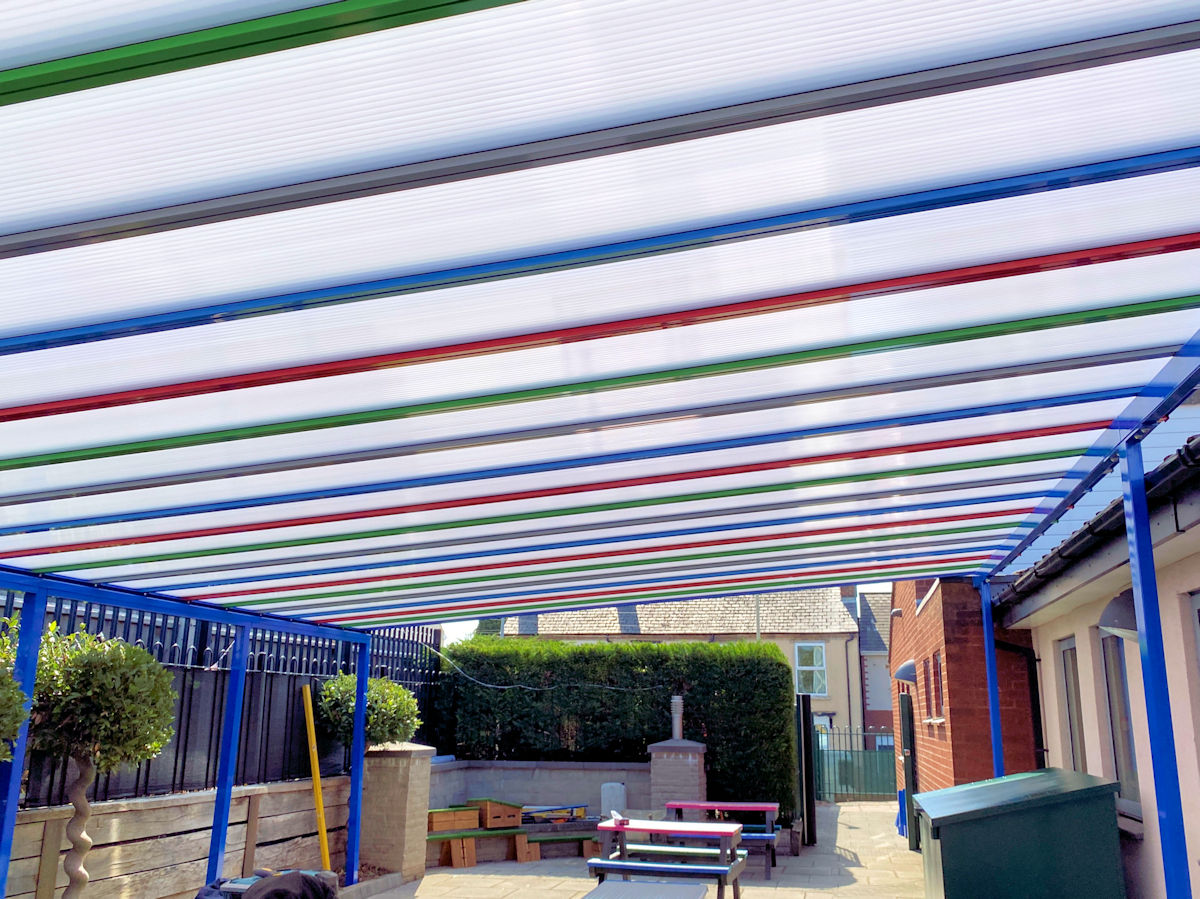

  • Can be coloured to any RAL colour – match your school colours, branding or existing structures (additional costs may apply)
  • Up to 6m Projection – providing large shaded areas with minimum posts
  • Unlimited Length – The canopy can be any length, to suit your needs
  • Available Upgrades – There are many upgrades available that can be added to your canopy, please see our Optional Extras section
  • Free Standing Option – The Coniston is also available as a free standing canopy, click here to find out more: Free Standing Coniston Canopy

*Terms & Conditions – Standard Coniston installation, with standard size single or double post-pads only on offer. Must not be used in conjunction with any other offer, standard colours only. All post-pads subject to availability, delivery times may vary.



Have a question about the Coniston? Our Coniston F.A.Qs may help.
Or alternatively Contact Our Expert Team where our sales advisors will be happy to help.

You can also watch our Coniston Wall Mounted Canopy video on YouTube.

Design & Specification

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Coniston Wall Mounted Canopy Technical Specification Sheet

Technical File Downloads:

Free Coniston Specification Brochure:

Click here to view & download the free Coniston Canopy specification brochure


Resistant to Breakage
Our polycarbonate panels are light in weight, up to 200 times stronger than glass. The Coniston is a heavy duty structural aluminium glazing system.

Maintenance
Our canopies require only periodic cleaning. To clean the roof we recommend a solution of warm water & a non-abrasive cleaner. For more information please see the maintenance schedule which is found in your After Sales pack.

Colour Options
Glazing panels are available in clear & opal. The aluminium framework is available in any standard RAL colour; other non-standard RAL colours are available on request. (Additional costs may apply.)

Insulation Properties
Our 35mm multiwall polycarbonate panels offer the best insulation properties available (1.2 w/m k). Much better than sealed, triple glazed glass units.

Weather Resistance
During the manufacture of our polycarbonate panels a layer of long life UV absorber is co-extruded onto the surface forming a barrier which offers high UV protection from the sun. All structural components are made from aluminium strength and total weather resistance.

Fire Performance
Our structured Polycarbonate sheets have been tested to most European standards & meet the BS476 part 7 with a class 1 fire rating and EN 13501 B-S1, d0


Click here to view a detailed look at the Coniston Wall Mounted Canopy

Click here for technical information about the Polycarbonate Roof Panels >

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

Aluminium Framework:

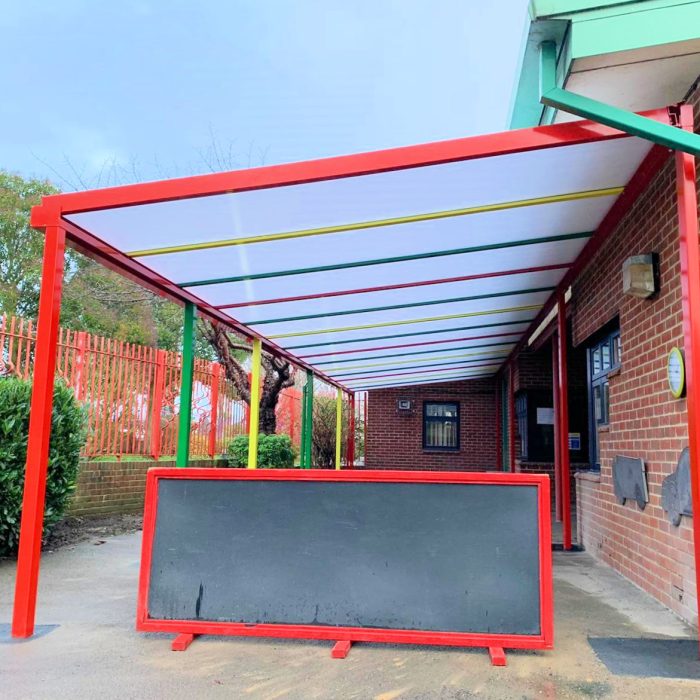

The Coniston’s fully aluminium framework is coloured white as standard to give your canopy a fresh, neutral look, however it can be powder coated to any colour in our standard RAL colour chart, allowing you to match your canopy to your exisitng structure, or reflect your school colours.

Additional RAL colours are available on request please click here to view the full RAL colour range >

Polycarbonate Roof Sheets:

We offer 2 standard colour options for your polycarbonate roofing: Clear and Opal to allow you to create the light effect suitable to your environment.

Testimonials

“We would like to thank your team for your fabulous Canopy. Your installers worked beyond our expectations. You understood all our requirements as per the fitting, style and safety of all our pupils & staff. Please Thank again all your staff from the office, sales and installers the job run smoothly and almost invisibly.”
Colnbrook School, Watford, Hertfordshire – View Installation

“The installation team were professional, punctual and very obliging. The canopies fitted with the built in guttering look very good quality. Many thanks for an expert installation.”
Icknield Infant & Nursery School, Letchworth, Hertfordshire – View Installation

“A smooth and organised fitting. Worked perfectly within a school setting causing absolutely no disruption for the school. Thank you very much.”
Culvers House Primary School, Mitcham, London – View Installation

“A good quality service from start to finish. Very helpful with good advice. Always kept up to date with progress. Final product and installation excellent.”
Holmesdale Infant School, Reigate, Surrey – View Installation

“Extremely impressed – a fantastic product for a fantastic price!”
Maryport Infant School, Maryport, Cumbria – View Installation

“An efficient service from start to finish. All of my staff who have seen the canopy are impressed and can’t wait to use it with the children. It has extended our classroom brilliantly”.
Thomas Arnold Primary School, Dagenham, Essex – View Installation

“This is the third time we have used Able to install canopies. We have been delighted with the service and the product each time and would be very pleased to highly recommend the company to other schools.”
Broughton Infant School, Aylesbury, Buckinghamshire – View Installation

“I just wanted to say what a wonderful job your team have done with the canopy that was completed just before lunch time. The staff were very impressed with their hard work and the fact that they caused very little disruption to the daily routine of the children. The children love the area and have already had an opportunity to have some time in it. It looks great and actually makes the area look larger!!!”
Barnham Broom C of E Primary School, Nowich, Norfolk – View Installation

Read our recent customer testimonials here

Why Choose Able Canopies

Able Canopies are a well established company who have been manufacturing and supplying canopies and shelters to many organisations for over 18 years. We assign a dedicated project team to each order, ensuring that your product is delivered and installed on time with no disruptions or communication errors along the way. Read more about our company here  About Able Canopies

Because all of our canopies and shelters are manufactured in-house, we can make any modifications required by you to ensure that your shelter is suitable for your needs. If required we can make alterations including the materials used, the finish and the size.
