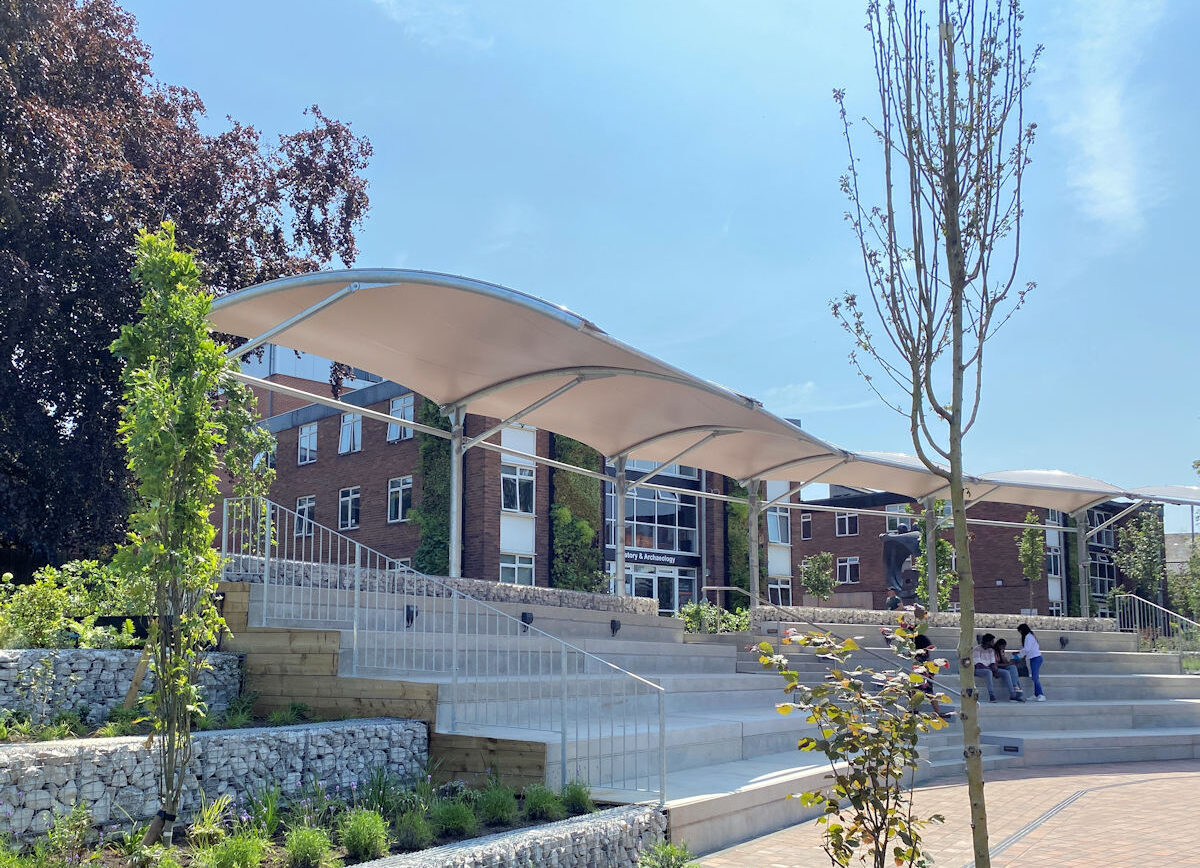

Kendal Cantilever Tensile Fabric Structures

Kendal Cantilever Tensile Fabric Structures

The Kendal is an attractive tensile fabric canopy system which has a smooth modern look. It is constructed from a steel tubular framework and is covered with the finest waterproof tensile fabric making this a robust system which provides excellent cover from the weather.

The walkway is available in three standard widths of 3 metres, 4 metres and 5 metres and has a unlimited length.

Able Tensile Structures are permanent structures which are fully fitted and installed by Able Canopies trained teams of fitters.

Our tensile fabric has the unique ability to create varying moods, looks and feels to the area under the canopy just by using different colours, as when the sun falls onto the roof it will make the area underneath the canopy reflect the hue of the fabric – for example a red fabric roof will create very different feel to a calming light blue or a vibrant yellow roof.

Features and Benefits:

  • Up to 5 Metre Width – The Kendal is available in three standard widths of 3 metres, 4 metres and 5 metres
  • Unlimited Length: The Kendal Fabric Walkway  Canopy has an unlimited length
  • High UV Protection – The roof fabric offers high UV protection from the Sun
  • Waterproof Structure – The Kendal roof fabric is completely waterproof, making it perfect for use all year round
  • Steel Frame – The frame is constructed from strong steel tube sections that can be galvanised and powder coated
  • Base Plates Fixings – The canopy is fixed to the ground using base plates and pad stones
  • High Quality Fabric – The fabric is 590g/sm PVC which has a smooth, gloss appearance
  • Minimal Maintenance Required – The Varnish on the fabric creates a smooth finishes so dirt particles are less like to embed into the fabric resulting in minimal maintenance being required
  • Choice of Fabric Colours – The fabric is available in 40 colours
  • Choice of Frame Colours – The frame is available galvanised and/or powder coated in a choice of 25 RAL colours as standard, or any alternative RAL colour at an additional cost
  • Fire Resistance – The fabric is fire retardant to European standard B-s2,d0/EN 13501-1

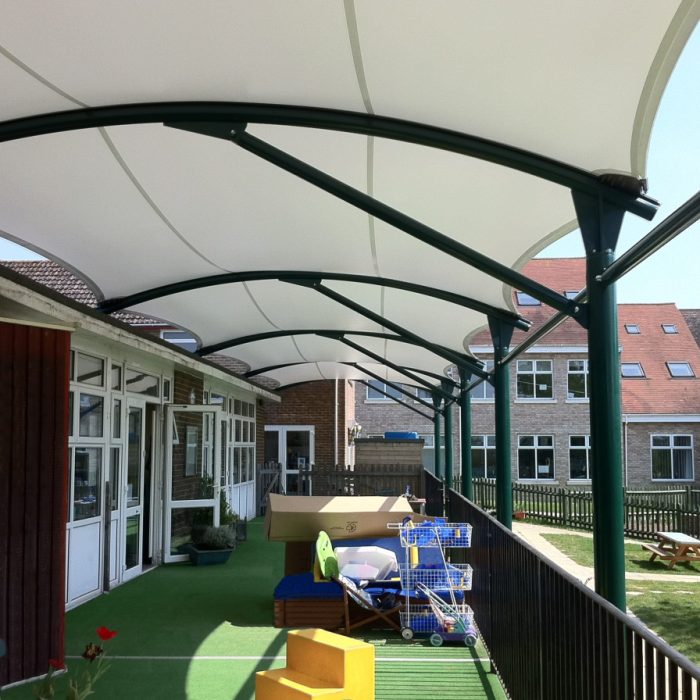

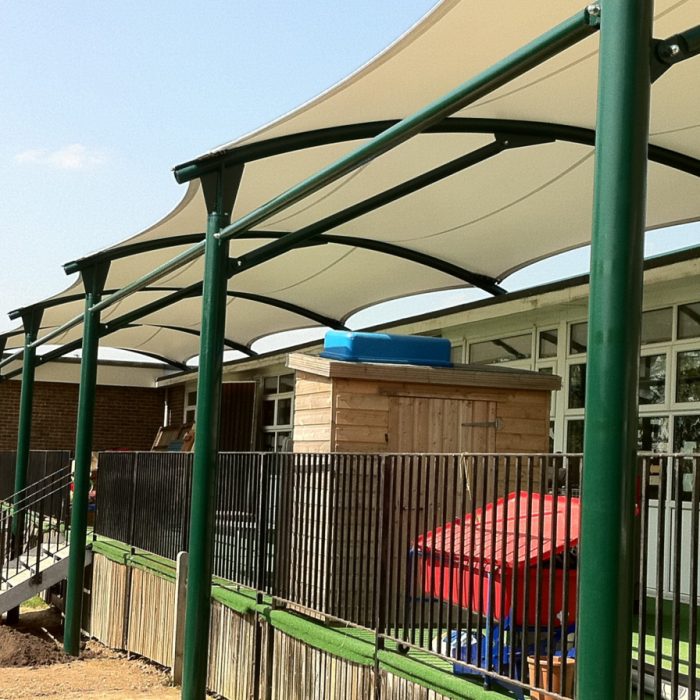

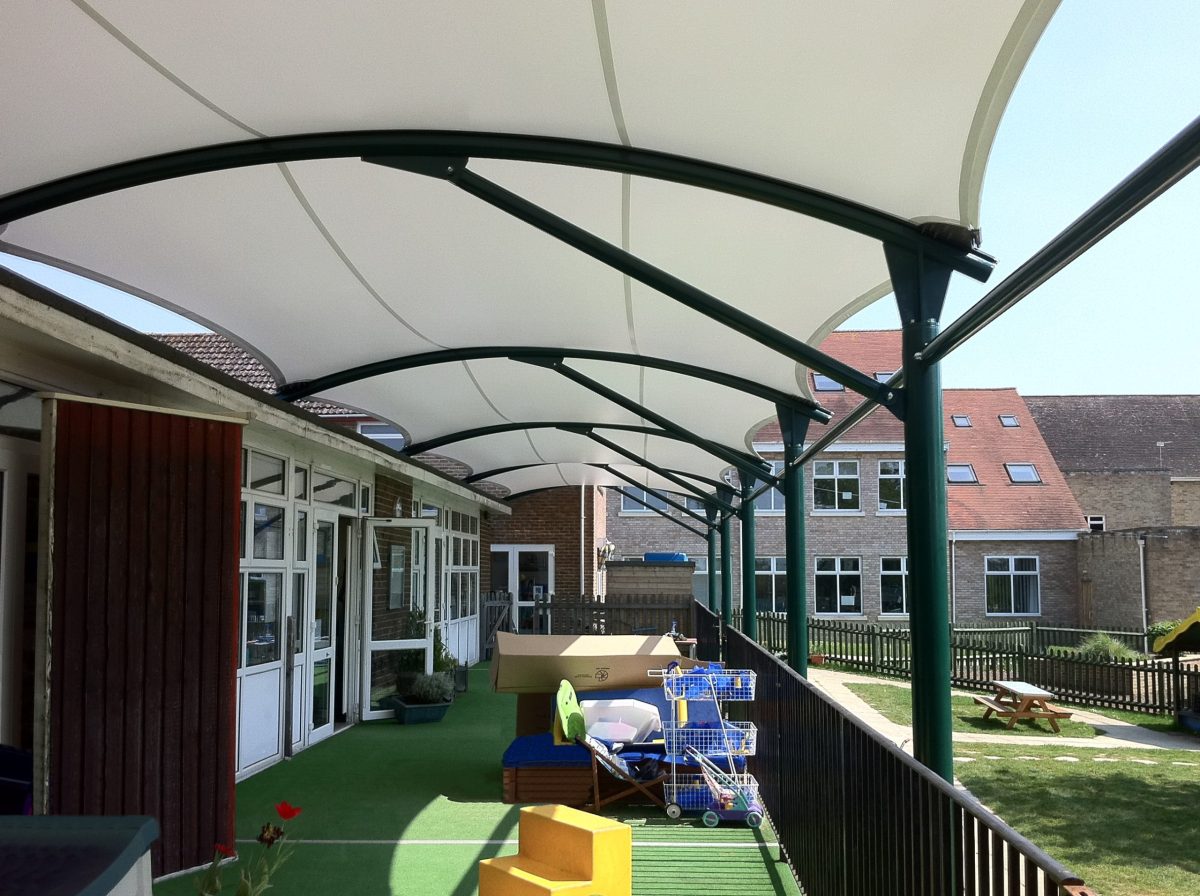

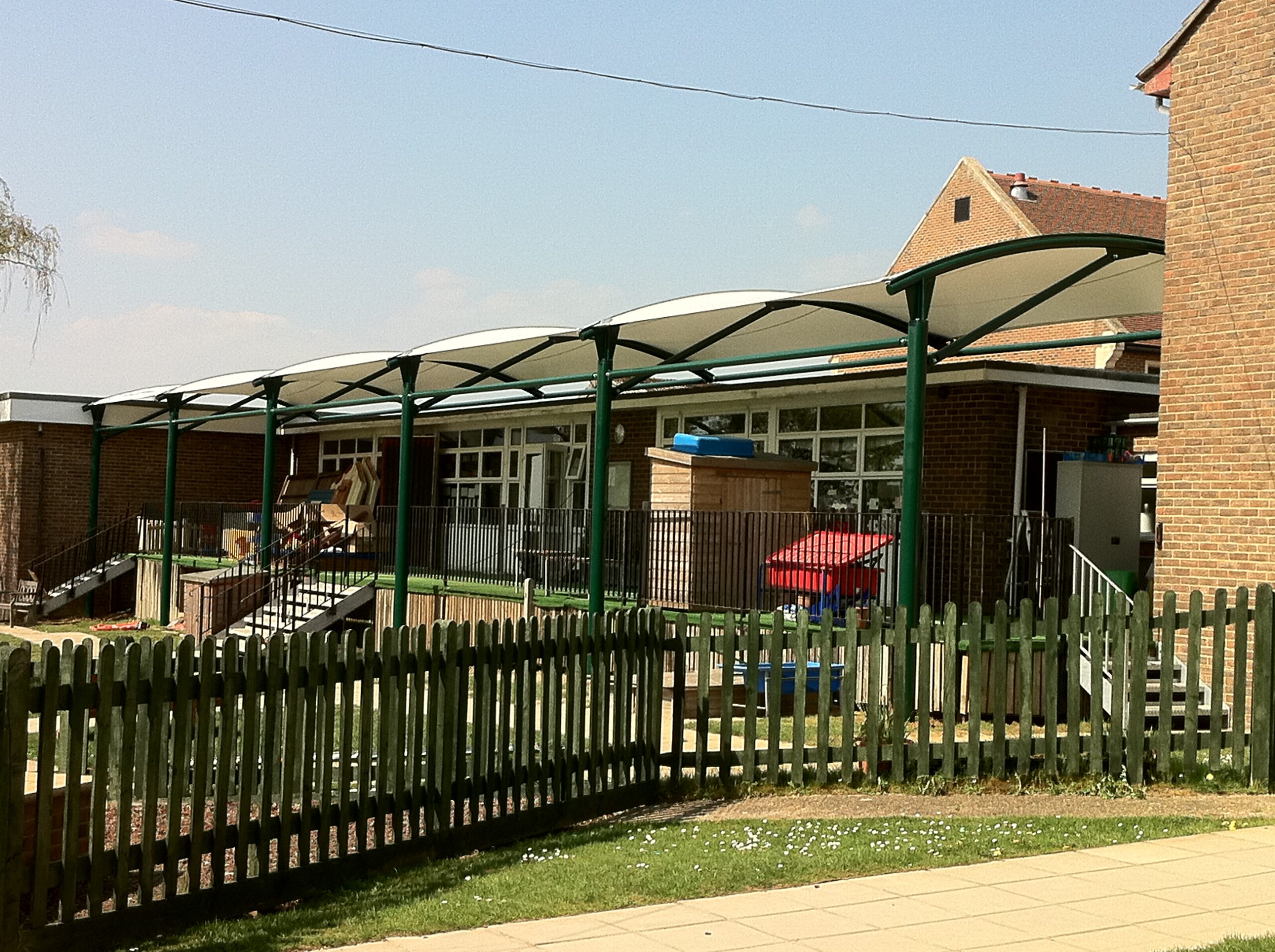

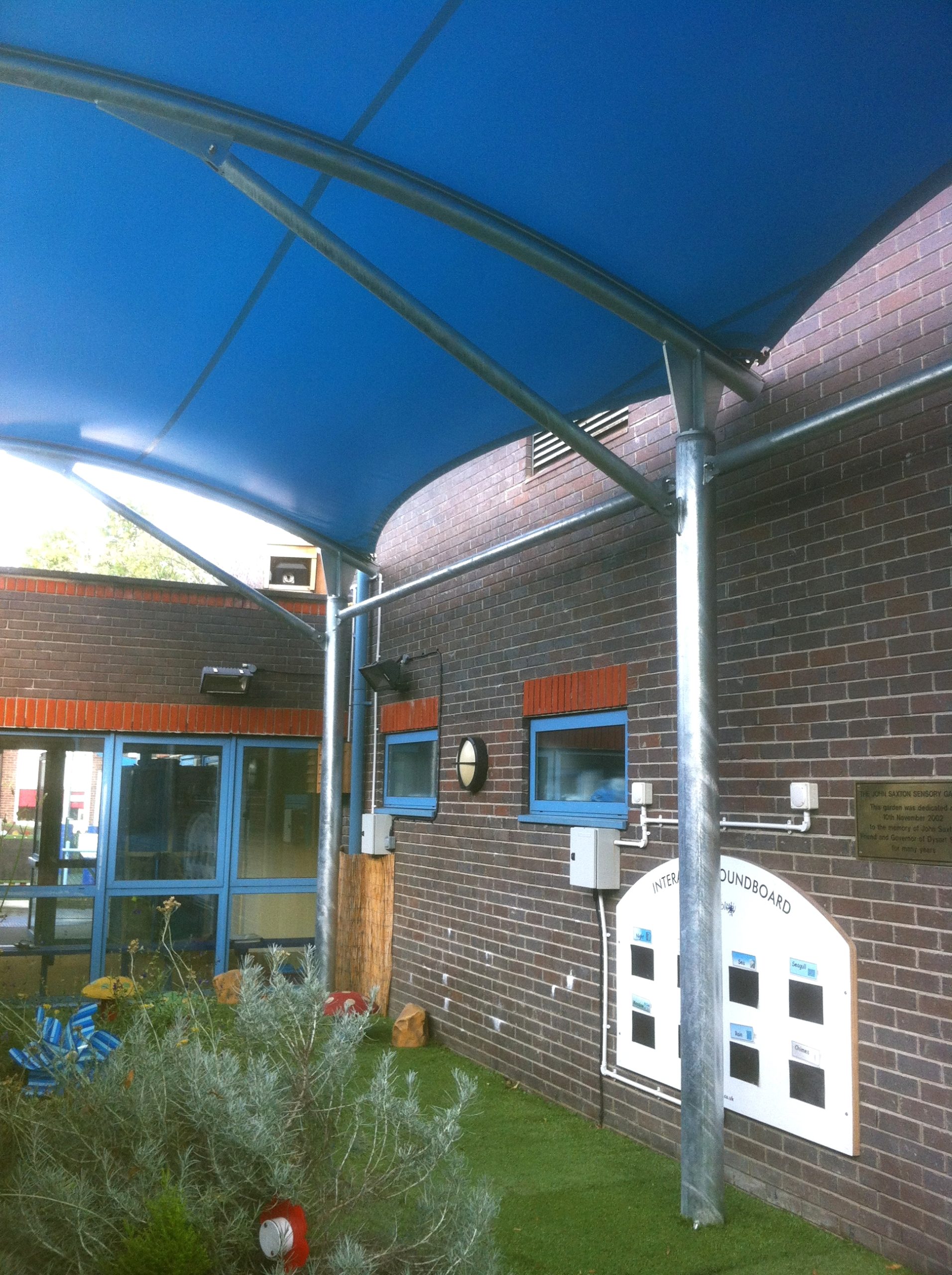

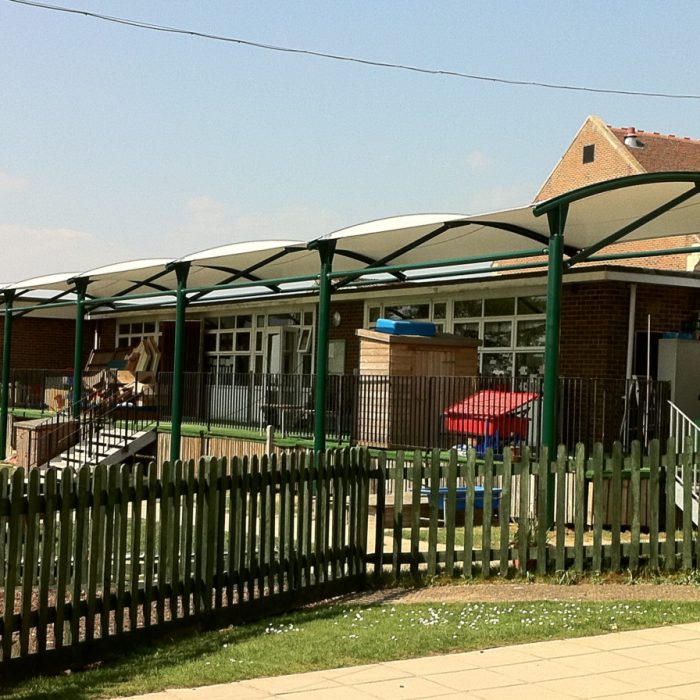

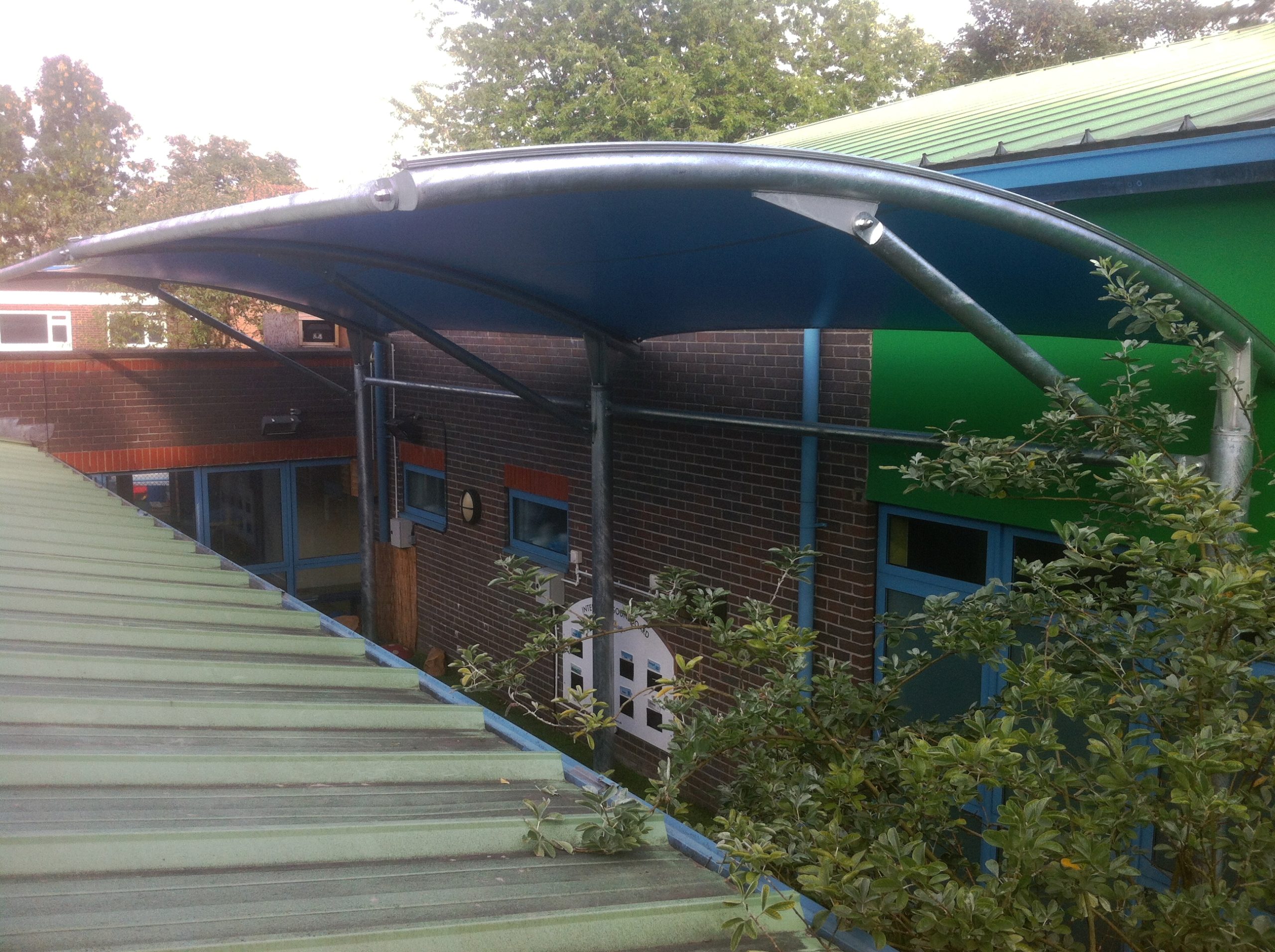

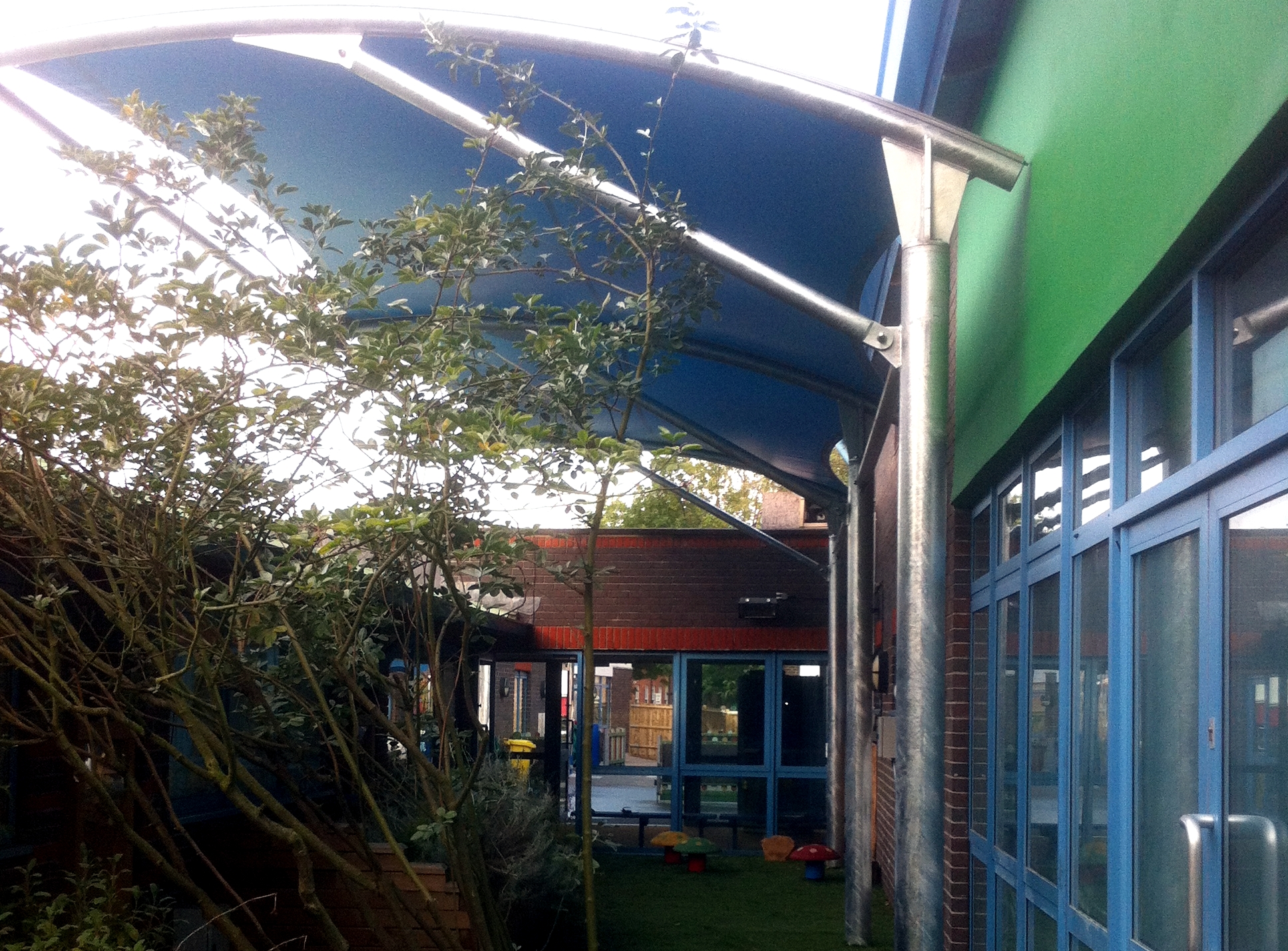

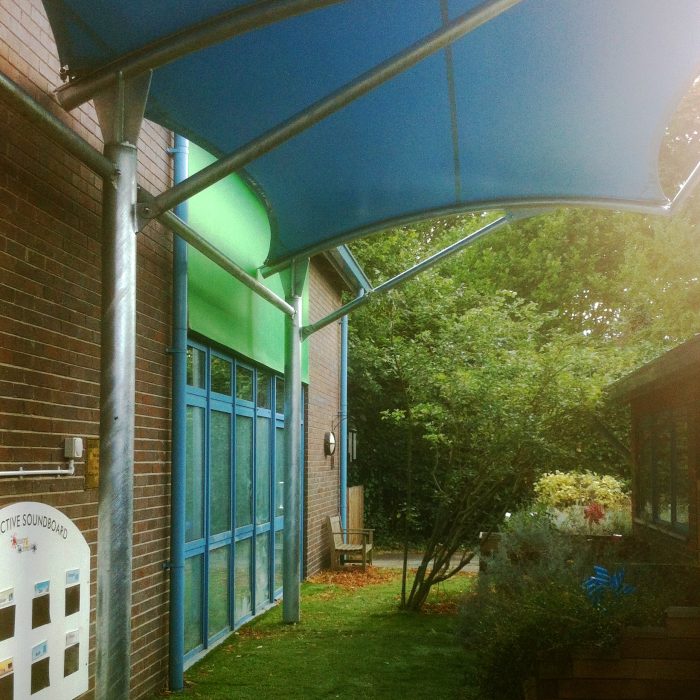

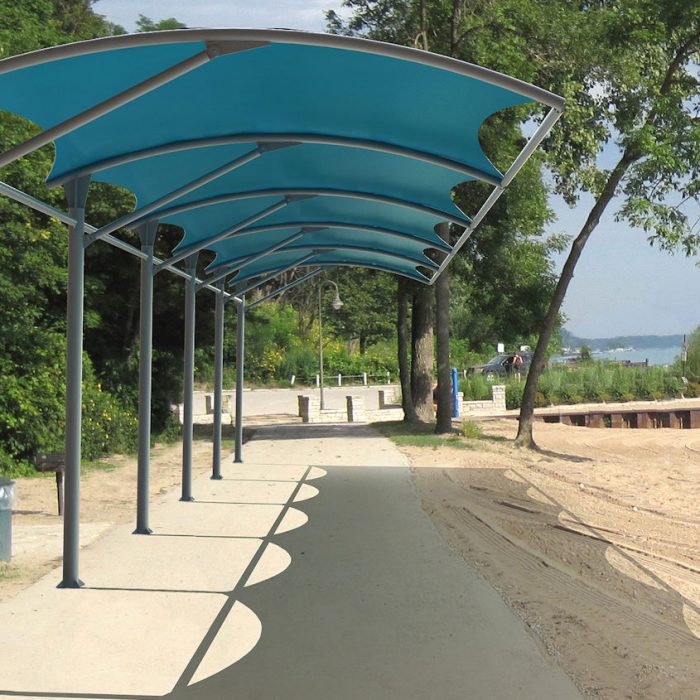

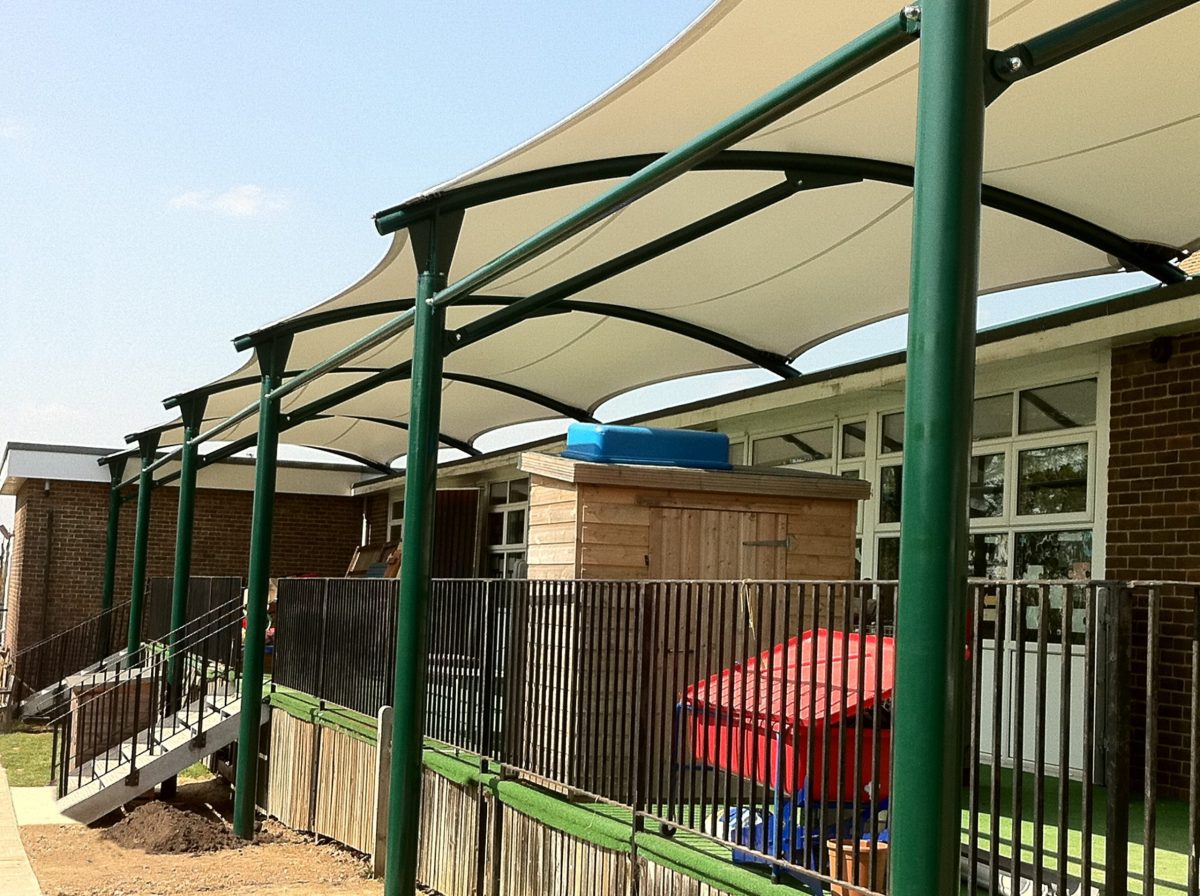

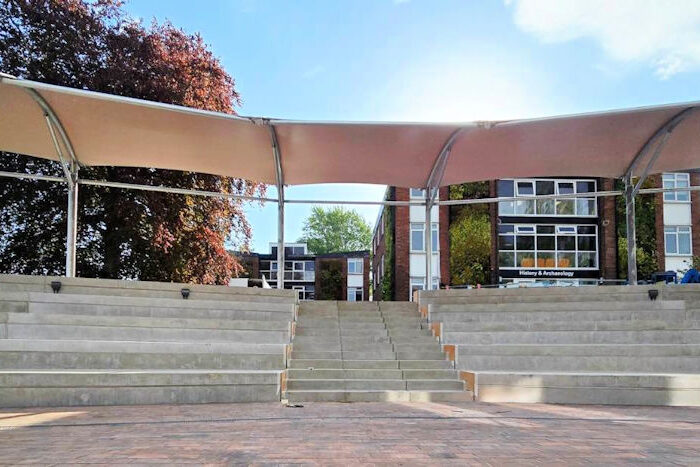

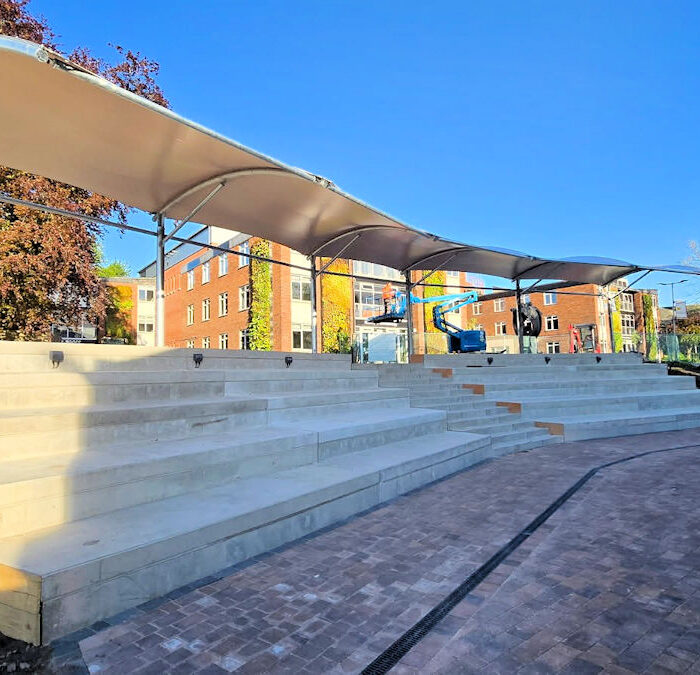

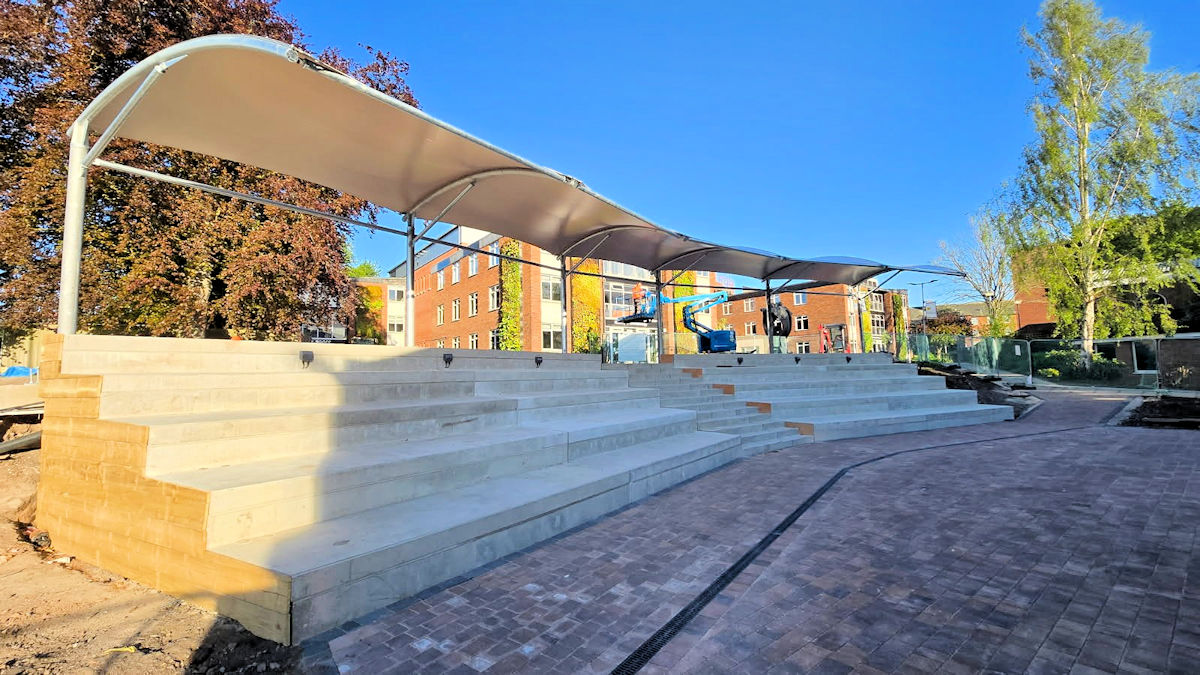

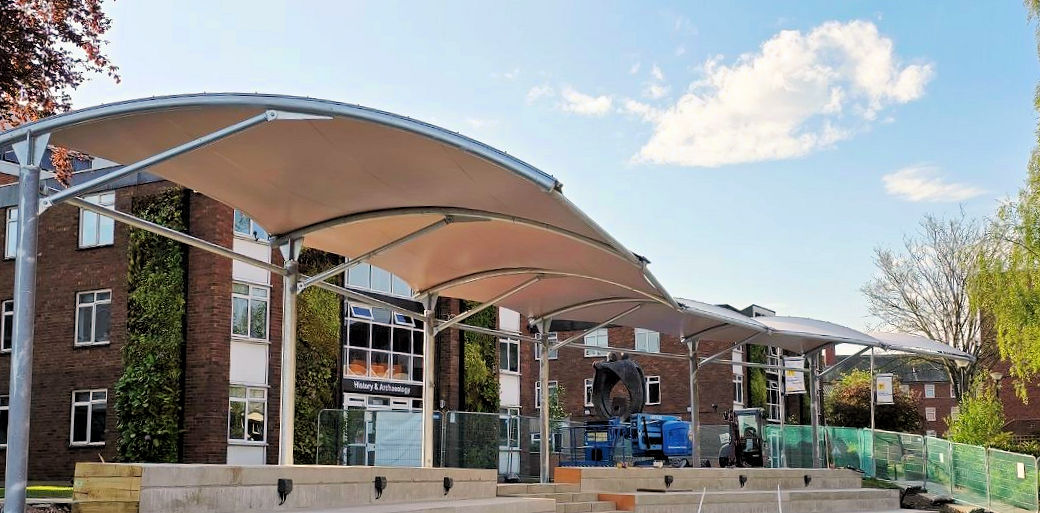

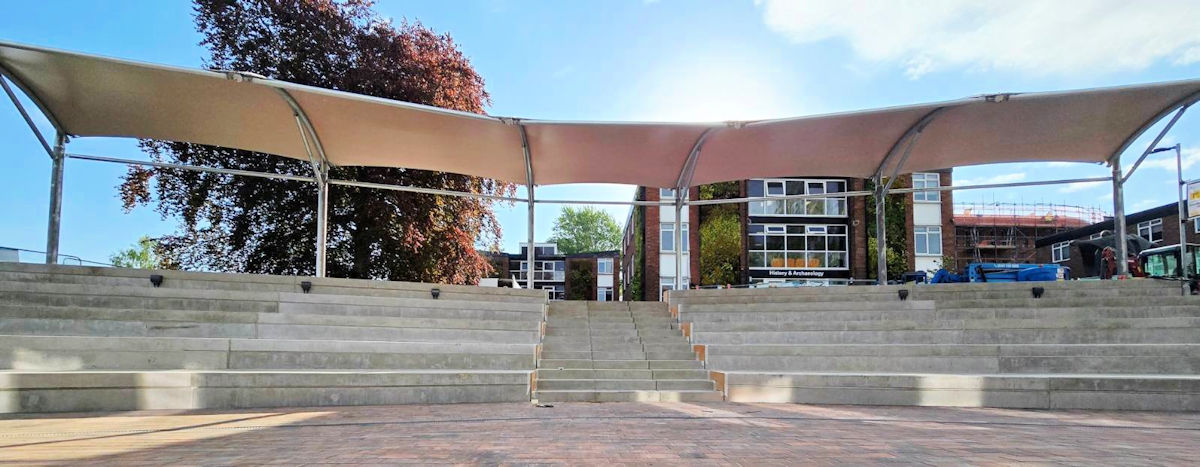

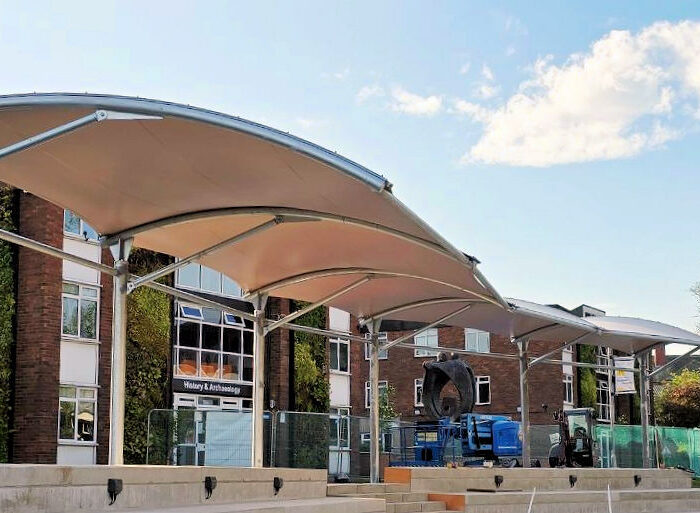

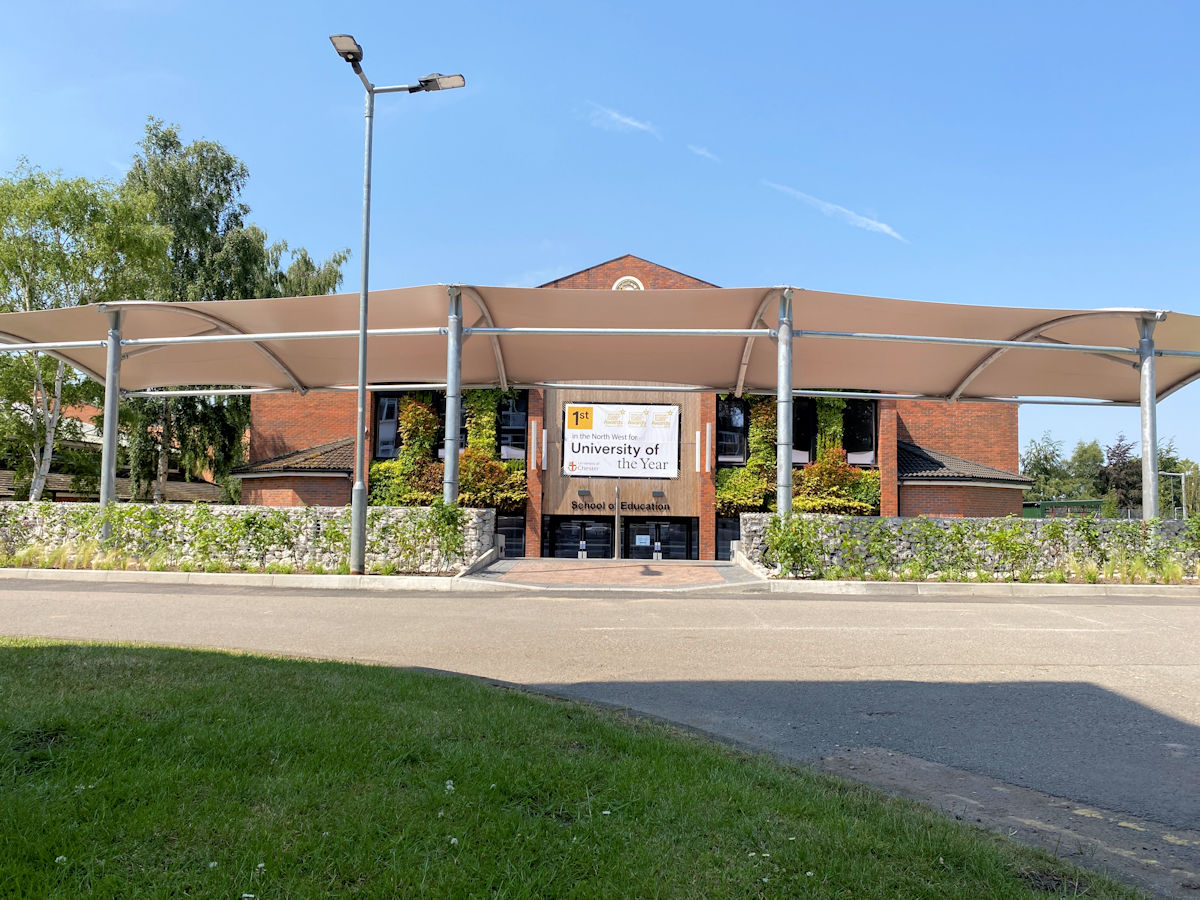

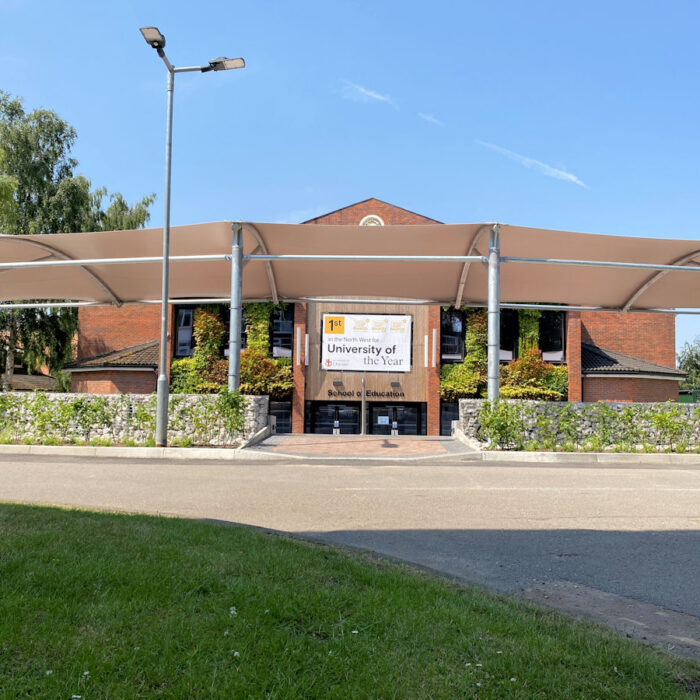

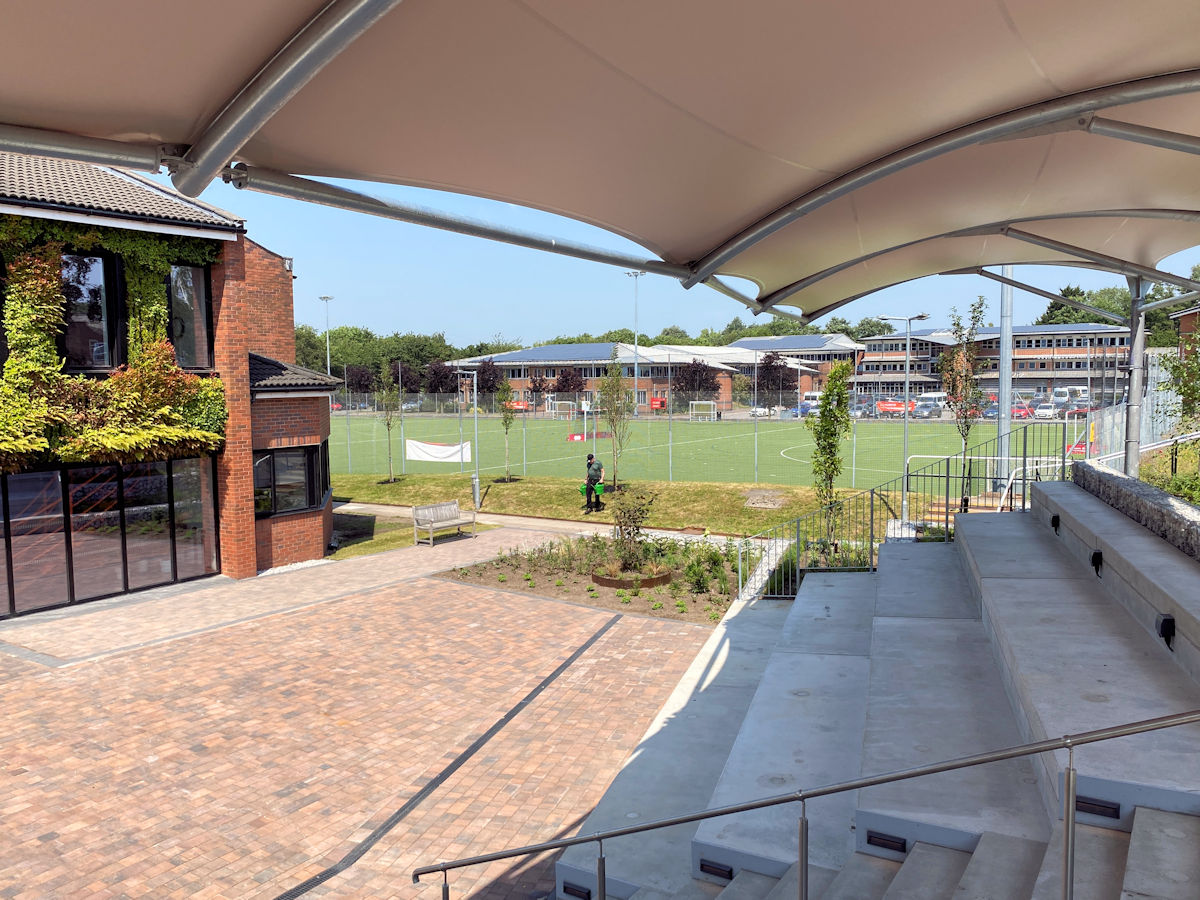

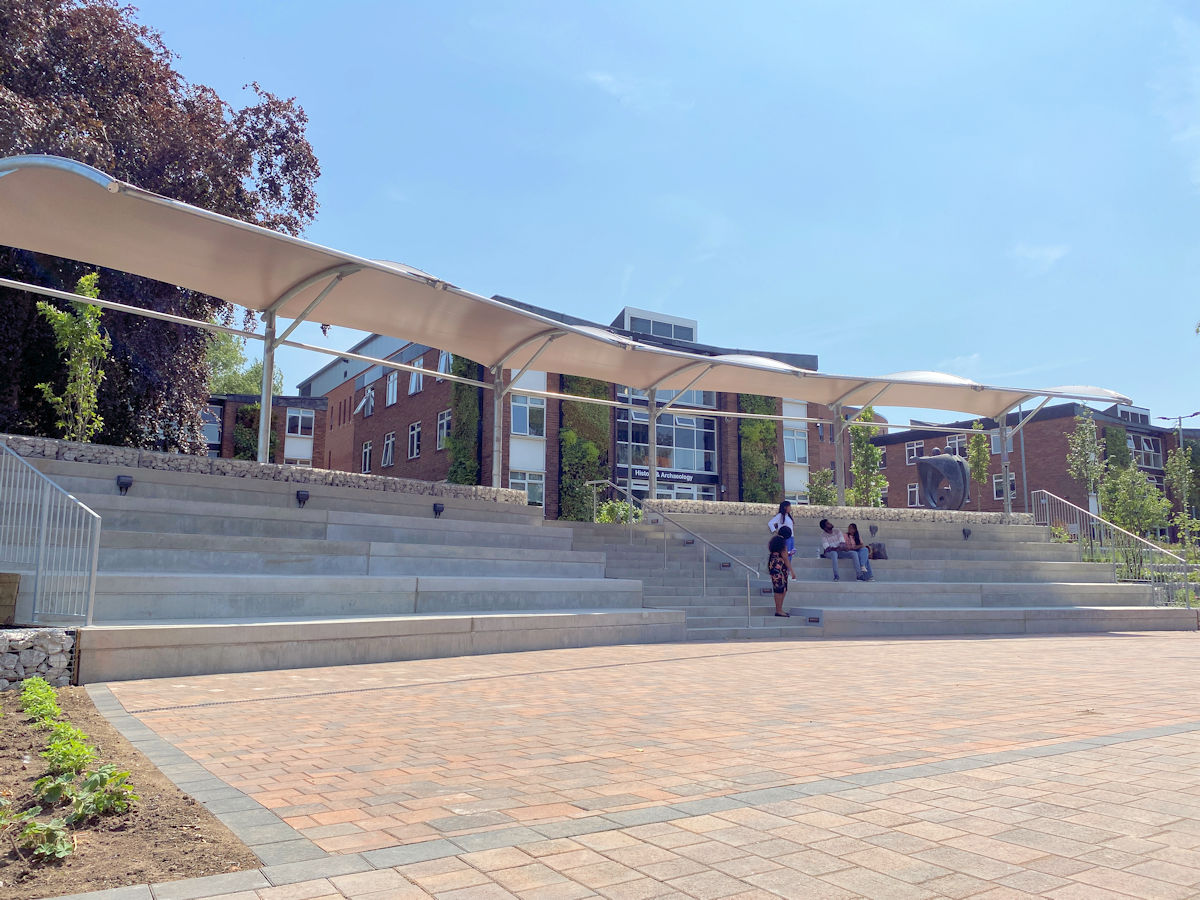

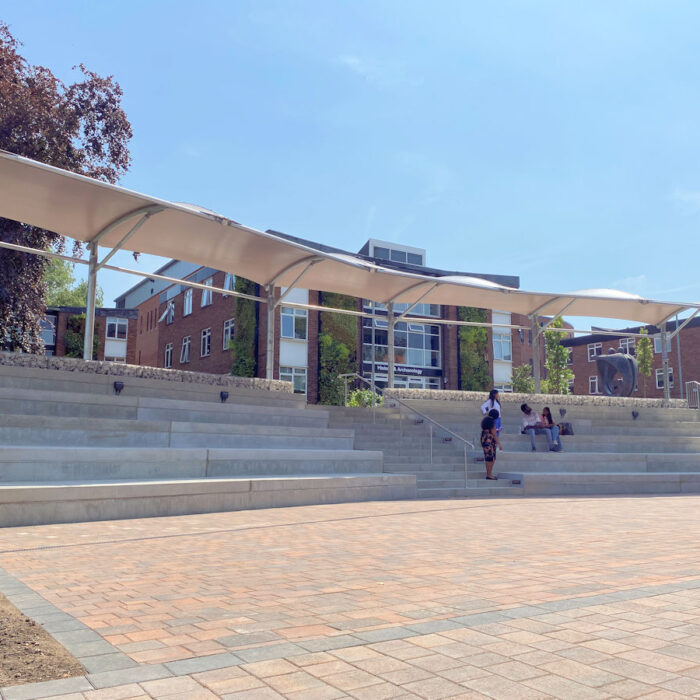

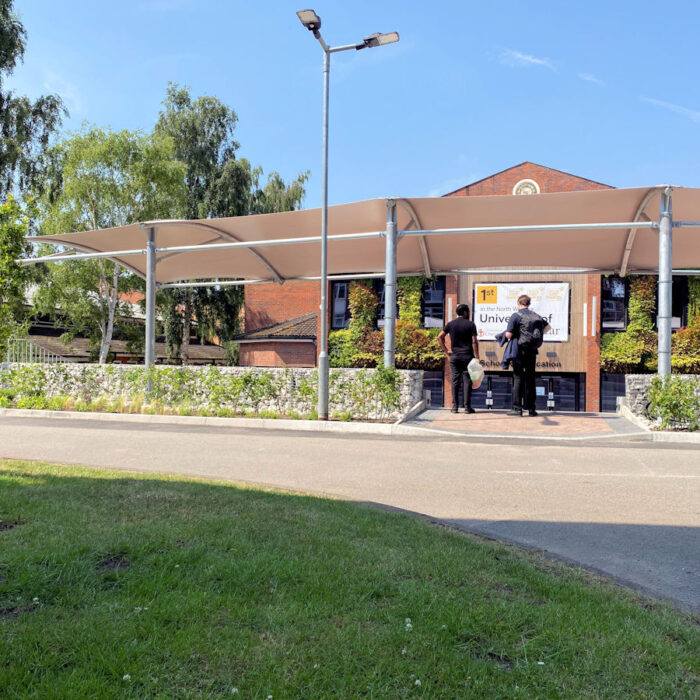

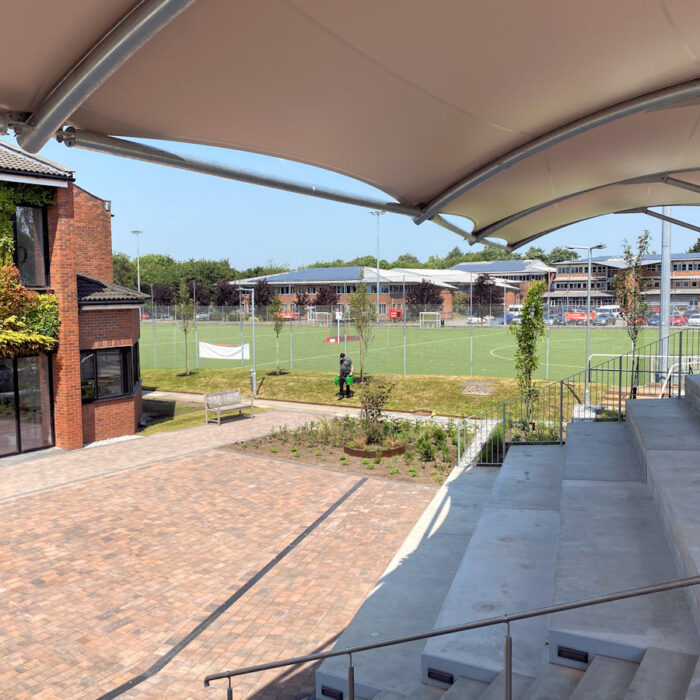

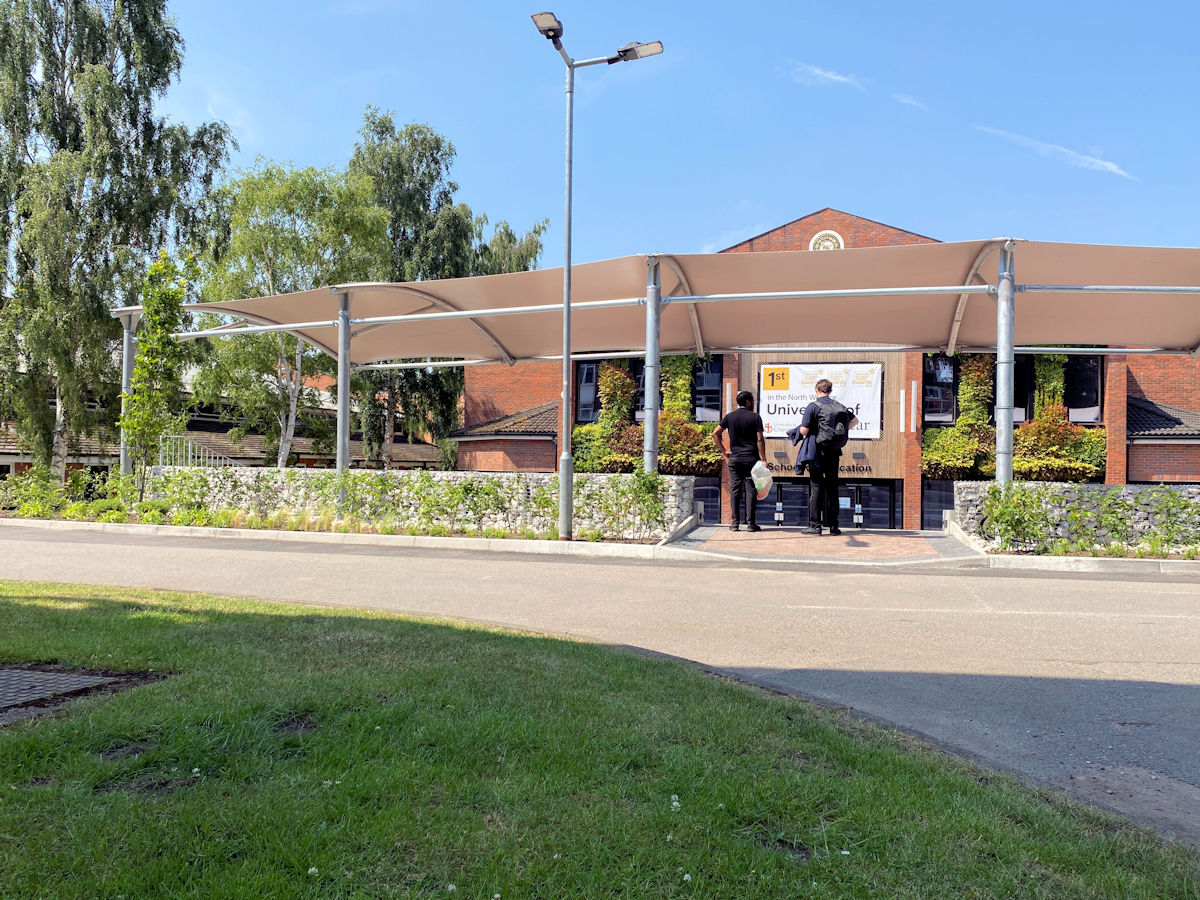

Product Gallery

Design & Specification


Product Data Sheet:

Click here to download the Kendal Cantilever Tensile Fabric Canopy Technical Specification

Technical File Downloads:

Download Kendal Cantilever Tensile Fabric Canopy PDF file
Download Kendal Cantilever Tensile Fabric Canopy DXF file
Download Kendal Cantilever Tensile Fabric Canopy IGES file
Download Kendal Cantilever Tensile Fabric Canopy STL files

Fabric Specification

Our exclusive tensile fabric is completely waterproof and is constructed from a woven base cloth which has high tenacity polyester threads. Throughout the manufacturing process, the fabric is coated under constant tension in both warp and weft directions giving it a high performance polymer surface layer. The exclusive technology used on the yarn, gives it true elongation resistance, so once coated, minimum movement in the finished product will occur which is a key factor in the durability of the fabric on your tensile structure.

The fabric is supplied in white as standard, however there are 39 additional colours to choose from which are available at an additional cost. It can adapt to any required shape and size including walkways and umbrellas which makes them particularly suited to the education and leisure sectors. The flexibility of the fabric allows us to present you with an exciting range of tensile structures in whatever commercial settings you require cover for.

The Kendal Cantilever Walkway requires only periodic cleaning. To clean the structure we recommend a solution of warm water and a non-abrasive cleaner. For more information please see the maintenance schedule which is found in your After Sales pack.

High UV Protection
The tensile fabric is UV stabilised offering the highest UV protection. It blocks up to 99% of the suns harmful UV rays

Excellent Fire Performance
The fabric of the Tensile Structures are tested to BS 7837.

Fabric Weight
The weight of the fabric is 590 g/sqm which gives it ultimate tear and split resistance. The tensile fabric has a strength of 250/250 da N/ 5 cm.


Please see below the NBS specs and BIM models for you to download and add to your project.


(Coming soon)


(Coming soon)

Colour Options


The Kendal fabric roof covering is available in a choice of 40 contemporary and vibrant colours as standard.

View the full colour range of Tensile Colour Options


The framework for the Kendal is available powder coated in any standard RAL colour. Other non-standard RAL colours are available on request at an additional cost.

View the full RAL colour range

Product Brochure

Download our product brochure to view our full range of waterproof shade sails:

Download Canopy Brochure
