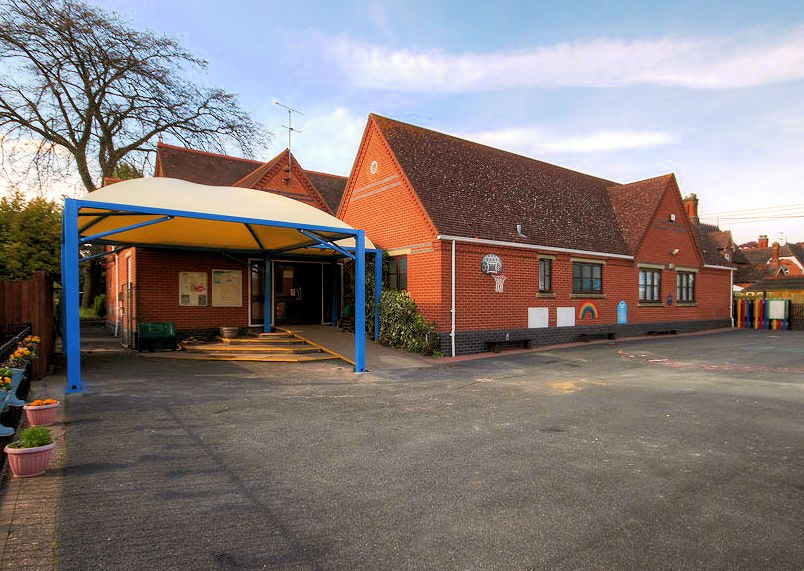

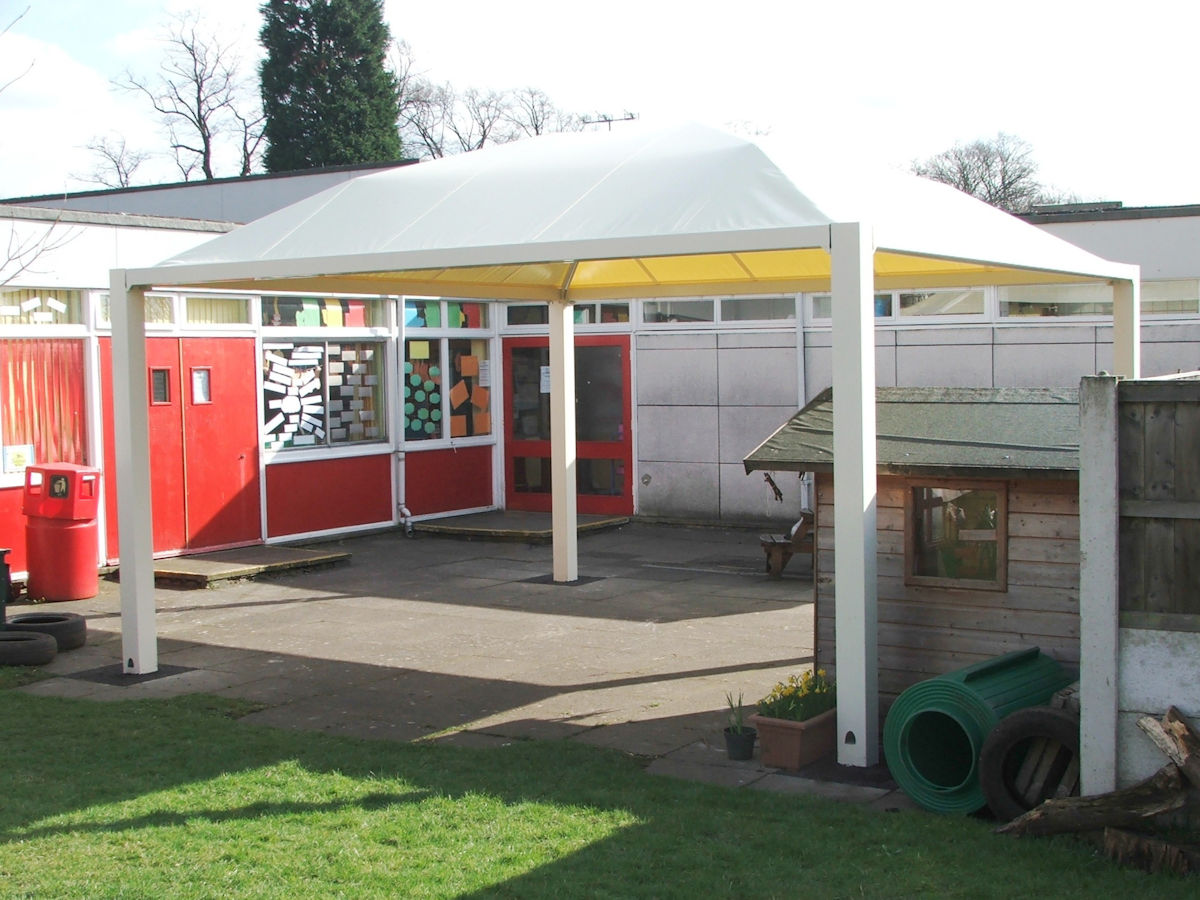

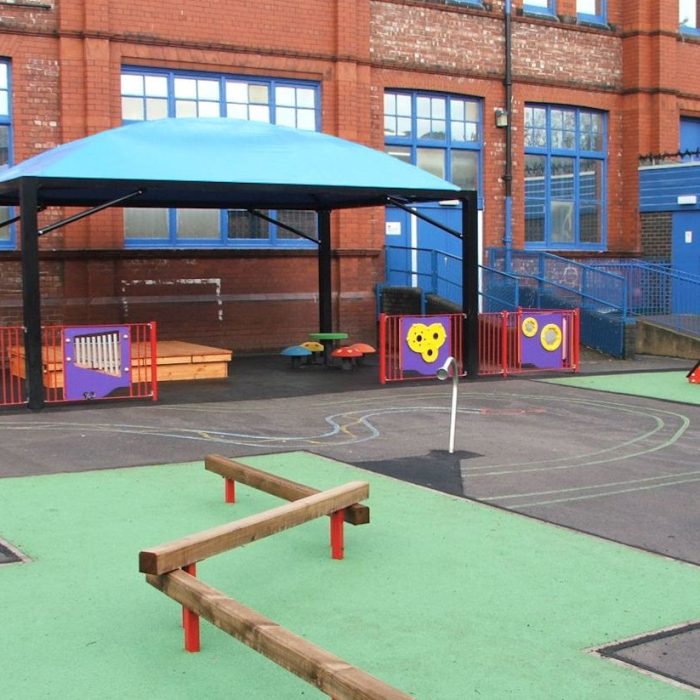

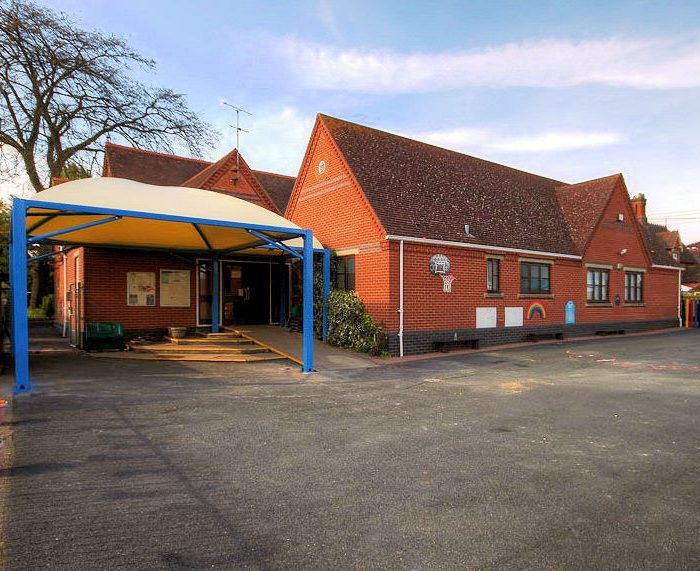

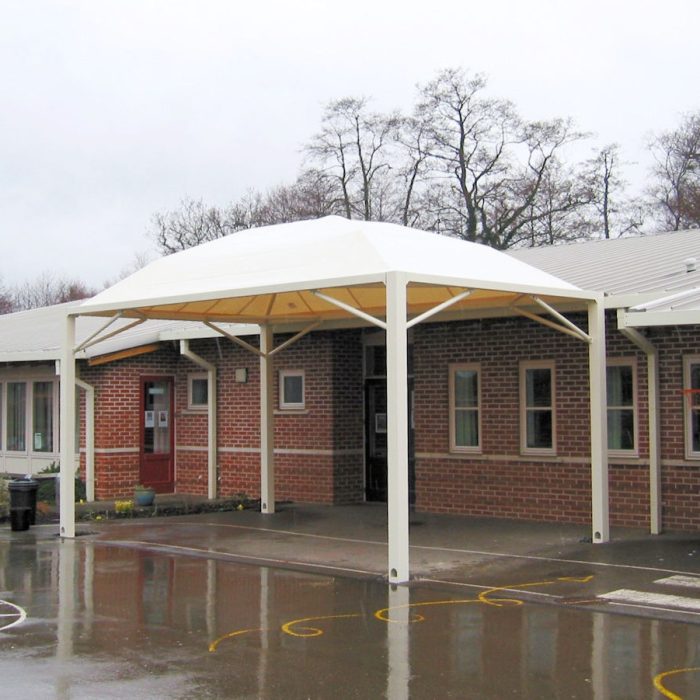

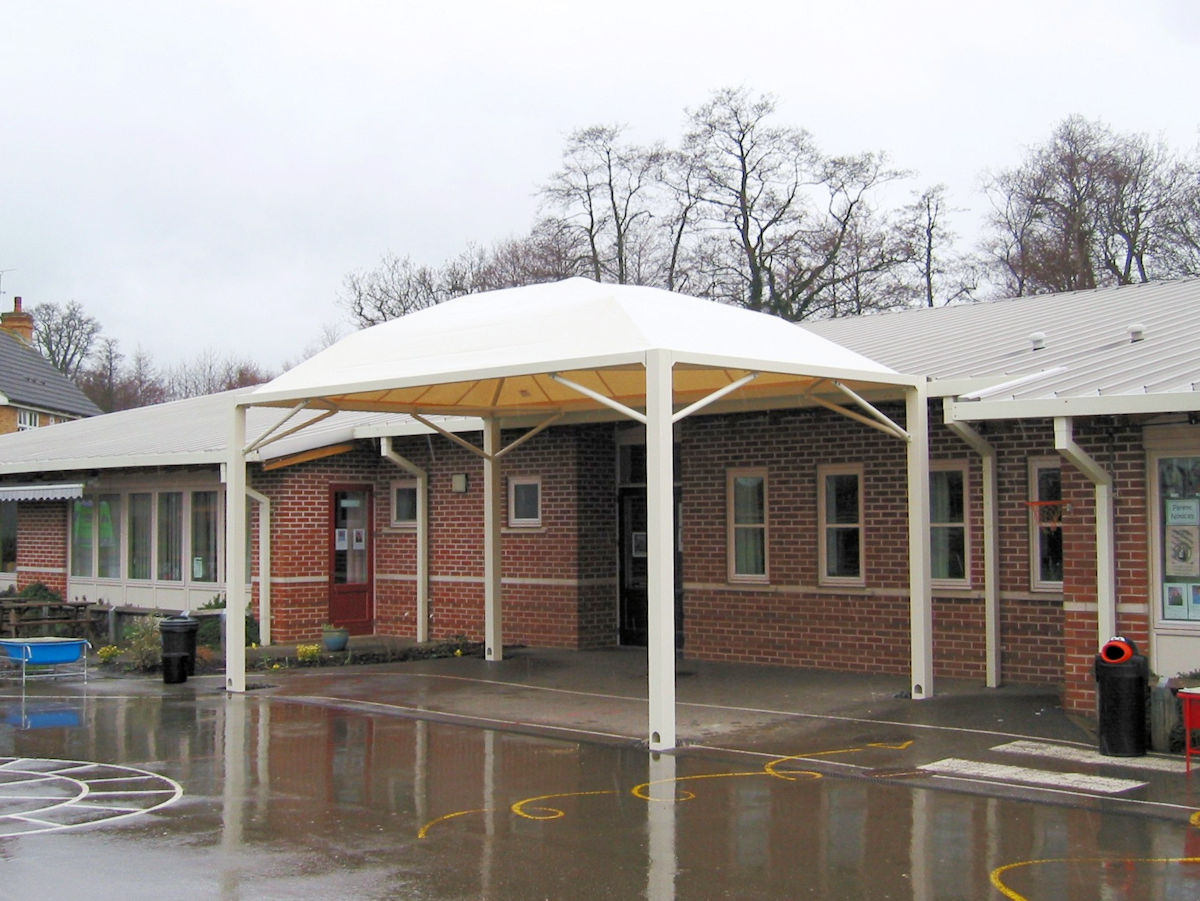

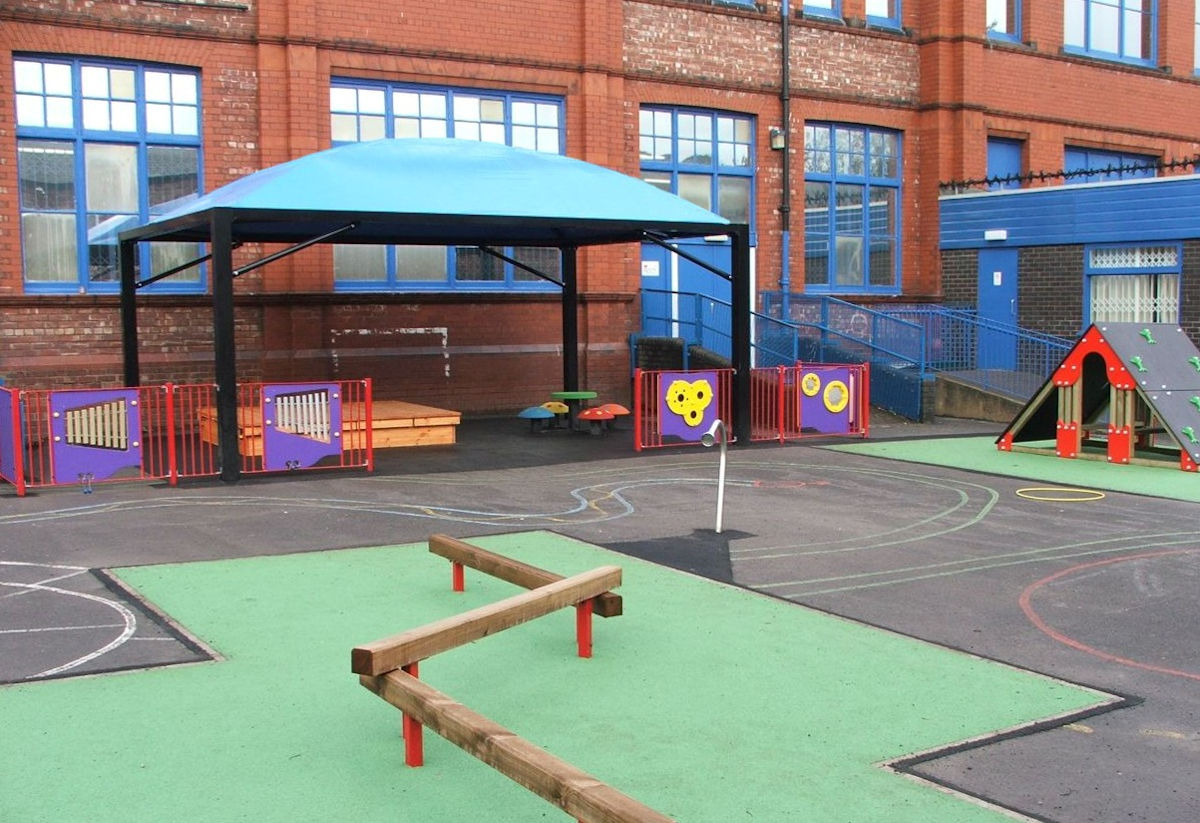

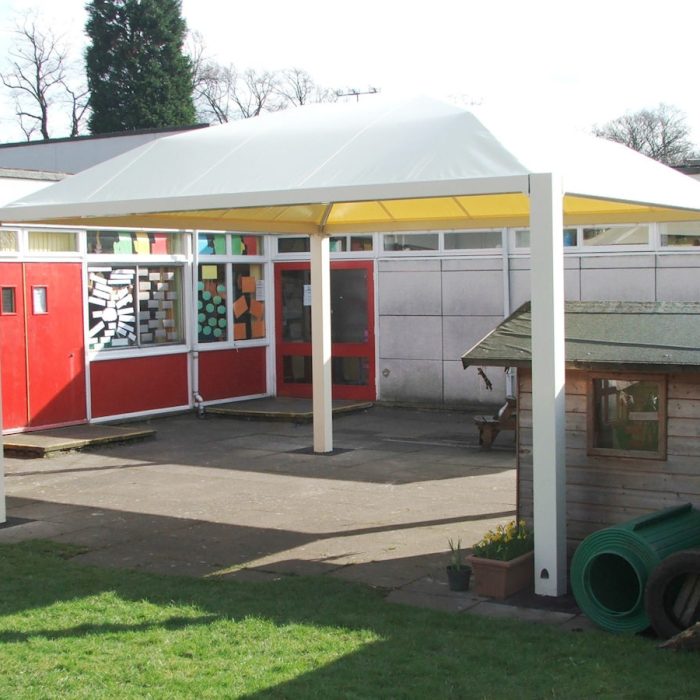

The Windsor is an attractive steel canopy covered with waterproof tensile fabric, which is available in 17 vibrant colours. It is available in a range of sizes from 4m x 4m to cover a small-medium area or up to 9m x 9m and more than one canopy can be installed together to create a larger covered area.

This domed canopy has a modern and fun design and is ideal for creating cover for outdoor play, outside learning, al fresco dining, it is also perfect for use as an events shelter within schools and nurseries.

The Windsor will allow your pupils to play and learn outside all year round whilst keeping them protected from the weather.

The steel frame benefits from integral guttering and downpipes for a seamless, streamlined appearance. It is supplied galvanised and powered coated in a choice of 23 standard RAL colours.

Features and Benefit:

  • Size: Maximum size of one unit is 9m x 9m can be added together to make larger size
  • Main Frame: Strong steel frame supplied galvanised as standard and can be powder coated in a choice of 23 RAL colours
  • Frame Size: The frame is constructed from 150mm x 100mm steel box sections and 150mm x 150mm posts, however this will change depending on the size of the structure
  • Integral Guttering – The guttering and downpipes are hidden within the framework for a sleek and tidy appearance
  • Roof Fabric: Covered with waterproof tensile fabric with a choice of 17 lively colours
  • High UV Protection: The fabric offers high UV protection – ideal for providing protected area where children can play and learn in sunny weather
  • Easy to Clean: The Fabric has a high gloss appearace that is smooth and easy to wash down
  • Optional Extras: The Windsor is available with many upgrades including: post pads, lighting, heating, a skylight, PVCu walls and glazing, terrace screens, roller shutters, seating and bins
  • Fabric Guarantee: The fabric has a 5 year guarantee subject to terms and condtions and a 15 year life expectancy
  • Framework Guarantee: The steel frame has a 10 year guarantee subject to terms and conditions

Design & Specification

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Windsor Tensile Fabric Canopy Technical Specification Sheet

Technical File Downloads:

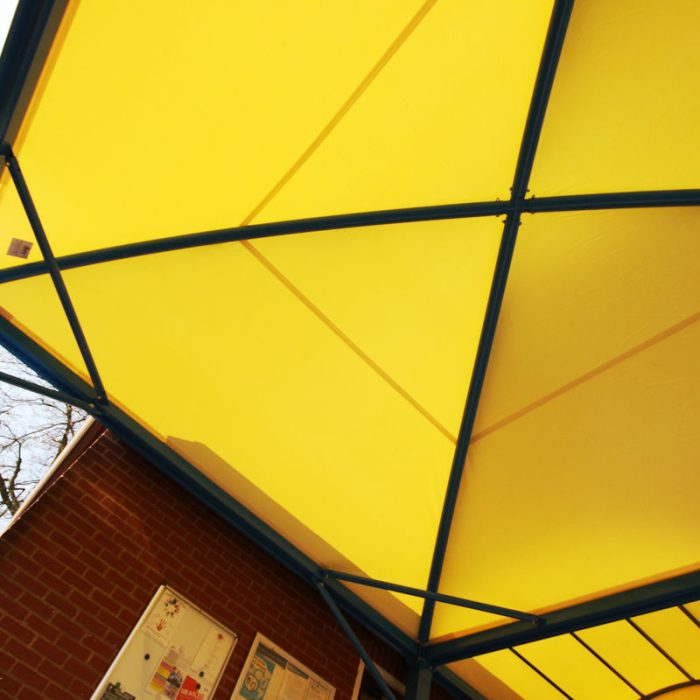

The Fabric:

PVDF Protective treatment – During manufacturing, the tensile fabric is coated with a PVDF treatment. This treatment protects the fabric against harsh and wet weather as well as Sun exposure and has a very good damp resistance, stopping the fabric from harbouring mould and bacteria.

Easy to Maintain – Both sides of the tensile fabric are lacquered which results in a high gloss appearance and makes the fabric extremely smooth, reducing the build-up of organic dirt. The PVDF treatment mentioned above also helps to avoid the acumination of dirt and dust, which keeps your canopy looking new for longer.

High UV Protection – The fabric provides up to 100% UV protection from the Sun. It is also resistant to UV degradation, which helps it to keep its colour vibrancy and shine.

High Strength – The fabric has a weight of 650gsm and a high strength of ca 250 DaN/5 cm in Warp and ca 230 DaN/5 cm in Weft. It has a tear resistance of ca 30 DaN/5 cm in Warp and ca 30 DaN/5 cm in Weft.

Heat Resistance – The fabric has a wide heat resistance range from -30°c to +70°c

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

(Coming soon)

BIM:

(Coming soon)

Colour Options

The Fabric

The Windsor tensile fabric is available in 17 vibrant colours. Please click here to view the colour chart

The Framework

The steel frame is supplied galvanised and can be powder coated in any of the 23 standard RAL colours shown here
