Codale Conic Tensile Fabric Structures

Codale Conic Tensile Fabric Structures

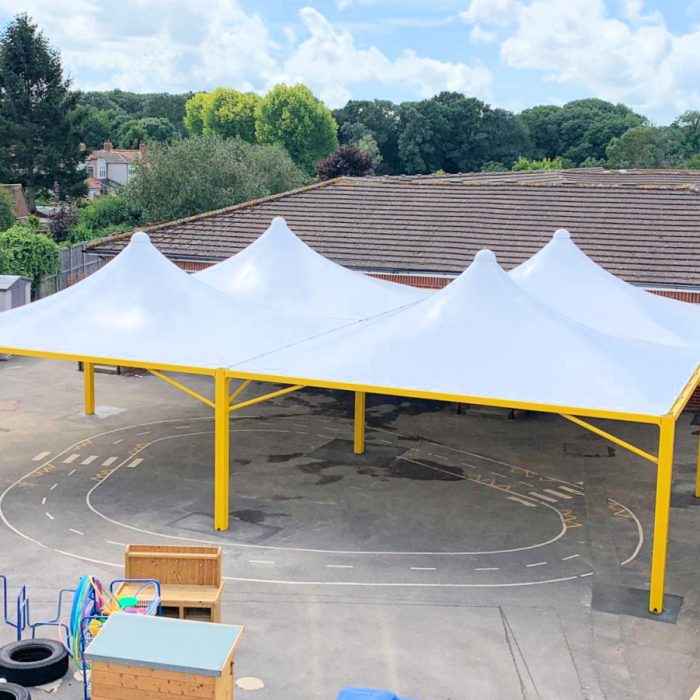

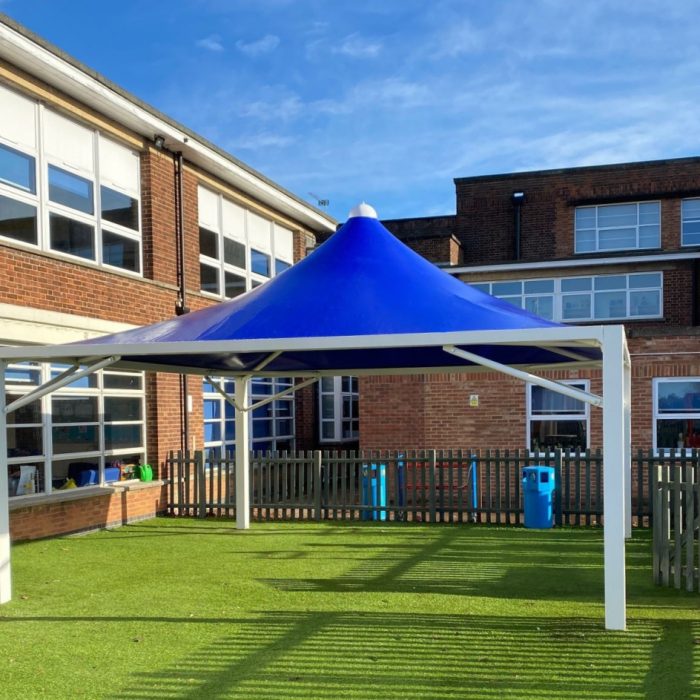

The Codale Conic is a stylish canopy that is perfect for a range of applications including a colourful playground canopy, outdoor dining canopy and student social or study canopy. It can span from 3m x 3m to 10m x 10m as a single unit. Or unlimited lengths and widths by installing multiple structures together.

This cost effective shade and shelter structure is constructed from a galvanised steel frame that can be coloured in a choice of 23 matt colours including natural and vibrant shades. Integral guttering is hidden within the canopy beams and drains down the canopy leg posts. This gives the canopy a sleek, clean line appearance.

The frame is covered with high quality 650gsm waterproof tensile fabric that is also available in 17 different colours. The roof fabric offers 100% UV protection and is completely waterproof, fire retardant and has anti-fungicidal properties.

Features and Benefits:

  • Size – The Codale Conic can cover small or large areas from 3m x 3m to 10m x 10m as a single structure, or unlimited lengths and widths by installing multiple structures together
  • Frame – The Codale Conic’s frame is constructed from robust galvanised steel box sections
  • Choice of Frame Colours – The frame is supplied powder coated in a choice of 23 neutral and vibrant matt colours, it can also be supplied in a galvanised only finish
  • Integral Guttering –Integral guttering is supplied as standard and is concealed within the canopy beams for a sleek appearance
  • Roof Material – 650gsm waterproof tensile fabric that has a high gloss appearance
  • Fabric Colours – Available in 17 bright and vibrant to mellow and neutral colours
  • High UV Protection – The waterproof fabric offers 100% protection against UV rays
  • Anti-Fungicidal – The roof fabric has anti-fungicidal properties making maintenance easier and required less often
  • Modular Design – Extensions can be added to the Codale at a later date if required
  • Optional Extras – The Codale can be supplied with post pads, lighting, heating, PVCu walls & glazing, terrace screens and secure roller shutters
  • Guarantee – The fabric has a 5 year guarantee and the frame has a 10 years guarantee, both are subject to terms and conditions

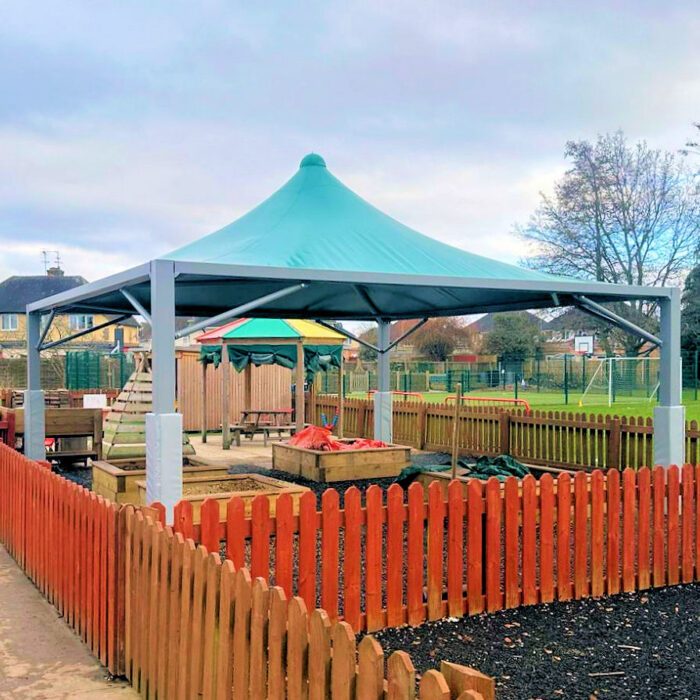

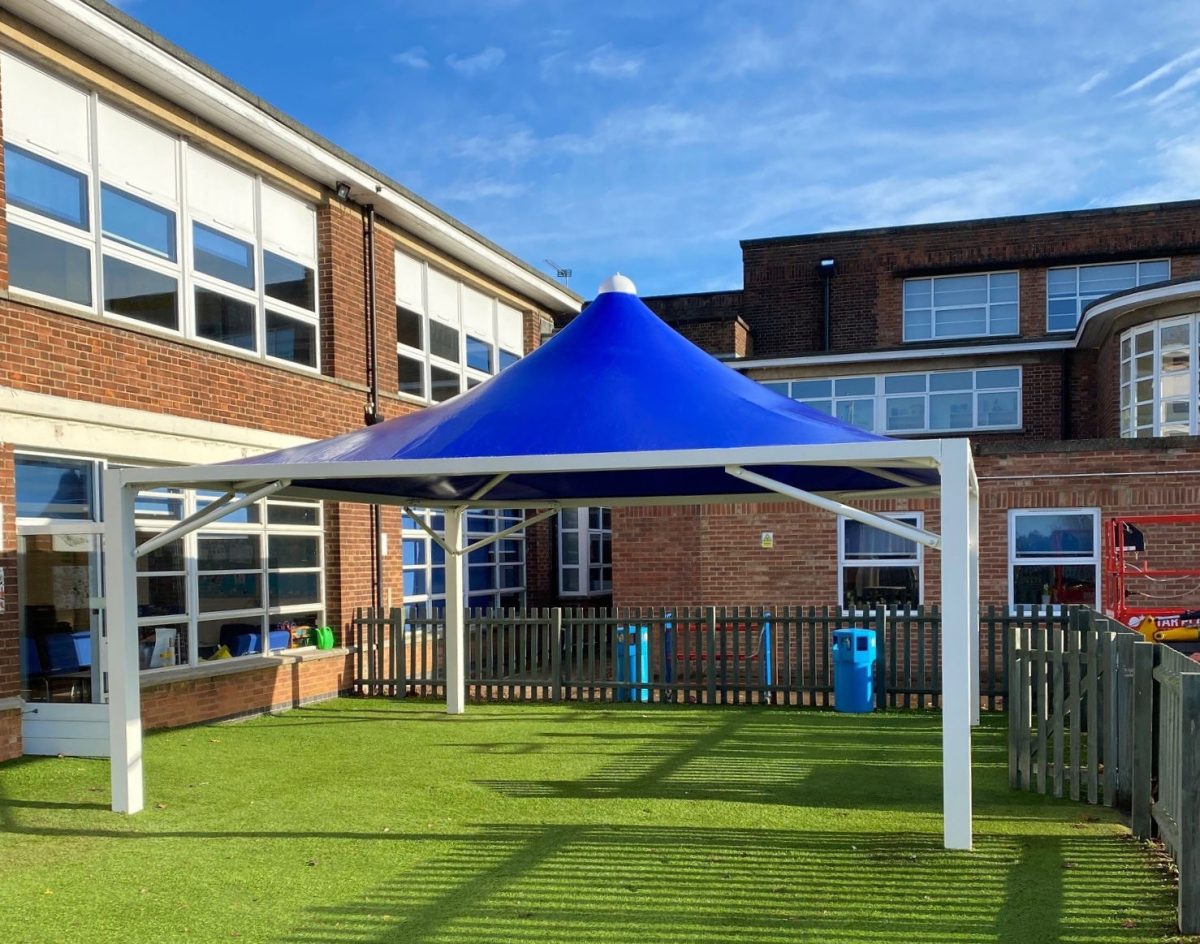

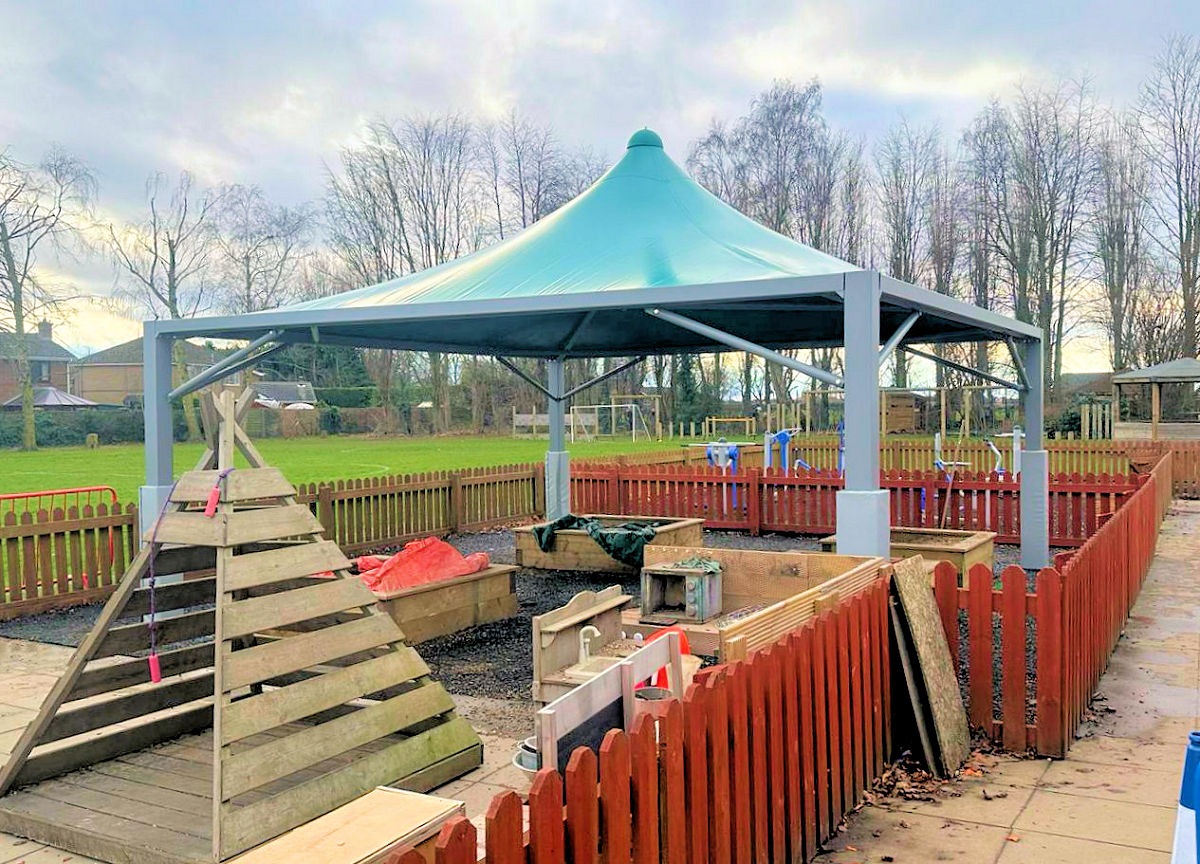

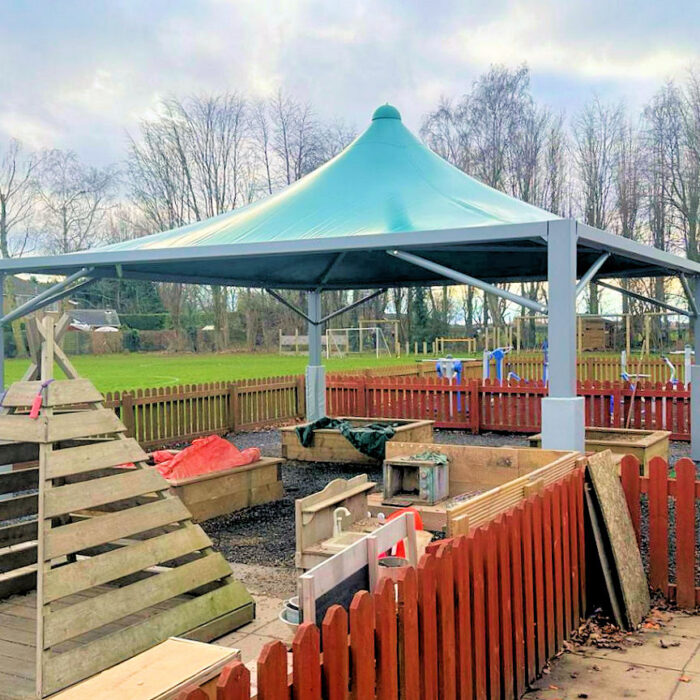

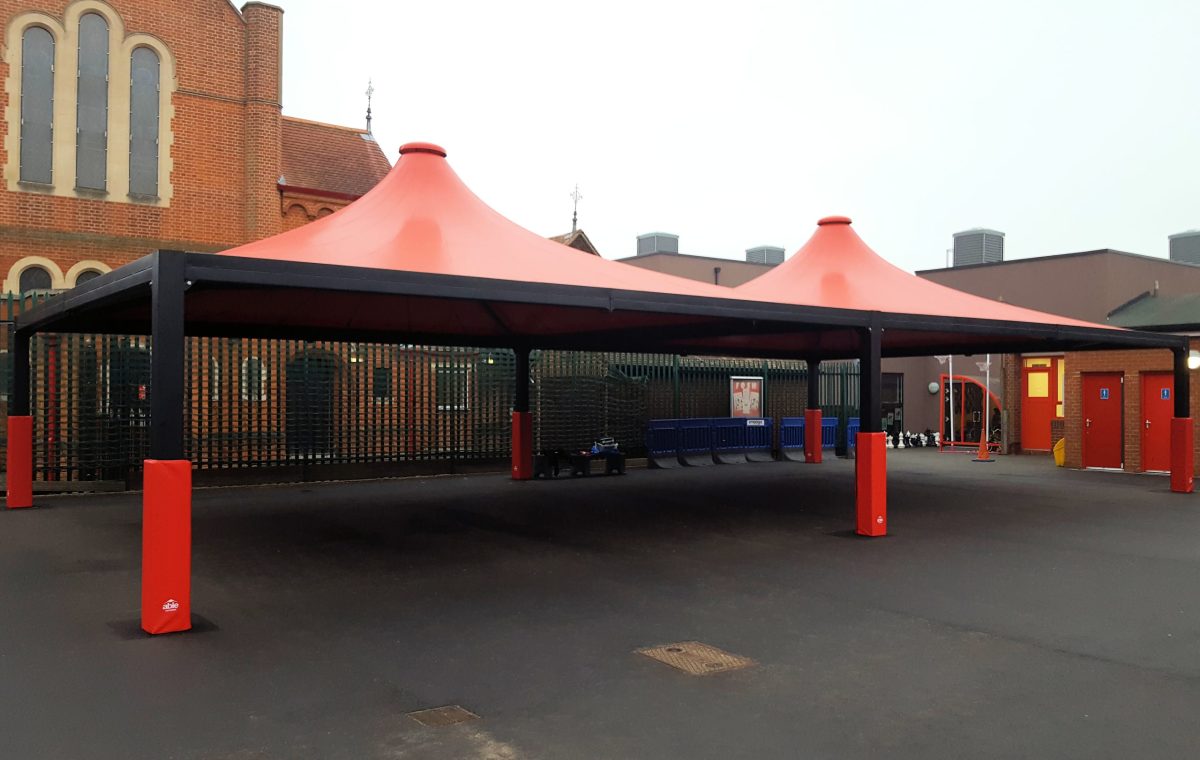

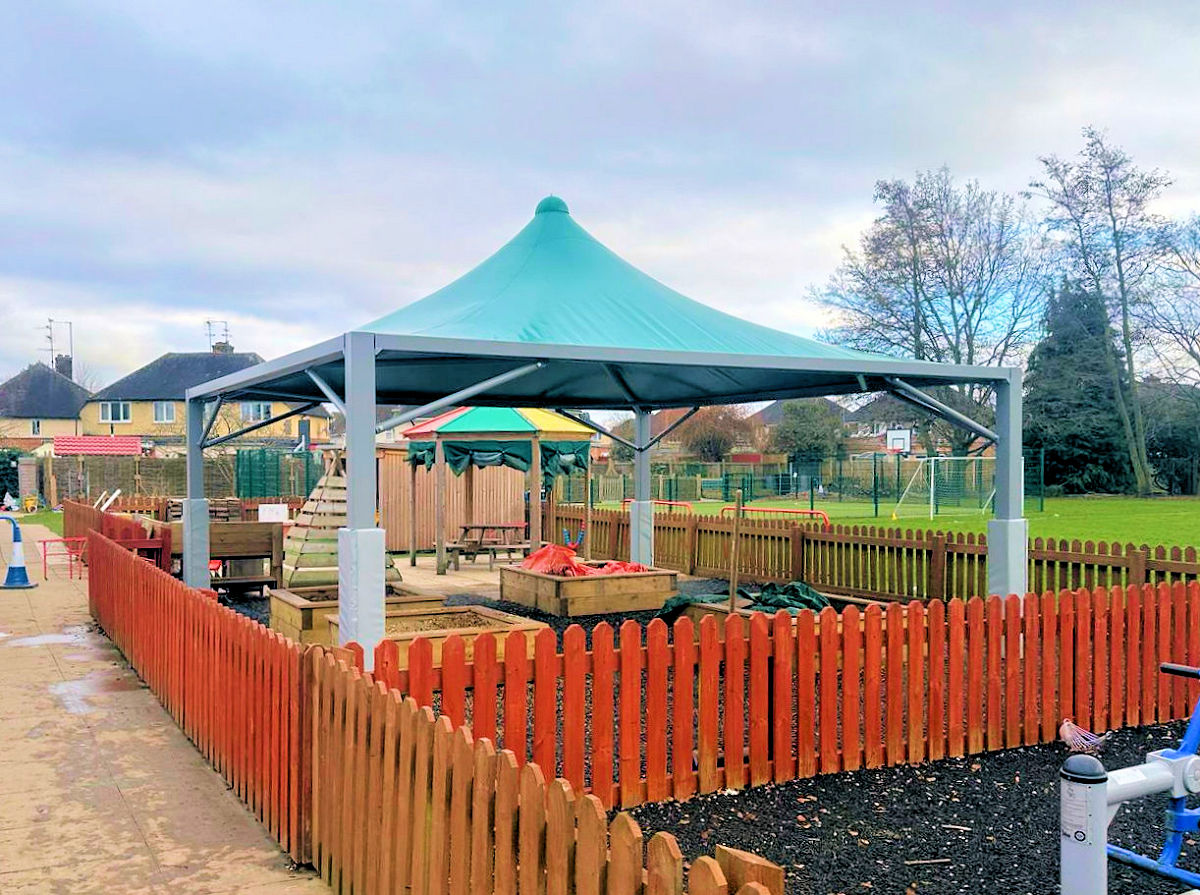

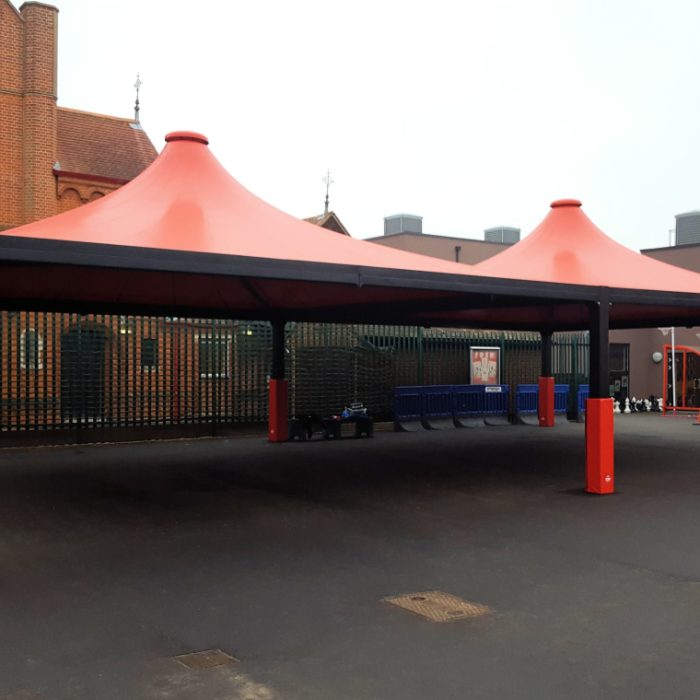

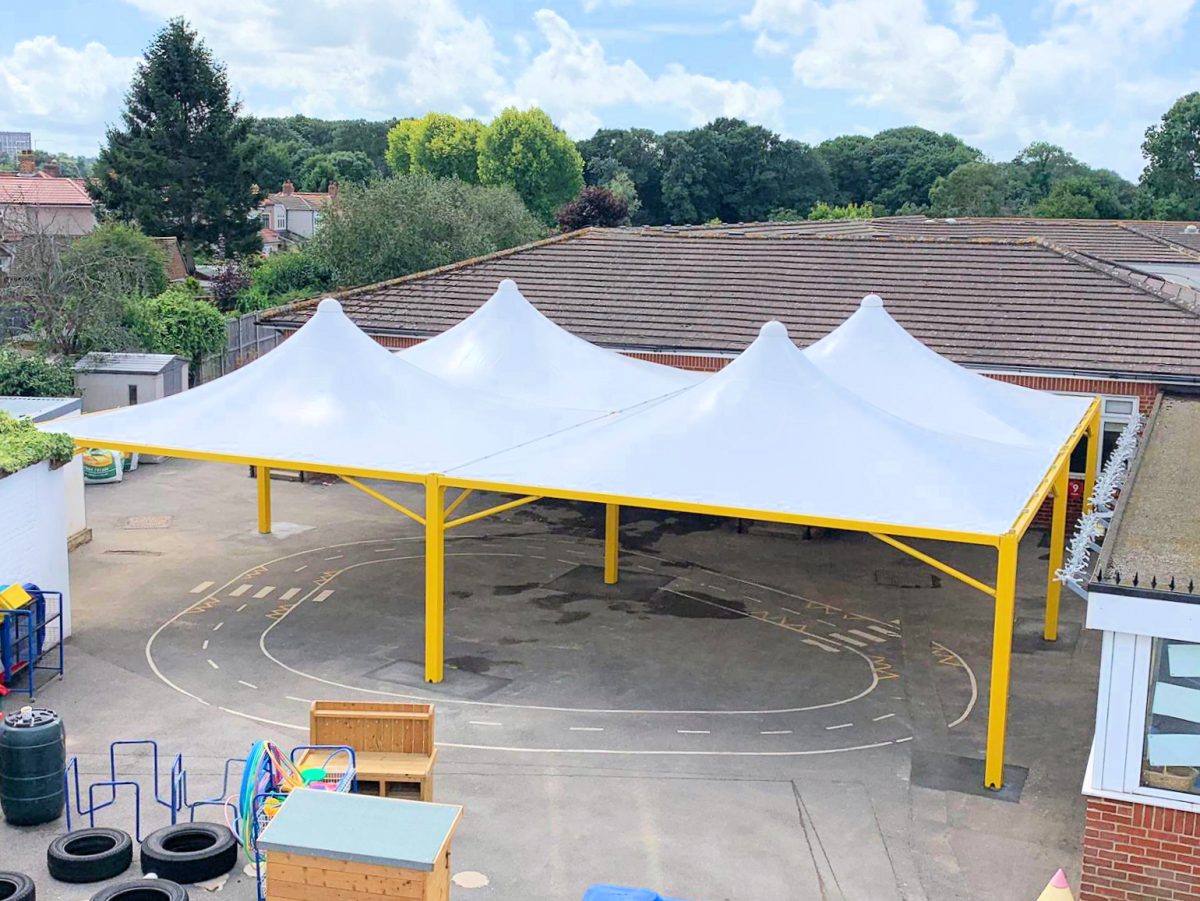

Product Gallery

Design & Specification

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Codale Conic Tensile Canopy Technical Specification Sheet

Technical File Downloads:


The Fabric:

Varnished PVC coated polyester fabric – Which is lacquered for a high gloss appearance

PVDF Protection treatment – The fabric is treated with a PVDF coating which resists against harsh weather such as heavy rain/hail and sun exposure and has a very good damp resistance stopping the fabric from harbouring mould and bacteria. This protection also avoids the acumination of dirt and dust which in turn makes the cleaning your canopy easier and required less often.

High UV Protection – Offers 100% UV protection to those underneath and is also resistant to UV degradation which results in a high retention of the vibrant colour and shine.

High strength – The fabric has a weight of 650gsm and a high strength of ca 250 DaN/5 cm in Warp and ca 230 DaN/5 cm in Weft. It has a tear resistance of ca 30 DaN/5 cm in Warp and ca 30 DaN/5 cm in Weft.

Heat resistance – The fabric is heat resistant to temperatures as cold as -30°c and as high as +70°c.

The Frame:

The Codale Conic can span unlimited lengths and widths by seamlessly combining multiple canopies together, with a maximum of 7 meters between posts.

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

Frame

The Codale Conic frame is available in 23 matt colours; please click here to view the colour chart

Fabric

The fabric is available in a choice of 17 different colours; please click here to view the colour chart
