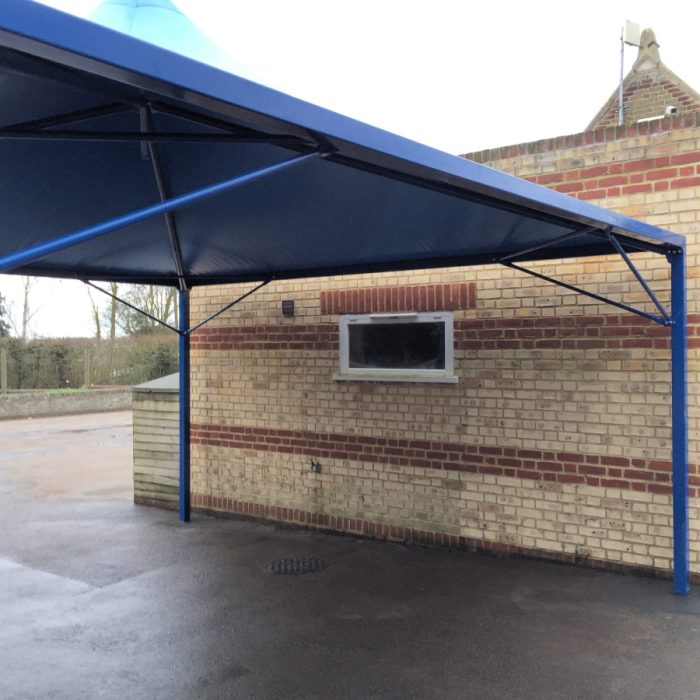

The Codale Junior is a cost effective version of the Codale Conic, it is suited to those that have smaller budgets and would like to create cover areas up to 25m². Popular uses for this product includes outdoor classrooms, playground canopies and al fresco dining shelters.

This steel structure has a waterproof tensile fabric roof that offers high levels of UV protection from the Sun and also shelters those underneath from the rain, wind and snow, making it perfect for creating year-round outdoor cover.

The frame is supplied galvanised and matt powder coated in a choice of 23 RAL colours and the fabric is also available in a choice of 17 different shades including bright & vibrant primary colours ideal for Early Years environments and subtle colours that are suited to commercial or hospitality environments.

Features and Benefits:

  • Can Cover Areas up to 25m² – The Codale Junior can span from 3m up to 5m and can be square or rectangular
  • High UV Protection – The roof fabric offers high UV protection from the Sun
  • Waterproof Structure – The Codale Junior is completely waterproof making it perfect for use all year round
  • Steel Frame – The frame is constructed from strong galvanised steel box sections that are 80mm x 80mm
  • Integral Guttering System – The guttering and downpipes are hidden within the canopy frame which results in less maintenance required and a sleek, square appearance
  • Base Plates Fixings – The canopy is fixed to the ground using base plates and Hilti fixings
  • High Quality Fabric – The fabric is 650g/sm PVC that is lacquered on both side for a high gloss appearance
  • Minimal Maintenance Required – The Varnish on the fabric creates a smooth finishes so dirt particles are less like to embed into the fabric resulting in minimal maintenance being required
  • Choice of Fabric Colours – The fabric is available in 17 colours
  • Choice of Frame Colours – The frame is supplied galvanised and can be powder coated in a choice of 23 RAL matt colours or left with a galvanised finish
  • Fire Resistance – The fabric is fire retardant to M2, BS7837:1996, BS7157
  • Up to 10 Year Guarantee – The Fabric has a 5 year guarantee and a life expectancy of 15 years. The steel frame has a 10 year guarantee, both are subject to terms and conditions.
  • Available Upgrades – Heating and lighting, PVCu fabric walls and terrace screens

Design & Specification

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Codale Junior Tensile Fabric Canopy Technical Specification Sheet

Technical File Downloads:


The Fabric:

High strength – The fabric has a weight of 650g/sm and a high strength of ca 250 DaN/5 cm in Warp and ca 230 DaN/5 cm in Weft. It has a tear resistance of ca 30 DaN/5 cm in Warp and ca 30 DaN/5 cm in Weft.

High Gloss Appearance – The fabric is PVC coated polyester that is lacquered on both sides which gives leaves it with a high gloss appearance.

PVDF Treatment – The fabric is coated with a PVDF treatment which offers a high resistance to atmospheric conditions such as heavy rain/hail and sun exposure. It has a fantastic damp resistance which stops the fabric from harbouring bacteria and mould. The PVDF treatment also avoids the collection of dirt and dust which results in canopy requiring less maintenance less often.

High UV Protection – The fabric offers high protection against UV rays, keeping those underneath safe, it is also resistant to UV degradation which results in a high retention of the vibrant colour and shine.

Heat resistance – The fabric is heat resistant to temperatures as cold as -30°c and as high as +70°c.

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

(Coming soon)

BIM:

(Coming soon)

Colour Options

Frame

The Codale Junior frame is available in 23 matt colours from vibrant to mellow; please click here to view the colour chart.

Fabric

The fabric is available in a choice of 17 colours; please click here to view the colour chart.

Testimonials

“A fantastic structure designed and completed by a friendly team. Would recommend!”

The Wyvern School, Kent – View Installation


“Easy to do business with. Assistance with planning application was key.”

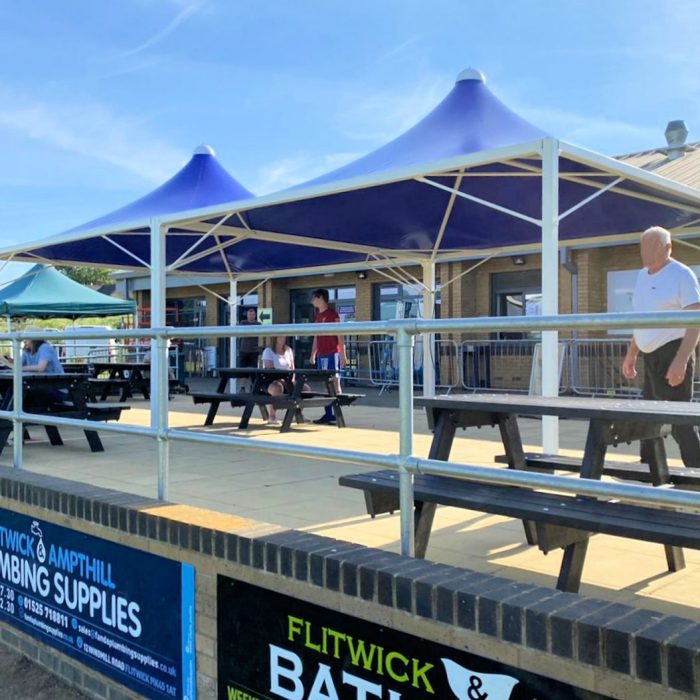

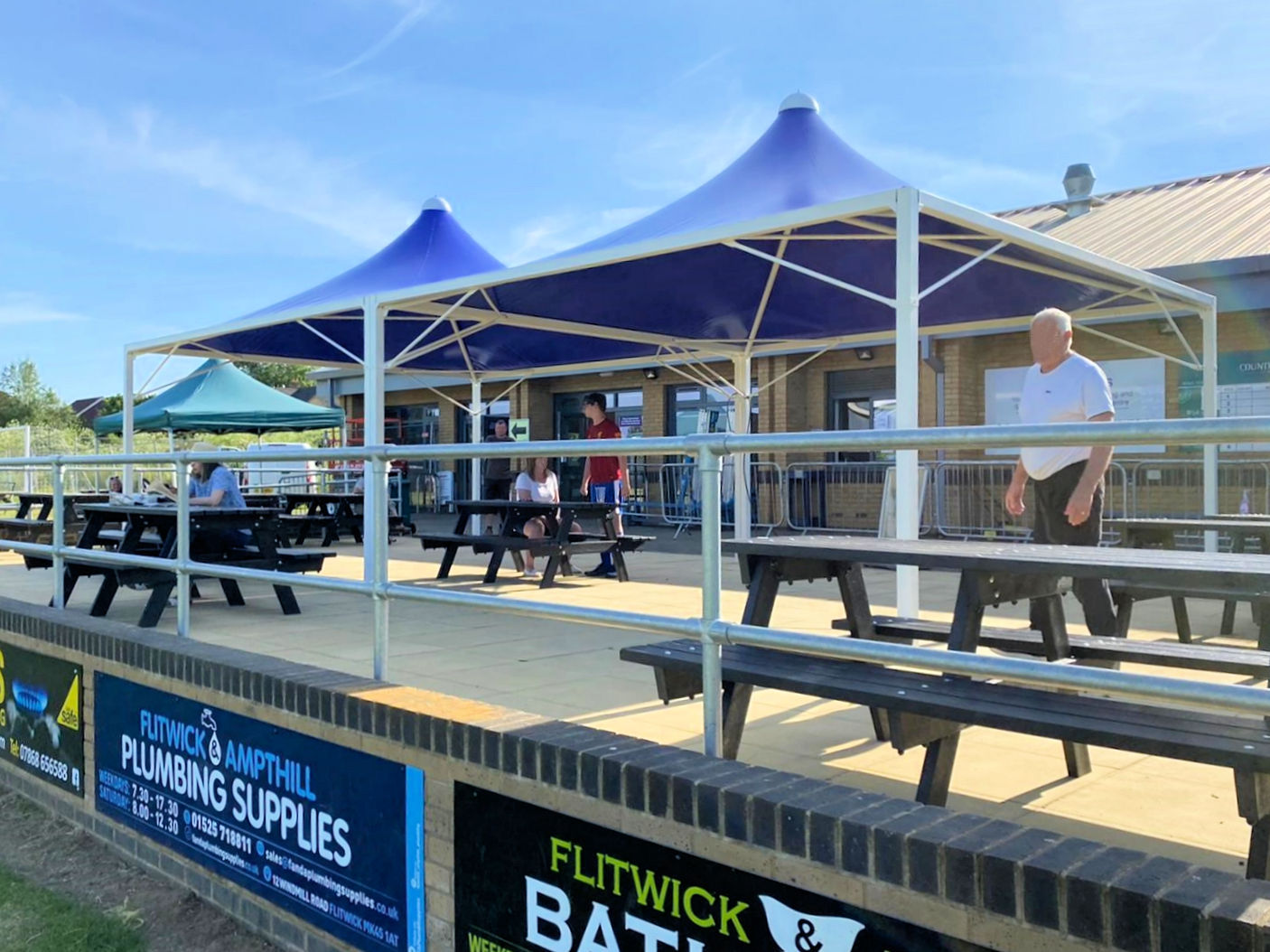

Flitwick Football Centre, Bedford – View Installation
