Double Grange Freestanding Canopy
The Double Grange is a large span freestanding canopy which is ideal for creating shade and shelter from the weather for larger areas.
The canopy is an adaption of the Grange Freestanding Mono-Pitch. It maintains all of the benefits of the Grange, with the addition of the ability to cover larger areas making it ideal for event venues, large play areas, outdoor dining areas and outdoor classrooms.
The large permanent structure is constructed from a strong, fully aluminium roof frame which is covered with durable 35mm multi-wall polycarbonate roof sheets & is supported by robust steel posts.
This large structure has a maximum span of 12m and an unlimited length, an integral guttering system is included in the price as standard.
The canopy roof frame is supplied in white as standard, however you can choose to have it powder coated to any standard RAL colour of your choice. The steel posts are available galvanised, powder coated or galvanised and powder coated to any standard RAL colour. Other non-standard RAL colours are available on request.
Features & Benefits:
- Extra Large Span – The Double Grange has a large span of up to 12 metres, therefore making it perfect for covering larger areas
- Unlimited Length – As well as benefiting from a large span, the Double Grange also has an unlimited length
- Robust Aluminium Roof System – The roof system is constructed fully from an aluminium frame and polycarbonate roof sheets the aluminium frame is supplied in white as standard however, you can choose to have it powder coated to any RAL colour at an additional cost
- Strong Steel Posts – The canopy posts are made from steel box section which are available galvanised, powder coated or galvanised and powder coated to any standard RAL colour
- Polycarbonate Roof Panels – The roof panels are high quality 35mm multi-wall polycarbonate panels which are light in weight and up to 200 times stronger than glass. They are available in clear or opal
- High UV Protection – The roof panels offer excellent protection from the sun blocking in excess of 98% of UV rays whilst keeping excellent light transmission
- Integral Guttering – Integral aluminium guttering and aluminium downpipes are including in the price as standard
- Up to a 25 year life expectancy – Offering you complete peace of mind that your investment is of the highest quality and will last for many years to come
Contact Us
If you have any questions, or to find out if you qualify for a Free Site Survey, call our expert team.

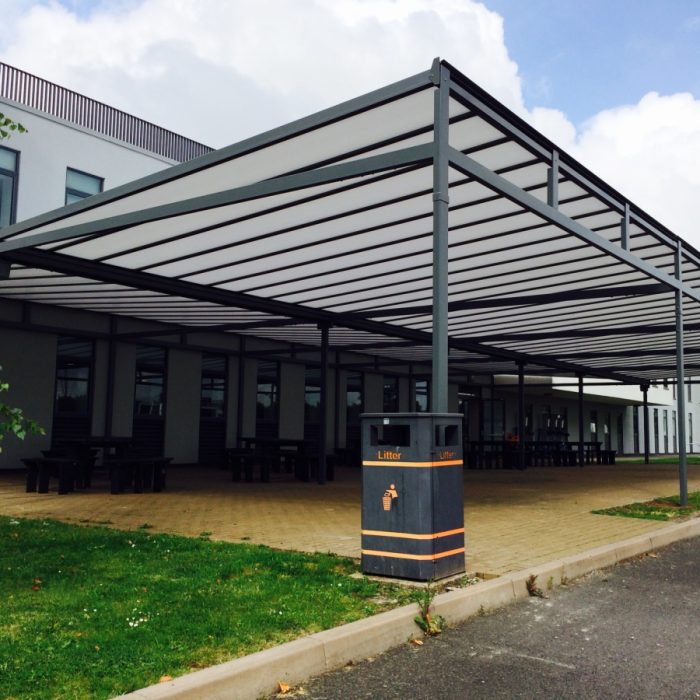

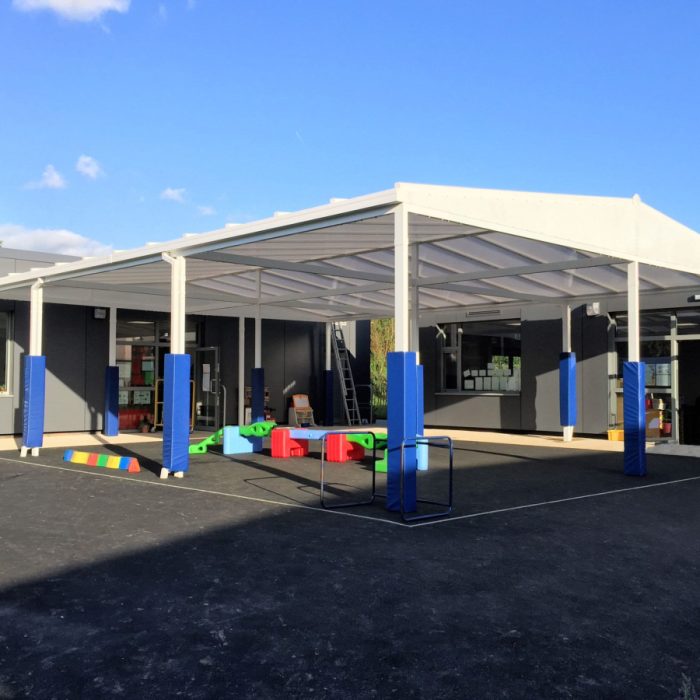

Product Gallery
Design & Specification
Downloads:
Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:
Product Data Sheet:
Click here to view the Double Grange Freestanding Canopy Technical Specification Sheet
Technical File Downloads:
- Download Double Grange Freestanding Canopy PDF file
- Download Double Grange Freestanding Canopy DXF file
- Download Double Grange Freestanding Canopy STL file
- Download Double Grange Freestanding Canopy IGES file
35mm Polycarbonate Roof Sheets
For technical information about the 35mm multi-wall polycarbonate roof sheets please click here >
Large Span and Unlimited Length
The Double Grange freestanding canopy is designed to cover large areas due to its unlimited length and maximum width of up to 12 metres.

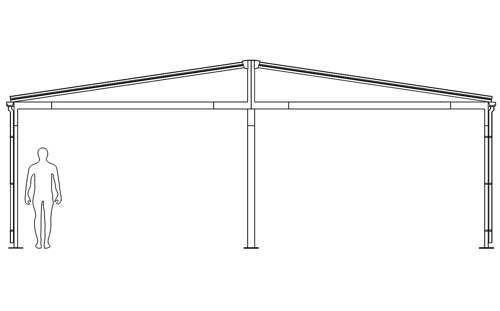

Please see the diagram below which shows the size comparison to the average sized person.
NBS & BIM
Please see below the NBS specs and BIM models for you to download and add to your project.
NBS:
BIM:
Colour Options
Aluminium Roof Frame
The Aluminium roof frame is supplied in white as standard. However, you can choose to have it powder coated to any RAL colour at an additional cost.
Steel Frame
The Double Grange steel underside and posts are available powder coated in a range of 12 standard RAL colours. Alternatively, you can choose to have your canopy powder coated to any of the 174 non-standard RAL colours which are available on request at an additional cost.
Please click here to view the full RAL Colour Range >
Polycarbonate Roof Panels
The 35mm structured polycarbonate roof panels are available in the following colour options:
- Opal
- Clear
Testimonials
“Brilliant job, the lads on site were a pleasure to have. Great job.”

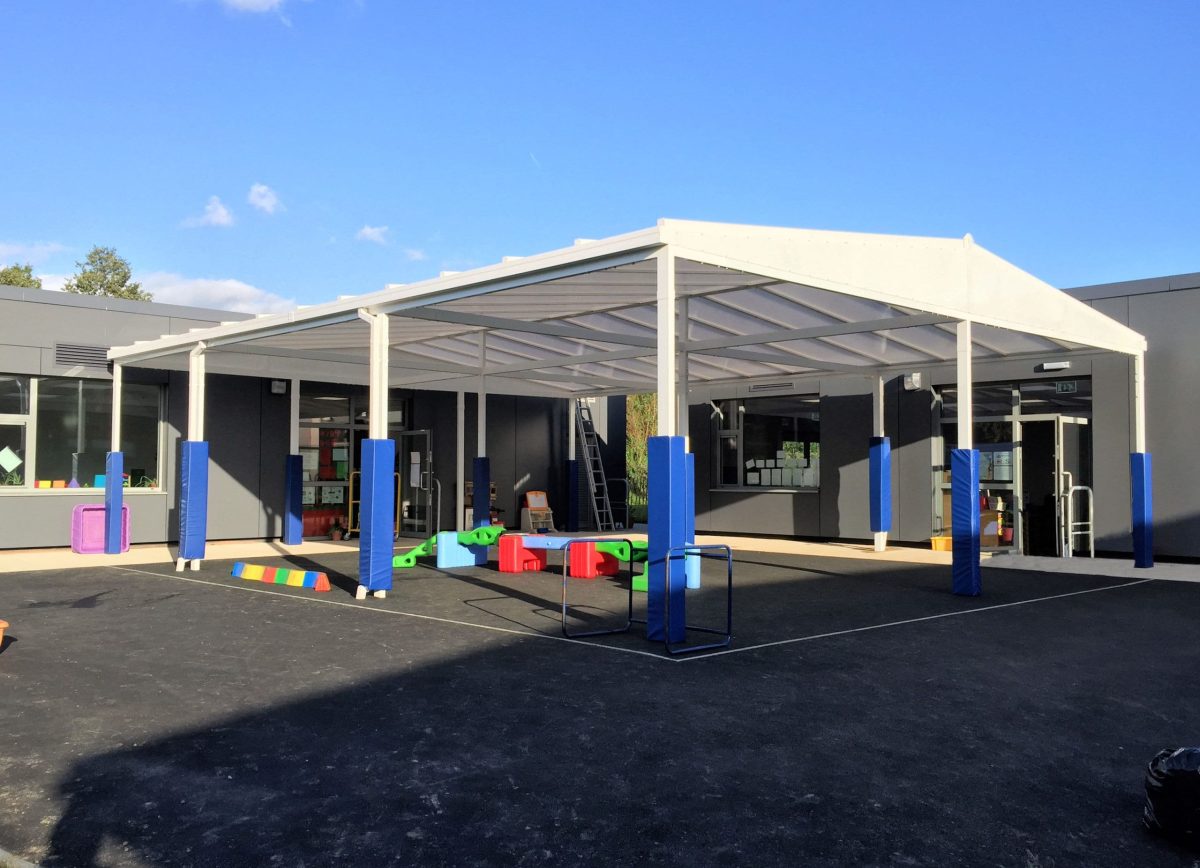

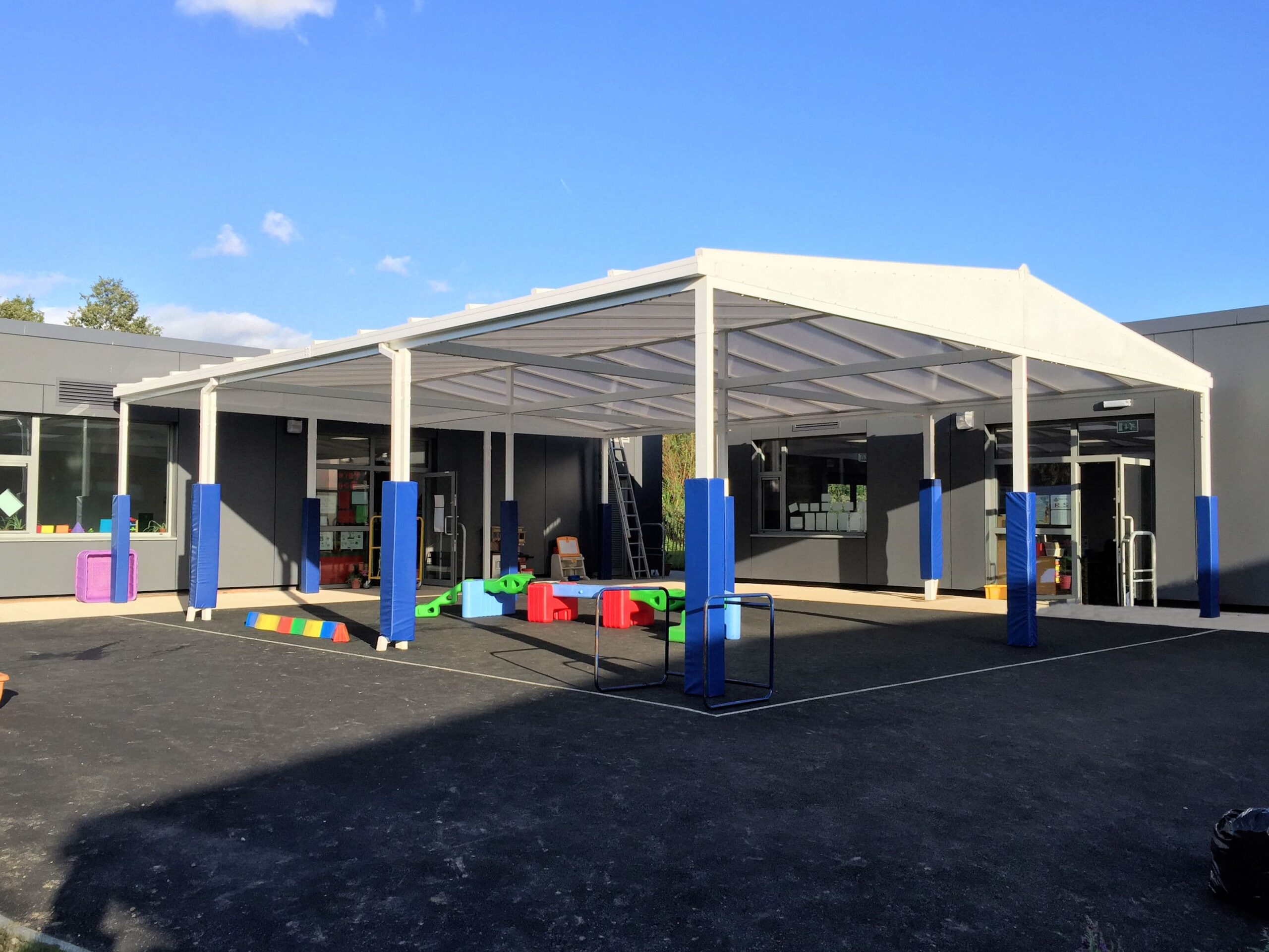

– Mauldeth Road Primary School, Manchester – View Installation
Click here for more Recent Testimonials >
Why Choose Able Canopies
Able Canopies design, manufacture and install canopies to many organisations across the UK to the public and private sectors including education, retail, leisure and healthcare. We also work closely with many architects, contractors and specifiers within the UK.
The Double Grange Freestanding Canopy was designed by Able Canopies’ Design and Build team with many organisations in mind. Many of our customers have requested a big-span canopy to cover large areas within their outdoor environment.
By choosing Able Canopies as your canopy supplier you can be sure you are making an excellent investment as we are committed to serving our customers, old and new with excellent customer service and we pride ourselves, not only on that, but on our dedicated after sales customer care service.
Product Brochure
Download our product brochure to view our full range of canopies:
