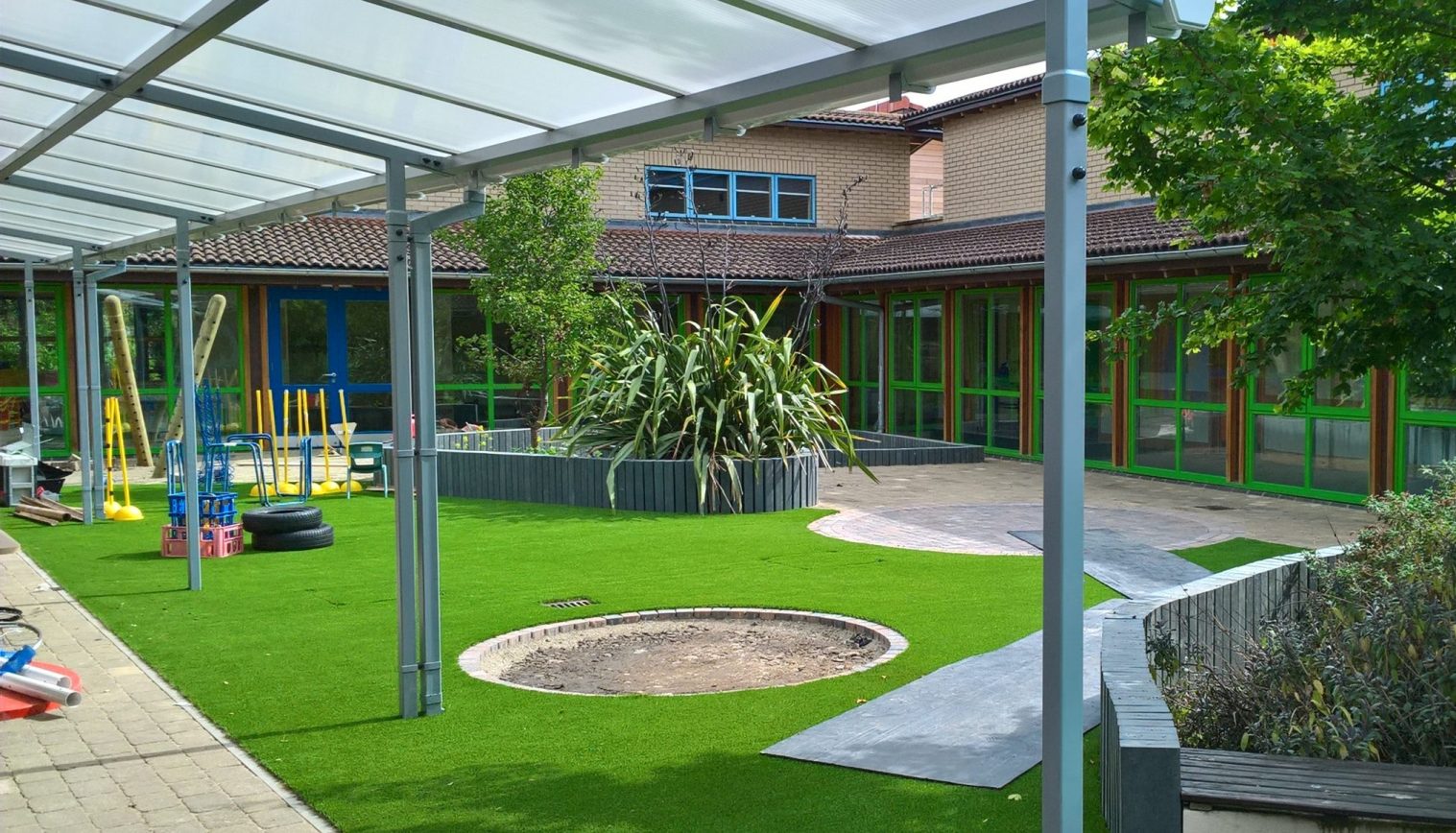

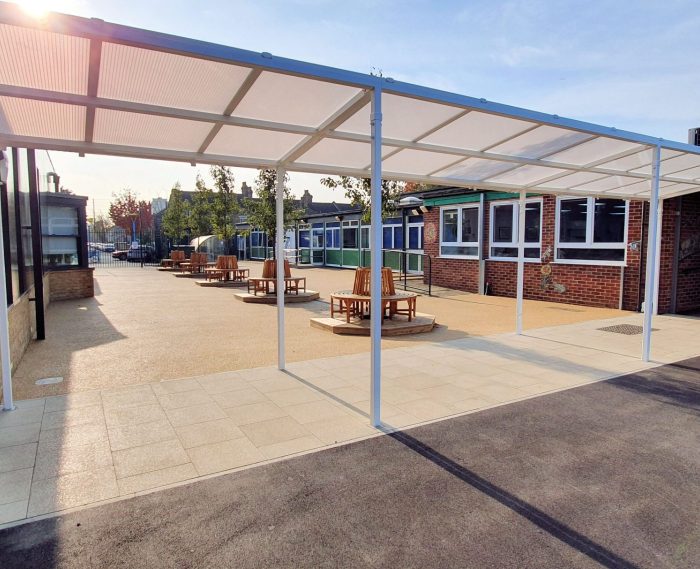

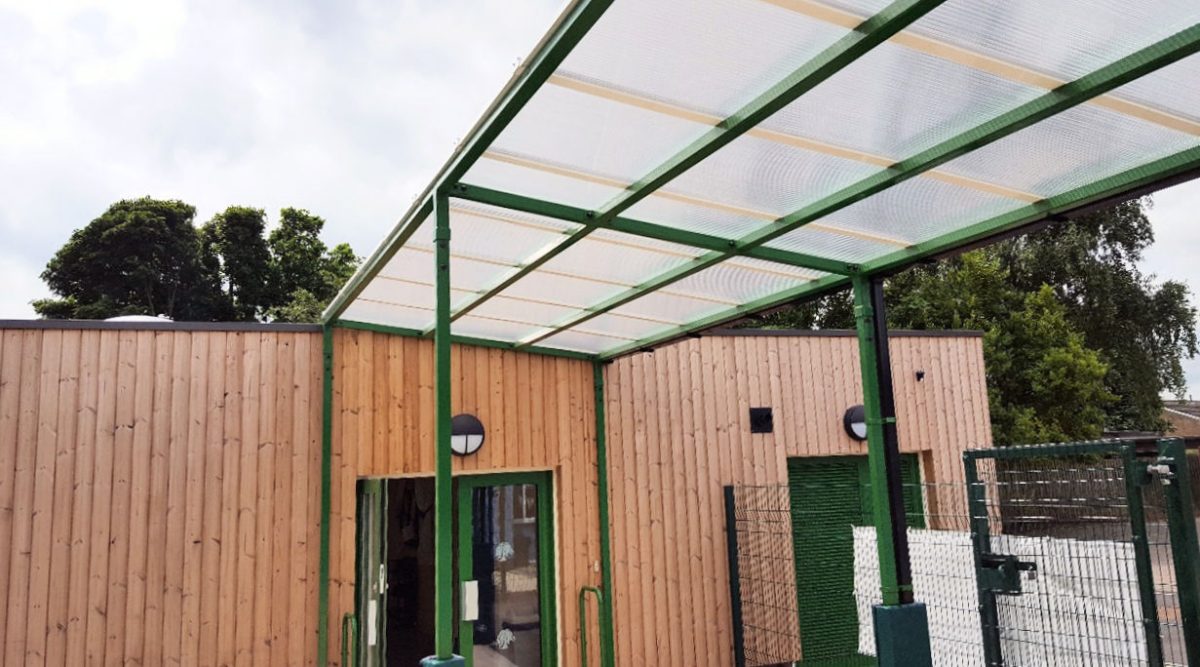

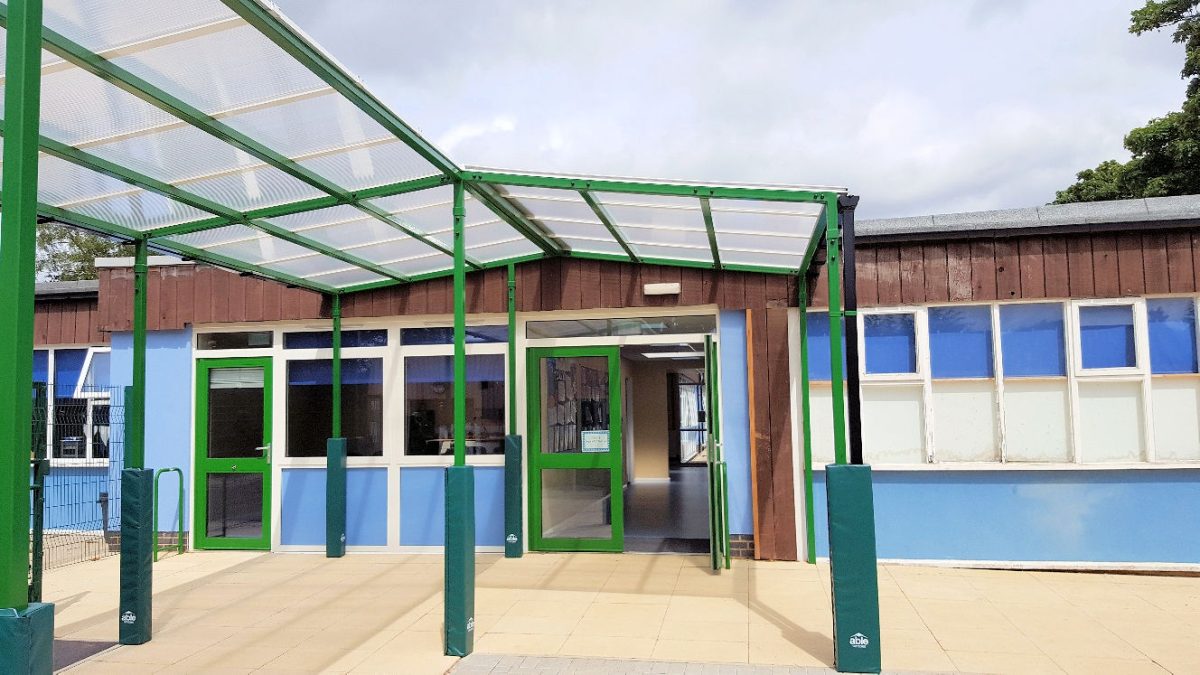

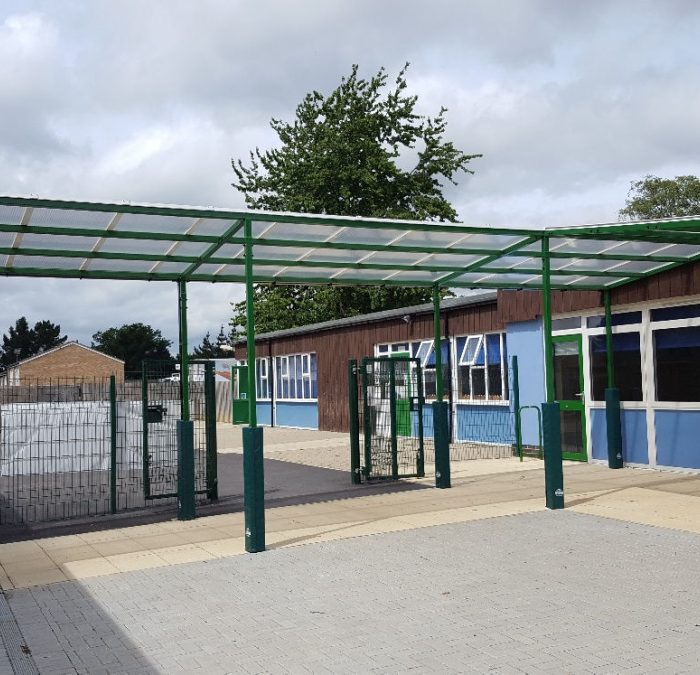

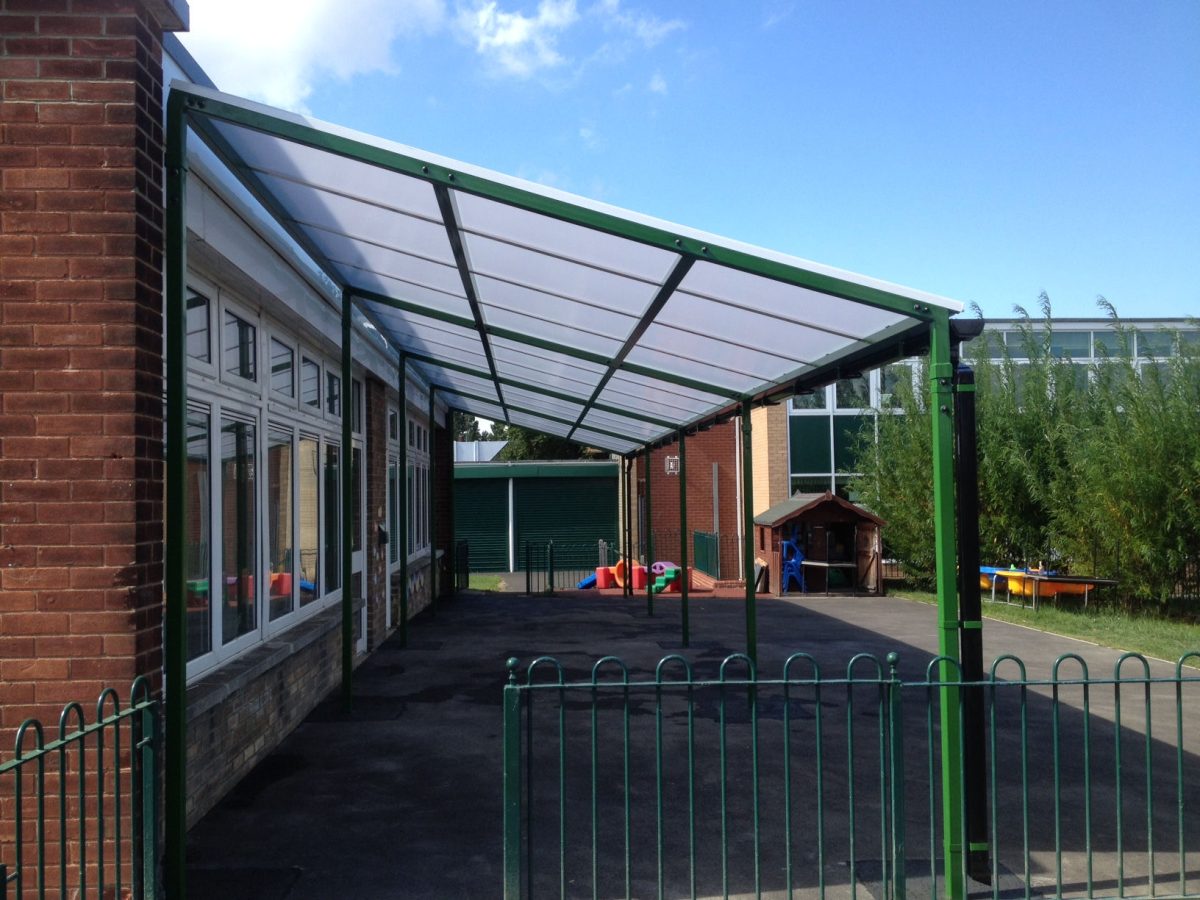

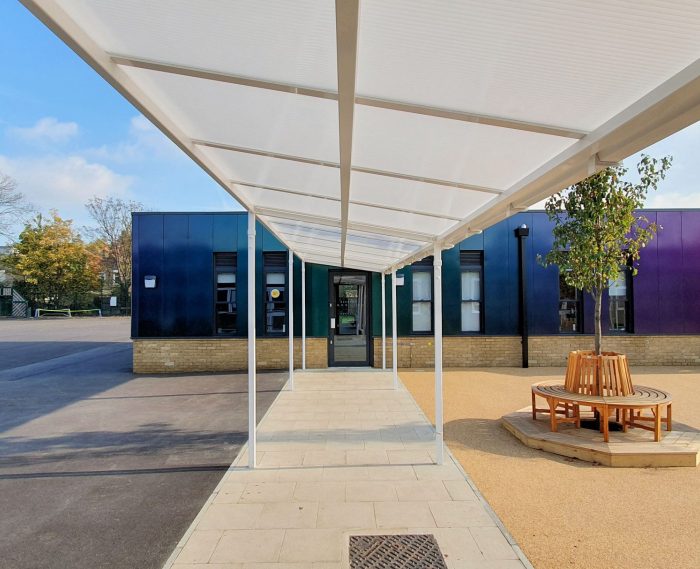

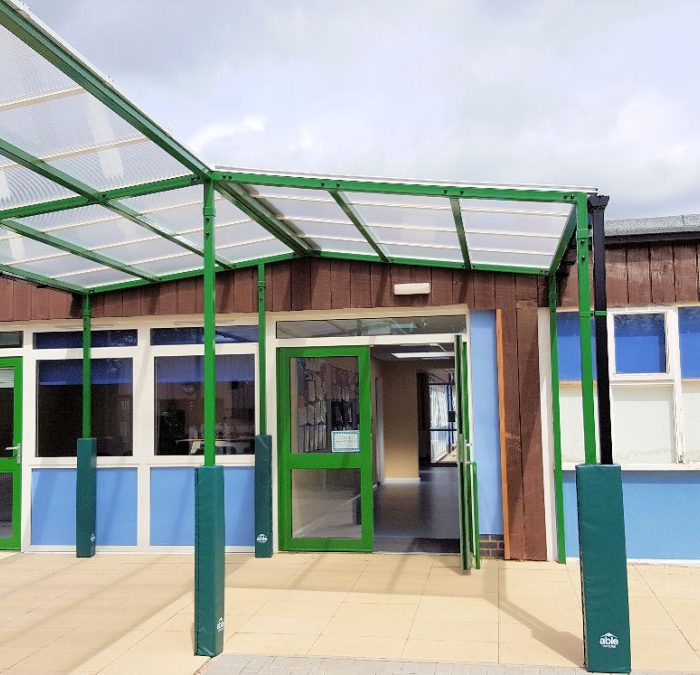

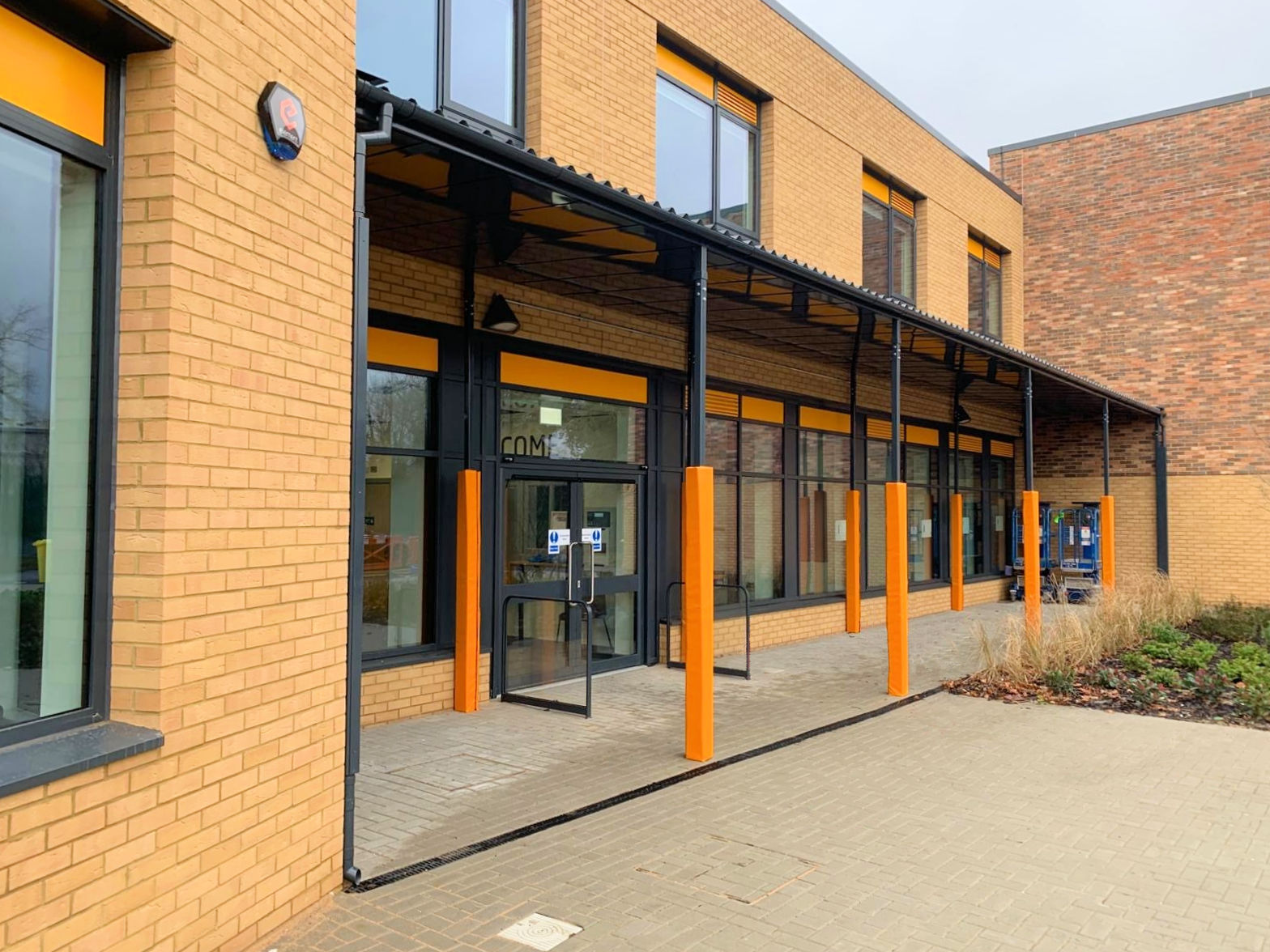

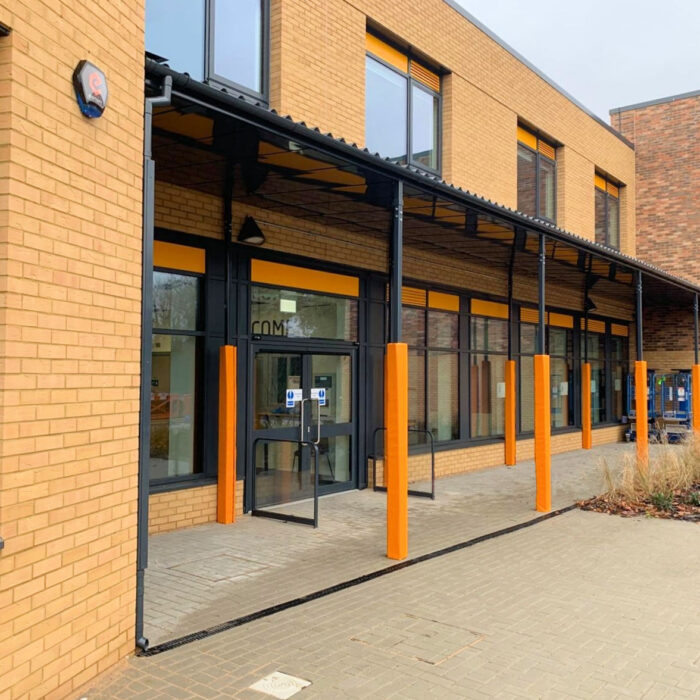

Grange Junior Freestanding Canopy

Grange Junior Freestanding Canopy

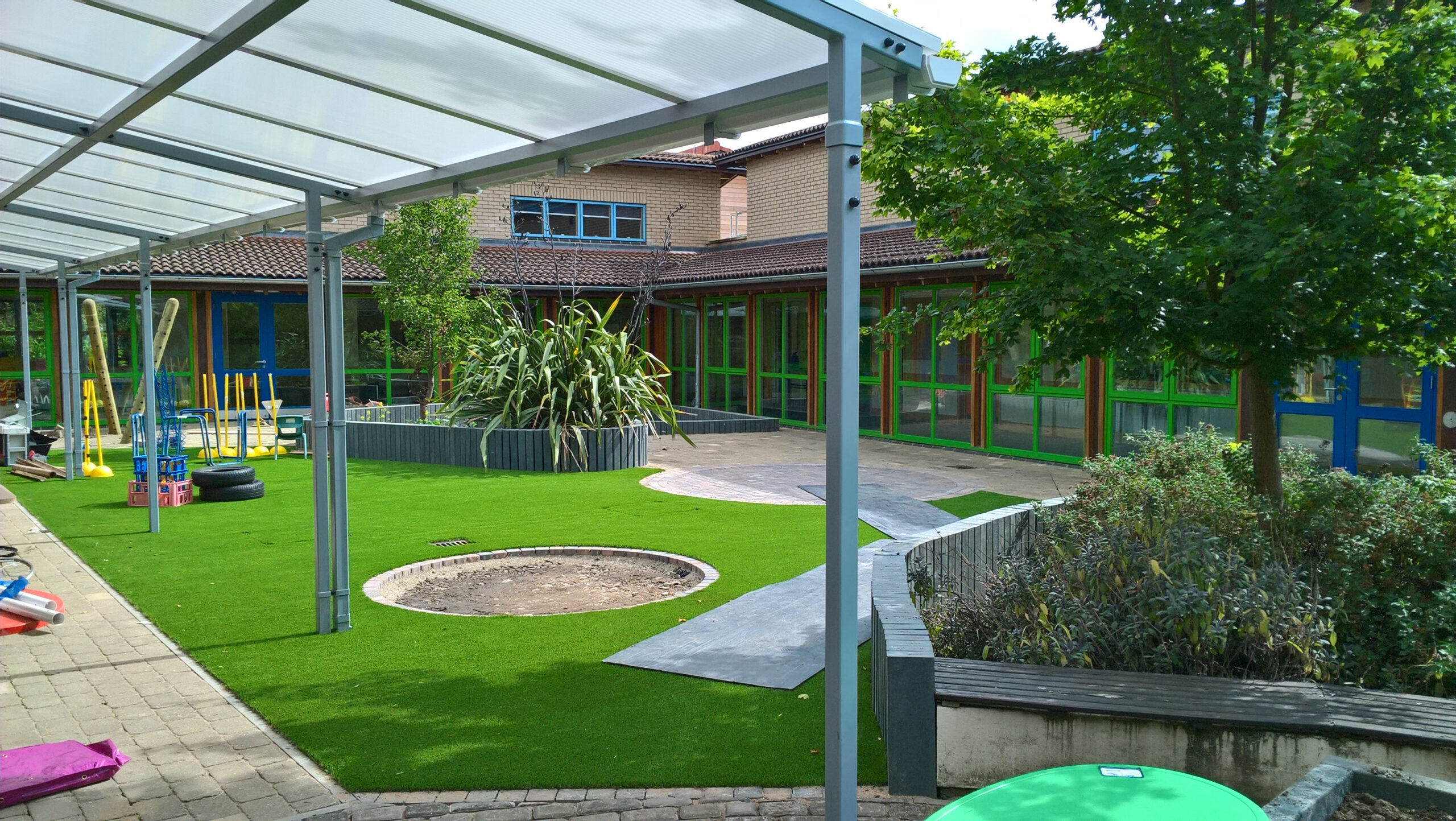

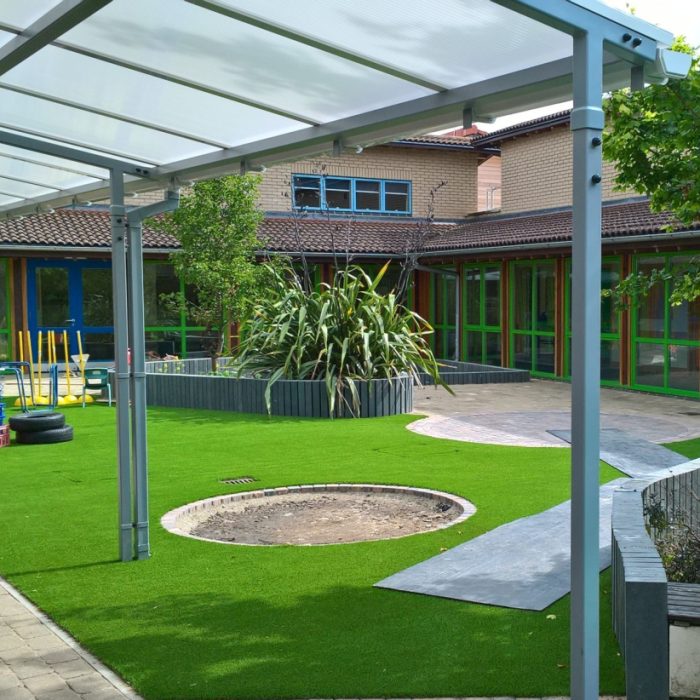

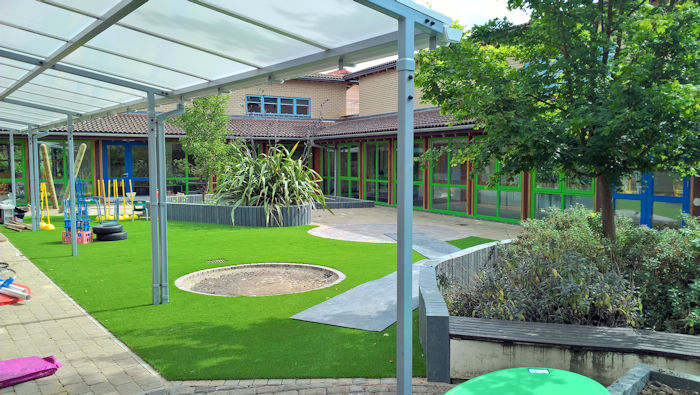

The Grange Junior is a cost-effective canopy solution that has a practical and simple design and is ideal for many areas where a wall mounted canopy is unsuitable. It is ideal for many organisation types including education, contractors, architects, specifiers, healthcare and leisure.

This structure can span up to 5 metres and has an unlimited length allowing you to create a large covered area which can be used for many different applications including an outdoor classroom facility, a covered playground area or outside dining area.

The main frame is constructed from steel and is covered with a choice of 5mm solid or 16mm structured polycarbonate roof panels and provides extensive shelter from the rain and effective cover from the sun by blocking over 98% of harmful UV rays whilst still letting through the light.

The Grange Junior can be powder coated to any standard RAL colour of your choice, allowing you to create a structure which complements its surroundings or creates a striking contrast. The structure is also available galvanised for ultimate corrosion protection, or both galvanised and powder coated.

Features & Benefits:

  • Mono-Pitch Design – The design of this canopy means that it is ideal for those that would like a wall mounted canopy but do not have a suitable wall to fix a canopy to
  • Strong Roof Panels – Choice of 5mm or 16mm polycarbonate roof panels which are vandal and shatter resistant
  • High Fire Resistance -The 5mm solid polycarbonate panels have been tested and comply with the European standard B-s1,d0 EN 13501
  • Roof Panel Colour – The glazing panels available in clear and opal
  • Construction Colour – Available powder coated to any standard RAL Colour. Other non-standard RAL colours are available on request
  • Size – The Grange Junior has a maximum span of up to 5m and an unlimited length
  • UV Protection – Excellent protection from the sun, blocking over 98% of UV rays
  • Ease of Maintenance – Built-in properties mean the canopy requires only periodic cleaning
  • Up to a 25 Year Life Expectancy – For peace of mind that your new canopy is built to last for many years to come

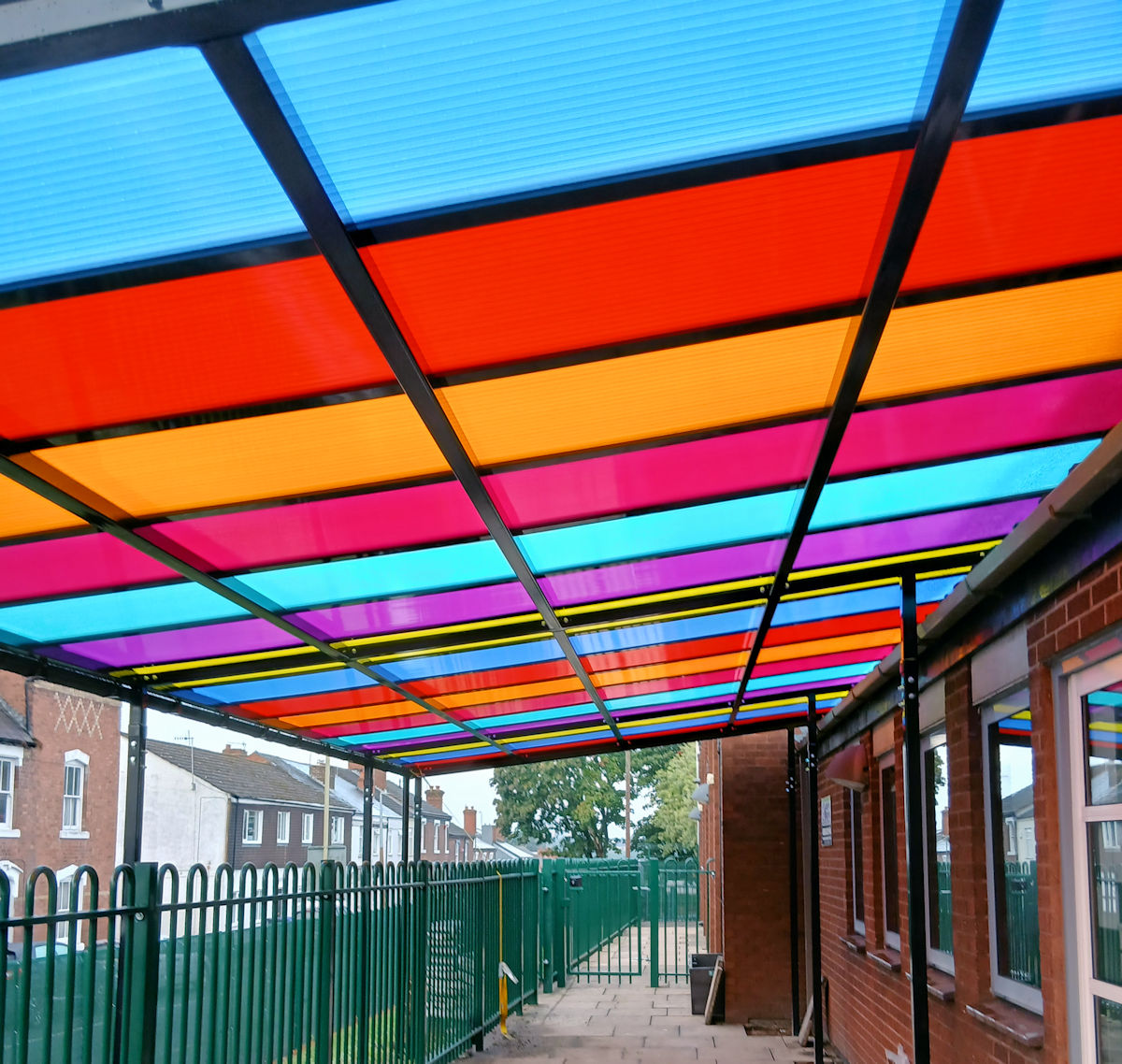

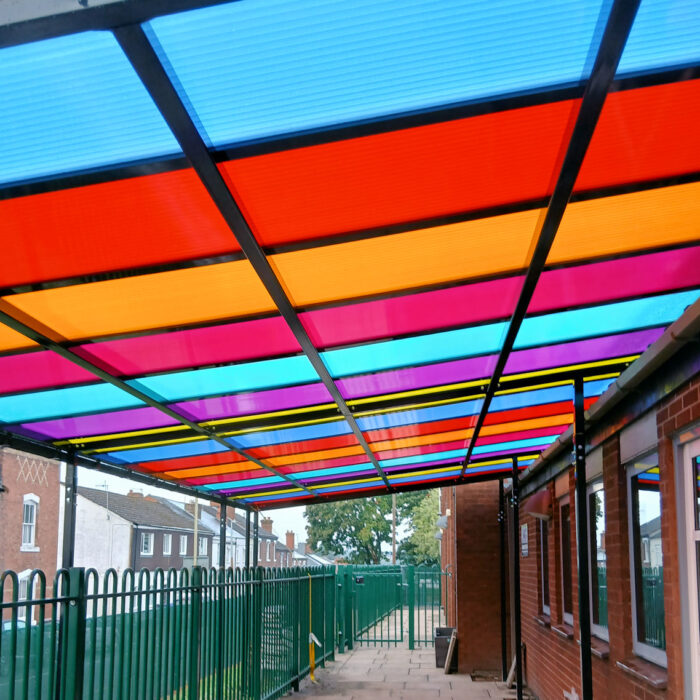

Coloured Polycarbonate Roof Sheet Upgrade
Also available with coloured polycarbonate as an upgrade, click here for more info.

Design & Specification

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Grange Junior Freestanding Canopy Technical Specification Sheet

Technical File Downloads:


Specification

Main Frame

The Grange is constructed from a robust steel frame and can be galvanised for ultimate rust & corrosion protection.

Roof Panels

The roof panels are available in a choice of 5mm solid or 16mm structured polycarbonate which are both vandal and shatter resistant. Both roof panels are available in opal or clear.

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

The Grange Junior is available powder coated in a range of standard RAL colours.
Other non-standard RAL colours are available on request at an additional cost.

Please click here to view the full range of RAL Colours >
