Hamilton Big Span Canopy

Hamilton Big Span Canopy

Product Gallery

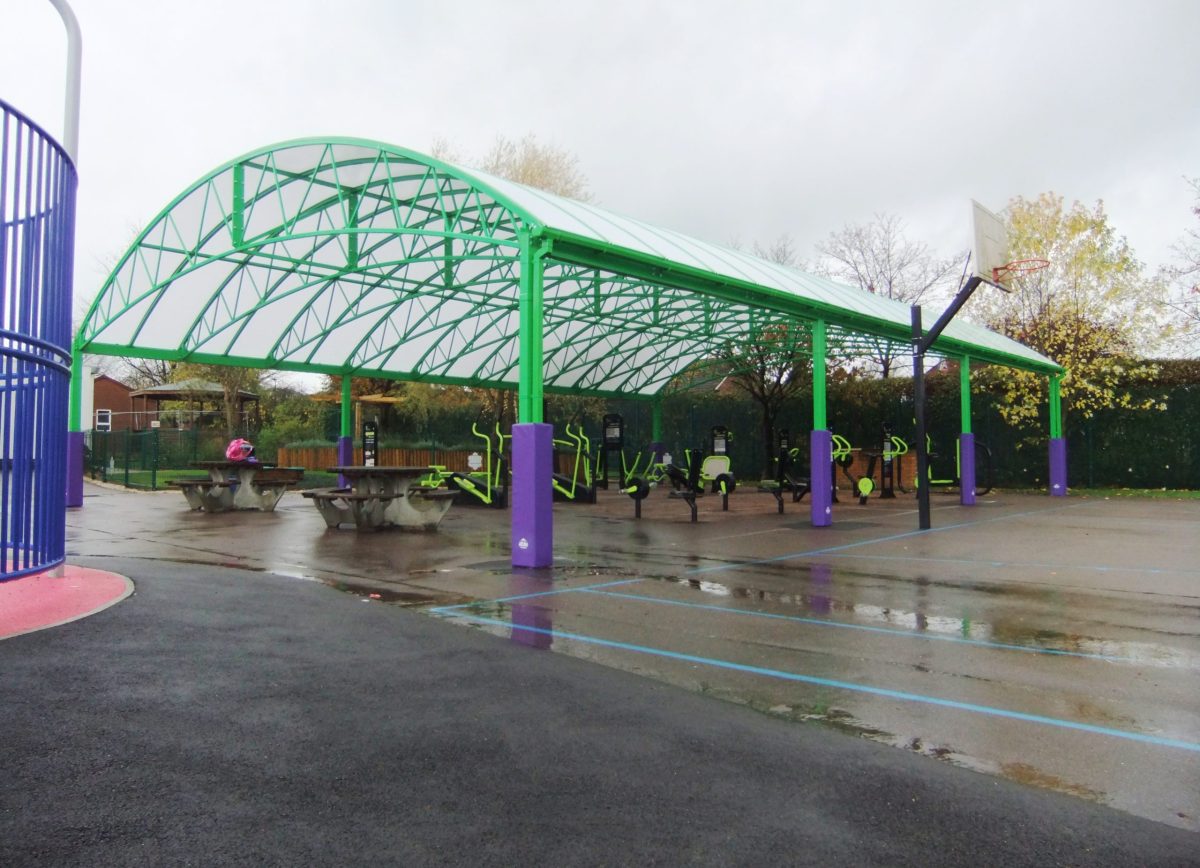

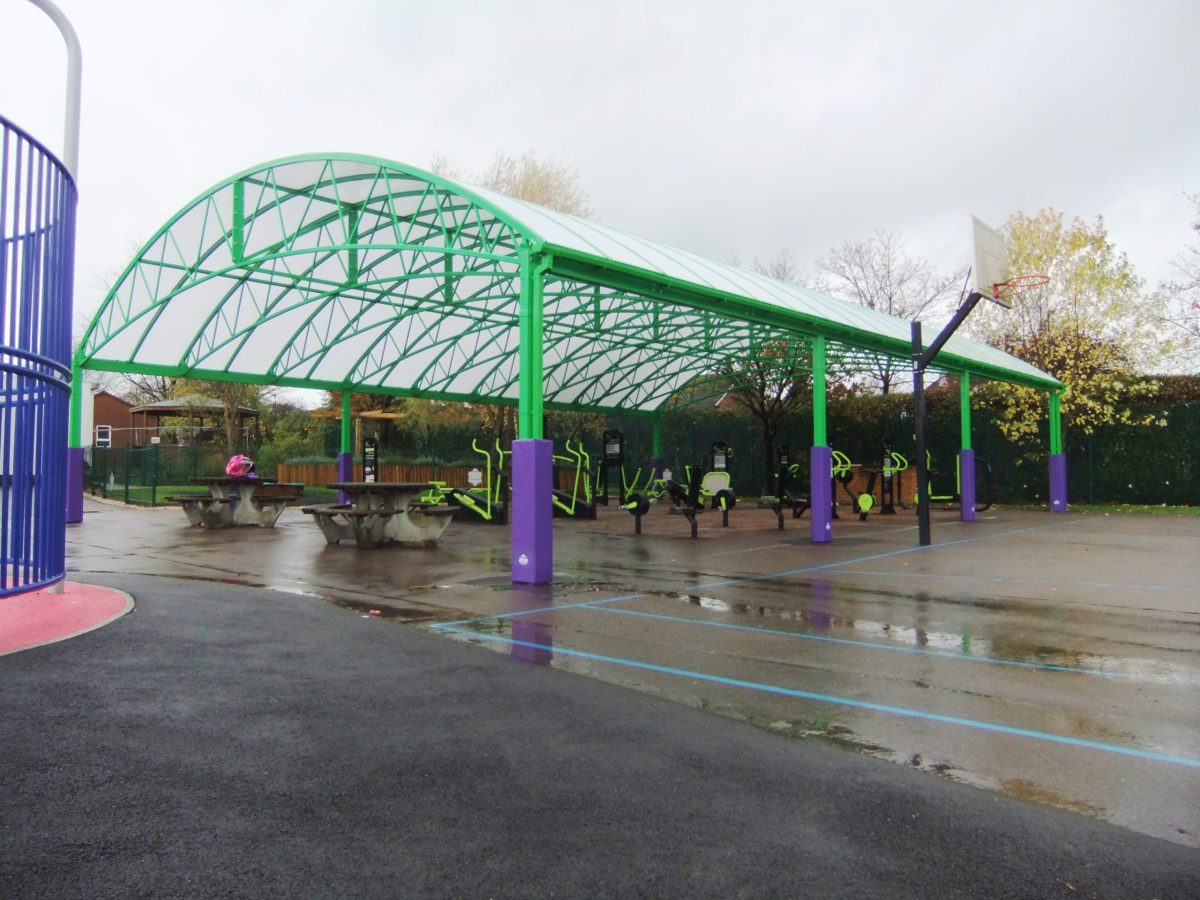

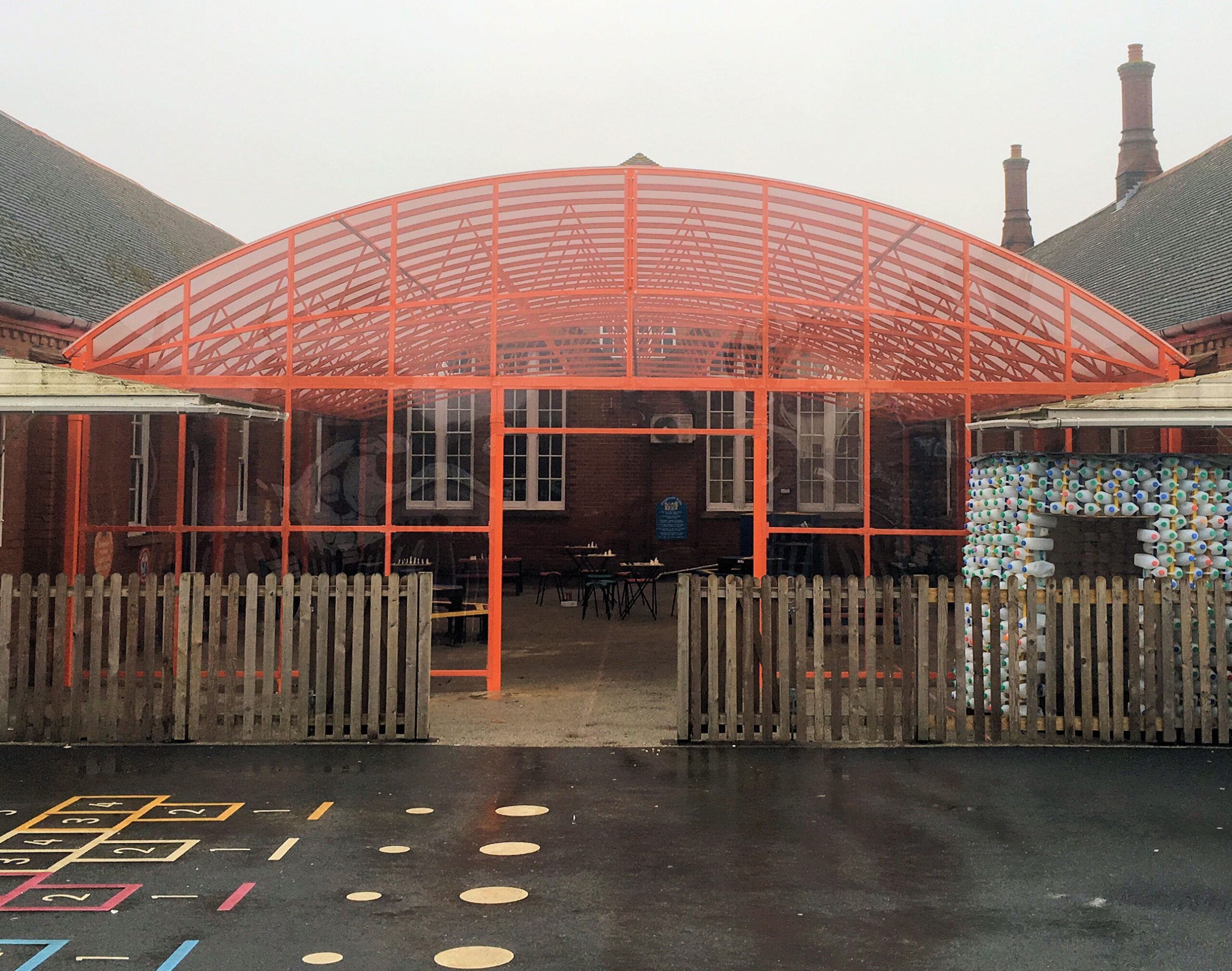

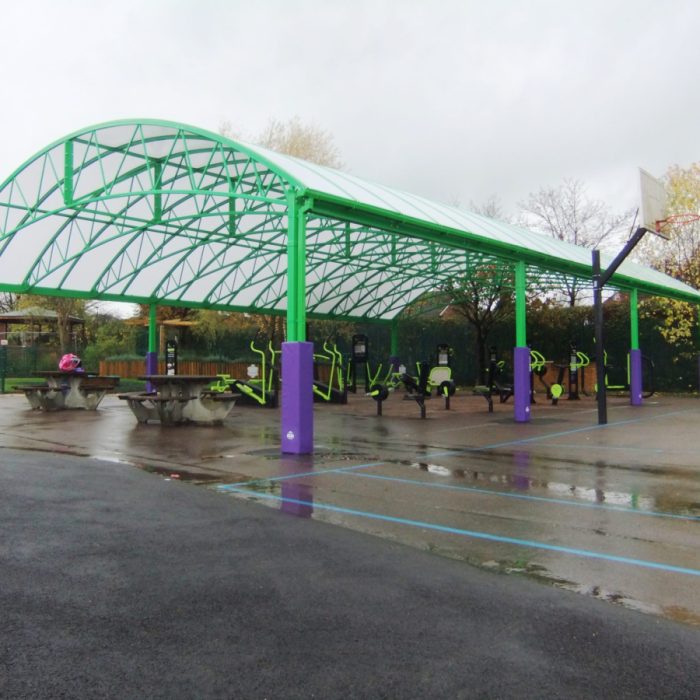

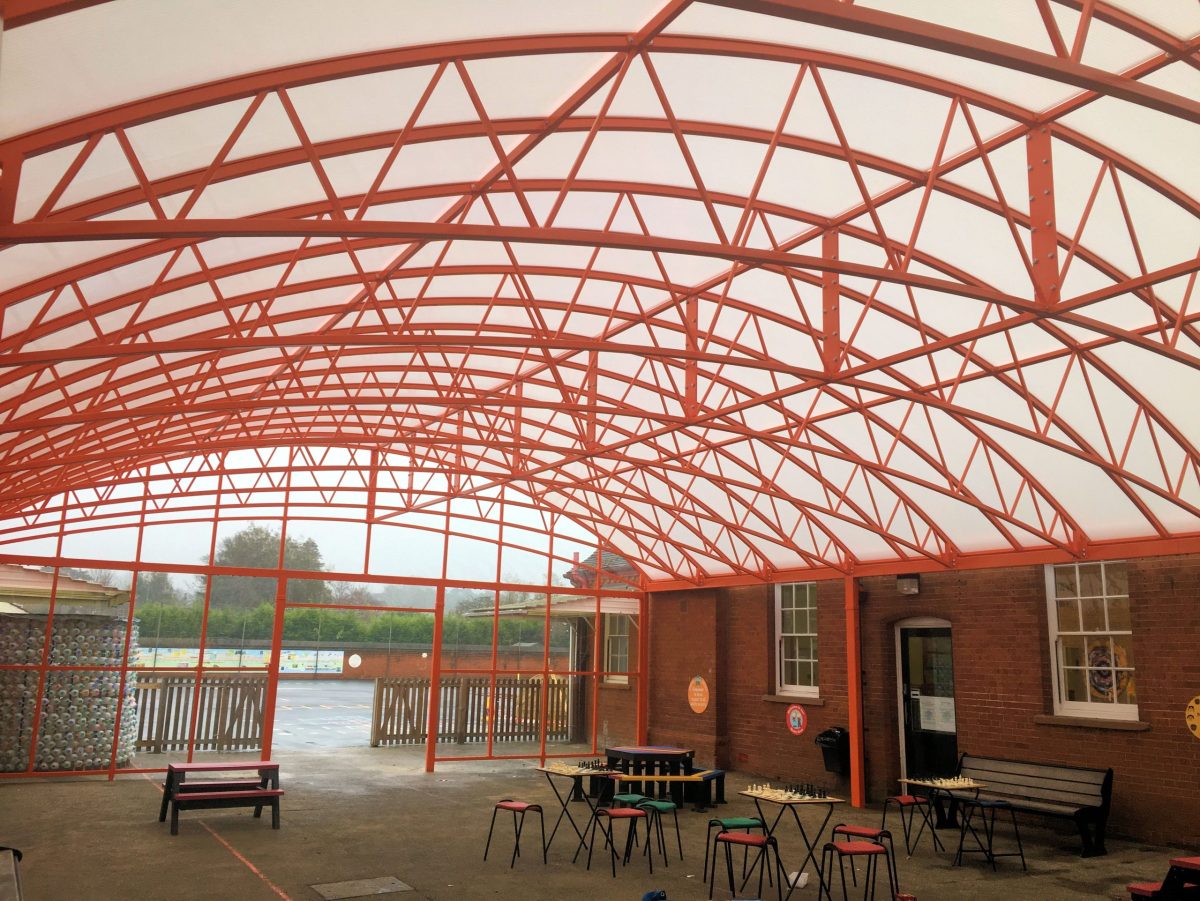

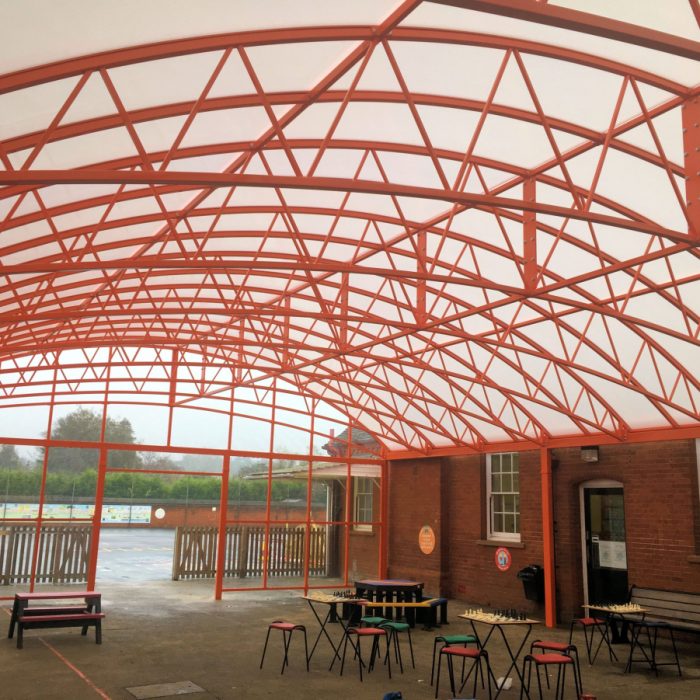

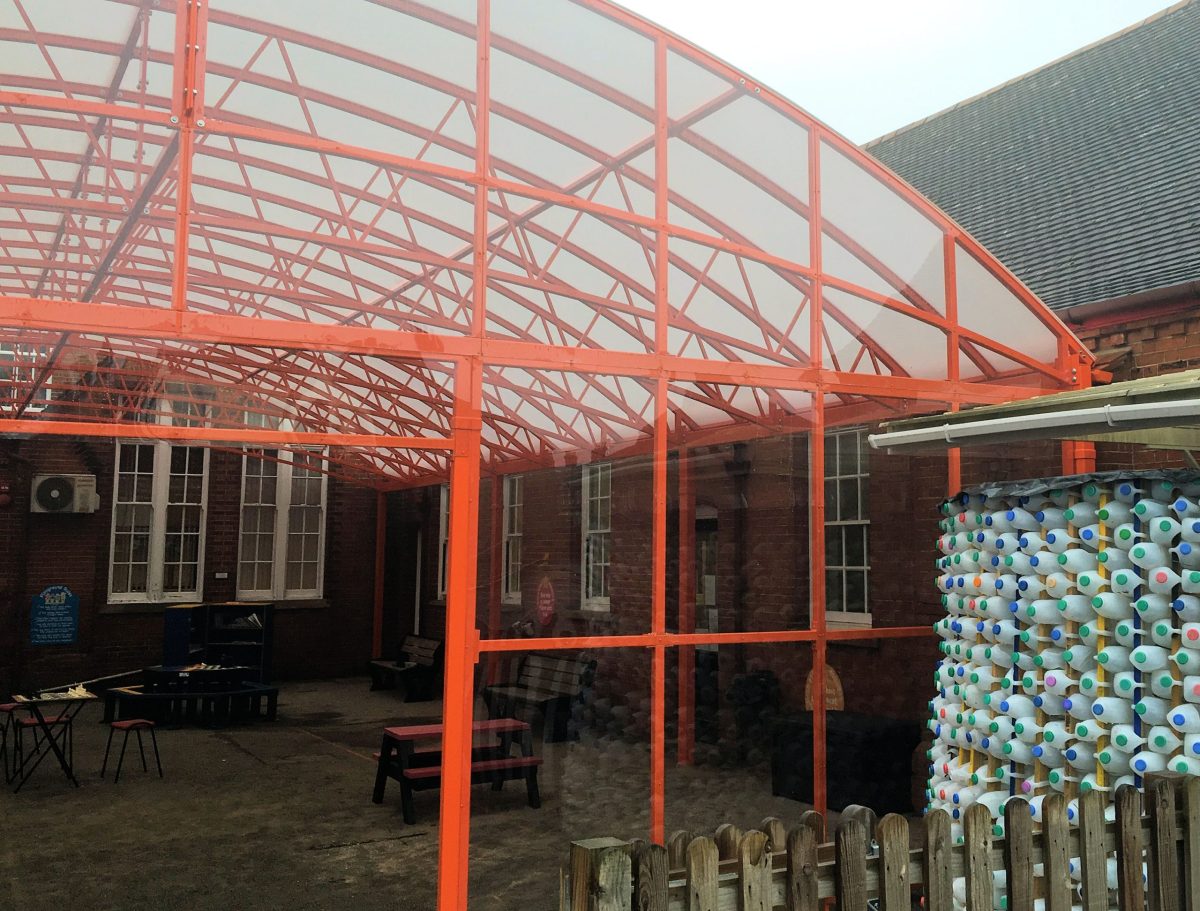

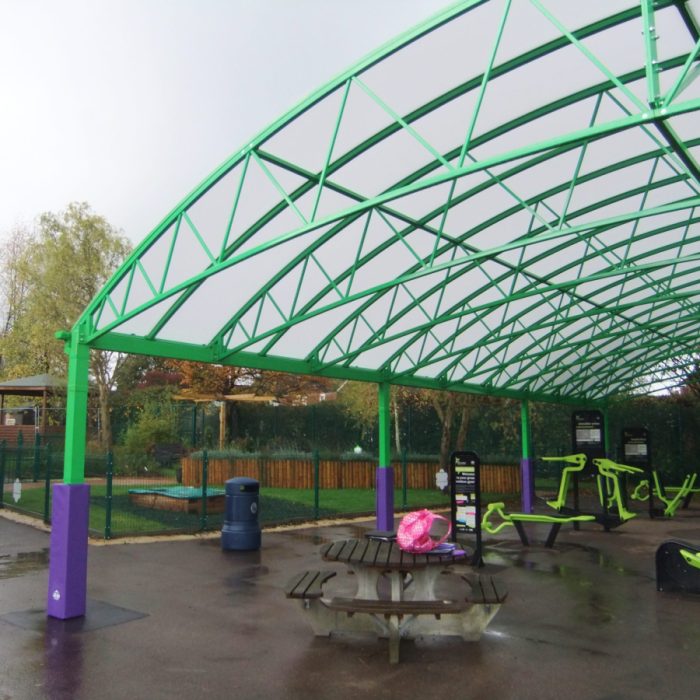

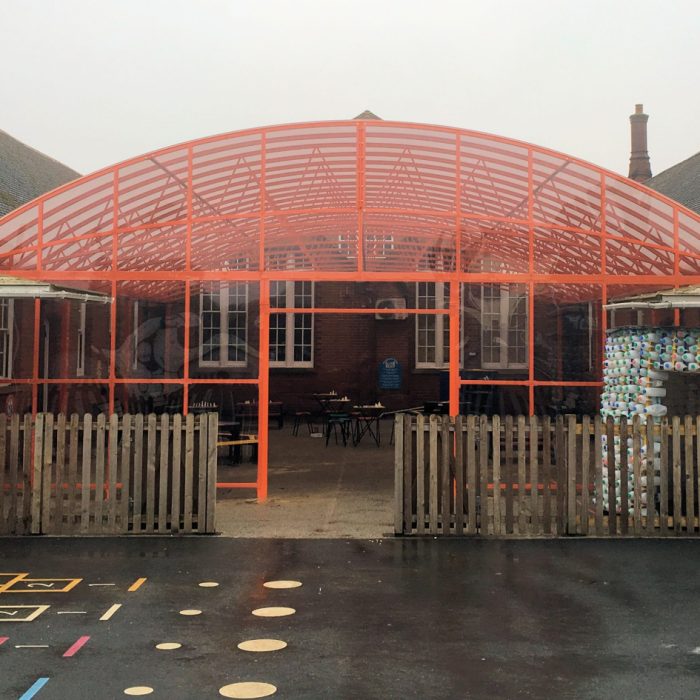

The Hamilton big span canopy is our largest freestanding canopy and can span up to 11 metres in width and has an unlimited length. It is the perfect solution for large areas which require cover from the weather, such as outdoor dining areas or open air seating areas.

The Hamilton is also an ideal solution for playgrounds or venues which hold outdoor events, providing large areas of cover from the sun or bad weather.

The Hamilton has an innovative design which is durable and hard wearing and is ideal for many organisations within both the public and private sectors including education, retail, leisure and healthcare.

This robust structure can be powder coated in any standard RAL colour of your choice, galvanised for ultimate protection against rot and rust, or both powered coated and galvanised. Other non-standard RAL colours are available on request at an additional cost.

Features & Benefits:

  • Extra Large Span – Can cover large areas with an unlimited length and a width of up to 11m
  • Covers Large Areas with Minimum Amount of Posts – A 6m gap is required between posts, providing a canopy that has minimal posts

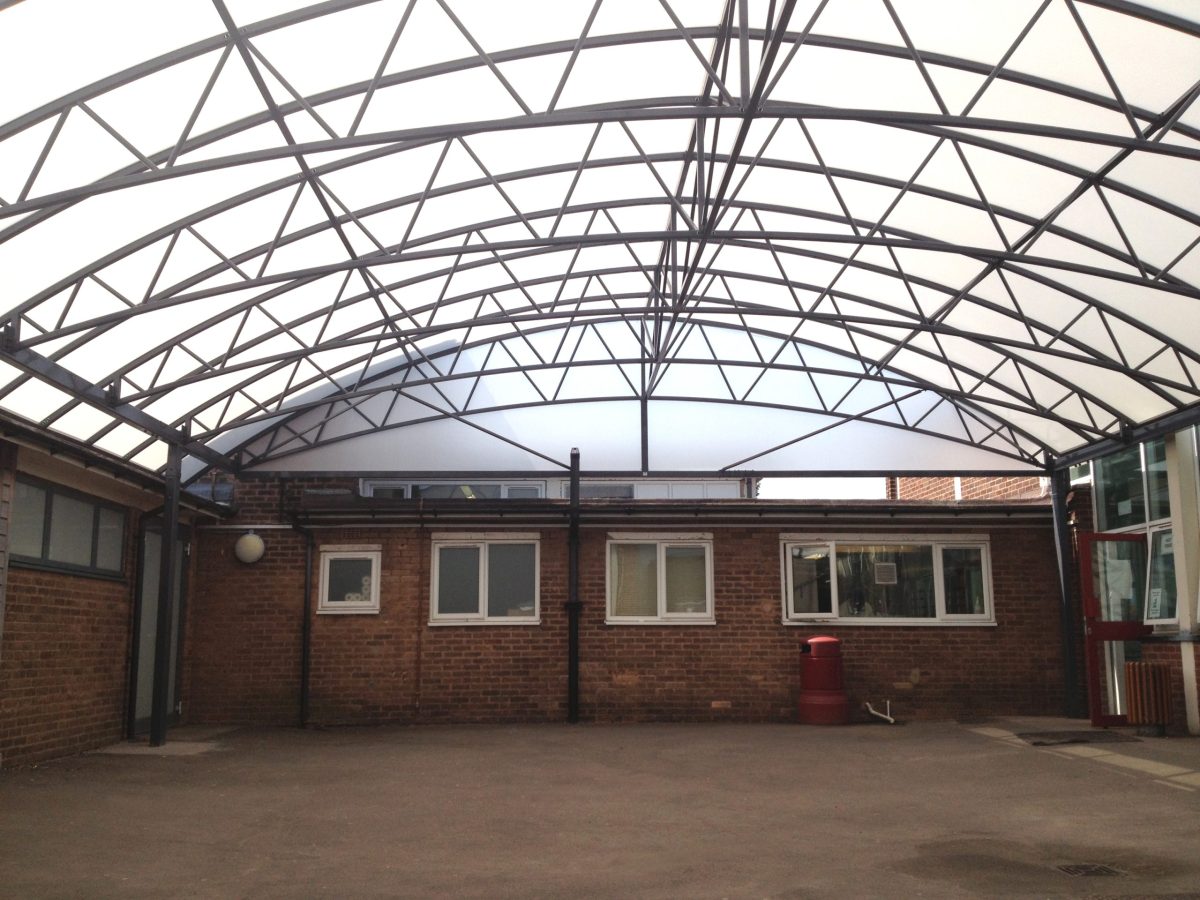

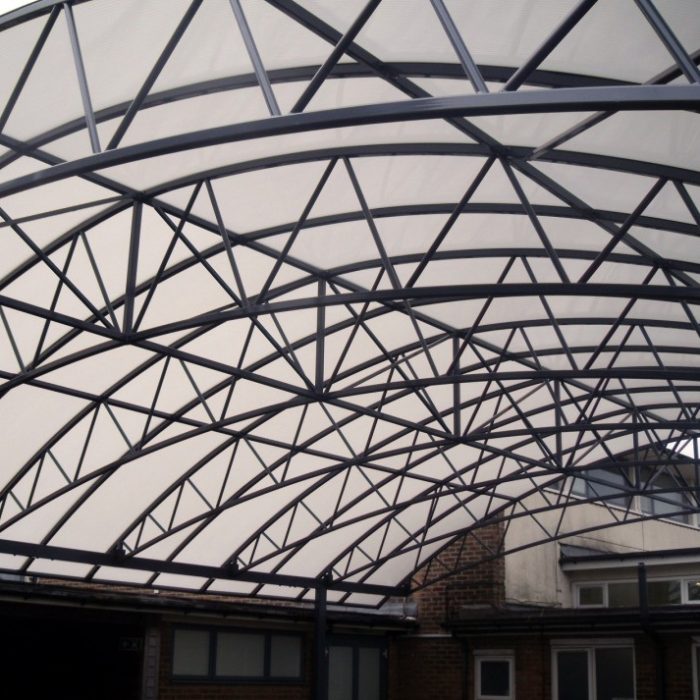

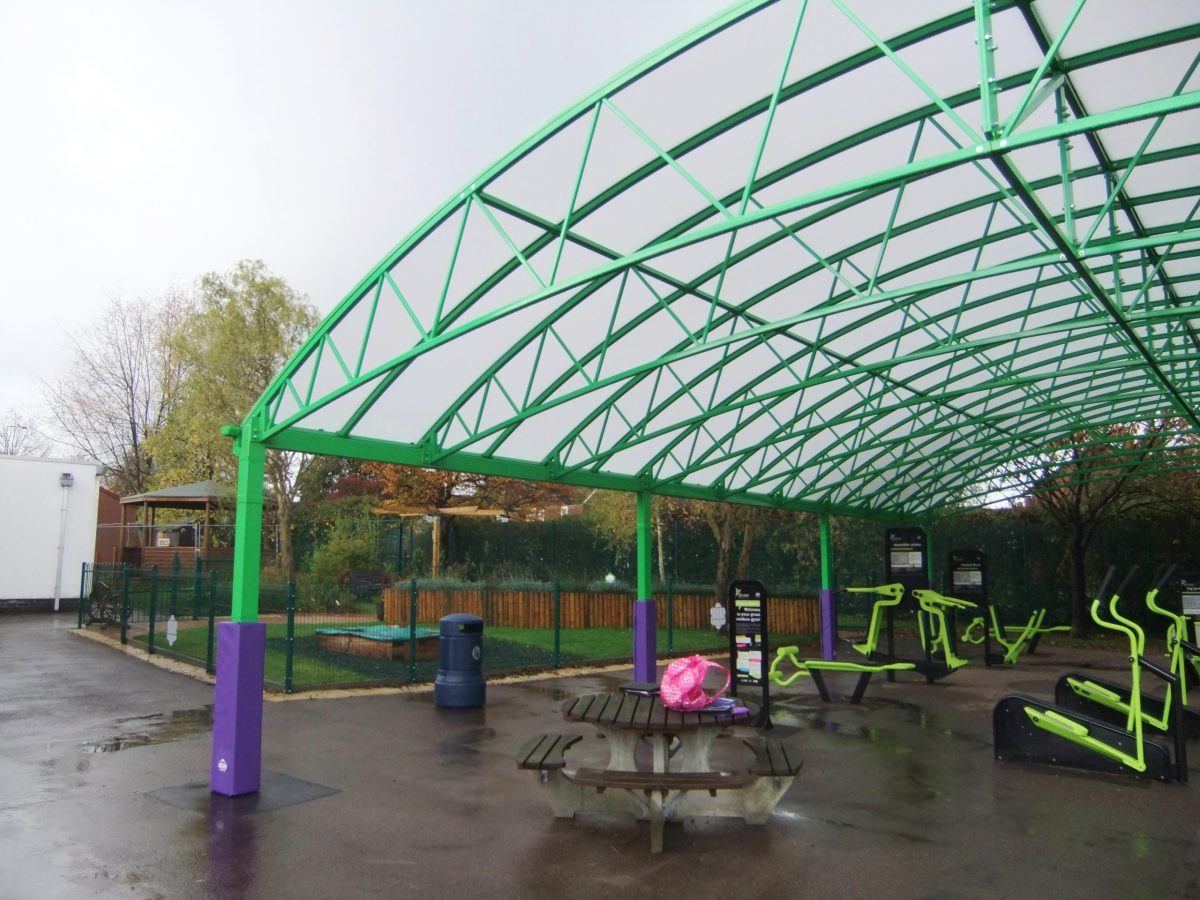

  • Attractive Lattice Roof – For ultimate strength ensuring your canopy is robust and rigid

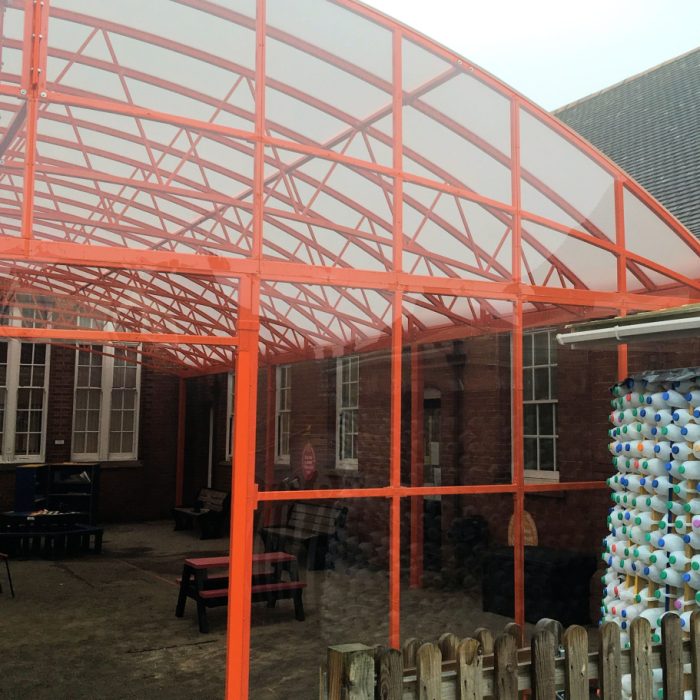

  • Strong Steel Frame – The Hamilton is constructed from a strong steel frame
  • Robust Polycarbonate Roof Panels – The steel frame is covered with 16mm structured polycarbonate panels which are available in clear or opal
  • Over 98% UV Protection – Protecting those underneath, reducing the risk of skin cancer caused by the sun’s UV rays
  • Guttering Included as Standard – Deep flow guttering and down pipes are included as standard
  • Available Finishes – Available powder coated, galvanised or powder coated and galvanised
  • Excellent Fire Performance – The polycarbonate sheets remains stable at very high temperatures
  • Life Expectancy of up to 25 Years – Offering you peace of mind that this permanent structure will last for many years to come

Design & Specification

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Hamilton Big Span Canopy Technical Specification Sheet

Technical File Downloads:

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

Not available

BIM:

Not available

Colour Options

Polycarbonate Roof Sheets

The 16mm structured polycarbonate roof panels are available in a choice of clear and opal.

Steel Frame

The Hamilton’s steel frame is available powder coated in a range of standard RAL colours. Other non-standard RAL colours are available on request at an additional cost.

Please click here to view the full range of RAL Colours >

Testimonials

Click here to view a selection of our recent customer testimonials >


Why Choose Able Canopies

Able Canopies have been manufacturing and installing canopies for over 15 years and has gained a large client base including the leisure, healthcare, hospitality and retail sectors. We continue to build quality working relationships with local authorities, head teachers, site managers, architects, contractors and specifiers.

The Hamilton Freestanding canopy was designed by Able Canopies’ Design and Build team with many organisations in mind. Our customers asked for a permanent, robust canopy structure with a large span that had as few posts as possible. From listening to our customers’ needs we engineered this state of the art canopy which can be constructed to any length and has a maximum width of up to 11 metres. With this design we can create a large canopy which has fewer posts- providing a covered area which is not intruded by many support posts.

By choosing Able Canopies as your canopy supplier you can be sure you are making an excellent investment as we are committed to serving our customers, old and new with excellent customer service and we pride ourselves, not only on that, but on our dedicated after sales customer care service.

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
