Whiteside Freestanding Canopy

Whiteside Freestanding Canopy

Product Gallery

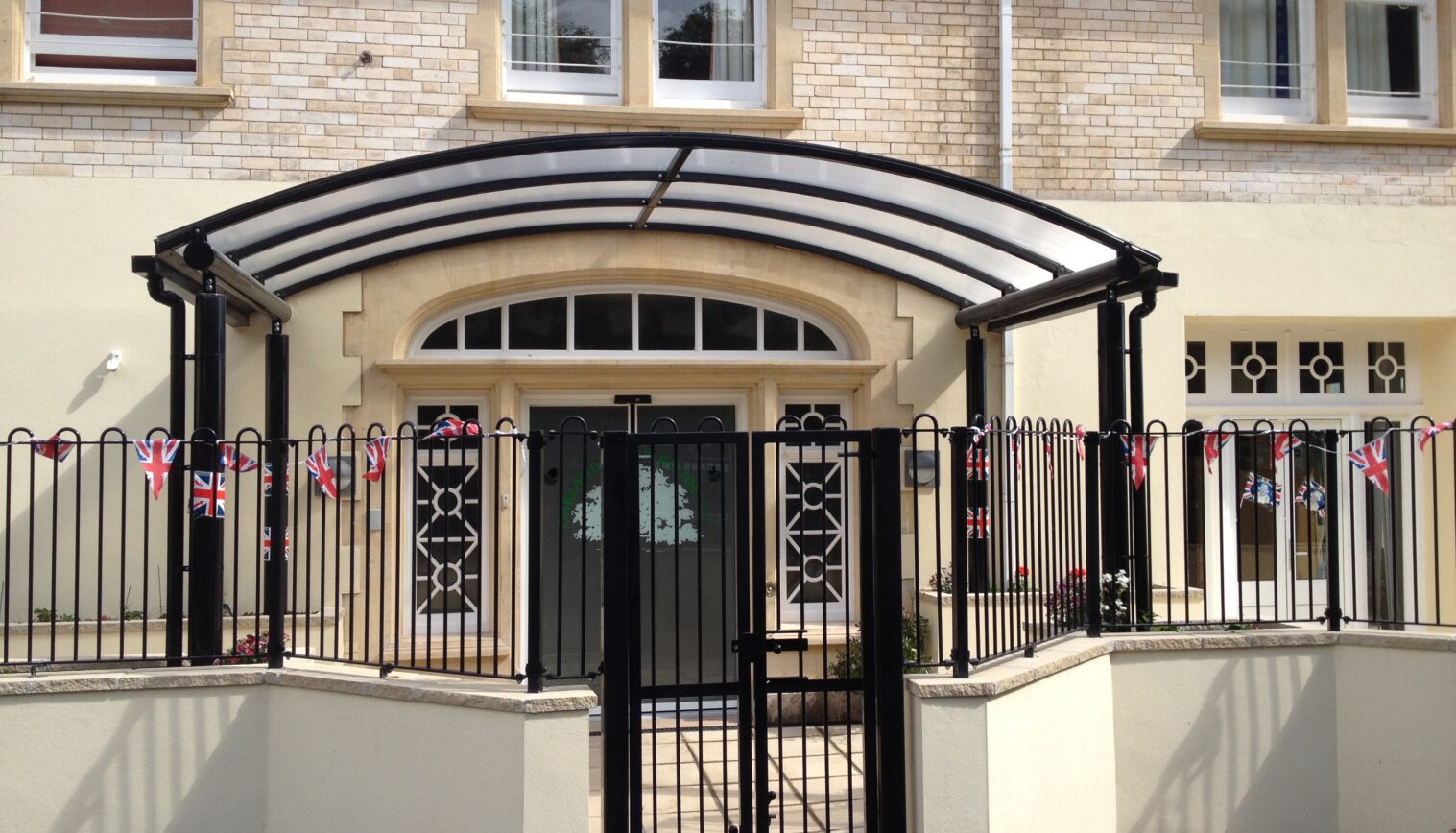

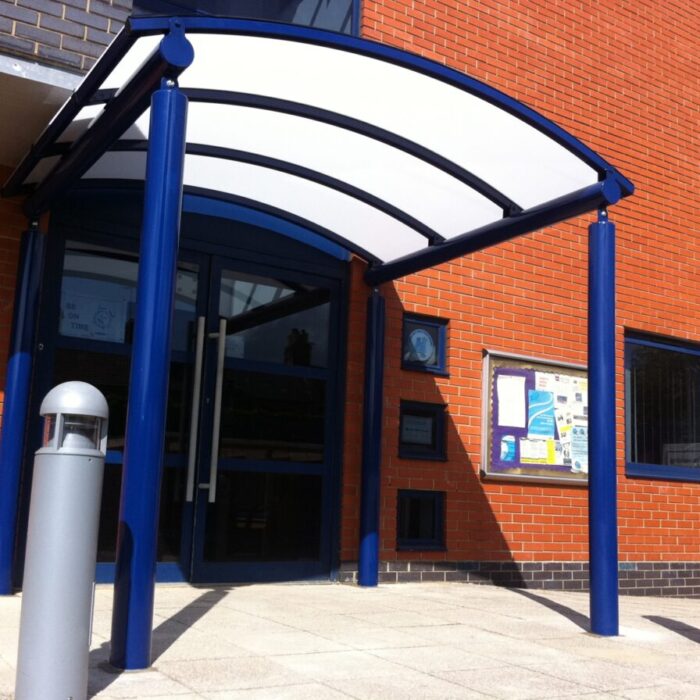

The Whiteside Freestanding Canopy is a cost effective structure which has an unlimited length, enabling it to provide extensive cover from the weather. It can be used in a variety of applications including a covered area for children to play under or a seating area within schools, colleges, hospitals or care homes. The Whiteside Freestanding Canopy can also be used as an Entrance Canopy.

This stylish steel structure is fitted with a choice of either 16mm structured polycarbonate or 5mm solid polycarbonate roof sheets. The frame can be powder coated, galvanised or both powder coated and galvanised to any standard RAL colour of your choice.

Features & Benefits:

  • Attractive Curved Design – The Whiteside has an attractive curved design that fits in well with most building styles
  • Makes Entrances Stand Out – Enhances your entrance with a striking canopy that make its stand out prominently, helping visitors find their way to the main entrance easily and creating great first impressions
  • Unlimited Length – Has an unlimited length and a maximum width of up to 4m
  • Robust Steel Frame – The main frame is constructed from 89mm x 4mm steel tube sections
  • Choice of Polycarbonate Roof Sheets – Roof is fitted with a choice of either 16mm structured polycarbonate or 5mm solid polycarbonate roof panels
  • Available Galvanised and Powder Coated – The steel frame is available galvanised, powder coated or both, galvanised and powder coated to any standard RAL colour of your choice
  • High UV Protection – The roof panels offer in excess of 98% UV protection from the Sun
  • Up to 25 Year Life Expectancy – For reassurance that our canopies are built to last

Design & Specification

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet:

Click here to view the Whiteside Freestanding Canopy Technical Specification Sheet

Technical File Downloads:

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

Steel Frame

The Whiteside is available powder coated in a range of standard RAL colours. Other non-standard RAL colours are available on request at an additional cost.

Please click here to view the full range of RAL Colour Range >


Polycarbonate Roof Panels

The polycarbonate roof panels are available in clear or opal.

Testimonials

“The canopy looks awesome and the gentlemen that installed it are just as awesome. Thank You”

– RAF Alconbury, Cambridgeshire – View Installation


“From start to the finish the order has been handled efficiently and installed within the expected deadline. We are very happy with the service provided.”

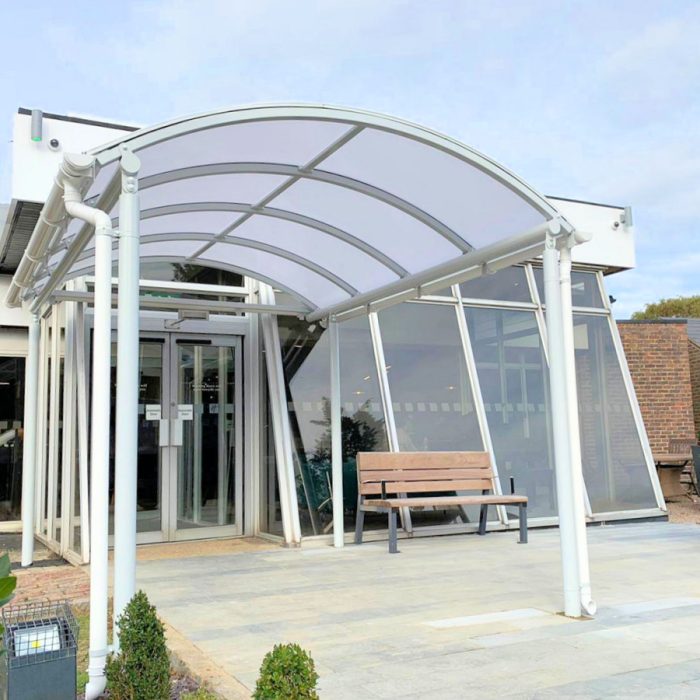

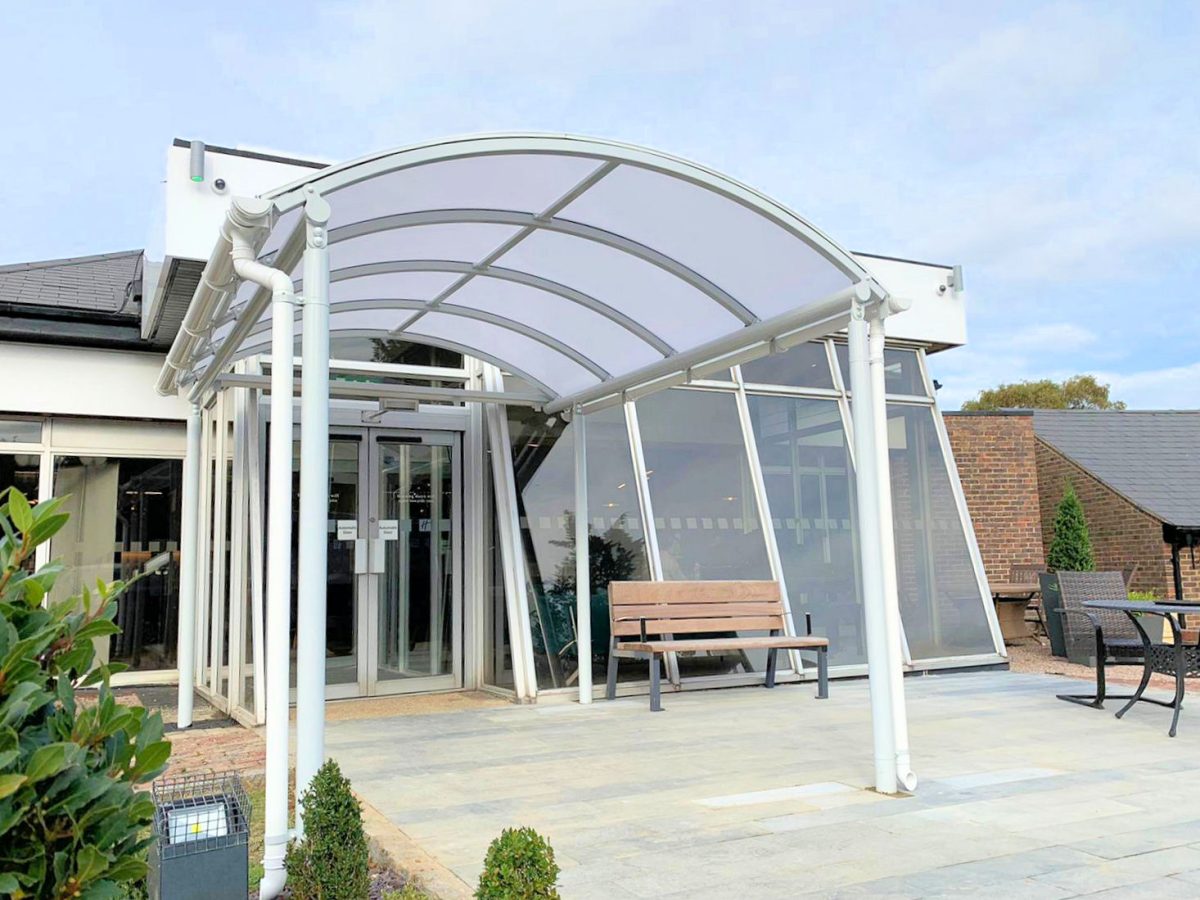

– Holiday Inn (Leaf Hotels Group), Kent – View Installation


To view a selection of our recent customer testimonials click here >

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
