Redford Entrance Canopy

Redford Entrance Canopy

Product Gallery

The Redford entrance canopy’s extra-deep curve, allows it to offer additional protection from the weather such as rain and wind whilst still offering high protection from the sun. It is therefore ideal for those that would like to receive full protection from the weather with a small shelter structure.

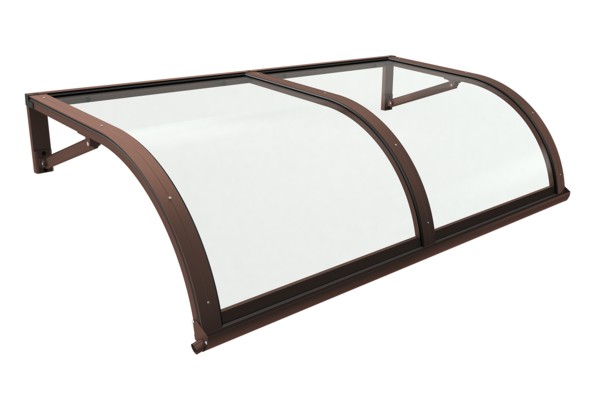

It is constructed from a strong aluminium frame and is covered with polycarbonate roof sheets that have a high resistance to impacts.

The Redford can be supplied to an unlimited length, with a minimum length of 1.4m, and has an available projection from the wall of 0.8m – 1.5m. The frame can be finished in a choice of 7 colours as standard, and the polycarbonate is supplied in clear as standard. Other colours for the frame and polycarbonate are available at an additional cost.

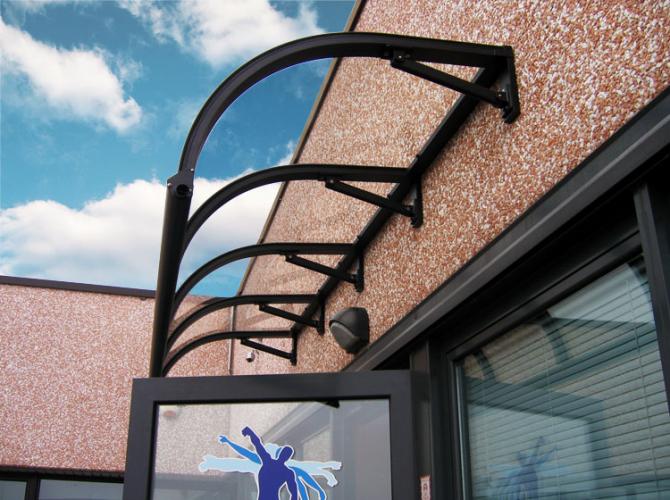

Due to the simple, cantilevered design, this entrance canopy is ideal for weather protection at schools, hospitals, shops and those in the leisure industry.

Features & Benefits:

  • Simple, Contemporary Design – A modern, cantilevered canopy that fits in with many building types
  • Deep Curve – The Redford has a deep curve which therefore allows it to offer additional cover from the weather above entrances, windows and outside walkways
  • Cantilevered – The Redford has no canopy posts and is fixed to the wall with small wall brackets
  • Cost Effective – Ideal for those with smaller budgets that still want a high quality canopy
  • T5 Grade Aluminium Frame – The frame is constructed from high grade aluminium for extra strength and longevity
  • Polycarbonate Roof Panels – The roof panels are 4mm solid polycarbonate panels that have a high resistance to impacts
  • Unlimited Length – The Redford can span from 1.4m – unlimited
  • Variable Projection – Can be manufactured to have a projection from 0.8m – 1.5m
  • Aluminium Guttering – Integral aluminium guttering is supplied as standard
  • Load Tested – The Redford has been tested by TÜV and is approved for loads up to 170daN/m²
  • Fire Resistance – The clear polycarbonate panels meet the UK fire rating BS 476 Part 7 Class 1Y and the European fire standard EN 13501-1 B s1 d0
  • High UV Protection – The roof panels are treated with a special UV coating on both sides which offer high protection from the sun and also prevents the panels from yellowing over time
  • Frame Colour – The aluminium can be powder coated in a choice of 7 colours as standard, alternative colours are available on request at an additional cost
  • Polycarbonate Colour – The roof panels are clear as standard with a choice of 6 alternative colours which are available at an additional cost
  • 2 Year Guarantee – Supplied with a 2 year guarantee for peace of mind

Design & Specification

Polycarbonate Roof Panels

Covered with solid polycarbonate panels that are 4mm thick and have a high resistance to impacts.

Excellent Resistance Against the Weather – The polycarbonate panels offer high protection against UV rays and shelters from the rain and wind. The UV coating that is applied during the manufacturing process also prevents the panels from discolouring over time.

High Light Transmittance – The polycarbonate panels let through high amounts of light, depending on the colour chosen. The table below shows the results from the test method DIN 5036:

Polycarbonate Colour Light Transmission %
Clear (Supplied as standard) 87%
Bronze 50%
Grey 55%
Green 73%

Please note: We do not have the results for embossed or opal polycarbonate.

Fire Resistance – The standard polycarbonate roof panels (clear) meet the European fire standard EN 13501-1 B s1 d0 and the UK fire rating BS 476 Part 7 Class 1Y.

Aluminium Frame

The framework is made from T5 grade aluminium for total strength and longevity, it is powder coated in a choice of 7 standard colours.

Integral Guttering

Integral aluminium guttering is supplied as standard. The water is dispersed through drip spouts that are located at the front of the canopy.

Loading Capabilities

The Redford is a strong structure that has passed tests undertaken by TÜV for uniformly distributed loads up to 170daN/m².

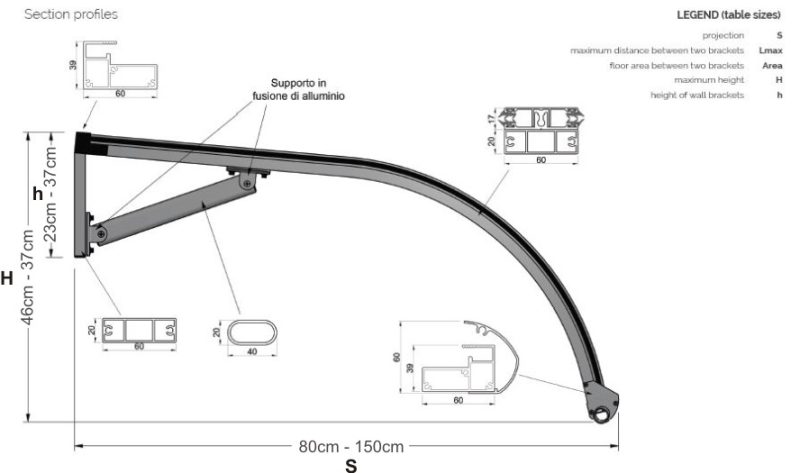

Technical Drawing



Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet

Click here to view the Redford Entrance Canopy Technical Specification Sheet

Technical File Downloads

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

(Coming soon)

BIM:

(Coming soon)

Colour Options

Frame

The Redford frame is available in 7 colours; please click here to view the colour chart

Polycarbonate

The polycarbonate is available in a choice of 5 different colours; please click here to view the colour chart

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
