Tenby Entrance Canopy

Tenby Entrance Canopy

The Tenby Entrance Canopy is a strong and robust aluminium and polycarbonate wall mounted structure that provides shade and shelter to all weather conditions.

The modest size and the lack of front posts makes this canopy perfect for areas that have limited space; the brackets are also smaller than our comparable structures which means that less installation room is required for fixings.

It is ideal for creating shade and shelter above your entrance doors, keeping visitors and your entrance area dry. It can also be used to provide shade above windows, creating a much cooler setting inside of the building. Other uses include as a covered walkway around a building’s perimeter and as smoking or waiting shelters.

This cost effective and stylish structure not only features a highly modern, mono-pitched roof with perforated brackets, but it can also be manufactured to fit around internal and external corners, allowing you to follow the shape of your building. And want’s more, due to the unlimited length, the Tenby really could provide shelter around your entire building!

Features & Benefits:

  • Modern Linear Structure – A modern, mono-pitched roof enables this product to fit in with elegant buildings with sharp features
  • Cantilevered Design – The lack of front posts makes this entrance canopy ideal for areas where posts are not ideal
  • Stylish Perforated Brackets – Which are small in size, enabling the structure to be installed in smaller areas with limited installation space
  • Cost Effective – A high quality canopy that is ideal for smaller budgets
  • Strong, Aluminium Frame – The canopy frame is constructed from high quality aluminium extrusions for high strength and a natural rust resistance. It is supported by steel brackets which are galvanised and powder coated as standard
  • Strong Polycarbonate Roof Panels – The Tenby is covered with 4mm thick, solid polycarbonate roof panels that are extremely strong and available in a selection of tints
  • Unlimited Length – Enabling you to cover as much or as little of your outside area as required
  • Projections Available – From 0.6m – 1.3m from the wall
  • Integrated Guttering – Guttering is integrated within the canopy frame as standard with drip spouts at the sides to disperse the water
  • Follows the Shape of Your Building – The Tenby can be manufactured to follow round internal and external corners
  • Robust Structure – The canopy has been tested and approved by TÜV for loads up to 170daN/m²
  • Good Fire Resistance – The clear polycarbonate panels meet the UK fire rating BS 476 Part 7 Class 1Y and the European fire standard EN 13501-1 B s1 d0
  • High UV Protection – The polycarbonate panels are treated with a coating that offers high UV protection and prevents the panels from discolouring or fading over time
  • Frame Colour – The aluminium can be powder coated in a choice of 7 colours as standard, alternative colours are available on request at an additional cost
  • Polycarbonate Colour – The roof panels are clear as standard with a choice of 6 alternative colours which are available at an additional cost
  • 2 Year Guarantee – Supplied with a 2-year guarantee for peace of mind

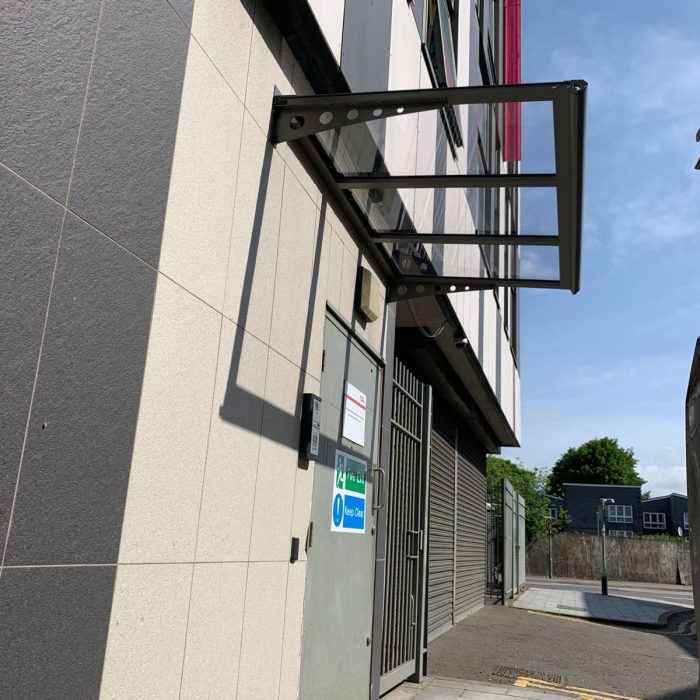

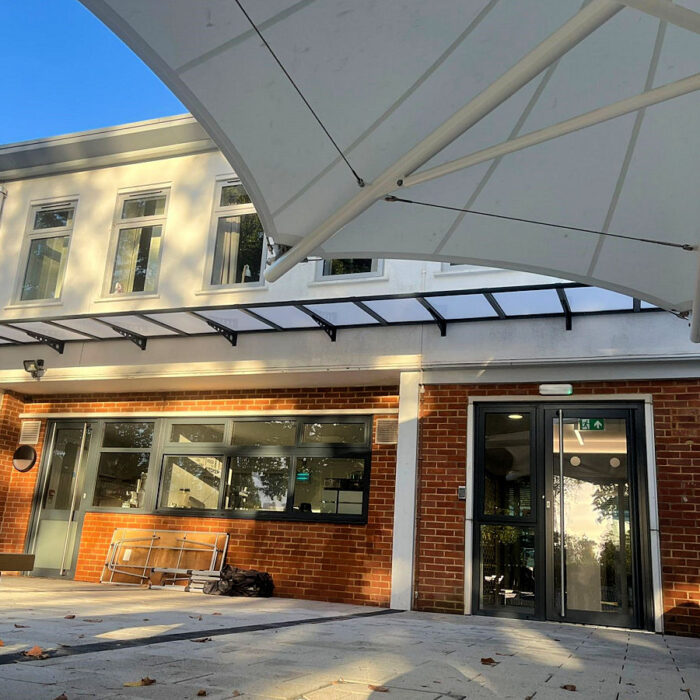

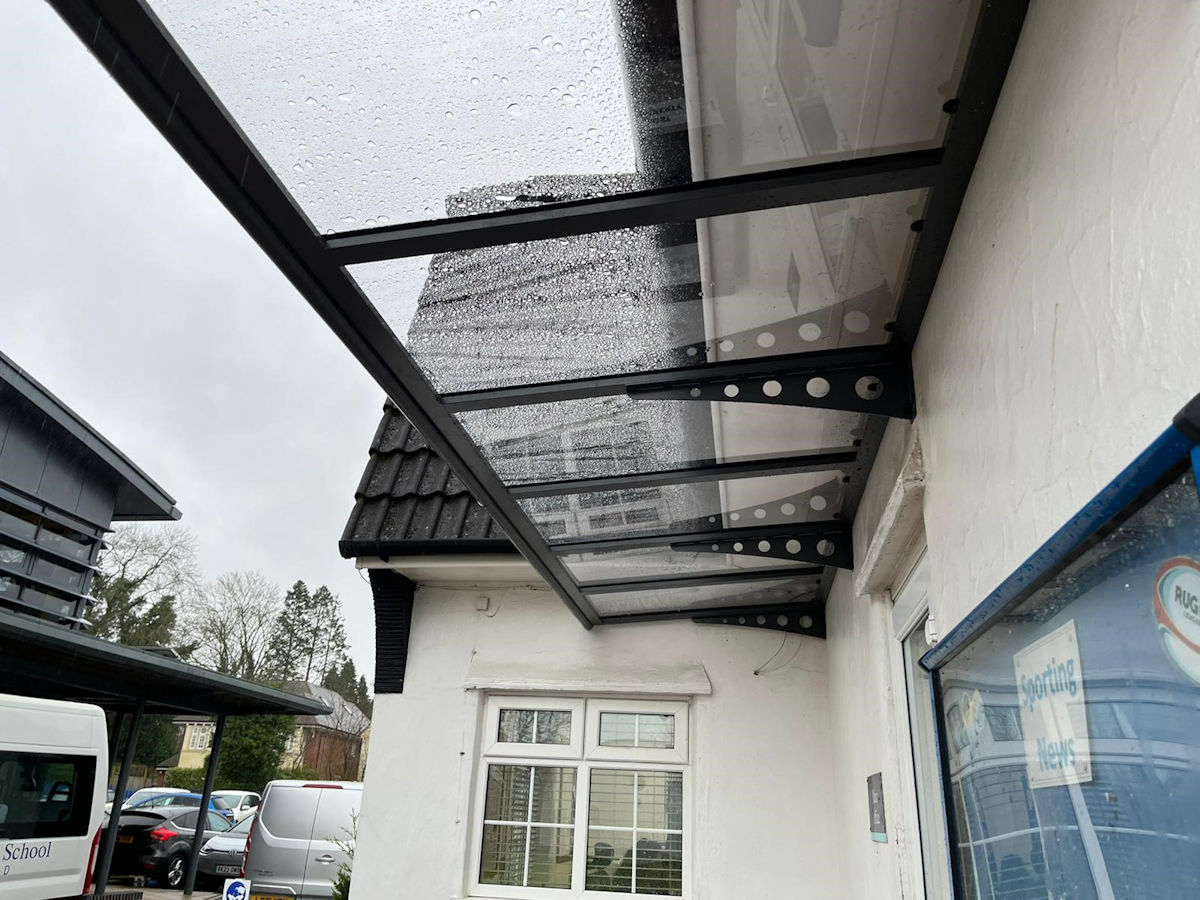

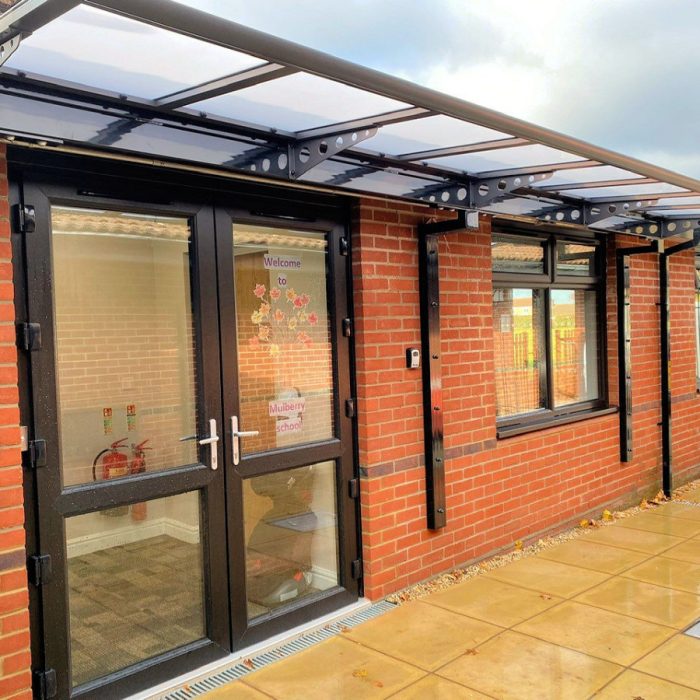

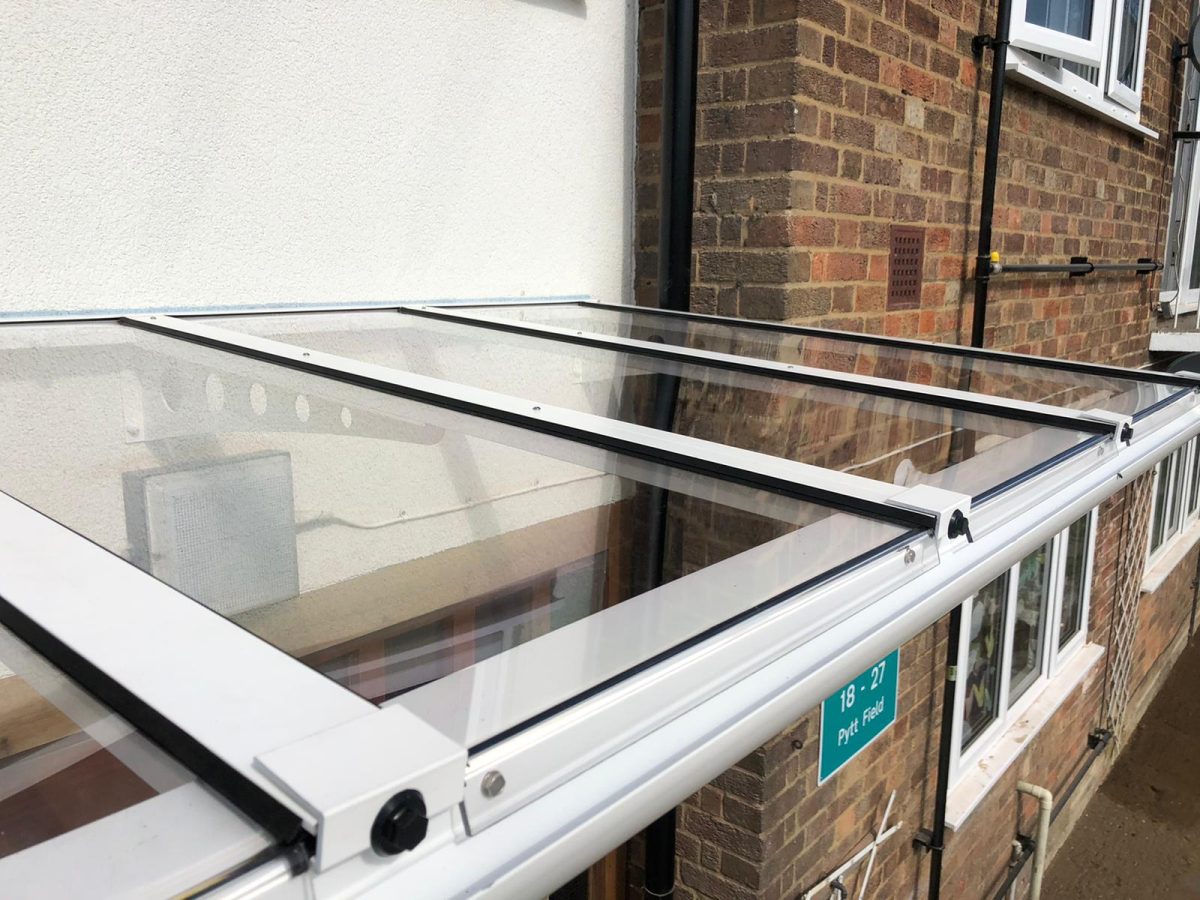

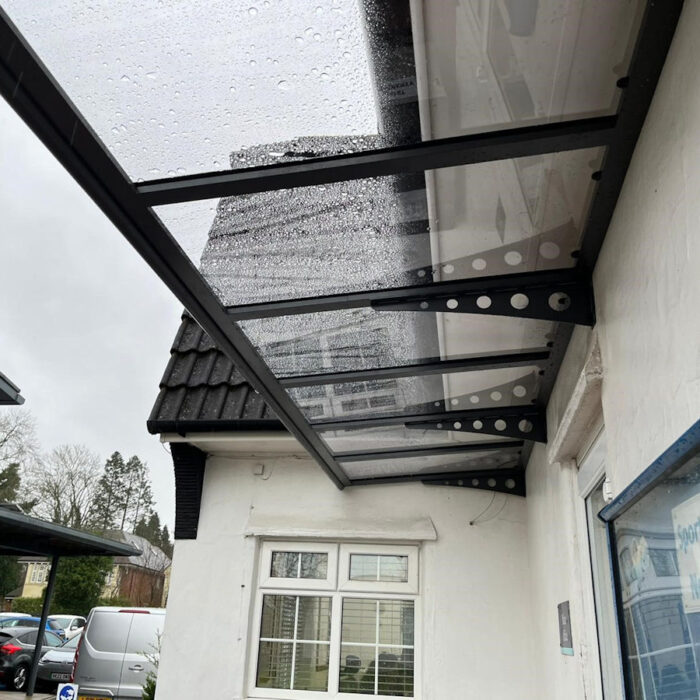

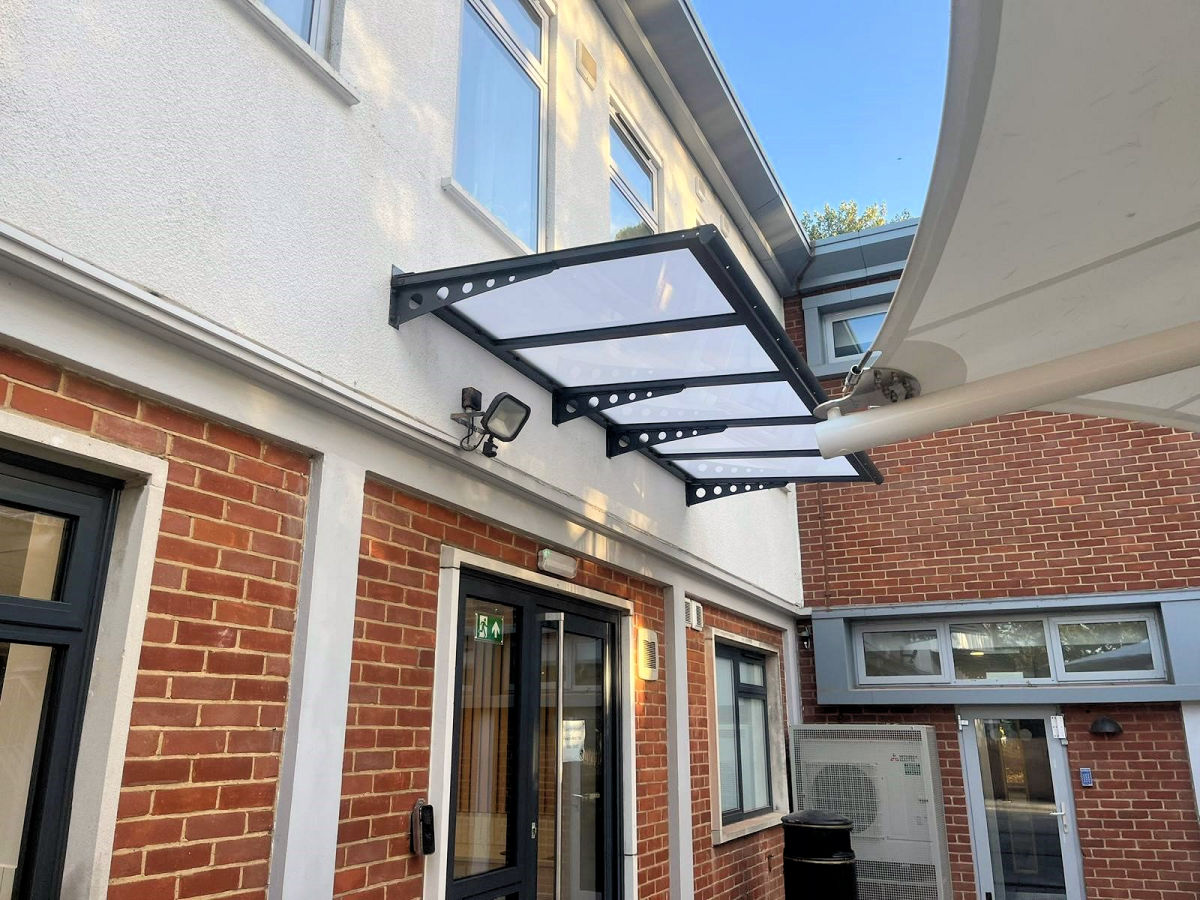

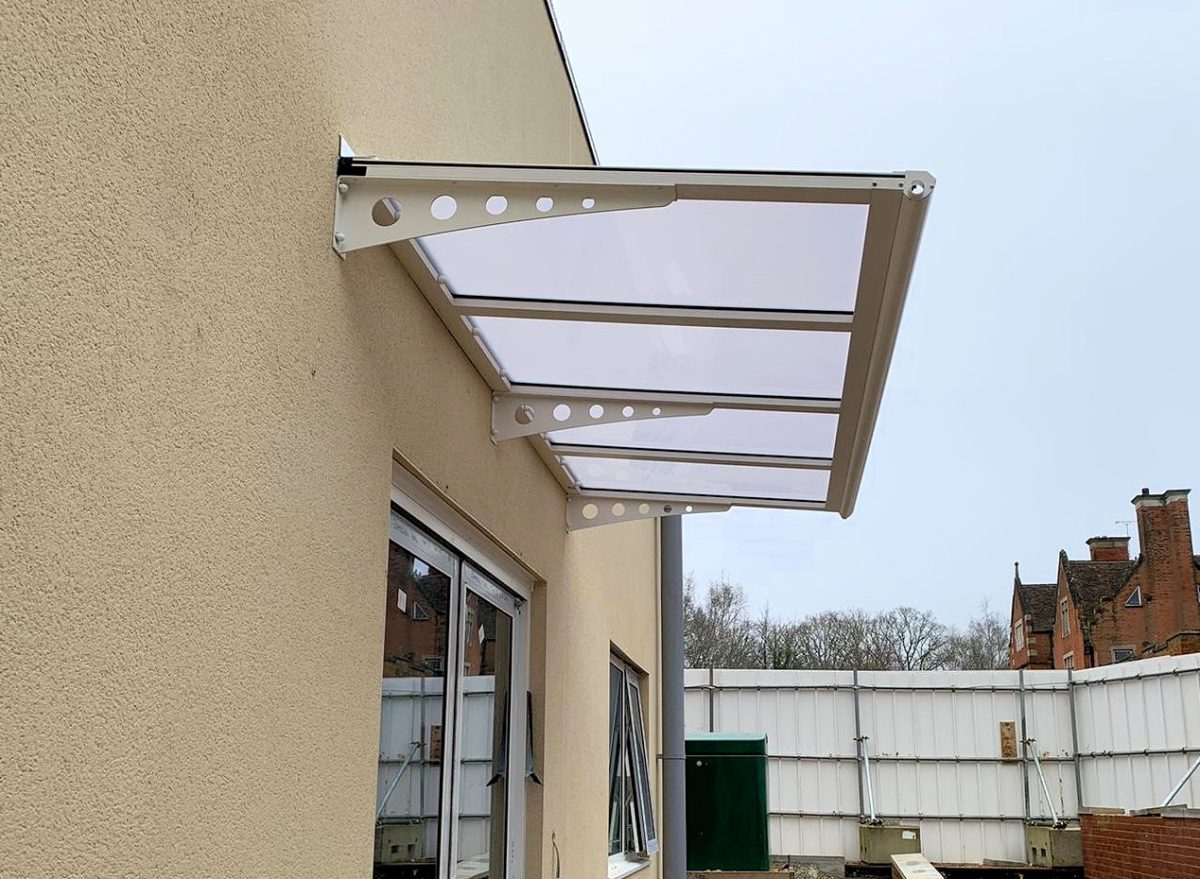

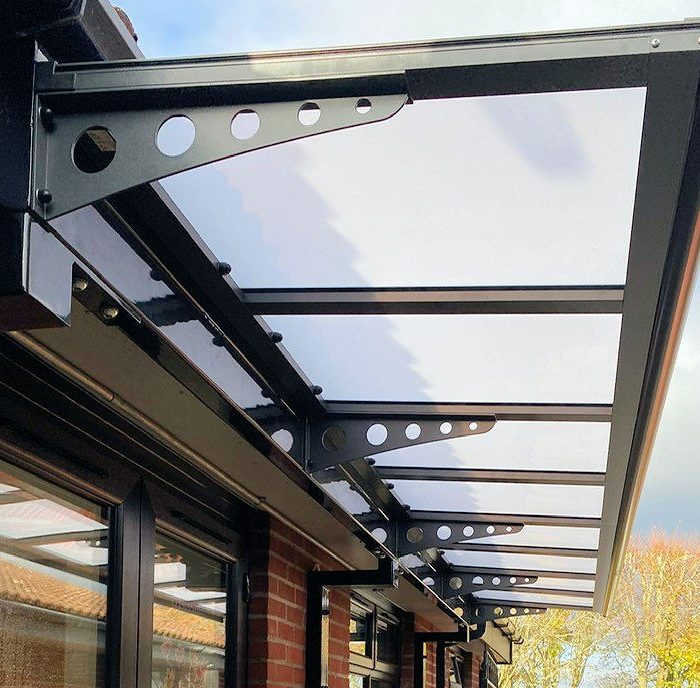

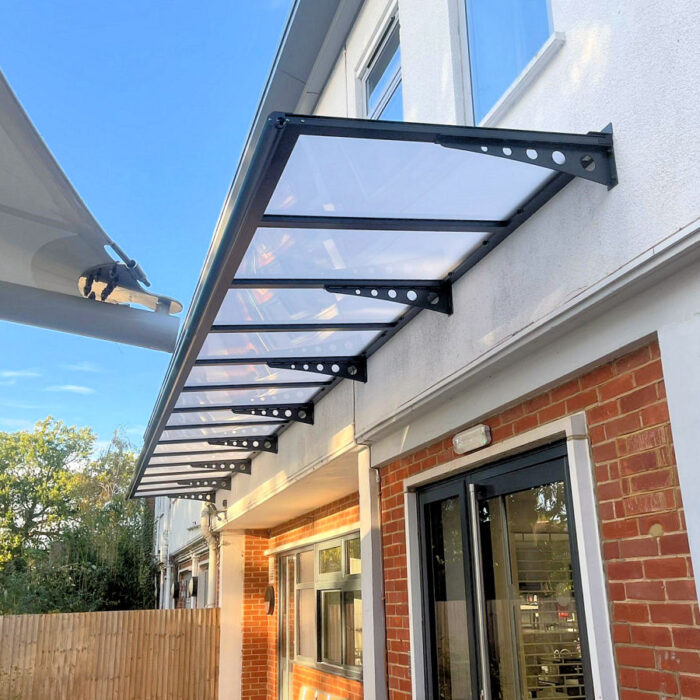

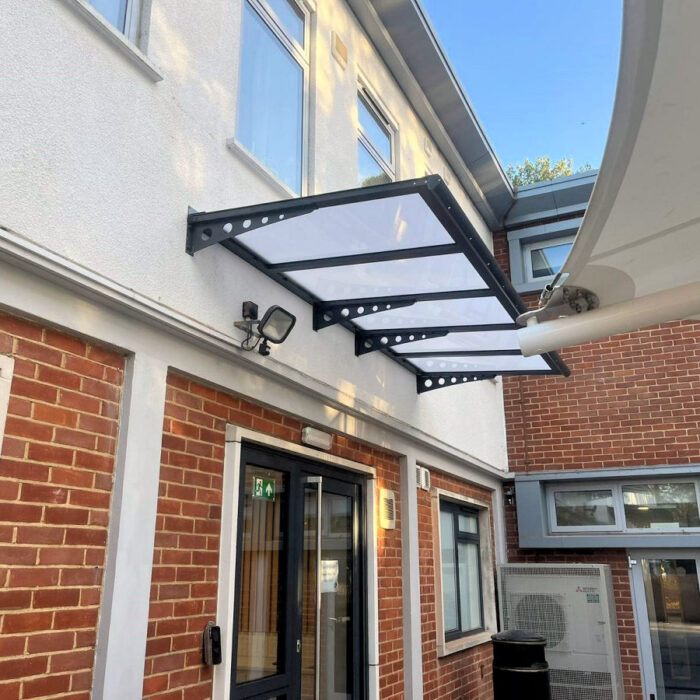

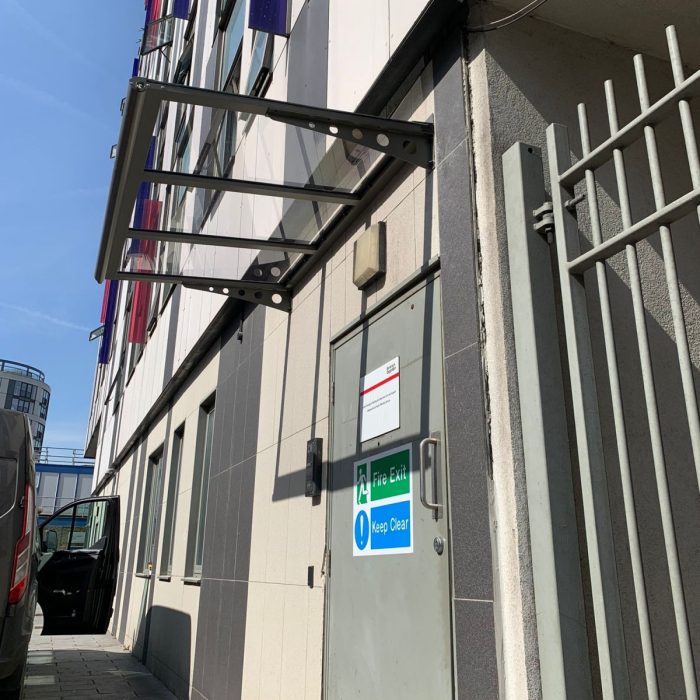

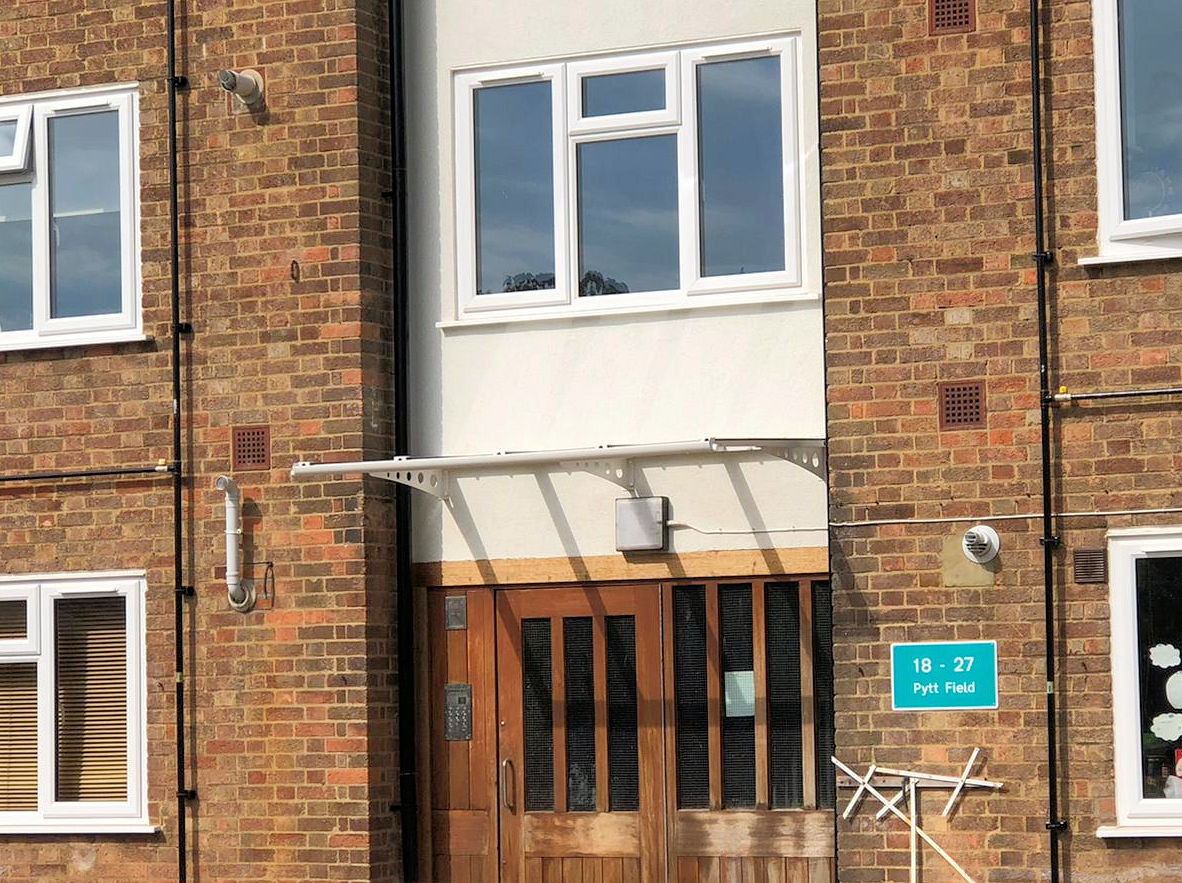

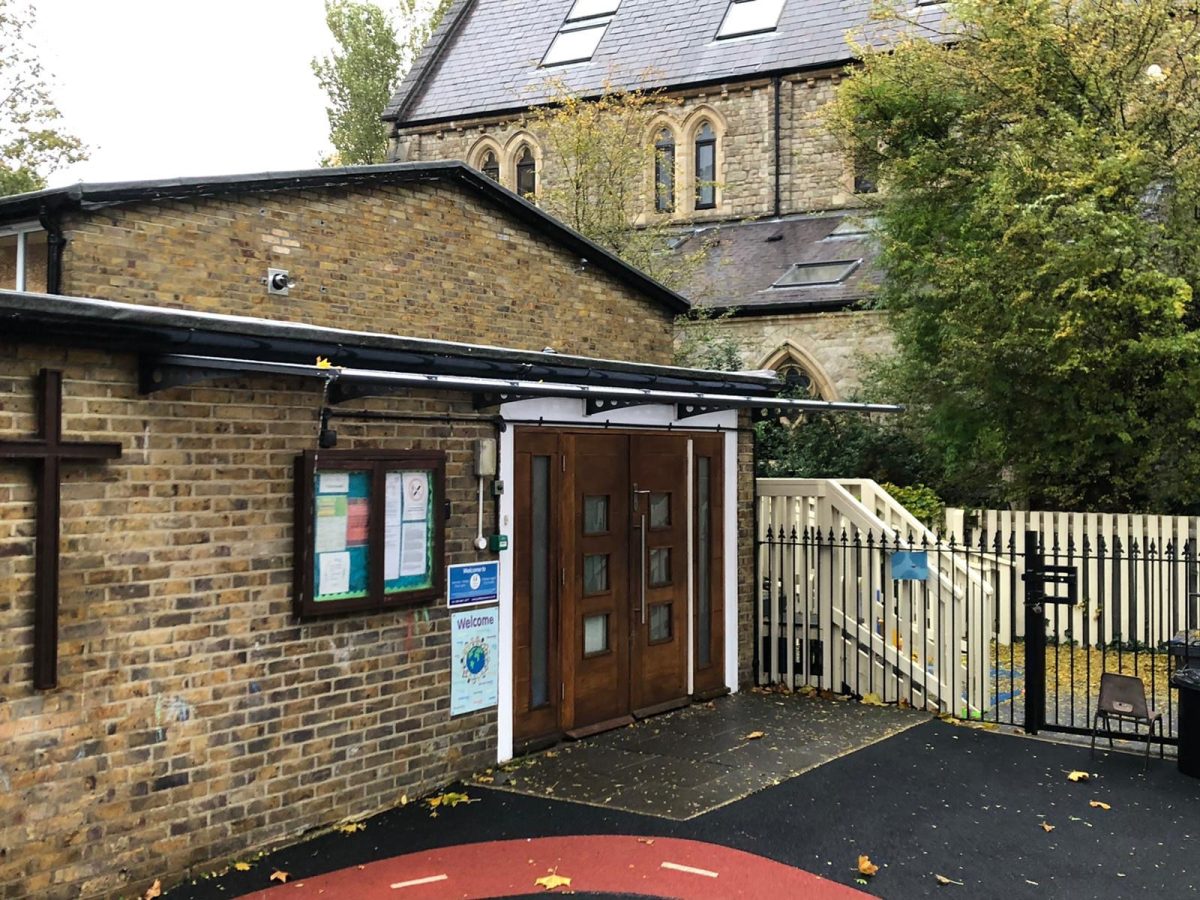

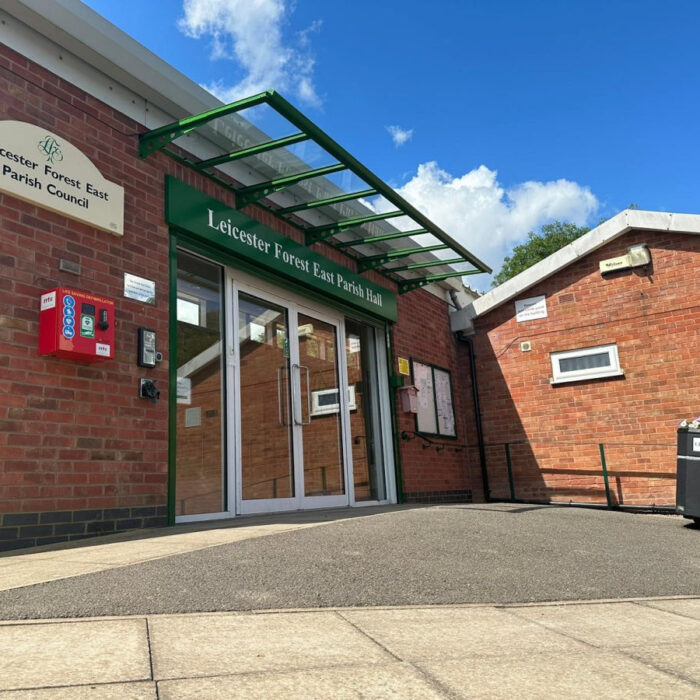

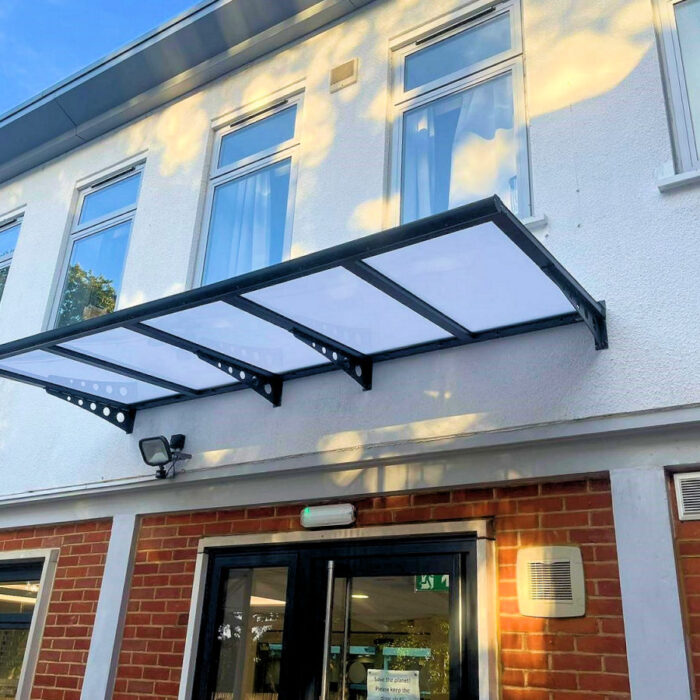

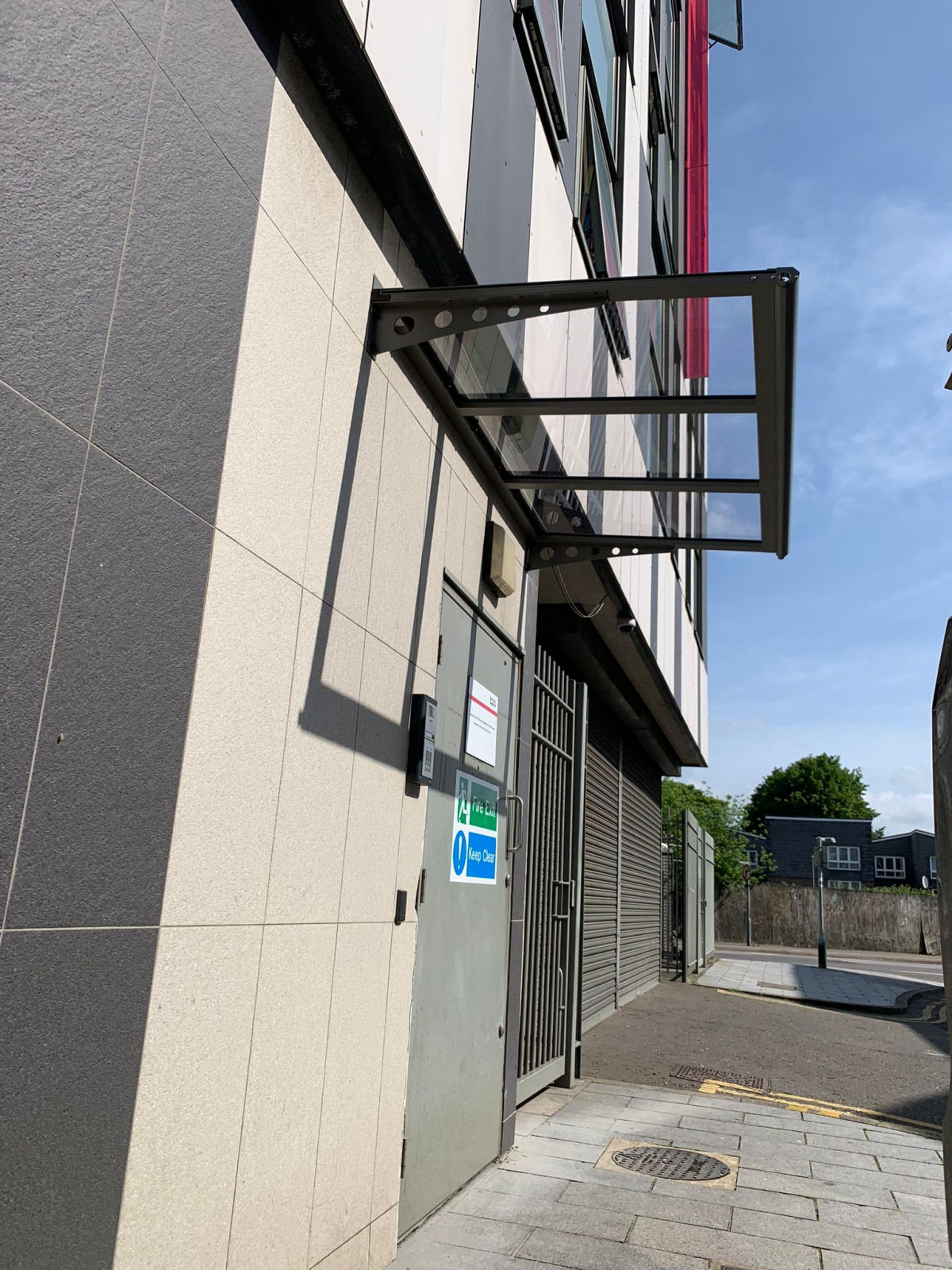

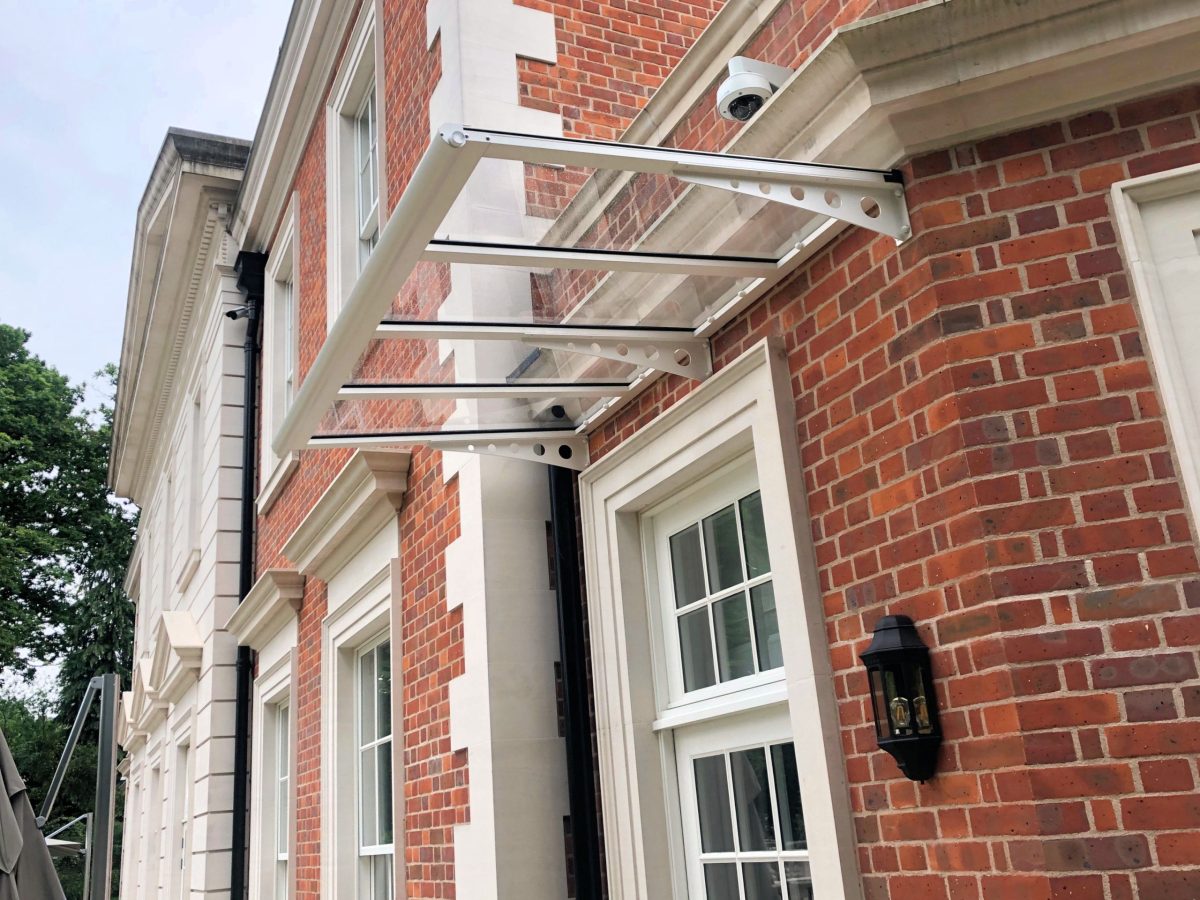

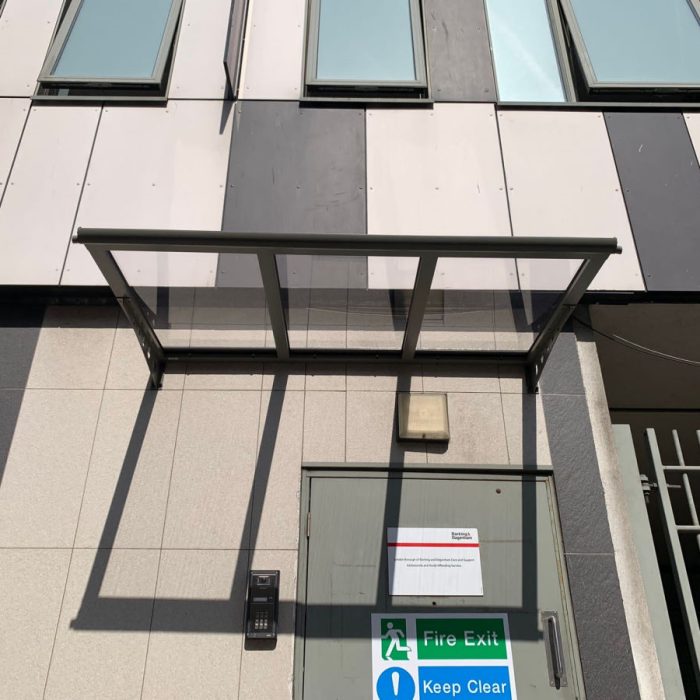

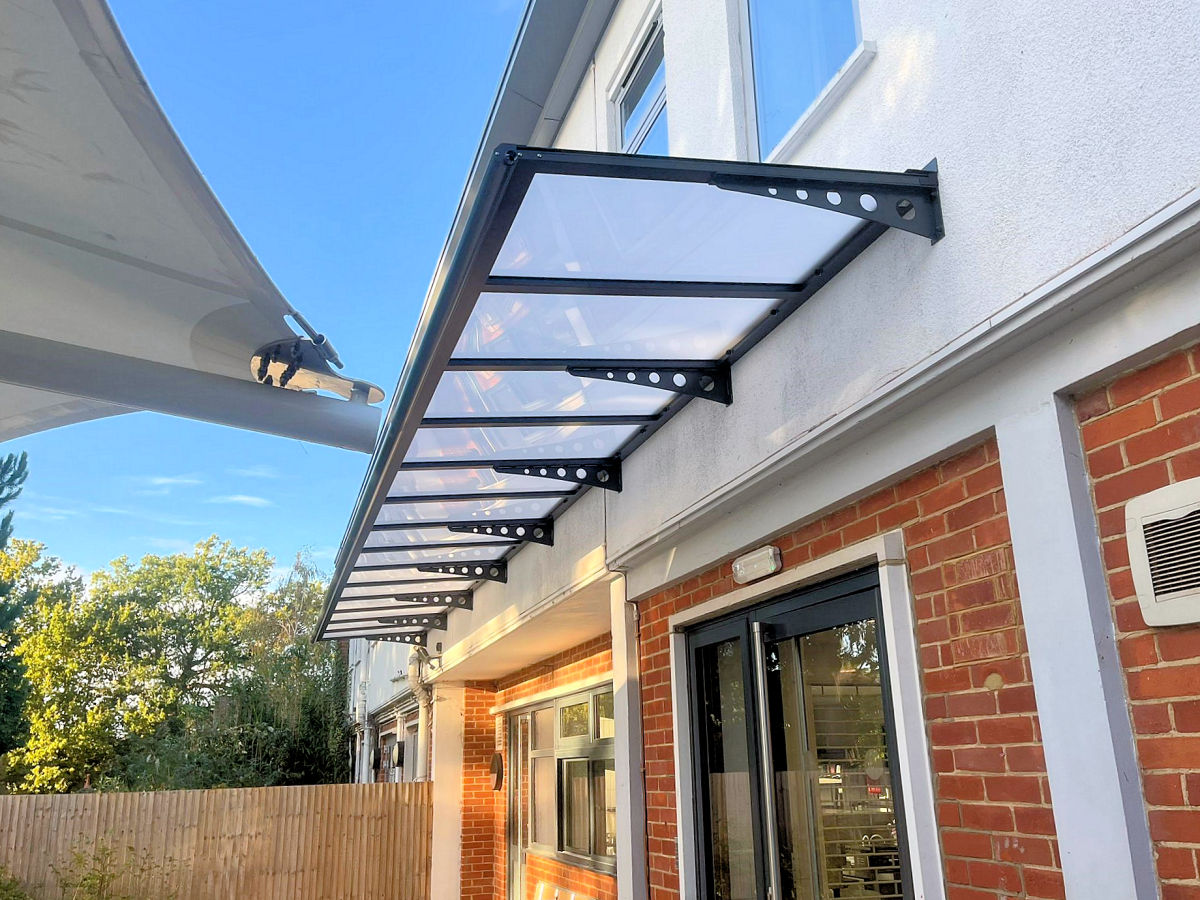

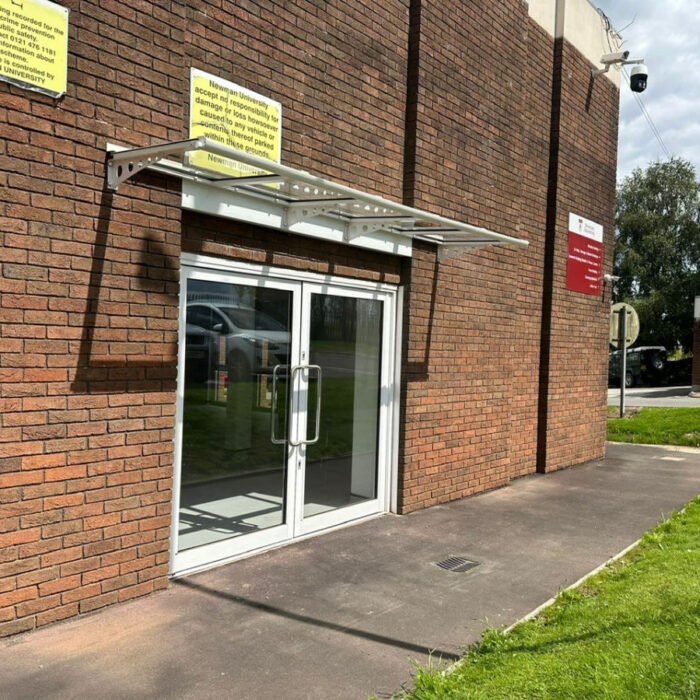

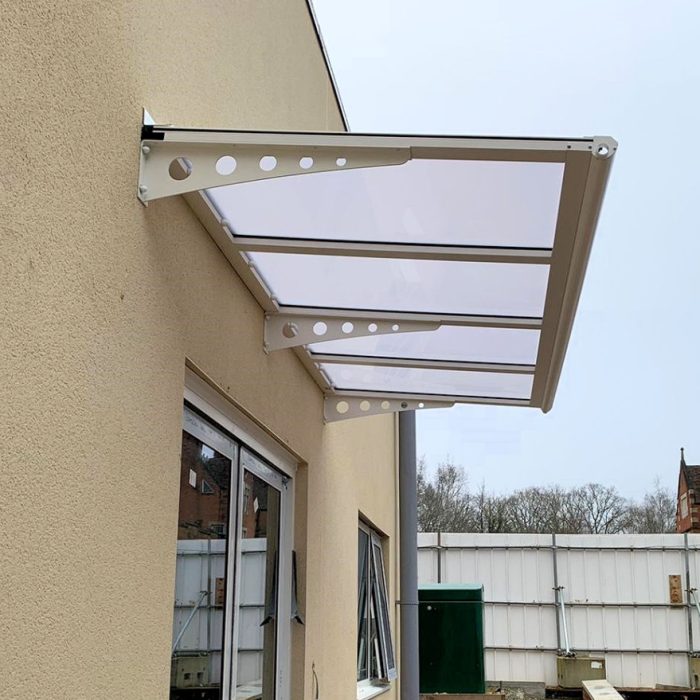

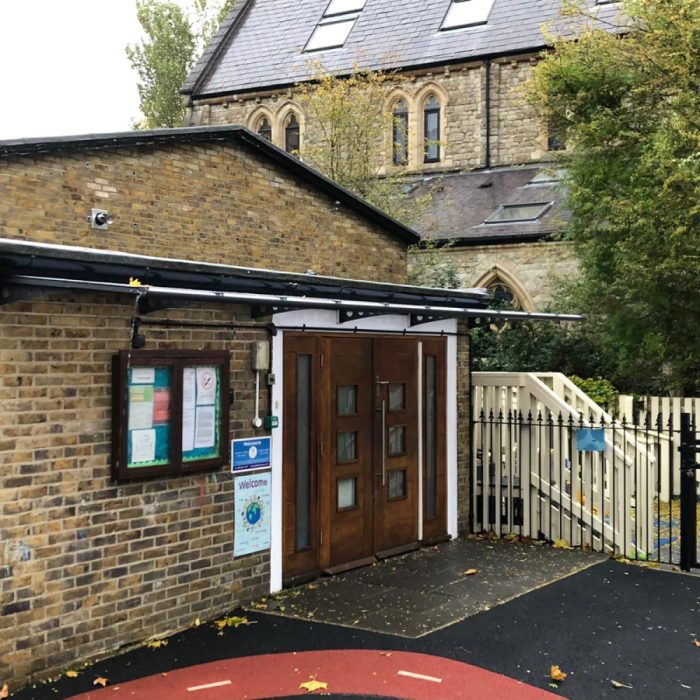

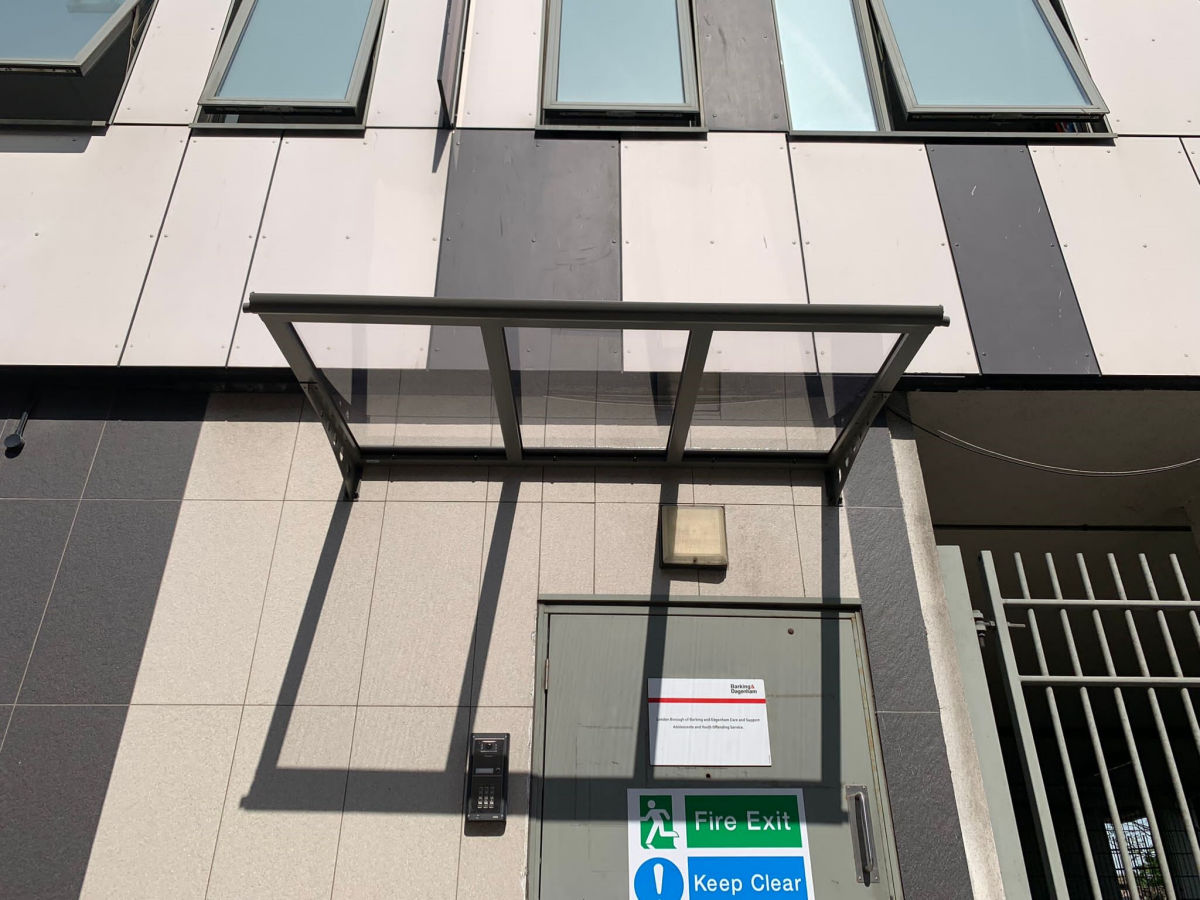

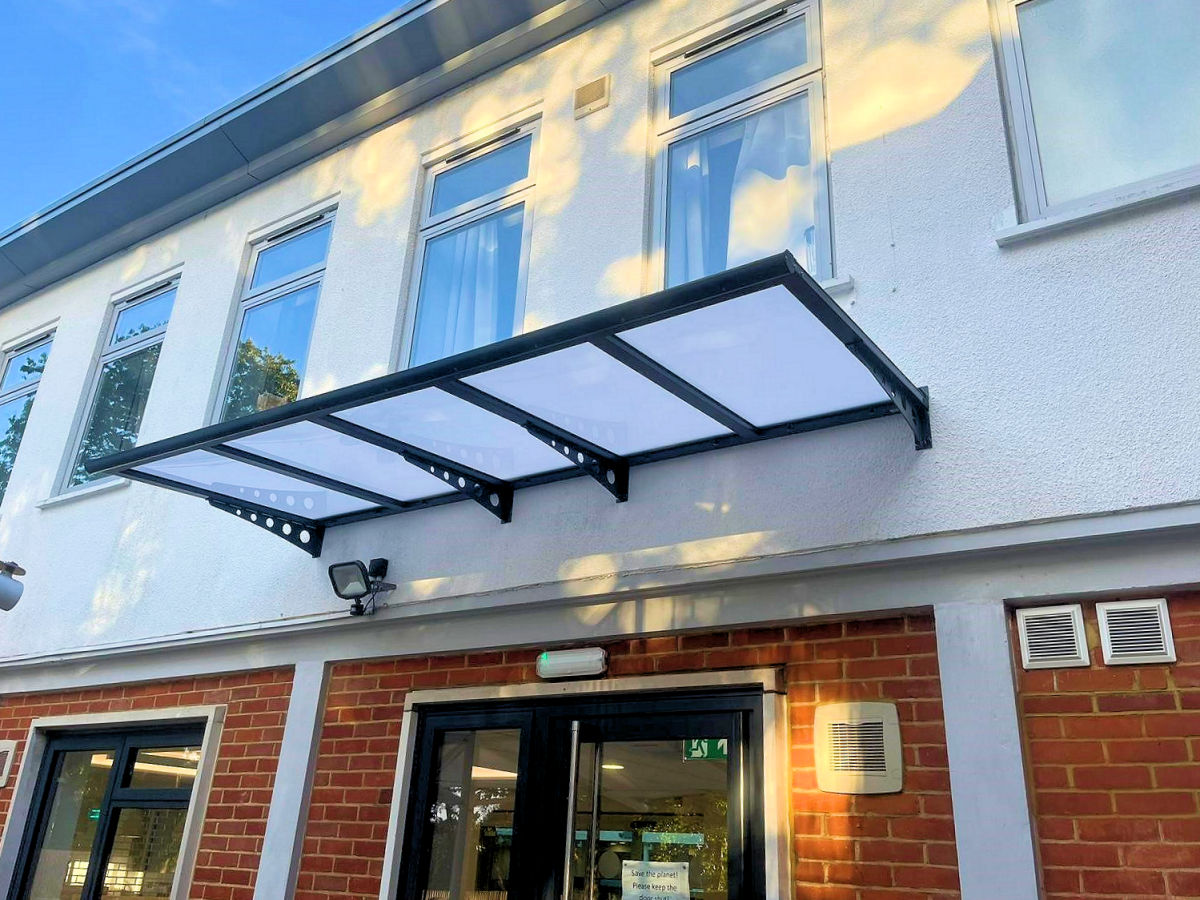

Product Gallery

Design & Specification

Polycarbonate Roof Panels

The Tenby is covered with solid polycarbonate roof panels that are 4mm thick. They are light in weight and high in strength making them ideal for all year-round canopy cover.

High UV Protection – The polycarbonate roof panels provide high protection UV from the sun. During the manufacturing process, they are finished with a UV coating that prevents the panels from yellowing or fading due to sun damage.

High Light Transmittance – The roof panels have an excellent light transmittance dependant on the tint colour chosen. The table below shows the results from the test method DIN 5036:

Polycarbonate Colour Light Transmission %
Clear (Supplied as standard) 87%
Bronze 50%
Grey 55%
Green 73%

Please note: We do not have the results for embossed or opal polycarbonate.

Fire Tested

The clear polycarbonate roof panels that are supplied as standard meet the European fire rating EN 13501-1 B s1 d0 and the UK fire standard BS 476 Part 7 Class 1Y.

Aluminium Frame

The framework is constructed from high grade aluminium and is supported by galvanised steel wall brackets.

Integral Guttering

Aluminium guttering is supplied as standard with drip spouts that disperse the water out of the front of the canopy.

Loading Capabilities

The Tenby has passed the tests undertaken by TÜV for uniformly distributed loads up to 170daN/m².

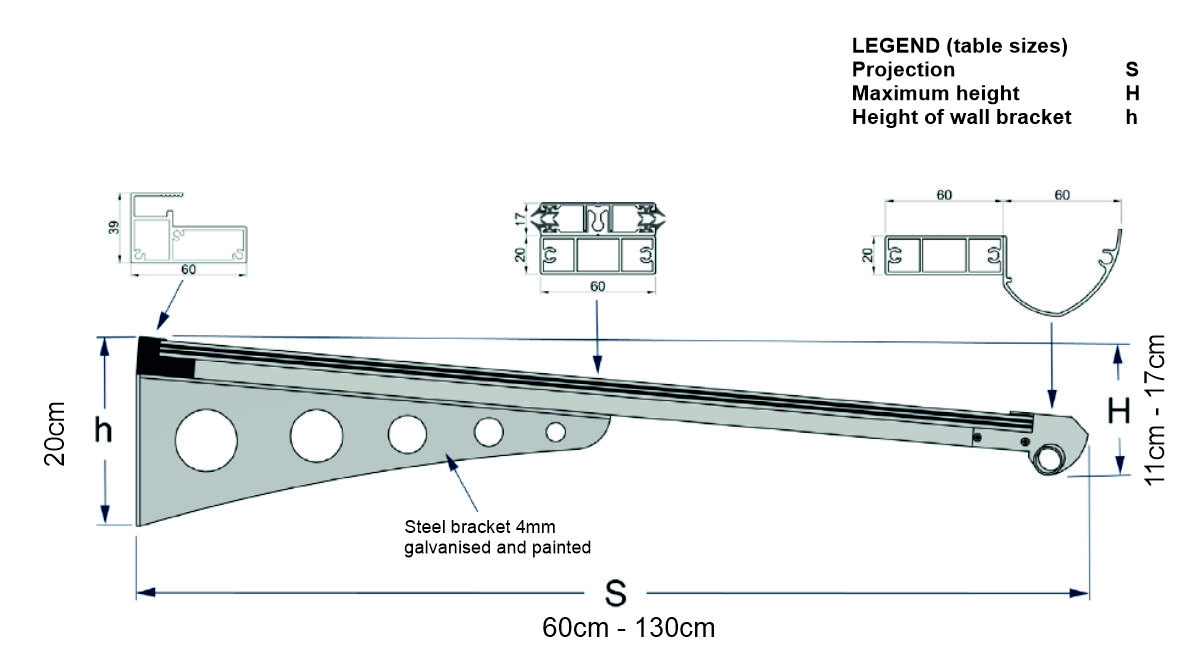

Technical Drawing

Please click on the image to view a larger version (link opens in a new tab).


Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet

Click here to view the Tenby Entrance Canopy Technical Specification Sheet

Technical File Downloads


Please see below the NBS specs and BIM models for you to download and add to your project.


em>(Coming soon)


Colour Options


The Tenby frame is available in 7 colours; please click here to view the colour chart


The polycarbonate is available in a choice of 5 different colours; please click here to view the colour chart

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure

Similar Products

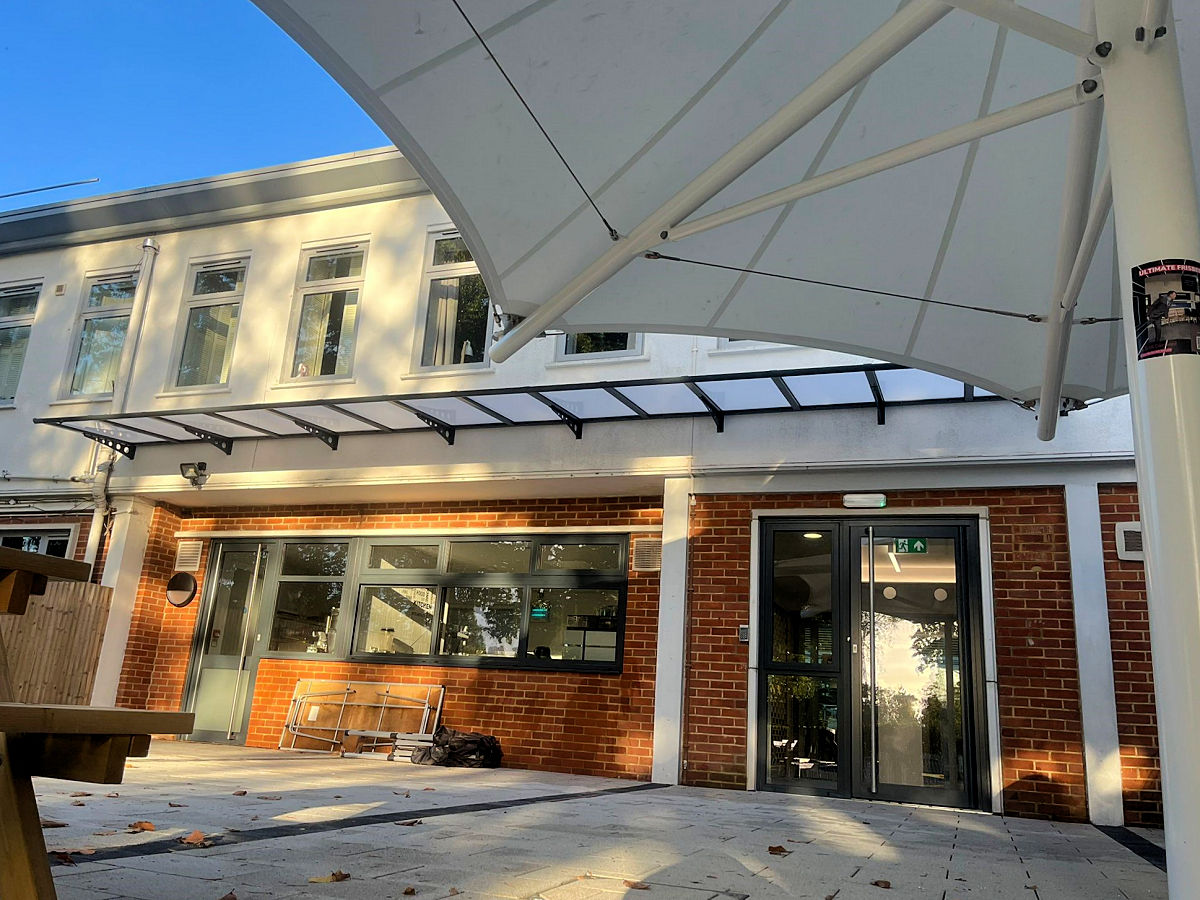

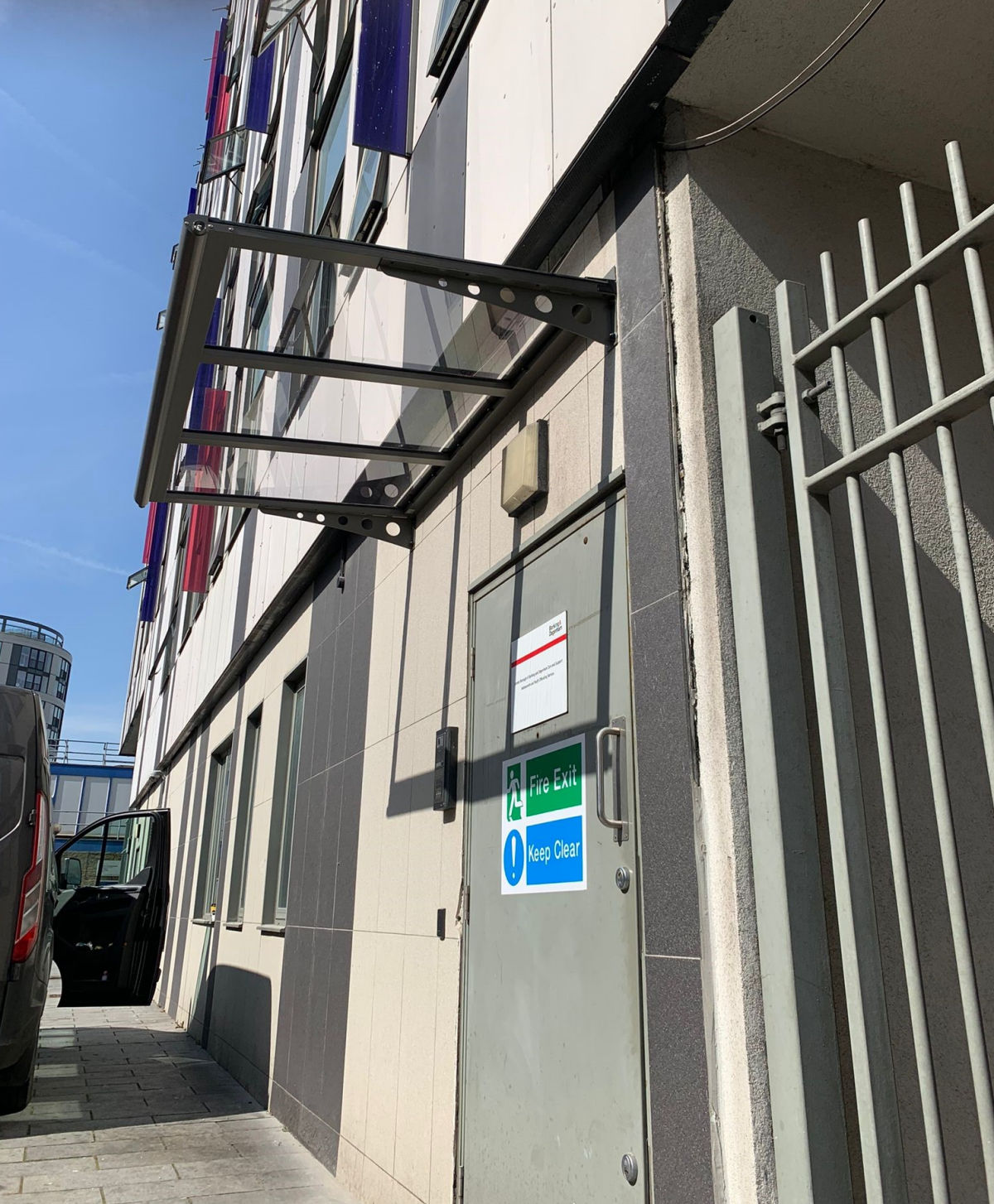

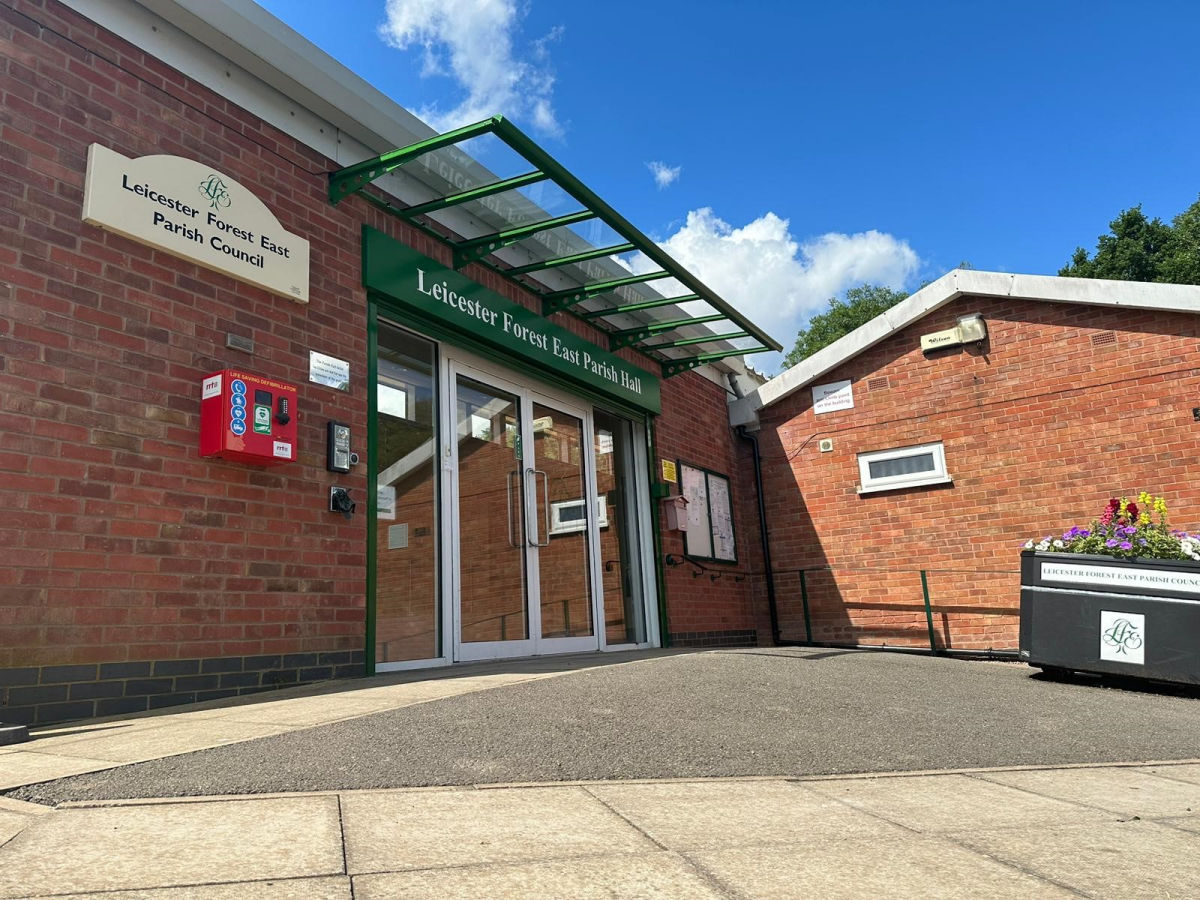

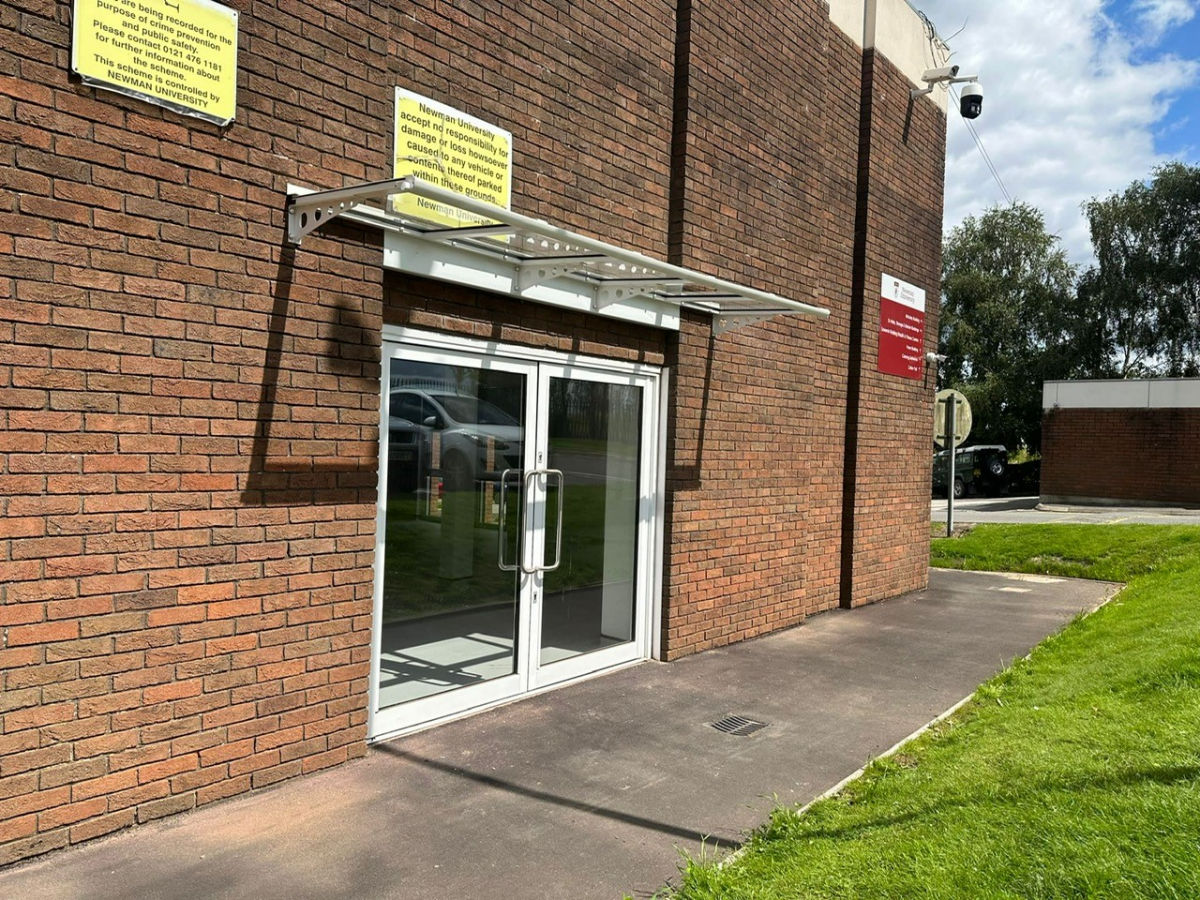

Recent Installations
