Lexden Entrance Canopy

Lexden Entrance Canopy

The Lexden Entrance Canopy has a stylish, minimalist appearance that fits in well with many building styles and makes entrances stand out prominently. It has a strong aluminium construction that is covered with high strength polycarbonate roof sheets.

Due to its square, edgy design, the Lexden Entrance Canopy provides stylish shelter for new builds and contemporary building designs and is particularly popular with offices and commercial settings, including retail and leisure organisations. Its mono-pitch design provides excellent protection from the weather and, if installed above a window or doors, it can also help to keep a building’s interior cool on hotter days.

Features & Benefits:

  • Unlimited Length – Can be installed to any length (minimum of 1.4m)
  • Variable Projection – Can span from 0.6m – 1.3m from the wall
  • Cost Effective – Even though this canopy is made from high quality, strong materials, it is a cost effective canopy that is suitable for smaller budgets
  • All Year Weather Protection – Protects against the rain, wind, sun and snow
  • Cantilever Canopy – The Lexden is fixed to the wall with aluminium brackets and has no canopy posts
  • Strong Aluminium Frame – Constructed from an 100% aluminium frame which is naturally rot and rust resistant
  • Impact Resistant Roof Panels – The roof is covered with vandal resistant 4mm solid polycarbonate roof panels
  • Hidden Guttering – Integral aluminium guttering is supplied as standard and allows water to disperse out of small drip spouts at the sides of the canopy.
  • High Protection From the Sun – The high strength, polycarbonate roof panels offer high UV protection from the sun and helps to prevent the panels from yellowing or fading over time
  • Meets UK and Euro Fire Standards – The clear roof panels that are supplied as standard have been tested and adhere to the UK fire rating BS 476 Part 7 Class 1Y and the European fire rating EN 13501-1 B s1 d0
  • Snow Loading Capabilities – The Lexden has passed tests by TÜV for snow loads of up to 170daN/m²
  • 2 Year Guarantee – Supplied with a 2 year guarantee for peace of mind

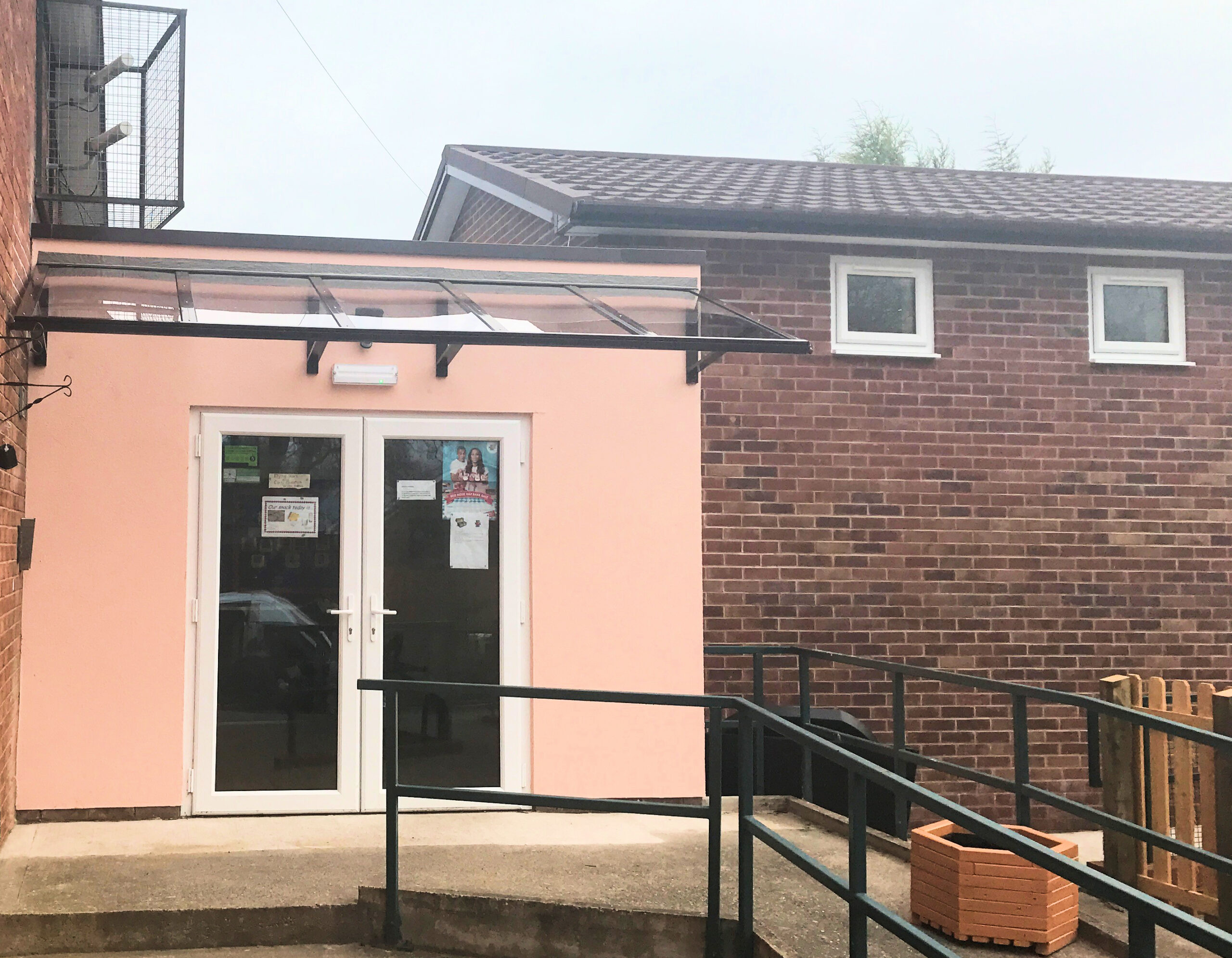

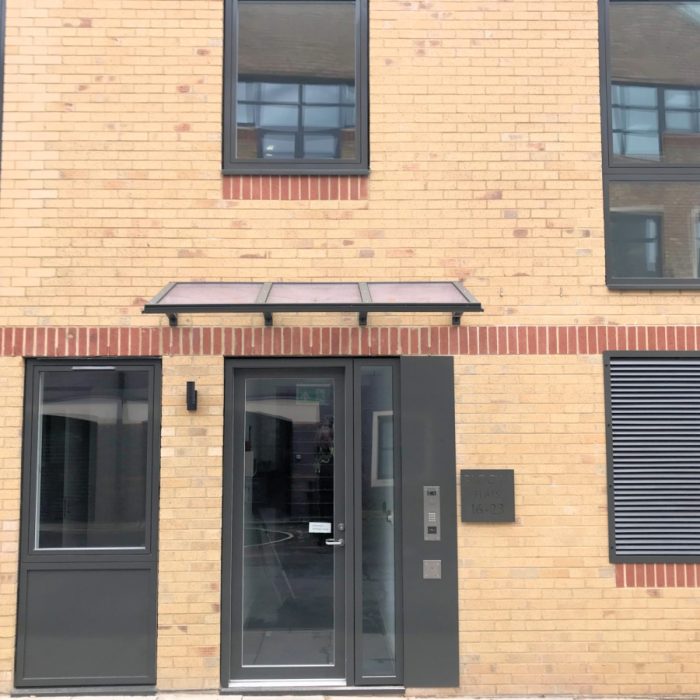

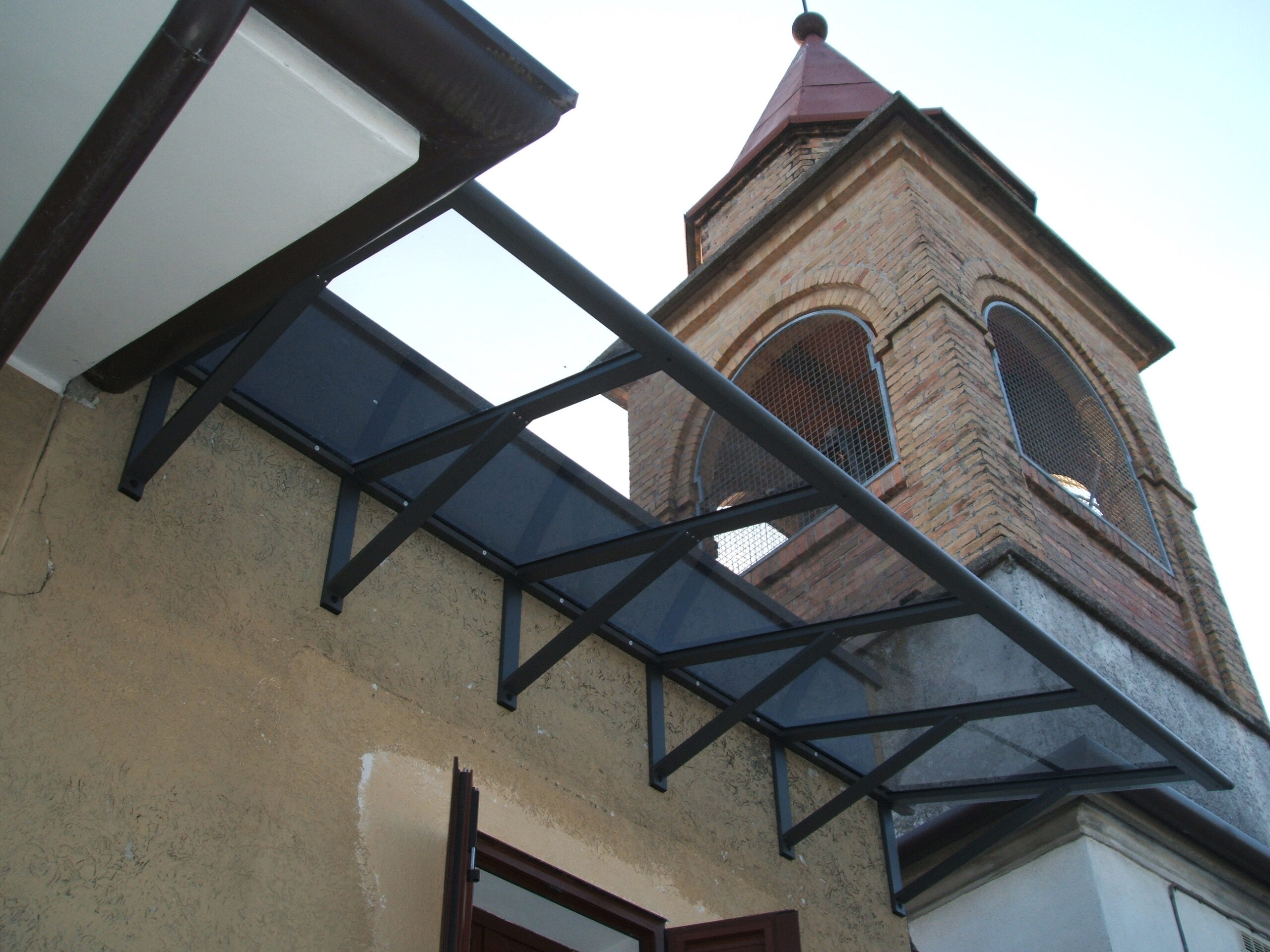

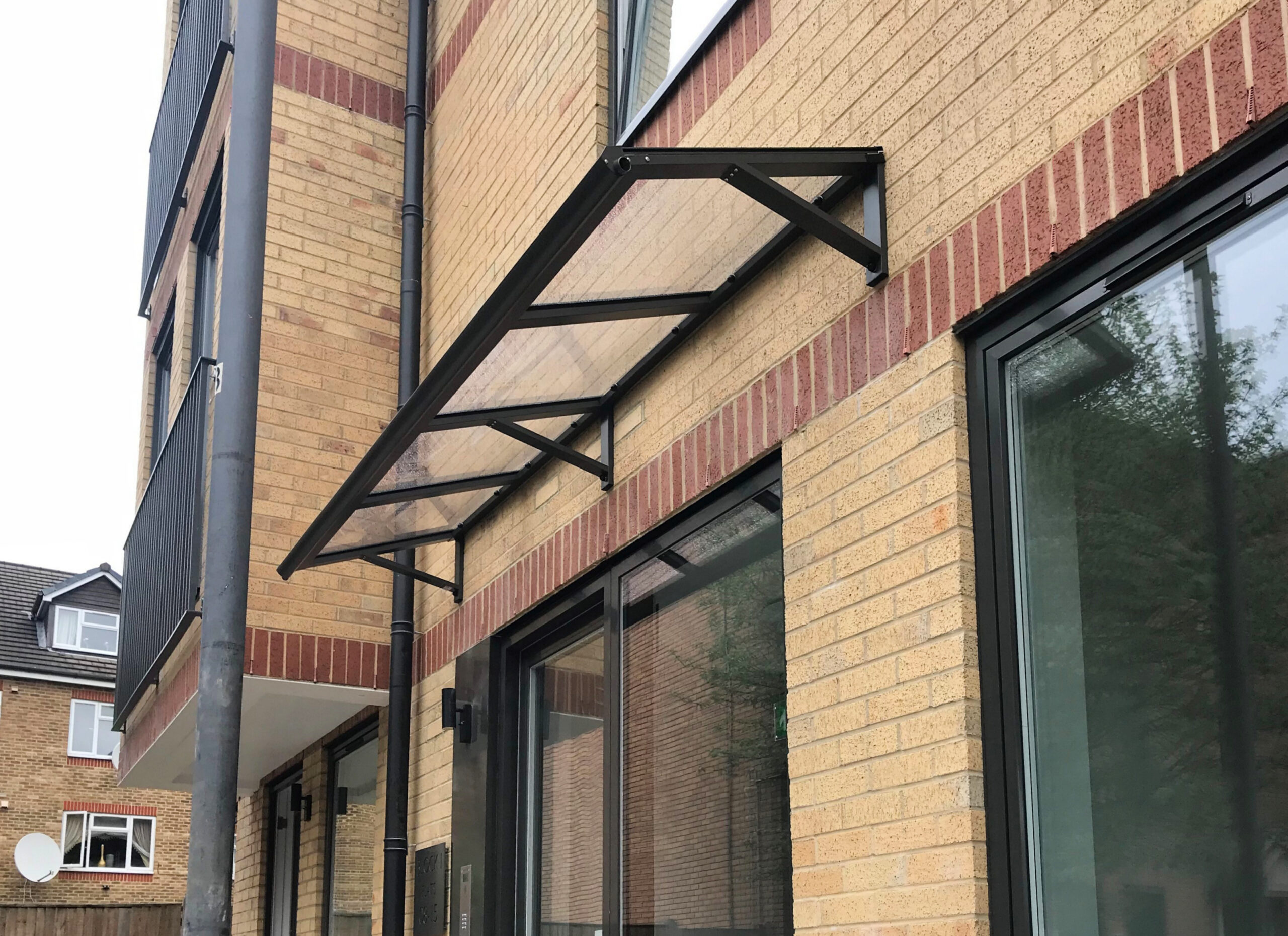

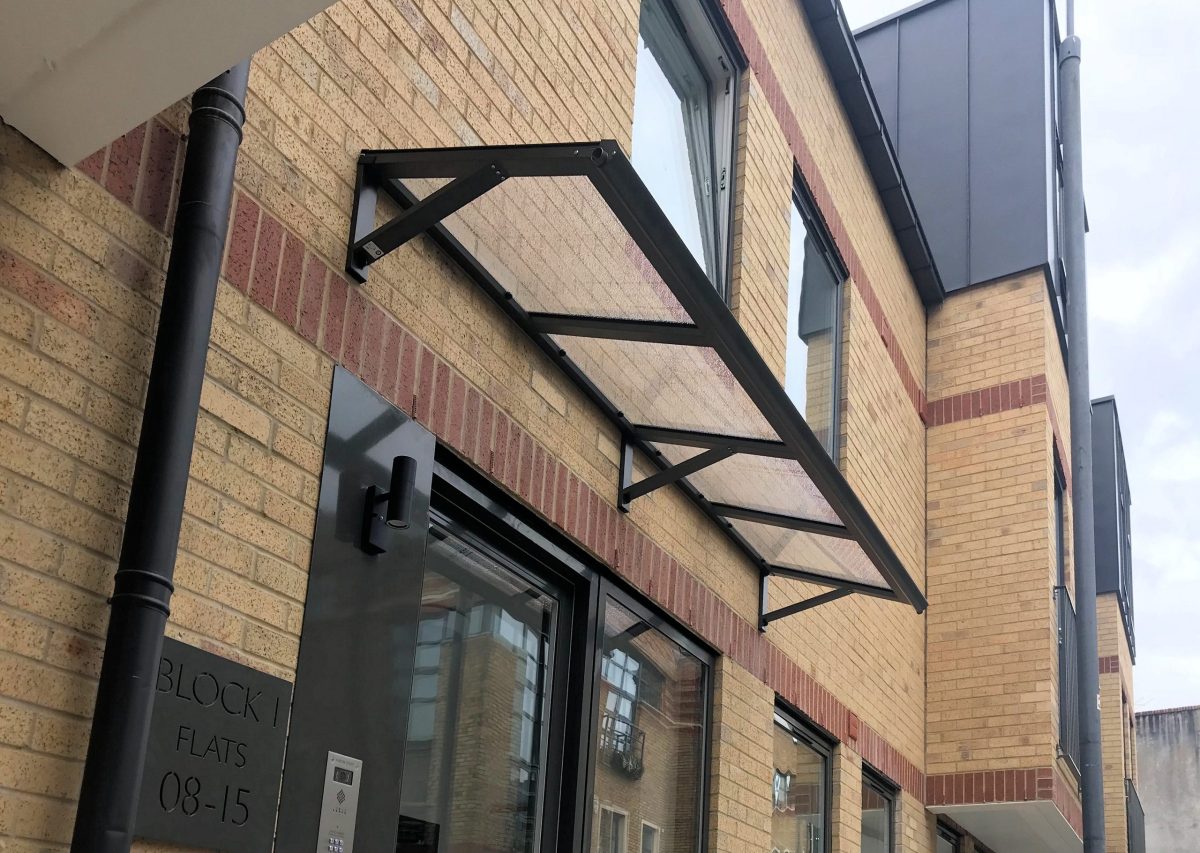

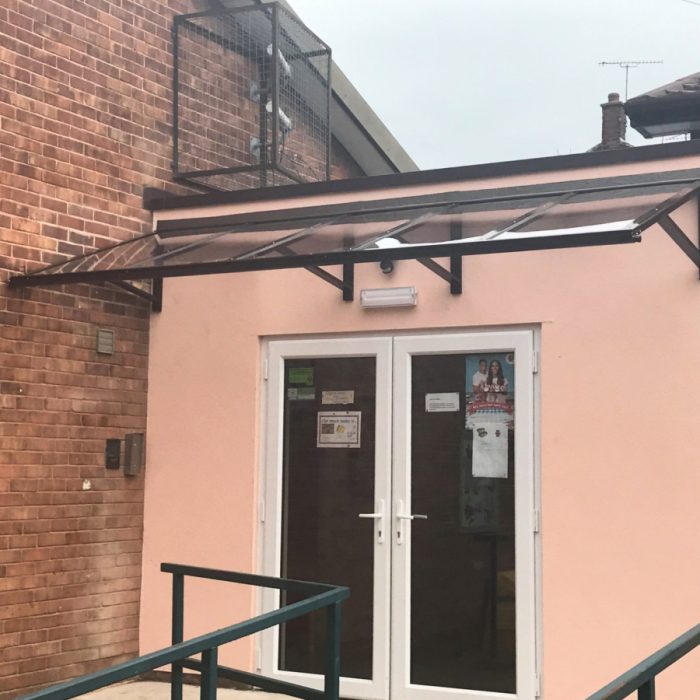

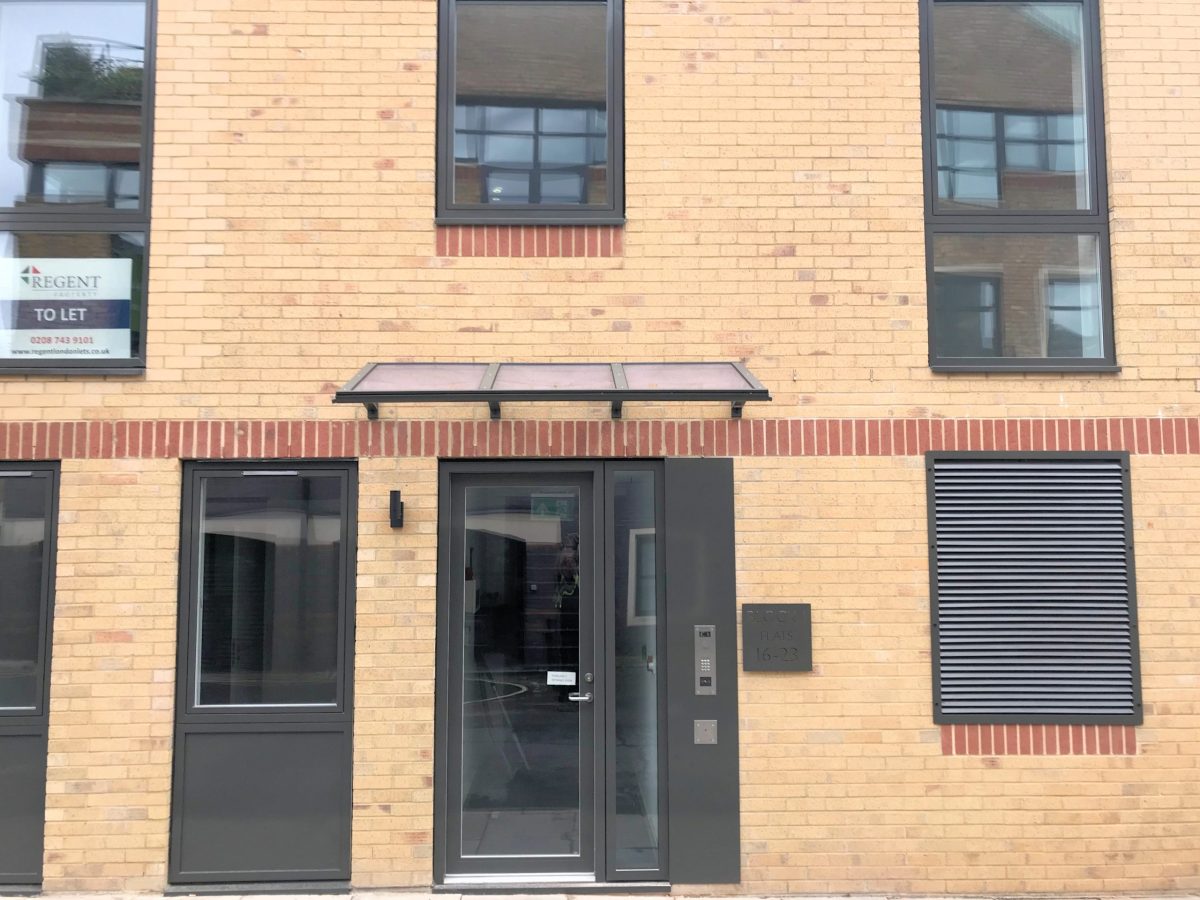

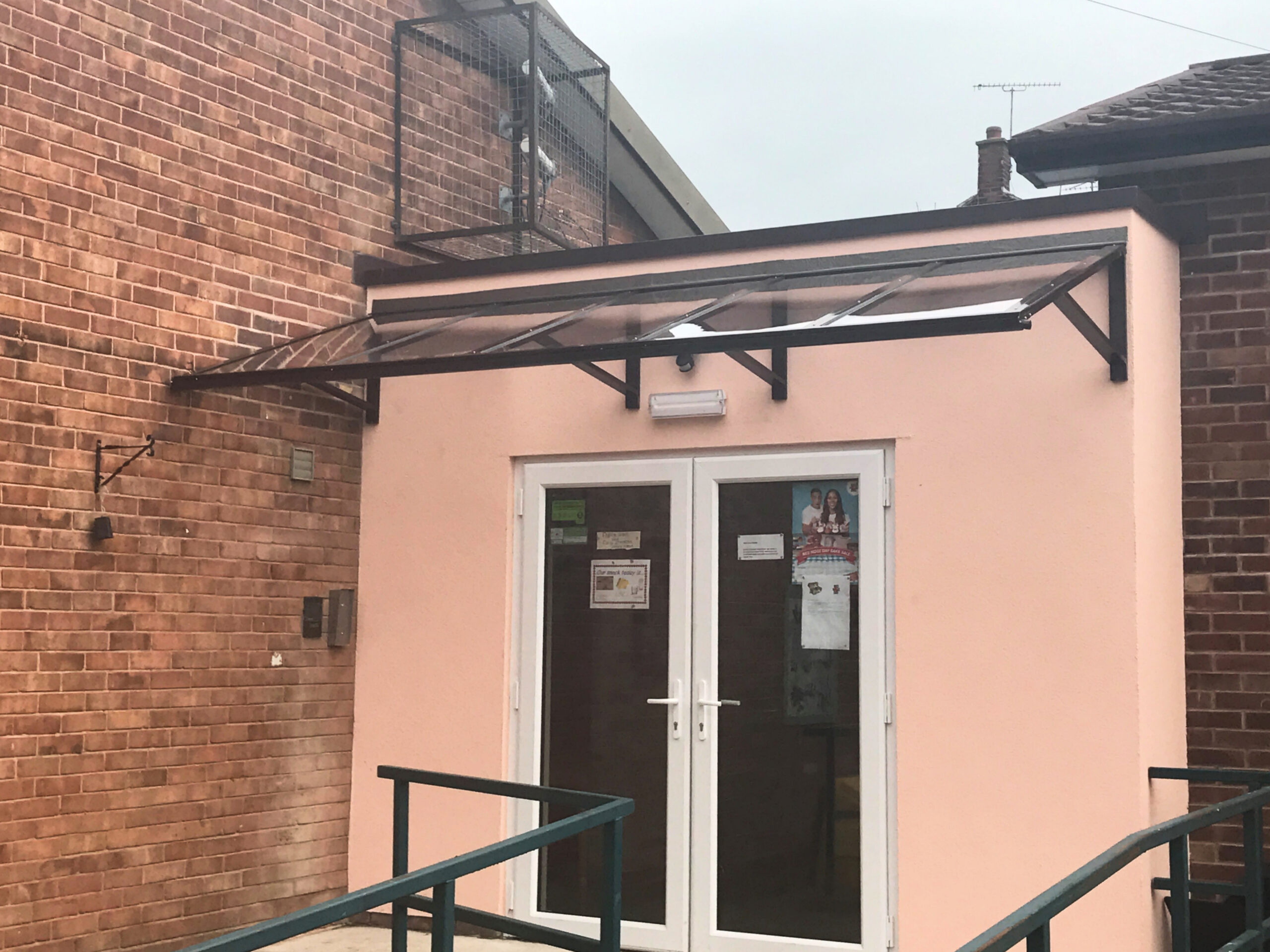

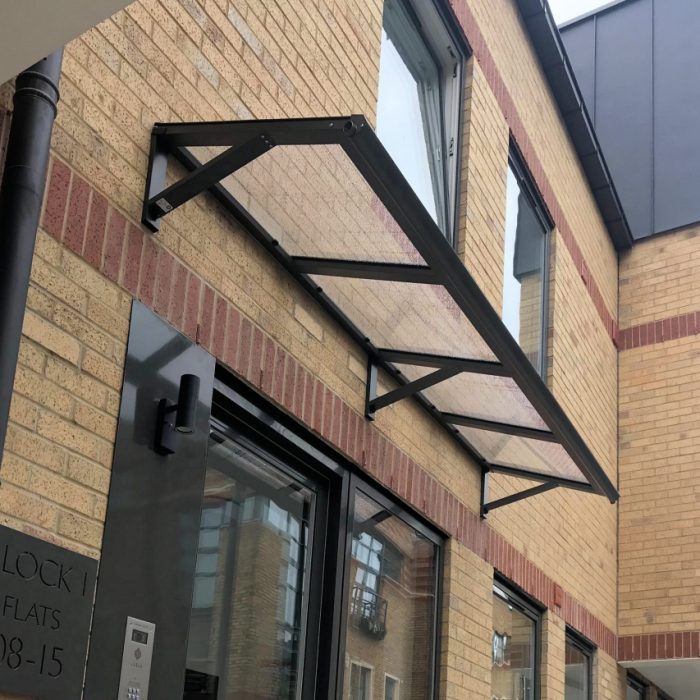

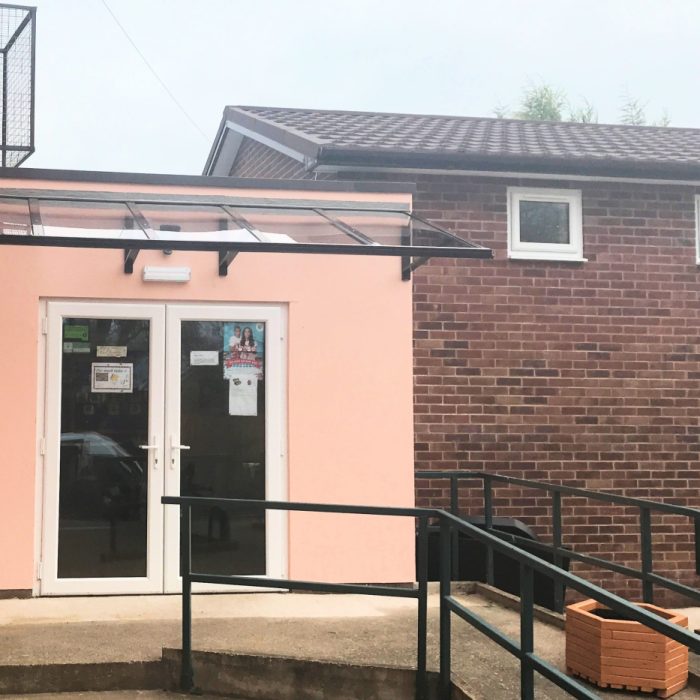

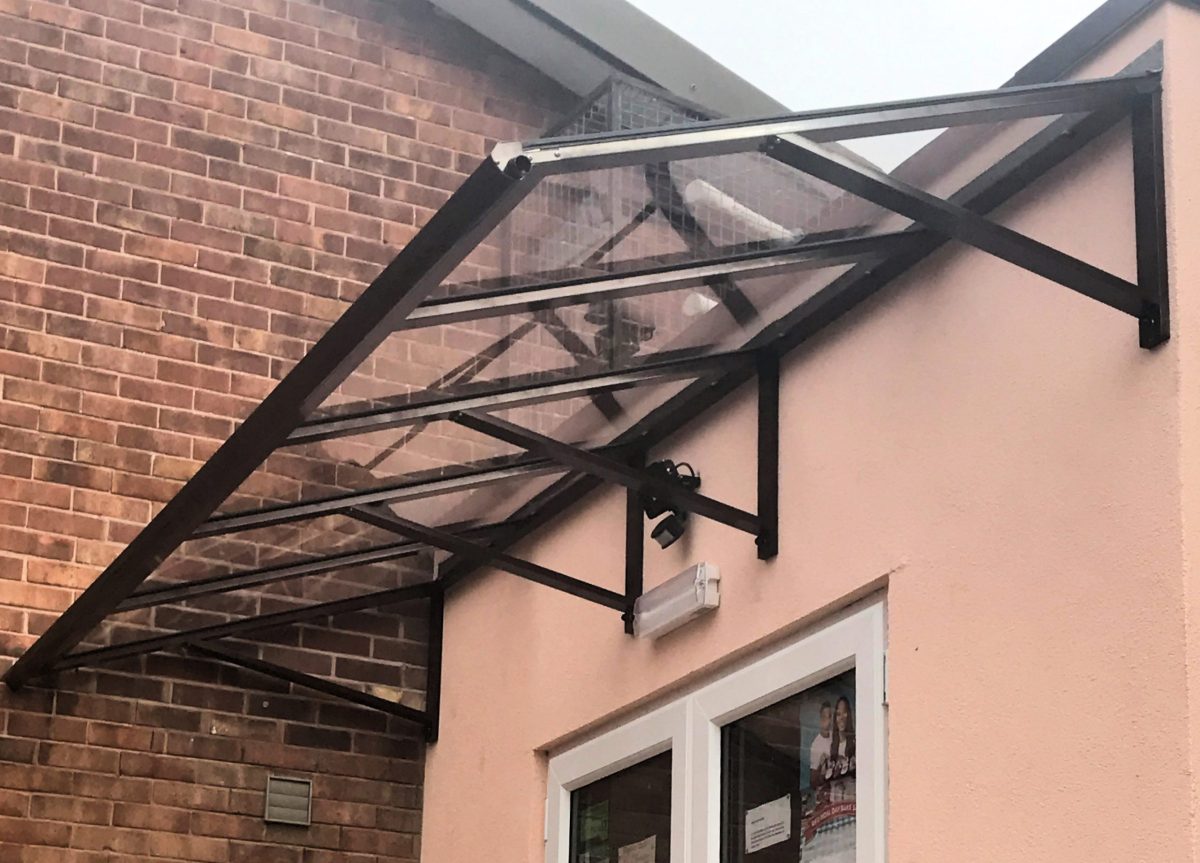

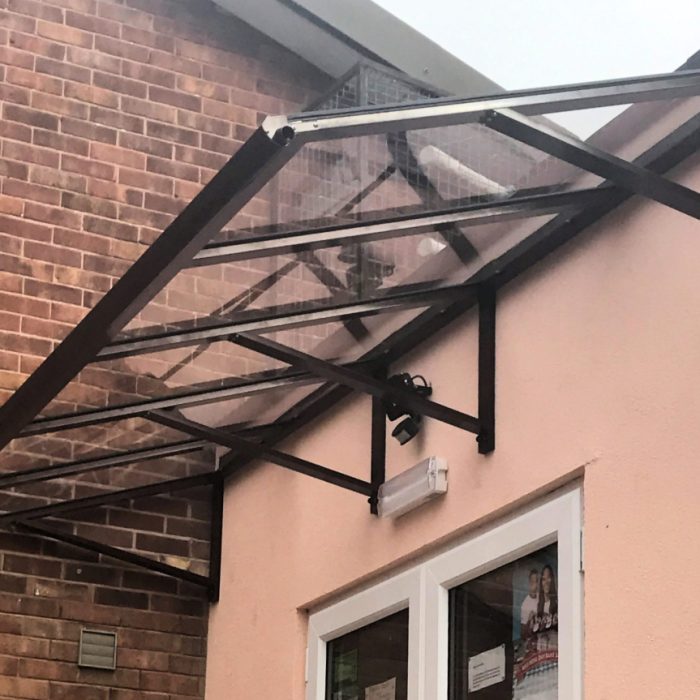

Product Gallery

Design & Specification

Roof Panels

4mm solid polycarbonate sheets that have a high resistance to impact.

High UV Protection – The roof panels are treated with a high UV coating that protects from high levels of UV rays. The UV coating also prevents the polycarbonate panels from discolouring or losing their shine.

Fire Resistance – The polycarbonate roof panels that are supplied as standard (clear) have passed the UK fire rating BS 476 Part 7 Class 1Y and the European fire rating EN 13501-1 B s1 d0.

Light Transmission – The polycarbonate panels transmit high levels of natural and artificial light, keeping the canopy underneath well-lit. Please see the chart below for the results from the method DIN 5036:

Polycarbonate Colour Light Transmission %
Clear (Supplied as standard) 87%
Bronze 50%
Grey 55%
Green 73%

Please note: We do not have the results for embossed or opal polycarbonate.


The framework is made from T5 grade aluminium sections. Aluminium is a light weight, robust metal that is naturally rust and rot resistant.

Integrated Guttering

Integral aluminium guttering is hidden within the frame, the rainwater flows through the guttering and out through small drip spouts located at the front of the canopy

Snow Loading Approved

The Lexden Entrance Canopy has been tested and approved by TÜV for uniformly distributed snow loads up to 170daN/m².

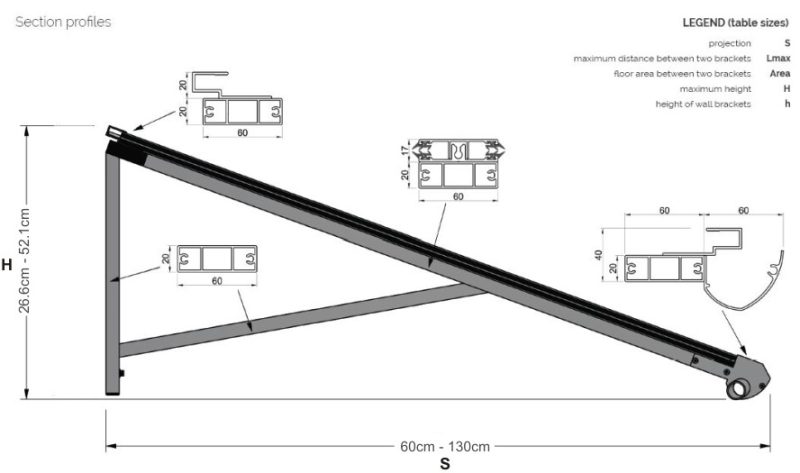

Technical Drawing

Please click on the image to view a larger version (link opens in a new tab).


Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet

Click here to view the Lexden Entrance Canopy Technical Specification Sheet

Technical File Downloads


Please see below the NBS specs and BIM models for you to download and add to your project.


(Coming soon)


(Coming soon)

Colour Options


The Lexden frame is available in 7 colours; please click here to view the colour chart.


The polycarbonate is available in a choice of 5 different colours; please click here to view the colour chart.

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
