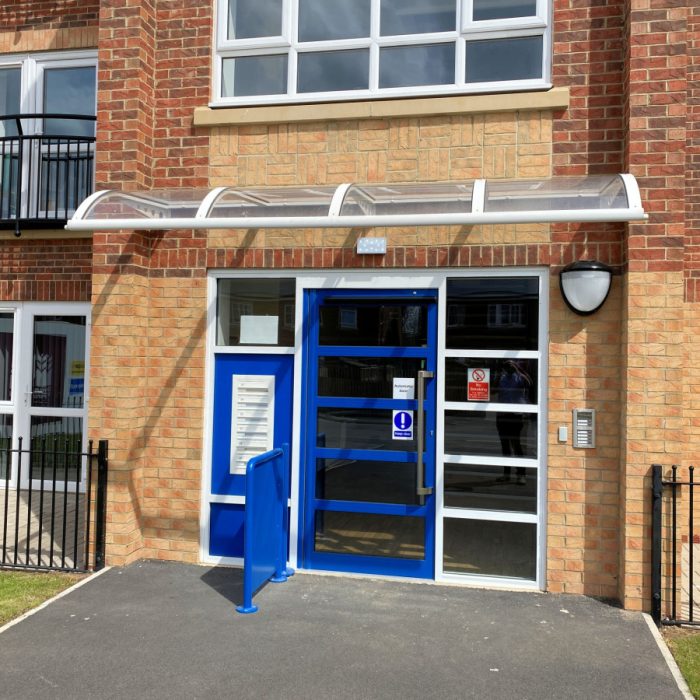

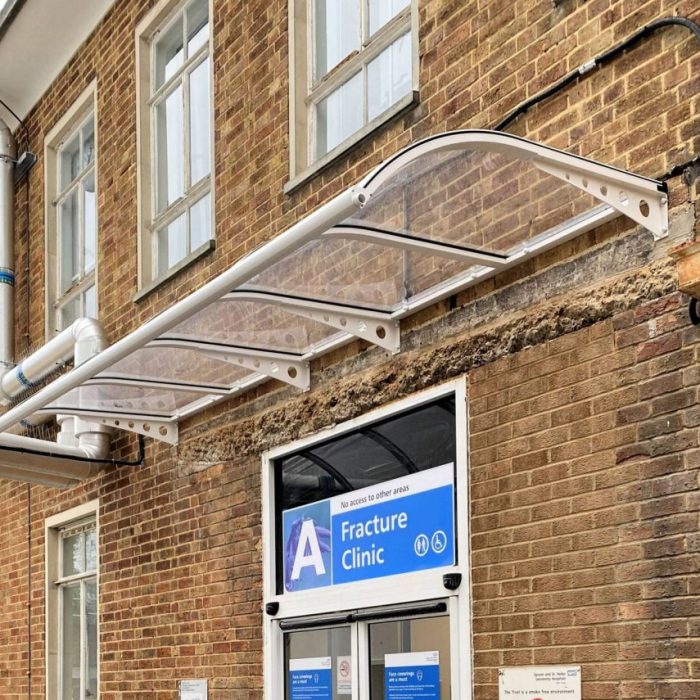

Product Gallery

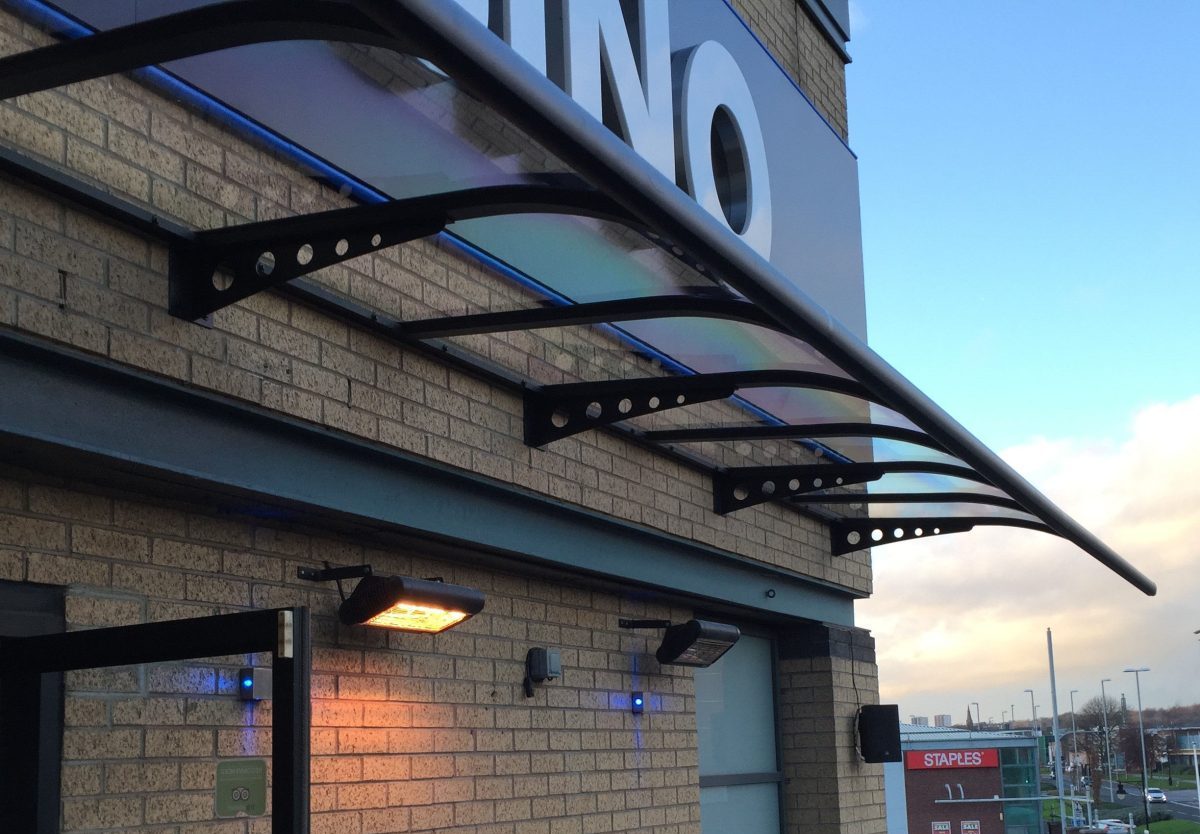

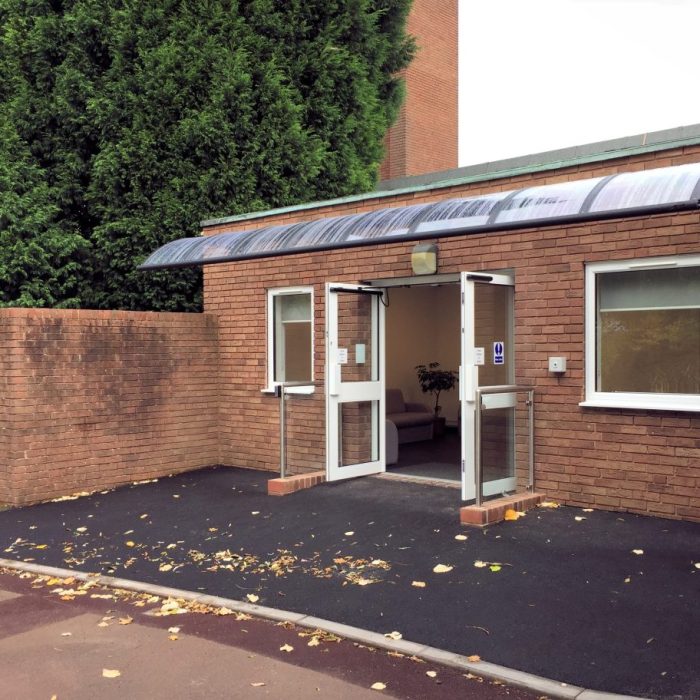

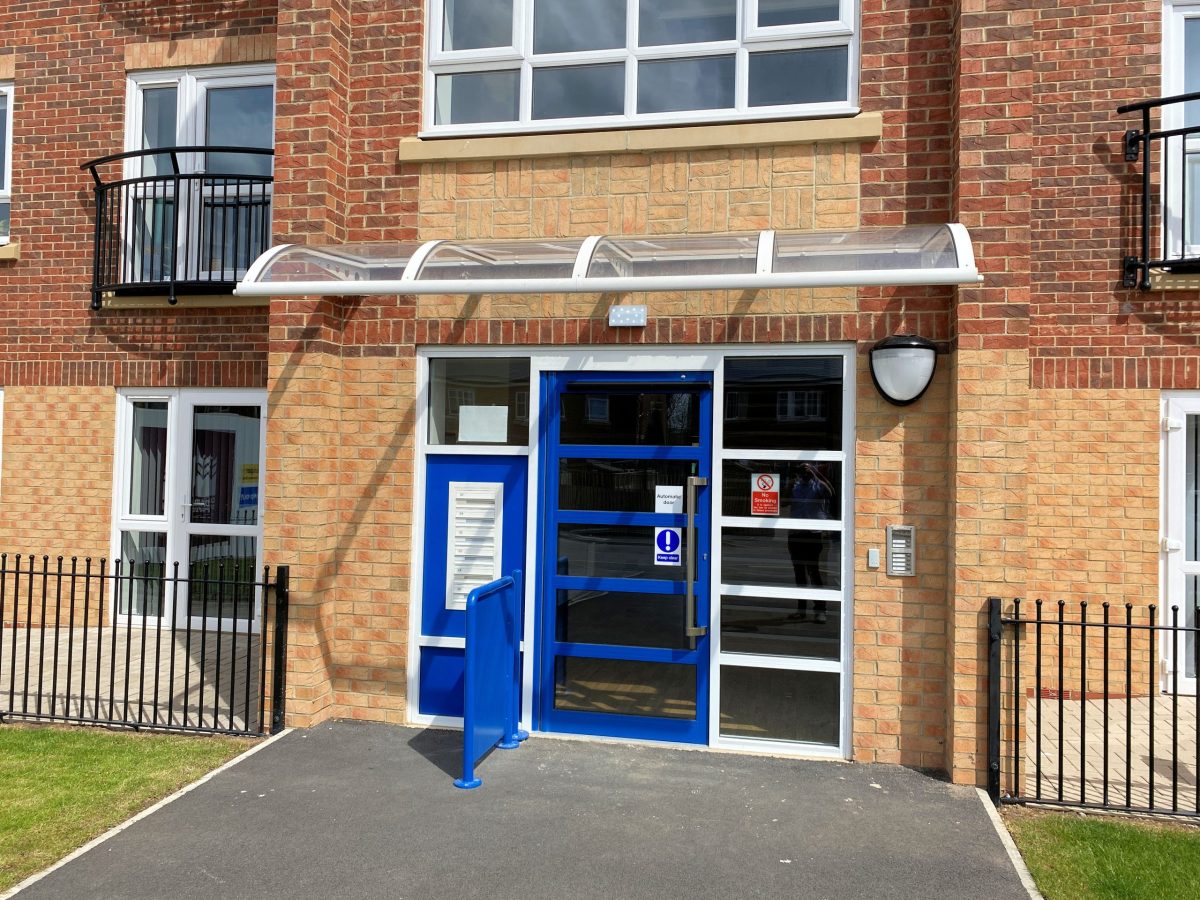

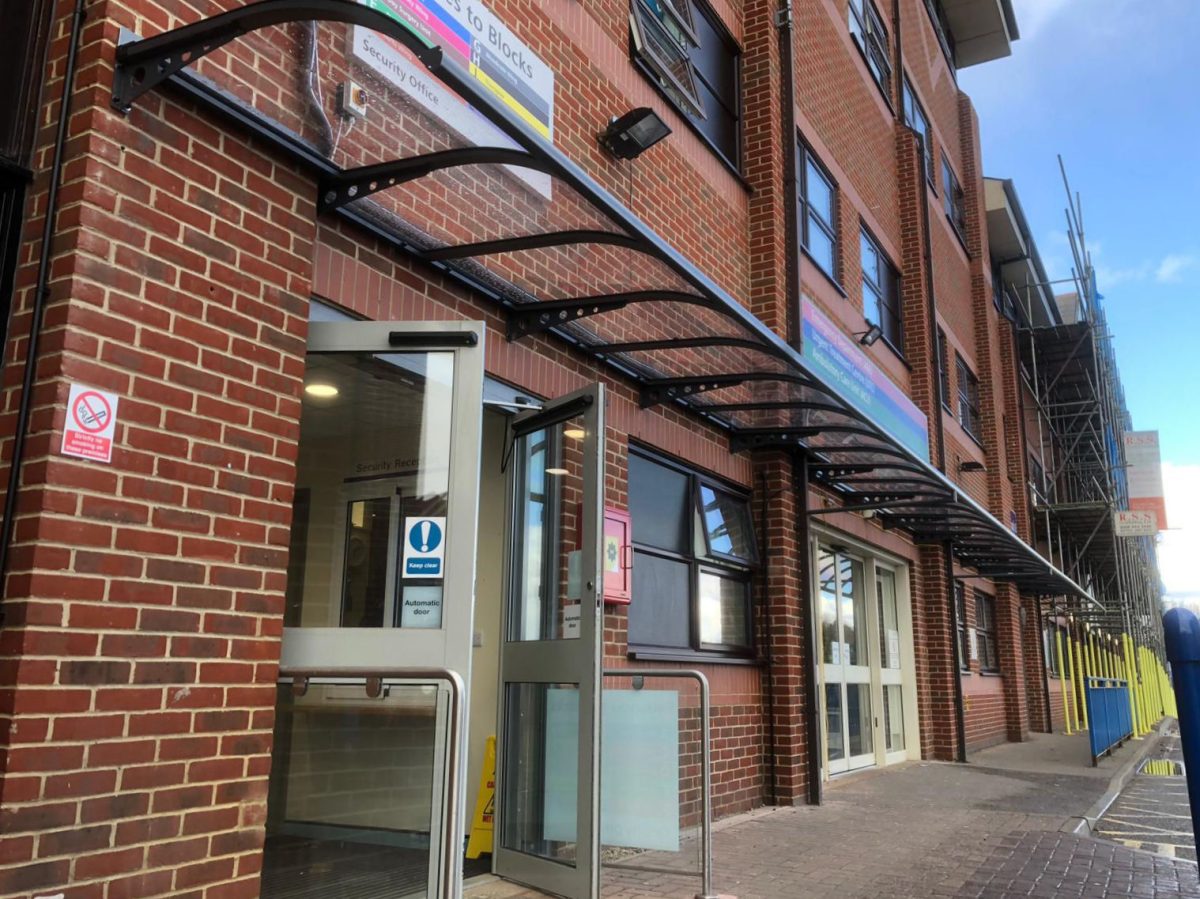

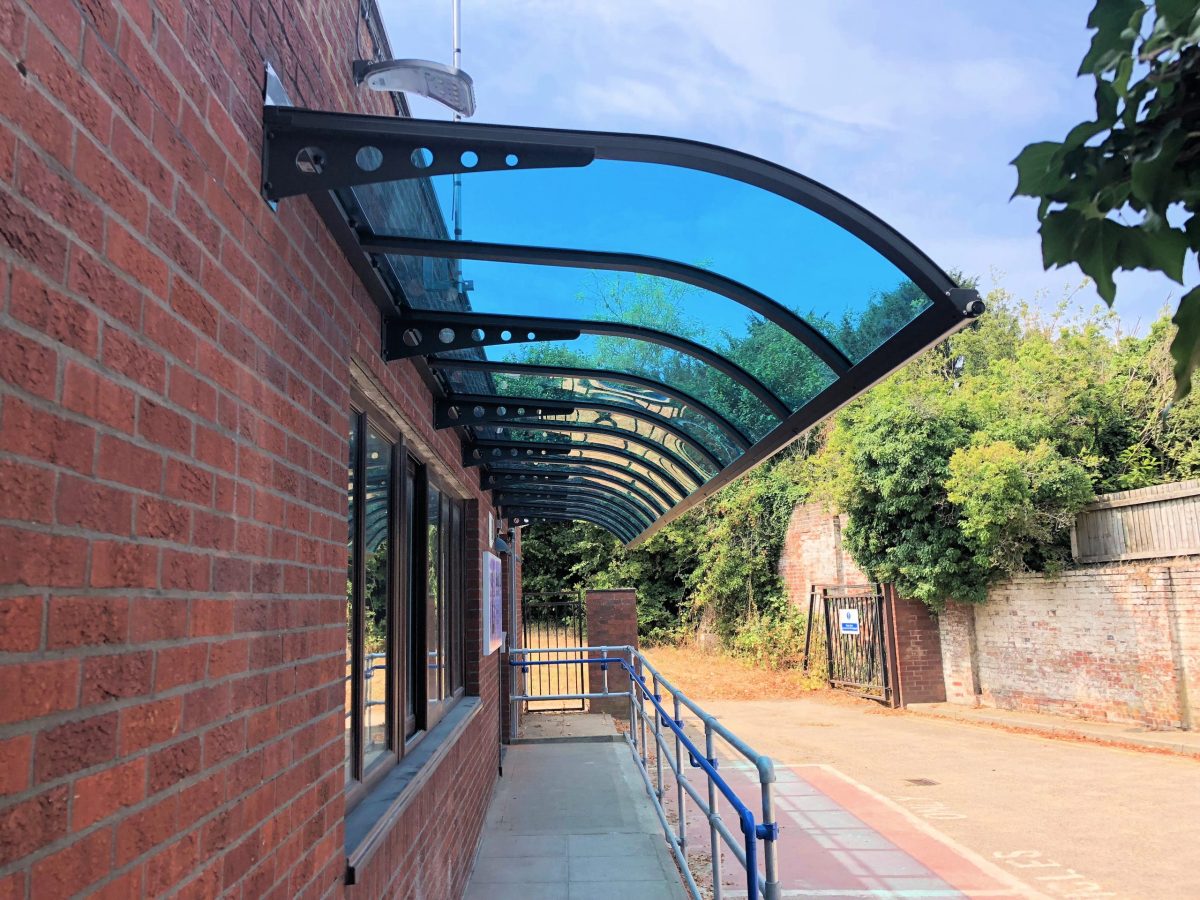

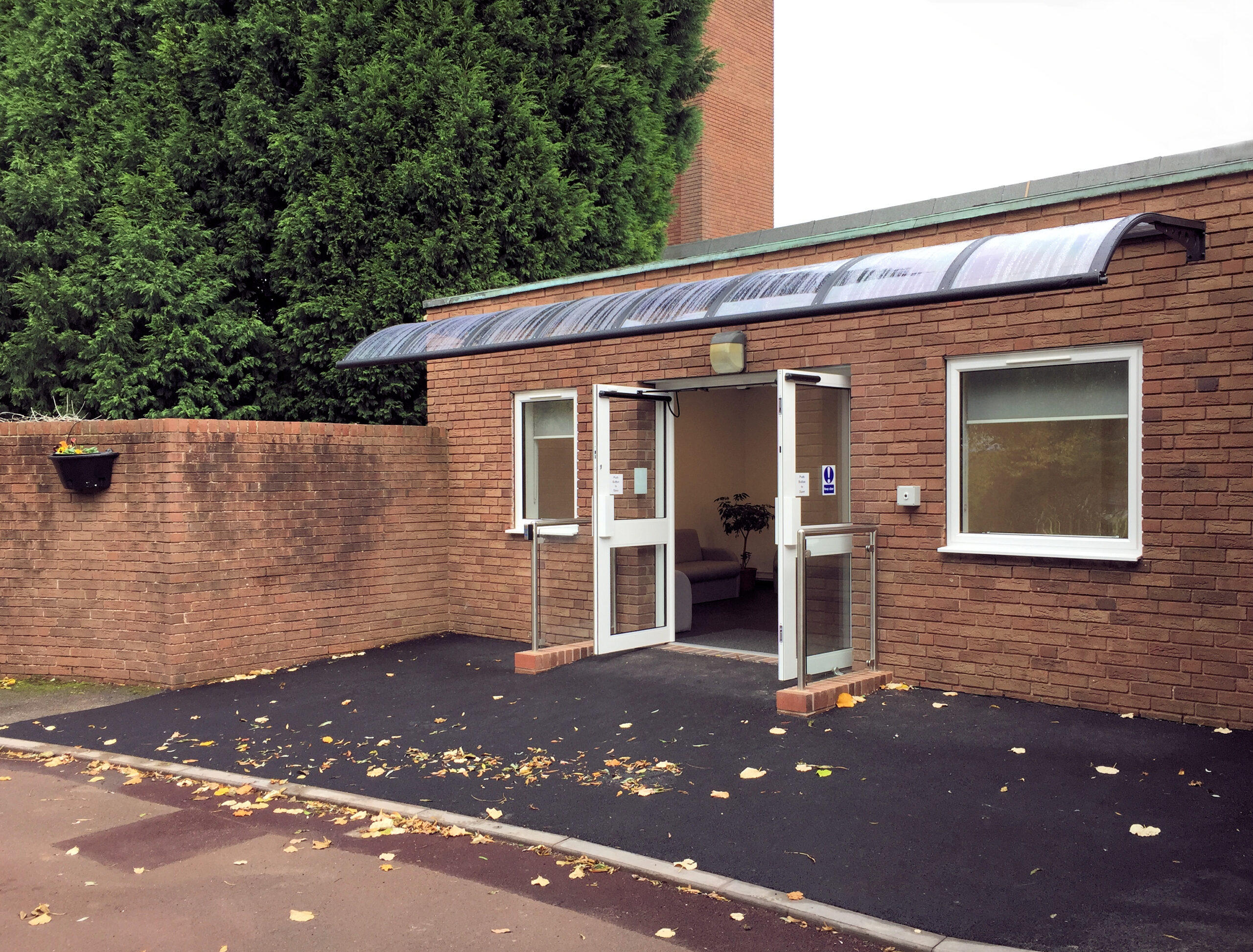

The Abberton is a contemporary styled cantilevered entrance canopy, with perforated steel wall brackets to give an industrial appearance. The main frame is constructed from T5 grade aluminium and is covered with high impact resistant polycarbonate.

It benefits from an unlimited length (minimum of 1.4m) and has a projection of between 0.9m – 1.5m from the wall. The polycarbonate roof panels offer high protection from the sun, wind and rain and the panels will not discolour or fade over time due to the special UV coating that is applied during the manufacturing process.

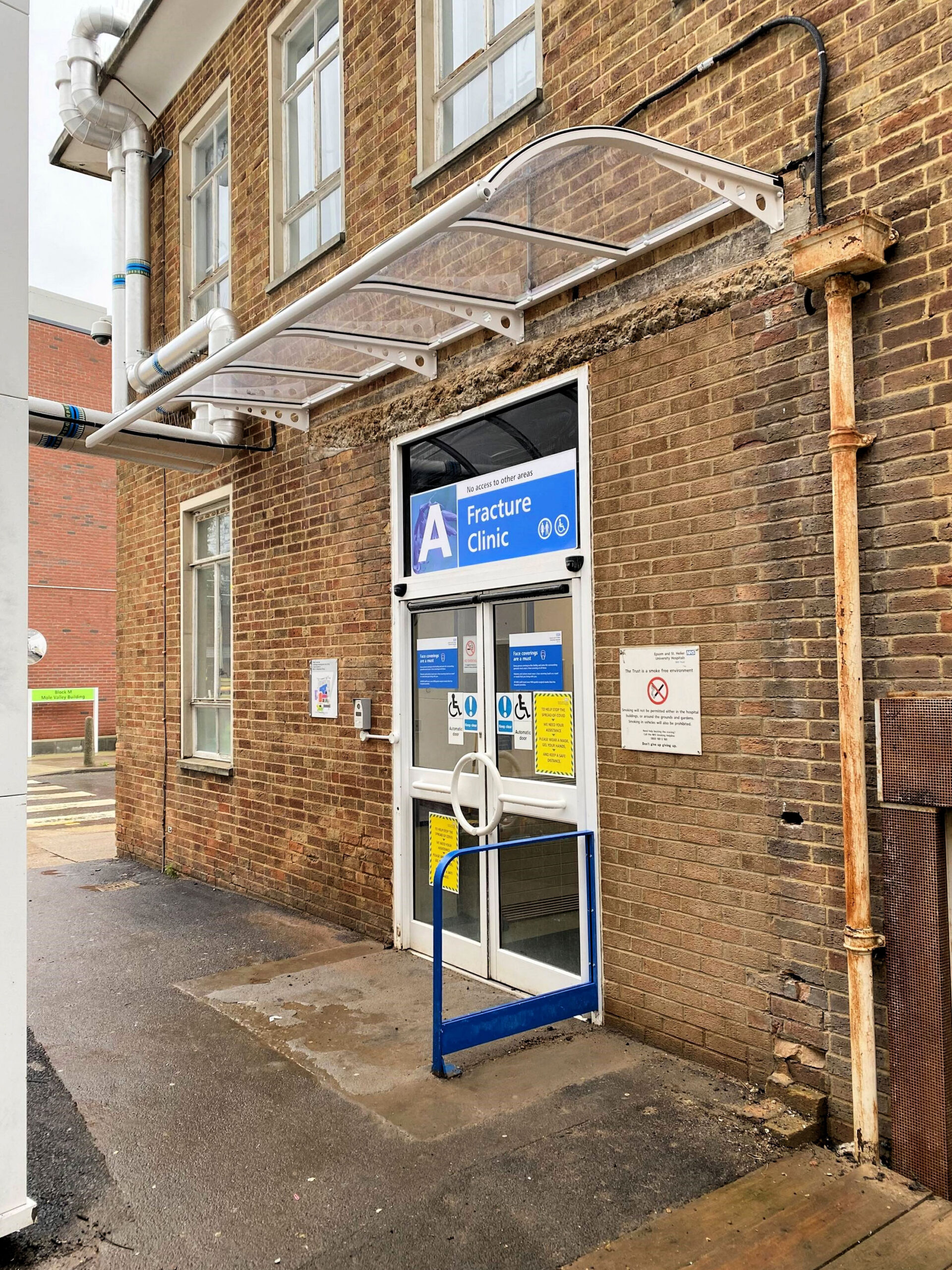

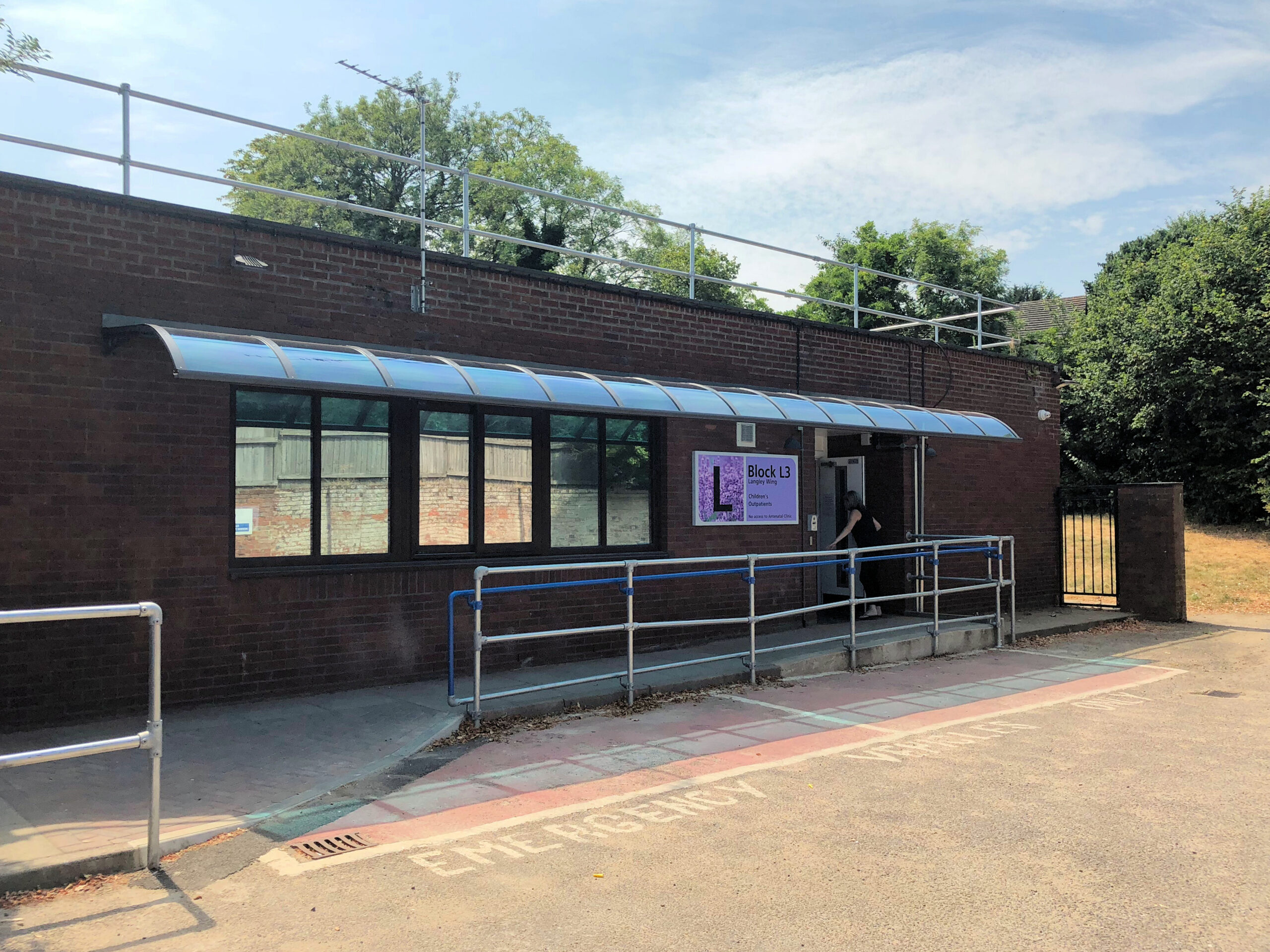

The Abberton’s stylish design makes it ideal for many settings, particularly new builds, and healthcare or commercial buildings.

  • Modern and Stylish – A trendy, cantilevered canopy that suits modern environments
  • Cantilevered – no posts to bump into
  • Cost Effective – A high quality entrance canopy that is ideal for smaller budgets
  • Aluminium Framework – The frame is constructed from high quality aluminium extrusions for high strength and rust resistance
  • Steel Brackets – The Abberton has perforated galvanised steel brackets for an industrial feel
  • Small Wall Fixings – The brackets that fix to the wall are only 20cm in height making it ideal for walls with many existing fixings and fixtures
  • Polycarbonate Roof Panels – Covered with 4mm solid polycarbonate panels that are extremely strong
  • Lengths Available – From 1.4m – unlimited
  • Projections Available – From 0.9m – 1.5m from the wall
  • Integral Guttering – Supplied with integral aluminium guttering with drip spouts
  • Robust Structure – The canopy has been tested and approved by TÜV for loads up to 170daN/m²
  • Good Fire Resistance – The clear polycarbonate panels meet the UK fire rating BS 476 Part 7 Class 1Y and the European fire standard EN 13501-1 B s1 d0
  • High UV Protection – The polycarbonate panels are treated with a coating that offers high UV protection and prevents the panels from discolouring or fading over time
  • Frame Colour – The aluminium can be powder coated in a choice of 7 colours as standard, alternative colours are available on request at an additional cost
  • Polycarbonate Colour – The roof panels are clear as standard with a choice of 6 alternative colours which are available at an additional cost
  • 2 Year Guarantee – Supplied with a 2 year guarantee for peace of mind

Design & Specification

Polycarbonate Roof Panels

The Abberton’s roof panels are 4mm thick, solid polycarbonate sheets that are light in weight and high in strength.

High UV Protection – The roof panels offer high protection from the sun, rain and wind. They are manufactured with a UV coating that prevents the panels from yellowing or fading due to sun damage.

High Light Transmittance – The roof panels have an excellent light transmittance subject to the colour chosen. The table below shows the results from the test method DIN 5036:

Polycarbonate Colour Light Transmission %
Clear (Supplied as standard) 87%
Bronze 50%
Grey 55%
Green 73%

Please note: We do not have the results for embossed or opal polycarbonate.

Good Fire Rating – The clear polycarbonate roof panels that are supplied as standard meet the European fire rating EN 13501-1 B s1 d0 and the UK fire standard BS 476 Part 7 Class 1Y.

Aluminium Frame

The framework is constructed from high grade aluminium and is supported by galvanised steel wall brackets.

Integral Guttering

Aluminium guttering is supplied as standard with drip spouts that disperse the water out of the front of the canopy.

Loading Capabilities

The Abberton has passed the tests undertaken by TÜV for uniformly distributed loads up to 170daN/m².

Technical Drawing

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet

Click here to view the Abberton Entrance Canopy Technical Specification Sheet

Technical File Downloads

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

Frame

The canopy frame is available in 7 colours; please click here to view the colour chart

Polycarbonate

The polycarbonate is available in a choice of 5 different colours; please click here to view the colour chart
