Orwell Entrance Canopy

Orwell Entrance Canopy

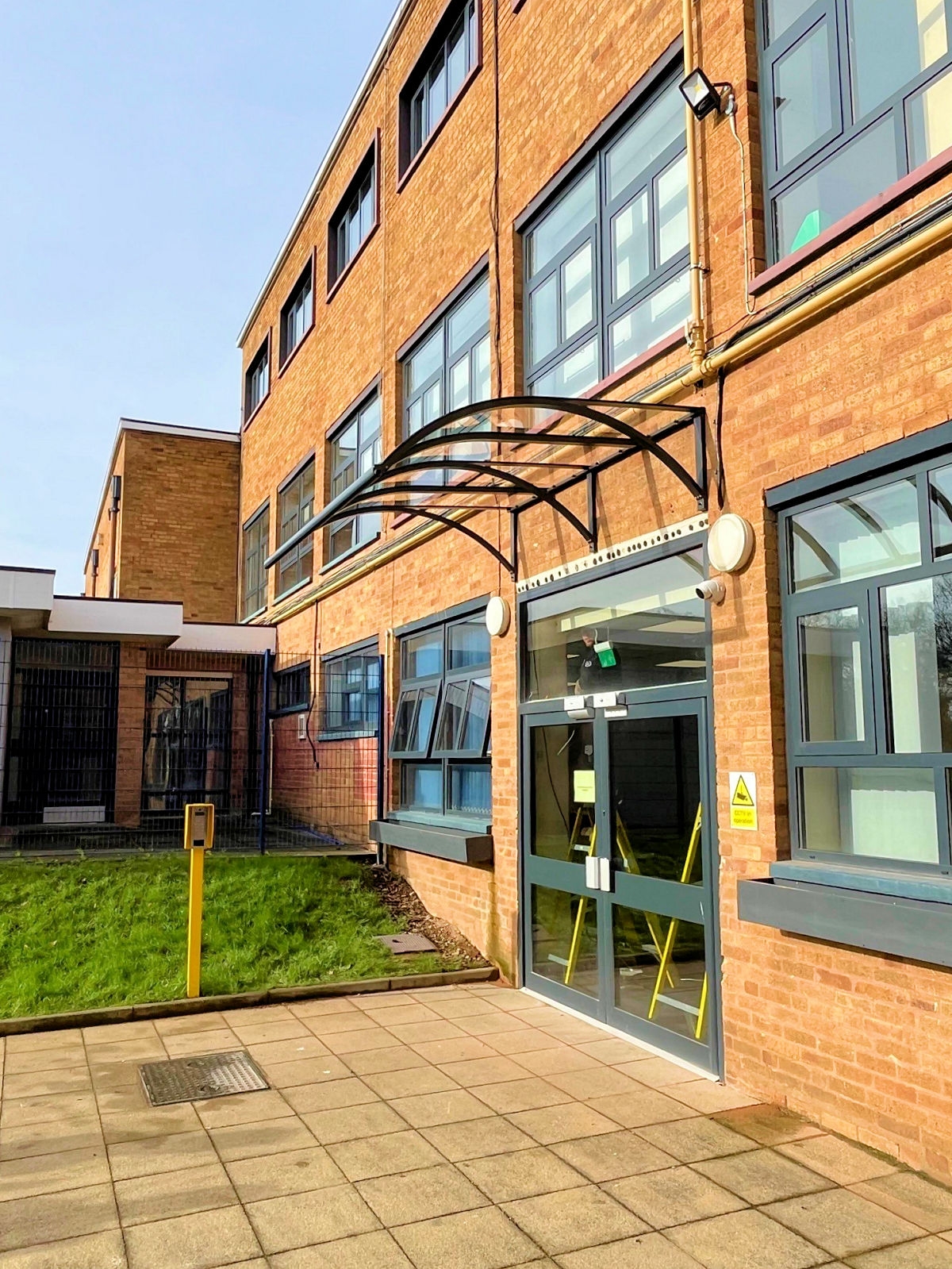

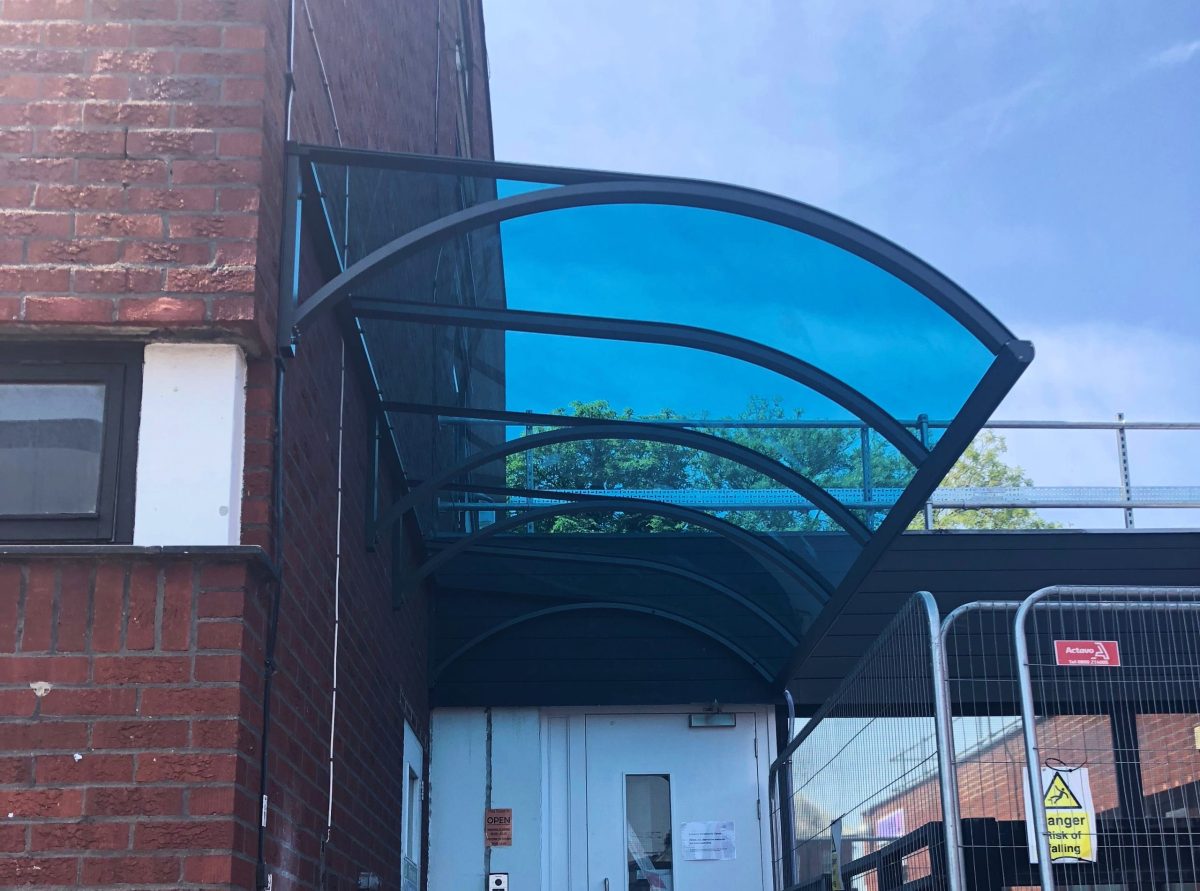

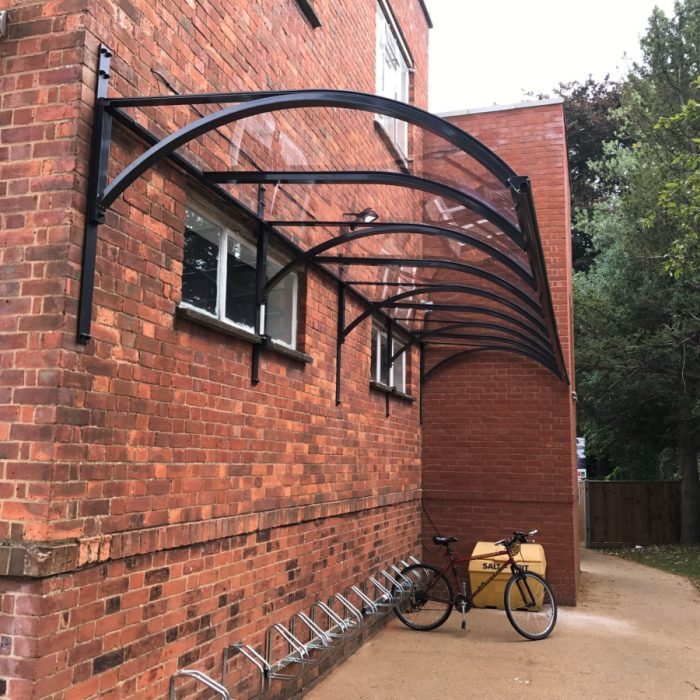

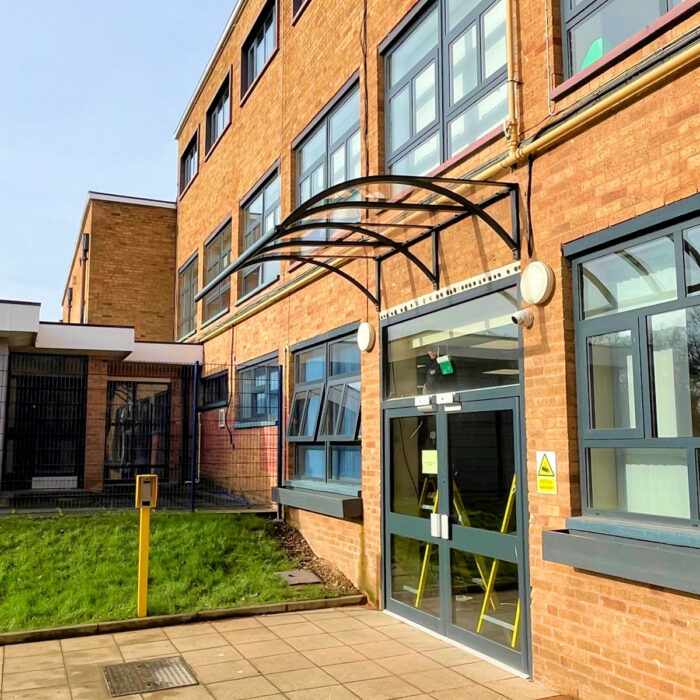

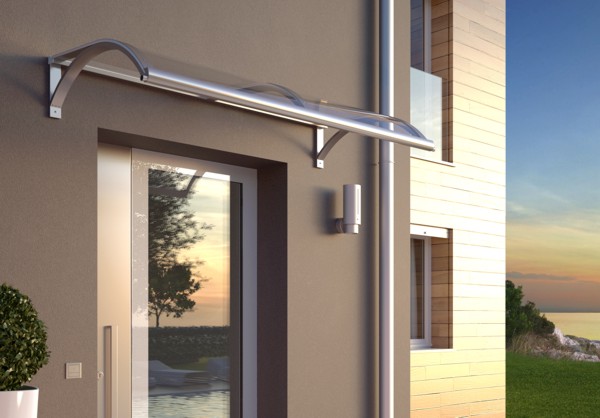

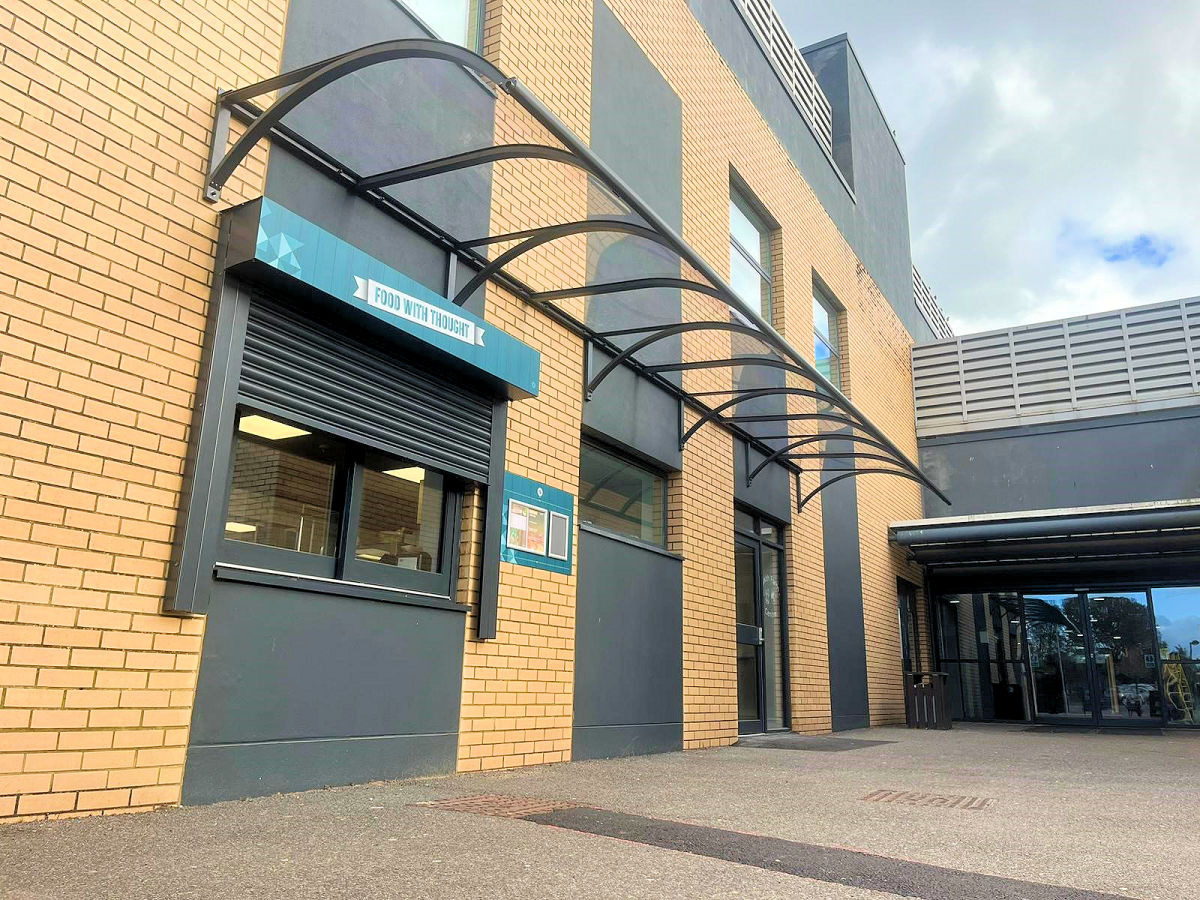

The Orwell entrance canopy has a smooth, slightly curved design that provides effective cover from the weather. The minimal appearance of the canopy enables it to create a feature point of your entrance whilst still allowing it to blend in with your outside aesthetics.

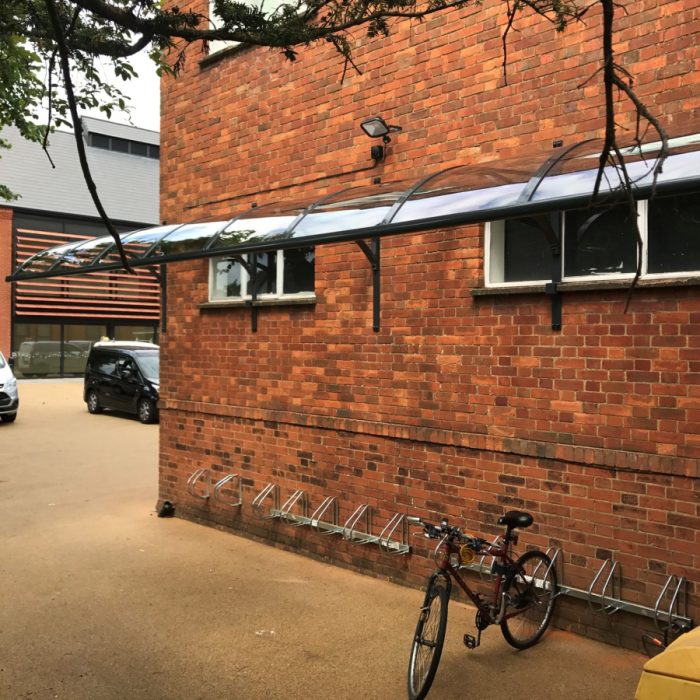

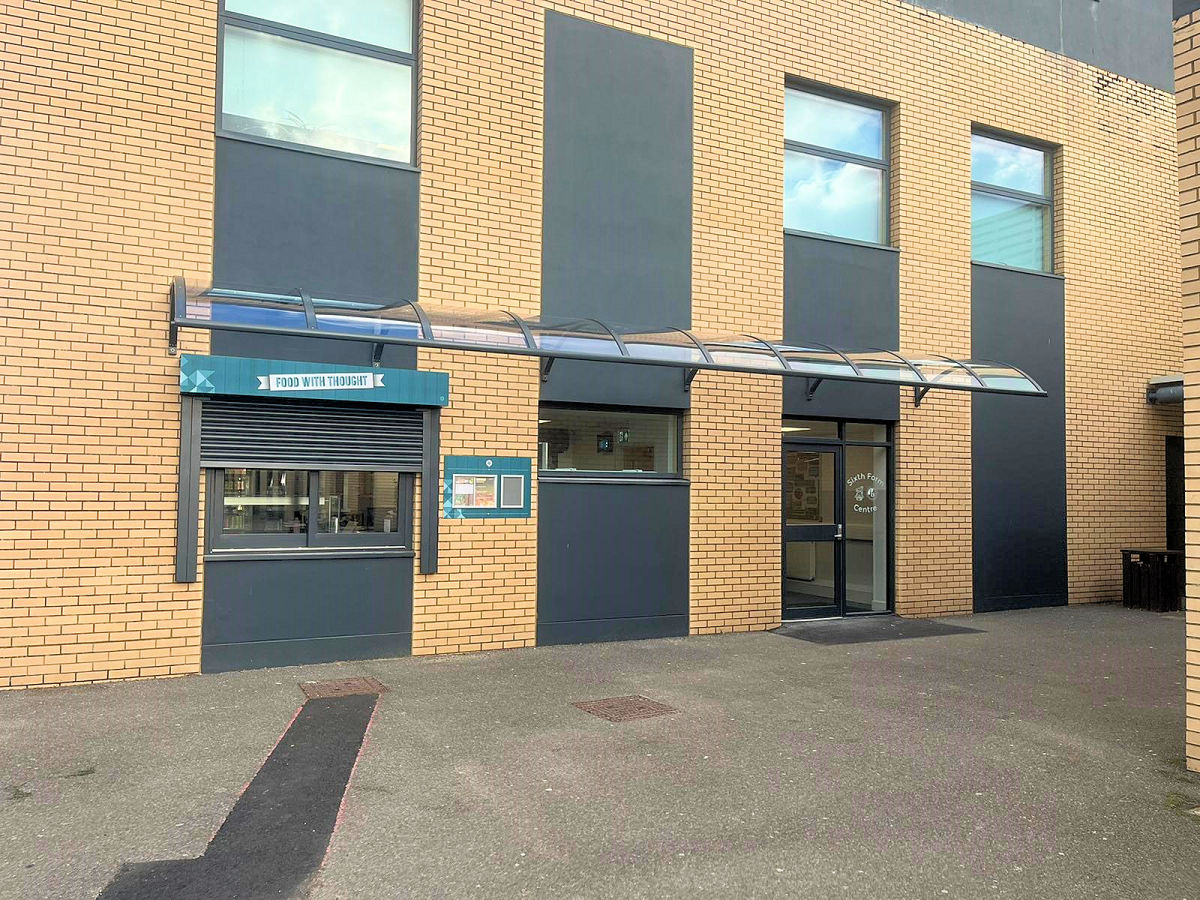

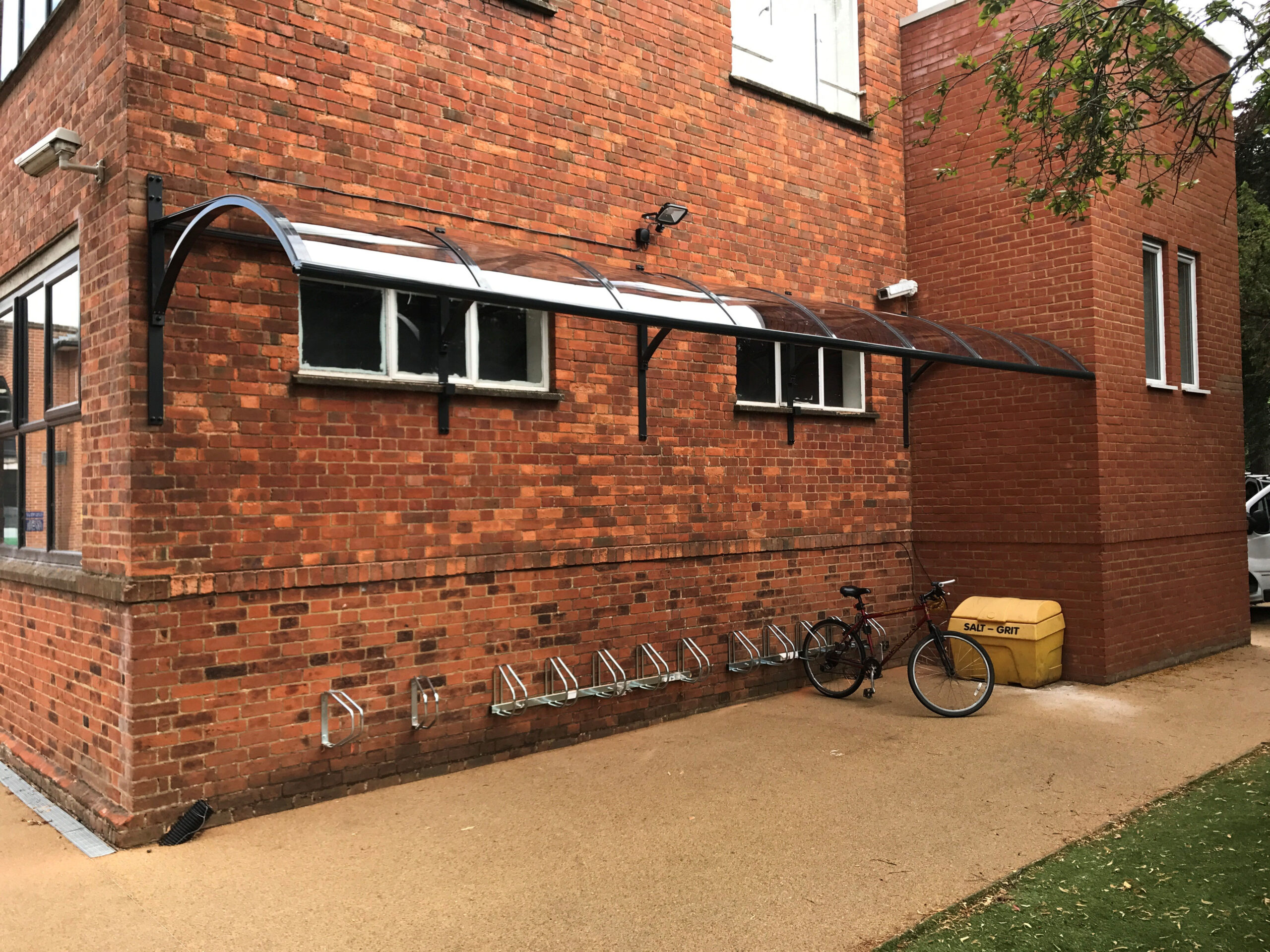

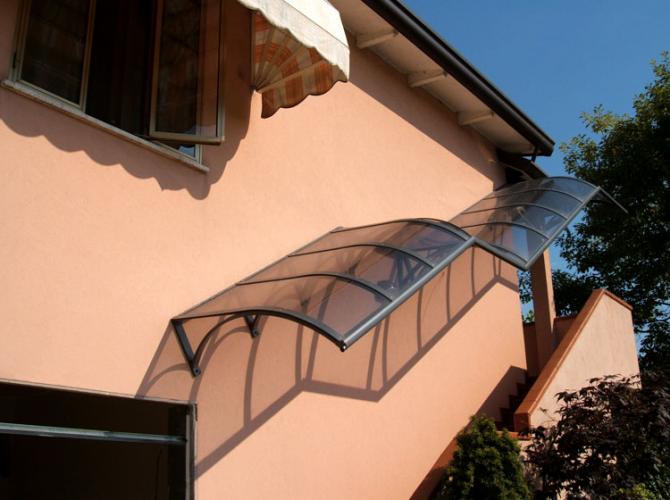

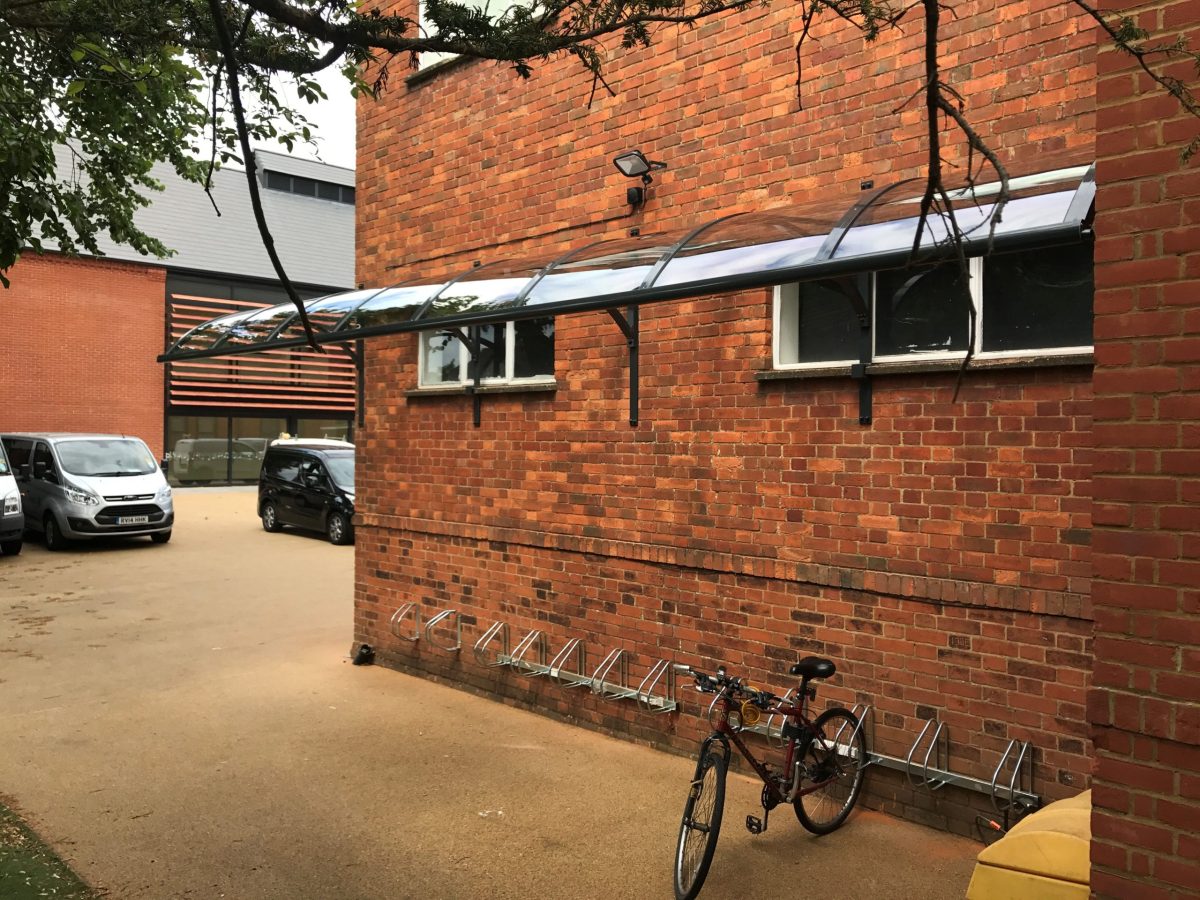

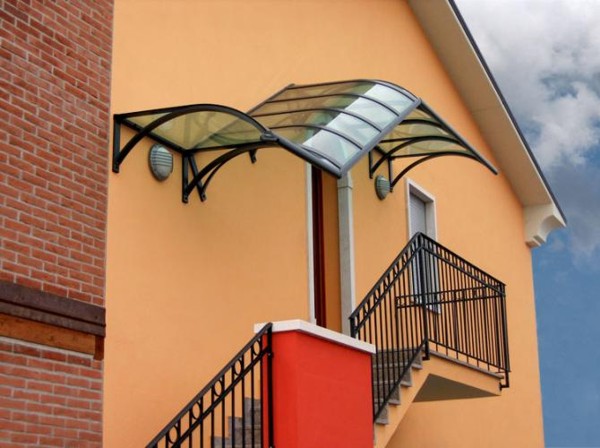

The Orwell has an unlimited length (minimum of 1.4m) which makes it perfect for covering large entrances and creating shade above multiple windows. It is also ideal for creating shelter above outside stairways as it can be supplied with varying heights that match the incline of the stairs.

The frame is constructed fully from T5 grade aluminium that is supplied with a choice of 7 colours as standard. The roof is covered with 4mm solid polycarbonate that has a high impact resistance and is supplied in clear as standard.

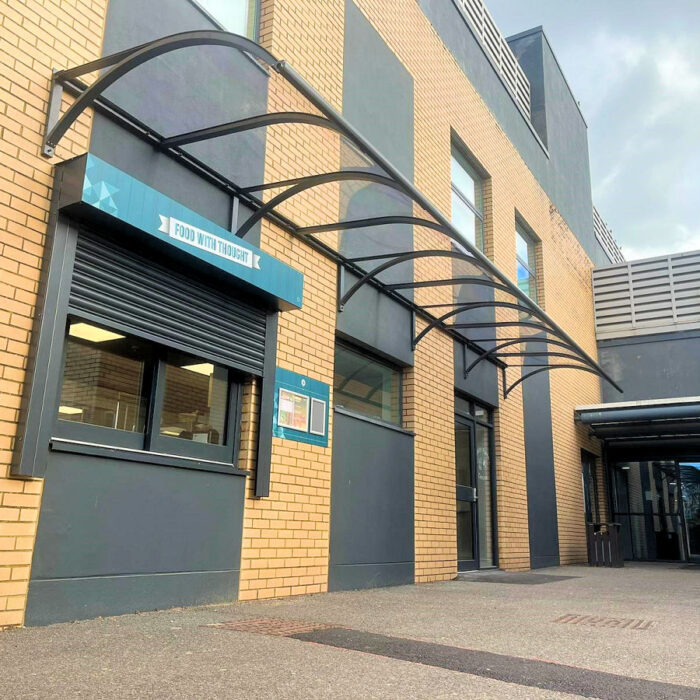

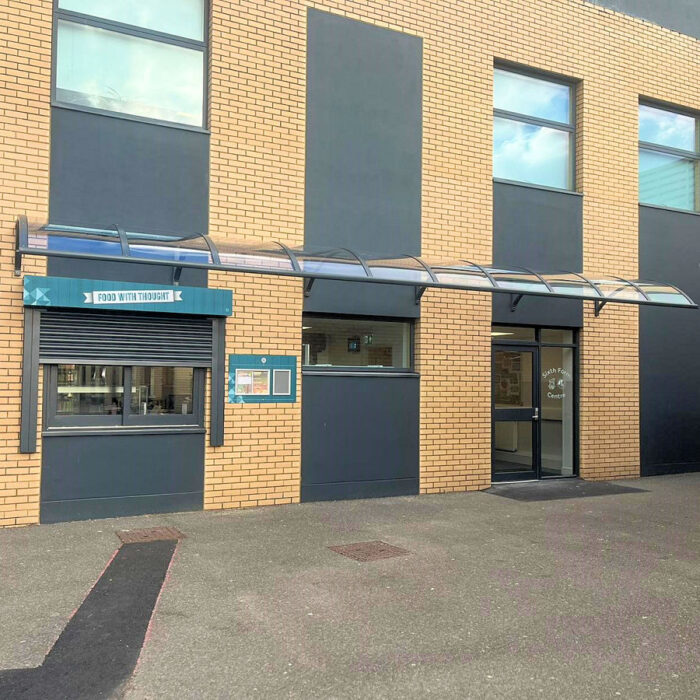

As this cost effective entrance canopy is cantilevered and has no canopy posts, it is ideal for covering busy environments such as schools, shops, leisure centres and hospitals.

Features & Benefits:

  • Simple, Curved Design – Ideal for any setting including schools, hospitals, shops and leisure centres
  • Ideal for Smaller Budgets – The cost-effective design makes this structure ideal for those with smaller budgets that don’t want to compromise on quality
  • Variable Heights – Because the Orwell can have variable heights, this makes it ideal for covering outdoor stairways as well as entrances, windows, and walkways
  • Unlimited Length – the Orwell has a minimum length of 1.4m and no maximum
  • Up to 2.5m Projection – The Orwell is available with a projection from 0.8m – 2.5m
  • Tough Aluminium Frame – The frame is manufactured from T5 grade aluminium to ensure a long lasting, solid construction
  • Robust Roof Panels – 4mm solid polycarbonate roof panels that are light in weight and have a high strength

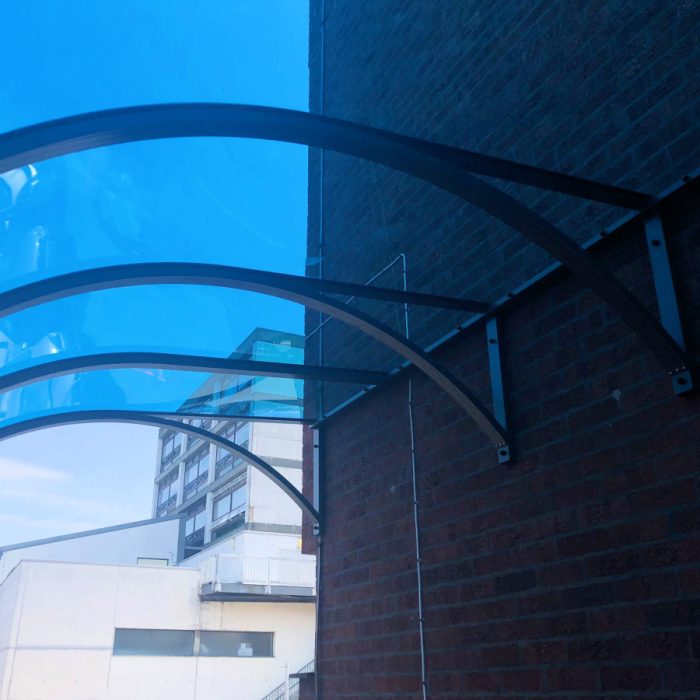

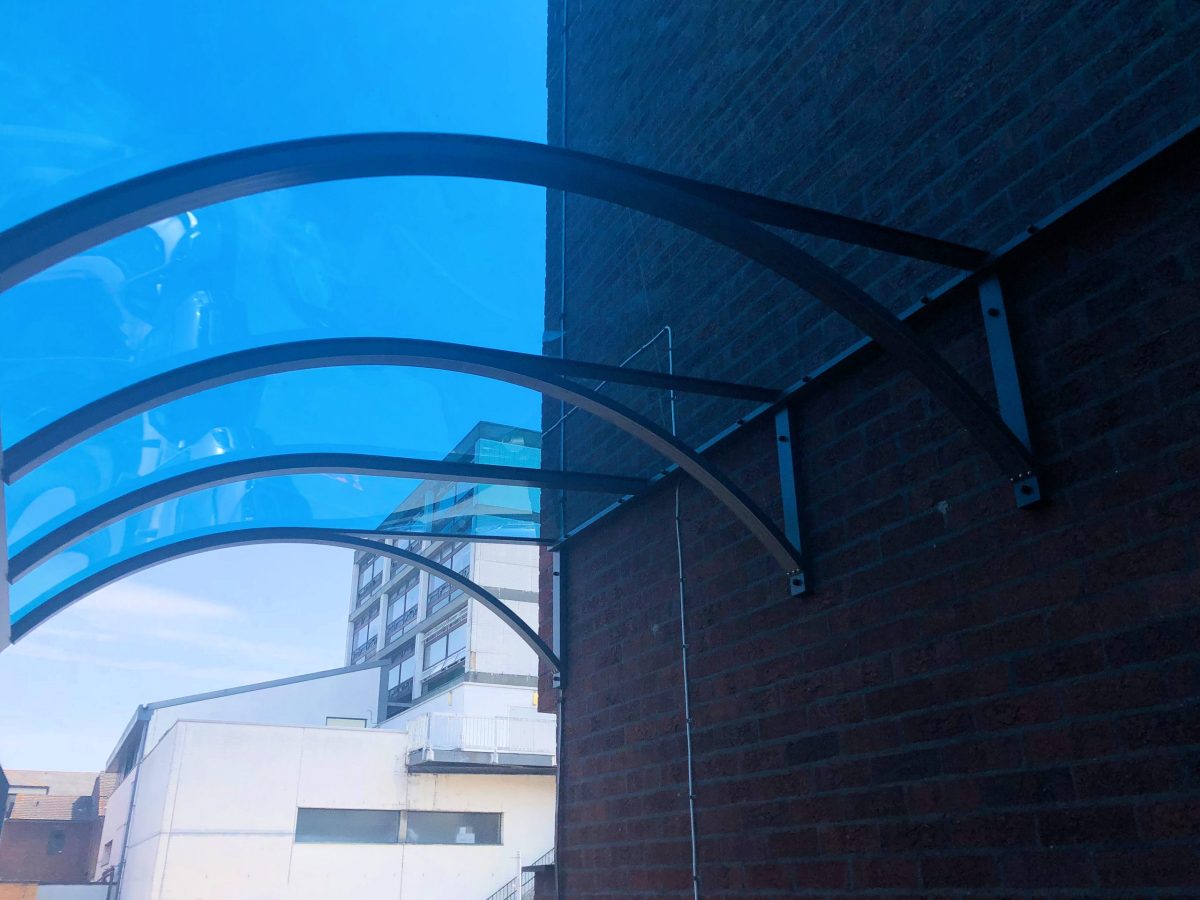

  • Cantilevered – The Orwell is fixed to the wall with aluminium wall brackets and has no canopy posts
  • Aluminium Guttering – Integral aluminium guttering as standard that disperses water through a drip spout at the sides of the frame
  • High UV Protection – The roof panels are coated on both sides with a UV protective layer that provides high UV protection to persons underneath and prevents the panels from discolouring
  • Frame Colour – The aluminium can be powder coated in a choice of 7 colours as standard, alternative colours are available on request at an additional cost
  • Polycarbonate Colour – The roof panels are clear as standard with a choice of 6 alternative colours which are available at an additional cost
  • Structurally Tested – The Orwell has been tested and approved by TÜV for loads up to 170daN/m². (this applies to projections of 1.5m or less)
  • High Fire Resistance – The clear (standard) roof panels meet the UK fire rating BS 476 Part 7 Class 1Y and the European fire standard EN 13501-1 B s1 d0
  • Low Maintenance – The Orwell does not require any special maintenance and is easy to keep looking new and sparkly with periodic washes
  • 2 Year Guarantee – Supplied with a 2 year guarantee for peace of mind

Design & Specification

Polycarbonate Roof Panels

Covered with solid polycarbonate panels that are 4mm thick and are light in weight. These panels have a high impact resistance, making them ideal for use in well used areas.

Excellent Weather Resistance – The Polycarbonate protects those underneath from harmful UV rays whilst also providing shelter from the rain. The UV coating that is applied during the manufacturing process prevents the panels from discolouring or losing their shine.

High Light Transmittance – The polycarbonate panels offer excellent light transmittance depending on the colour of the polycarbonate chosen. Please see the results in the table below from the test method DIN 5036:

Polycarbonate Colour Light Transmission %
Clear (Supplied as standard) 87%
Bronze 50%
Grey 55%
Green 73%

Please note: We do not have the results for opal or embossed polycarbonate.

Fire Resistance – The standard polycarbonate roof panels (clear) adhere to the UK fire rating BS 476 Part 7 Class 1Y and the European fire standard EN 13501-1 B s1 d0. All other polycarbonate colours that are available (excluding Opal) have passed the European fire standard EN 13501-1 B s2 d0.

Aluminium Frame

The Orwell is constructed from a UNI 6060 T5 grade aluminium frame that is natural resistant to rot and rust and is also treated with pure thermosetting polyester powder.

Integral Guttering

Integral aluminium guttering is supplied as standard. Water is collected in the guttering and then dispersed through drip spouts located at the front sides of the canopy.

Loading Capabilities

When subjected to tests of positive and negative loads, uniformly distributed up to 170daN/m² and there was no recorded signs of any permanent damages or breakage. Please note these results are only valid for projections of 1.5m or less.

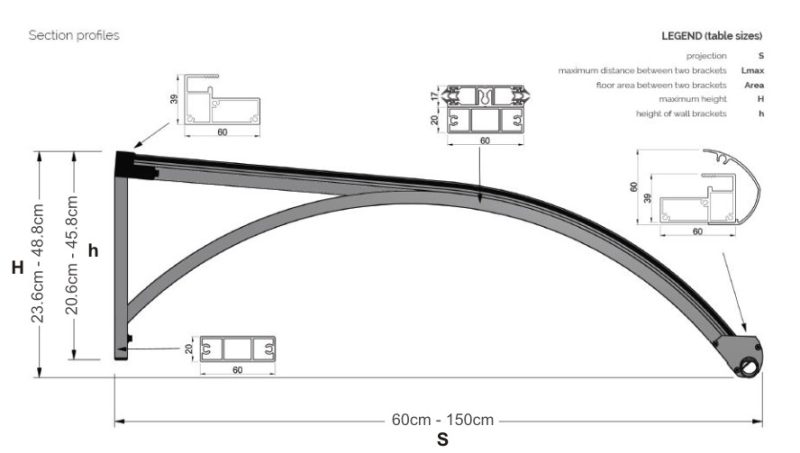

Technical Drawing

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet

Click here to view the Orwell Entrance Canopy Technical Specification Sheet

Technical File Downloads

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

Frame

The Orwell frame is available in 7 colours; please click here to view the colour chart.

Polycarbonate

The polycarbonate is available in a choice of 5 different colours; please click here to view the colour chart.

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
