Dalwood Entrance Canopy
Product Gallery

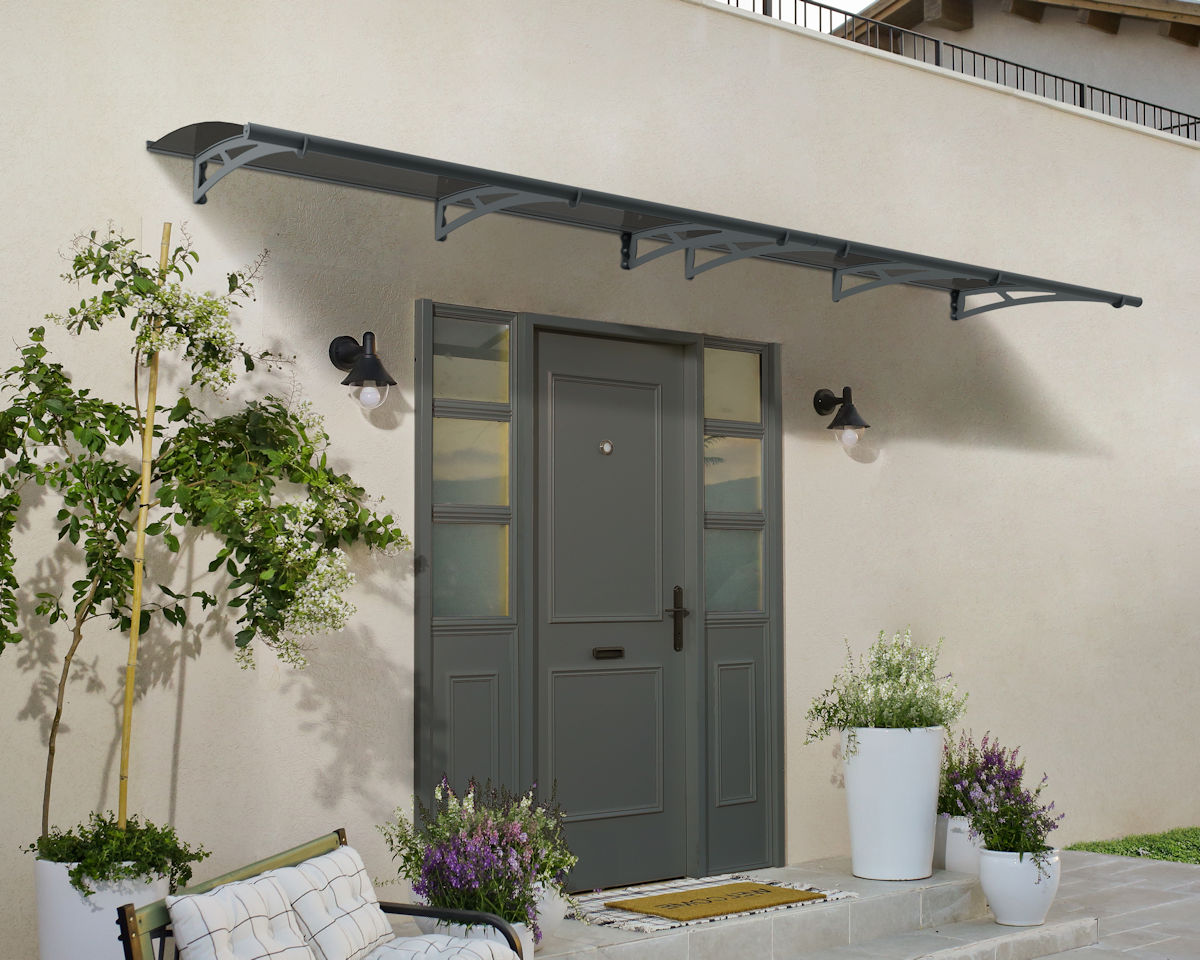

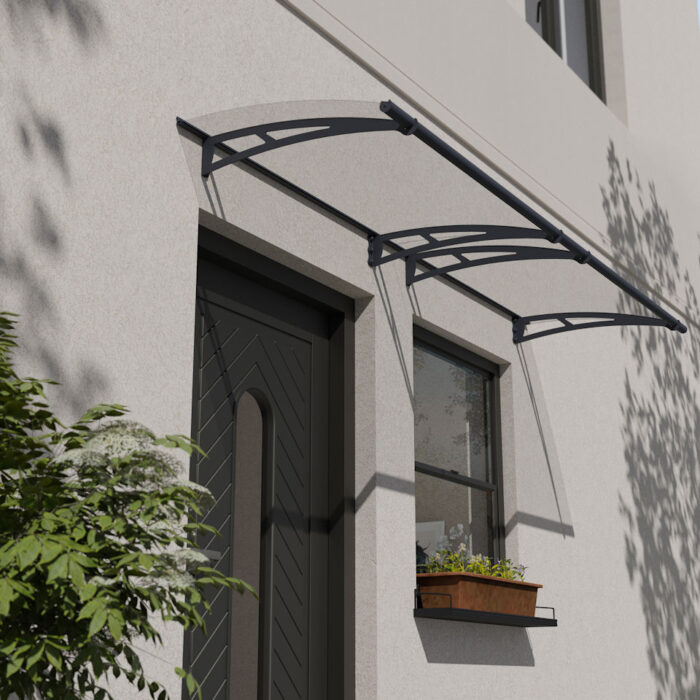

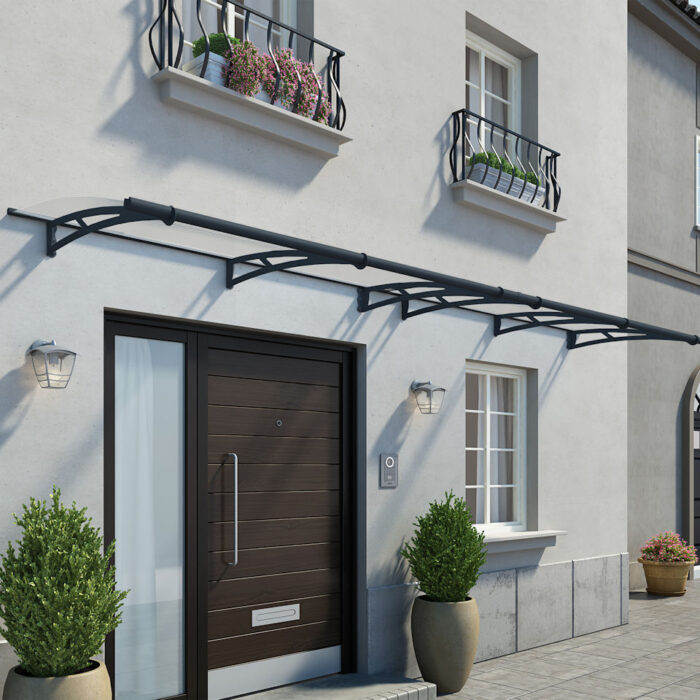

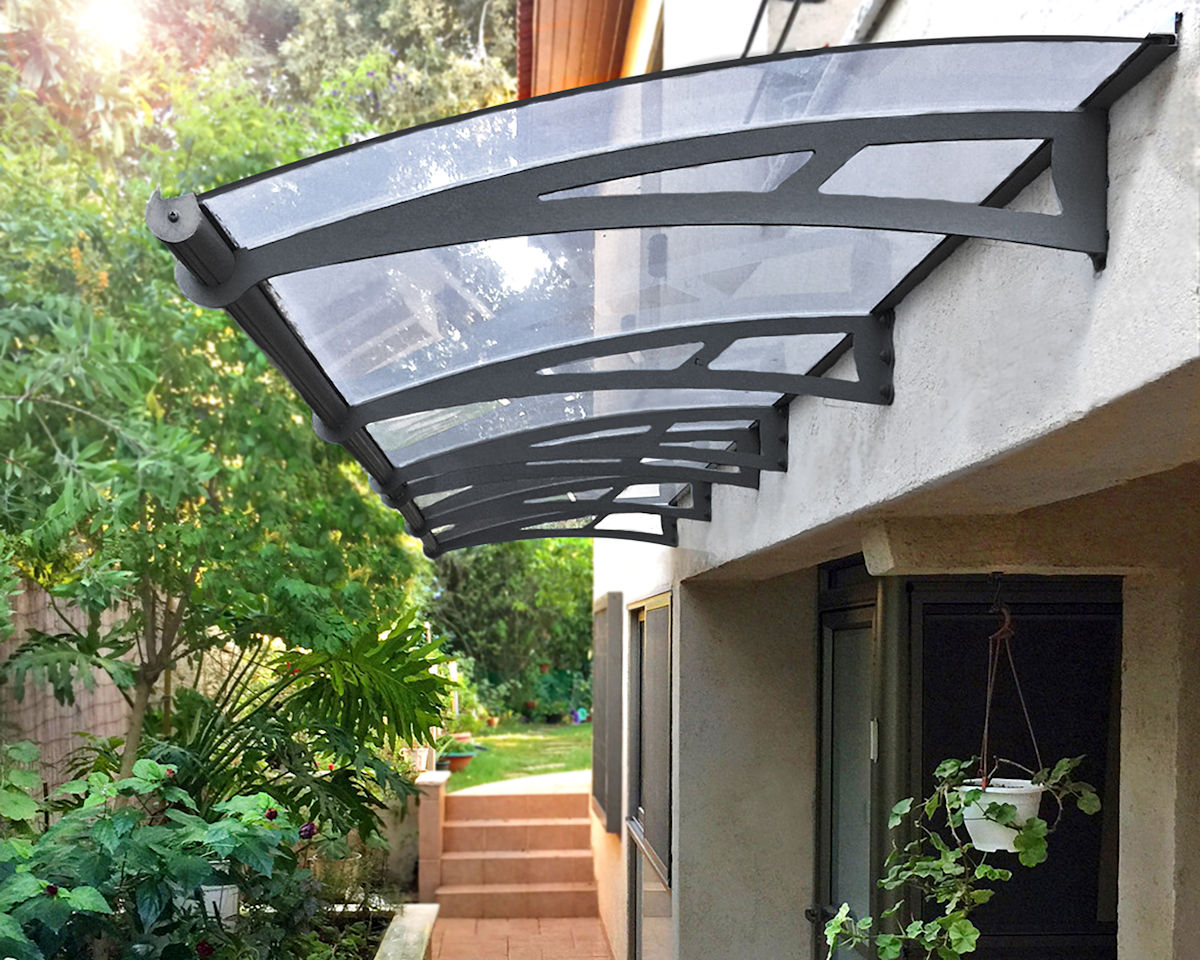

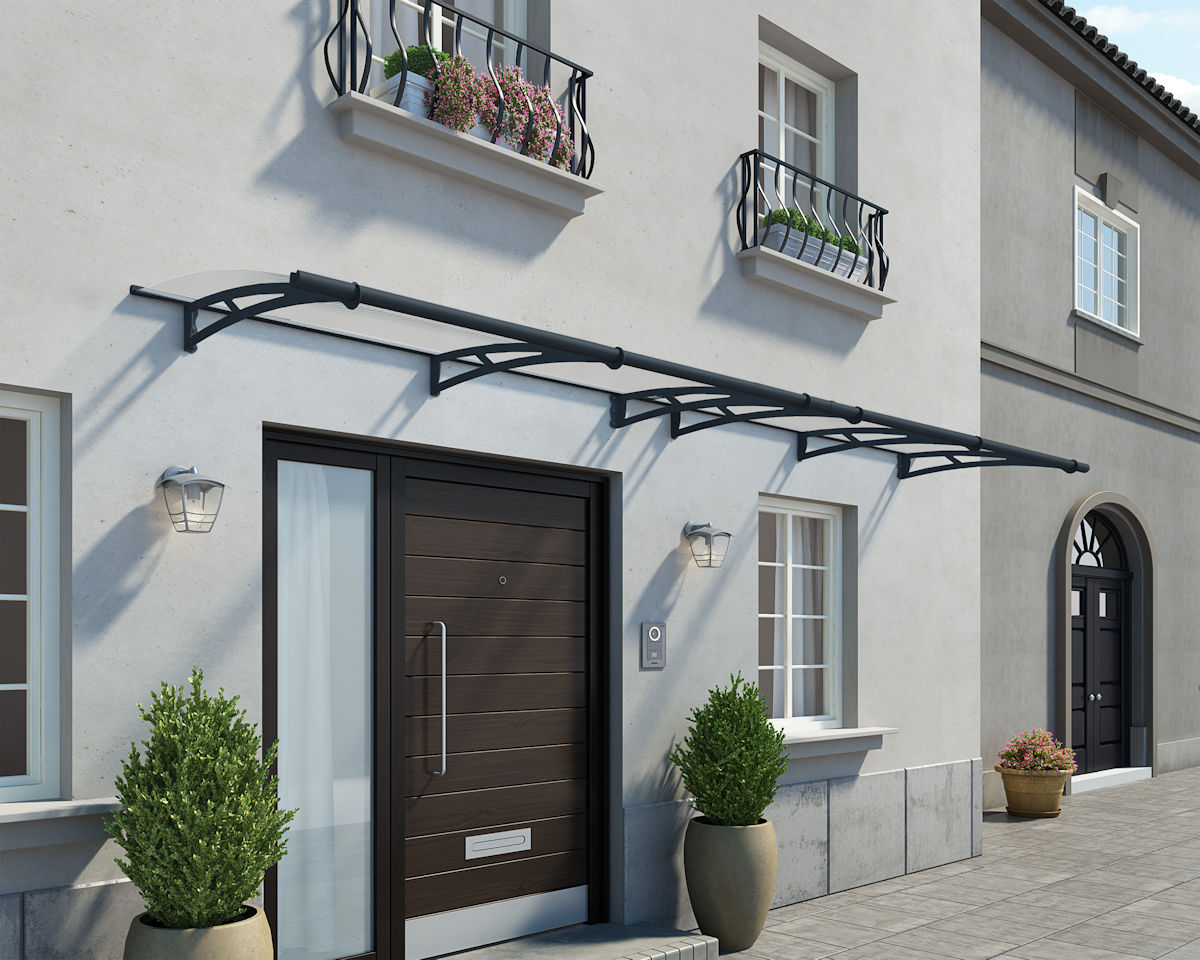

The Dalwood Entrance Canopy seamlessly blends a contemporary design with a robust construction, offering an elegant solution for protecting entrances from the elements. Its sleek, modern profile enhances the aesthetic appeal of various building styles, making it suitable for both commercial and residential applications.

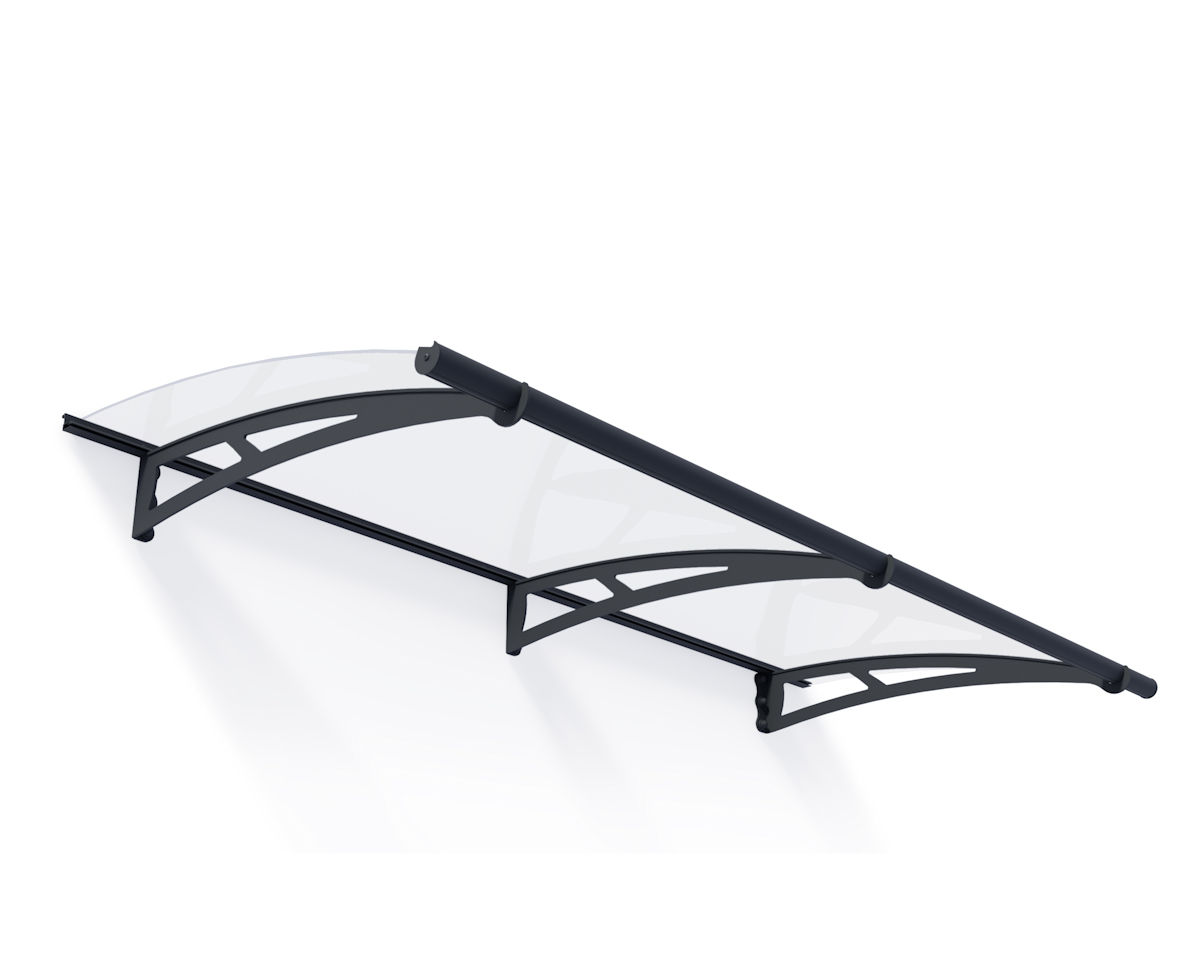

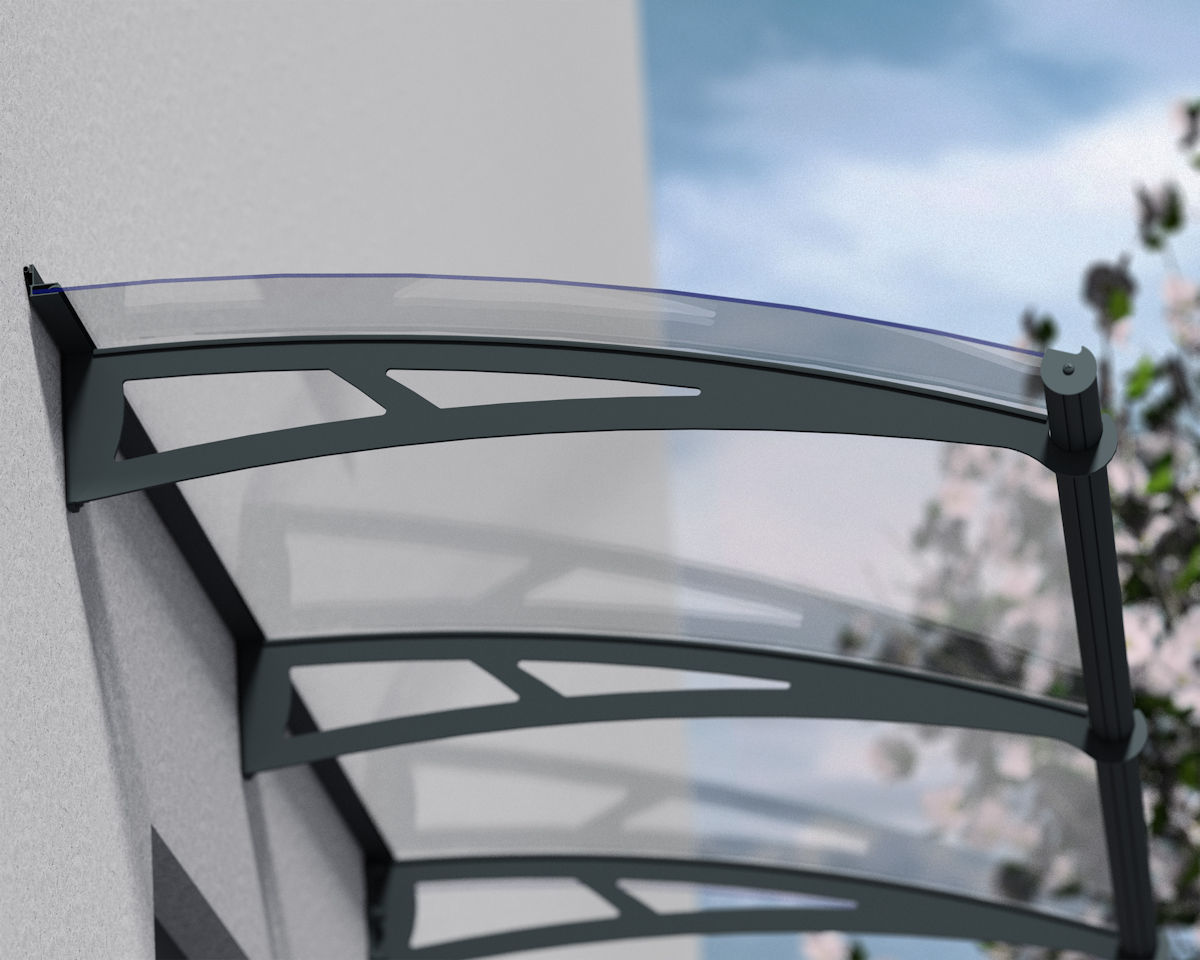

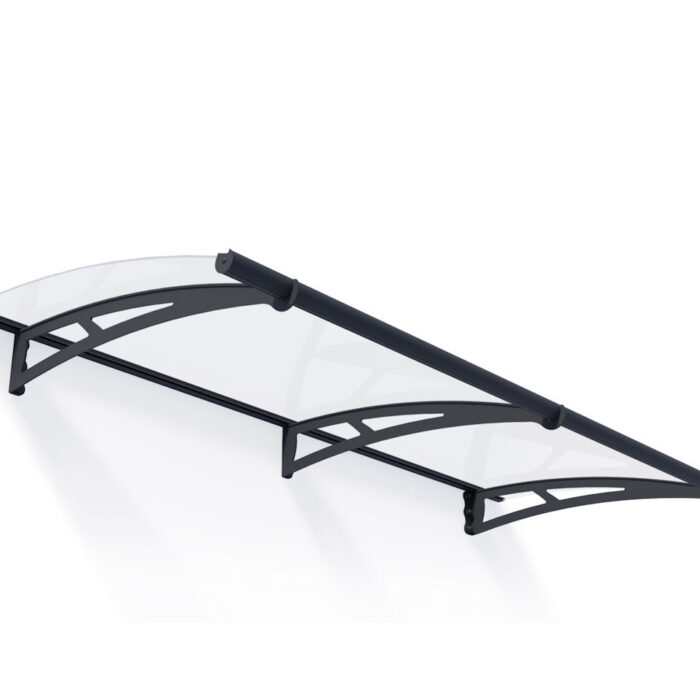

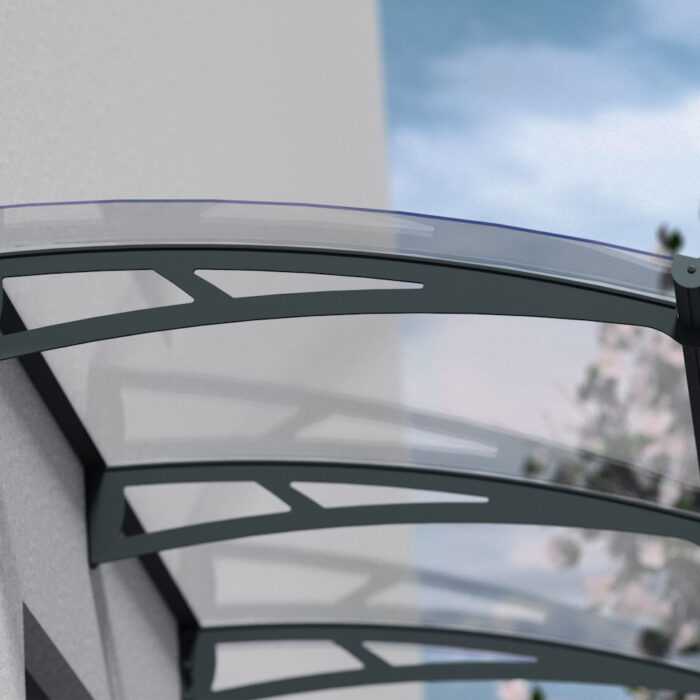

Constructed with a durable, powder-coated aluminium frame in a sophisticated grey finish, the Dalwood is engineered to withstand diverse weather conditions. This sleek entrance canopy features high impact 4mm clear acrylic roof panels, providing excellent light transmission while offering protection against harmful UV rays. This combination ensures longevity and minimal maintenance, maintaining its appearance over time.
Available in five standard sizes, the Dalwood accommodates a range of doorway dimensions, providing flexibility for different installation requirements. Its modular design allows for straightforward assembly and installation, making it a practical choice for various settings.
Features & Benefits
- Versatile Size Options: Available in five standard sizes to suit a variety of entranceways: 2m x 0.9m, 1.5m x 0.9m, 3m x 0.9m, 4m x 0.9m and 4.5m x 0.9m
- Durable and Weather-Resistant Construction: Manufactured with a powder-coated aluminium frame and galvanized steel support arms for exceptional structural strength and corrosion resistance
- Premium Roof Panel Options: Fitted with high-impact, weather-resistant 4mm acrylic roof panels, available in two finishes:

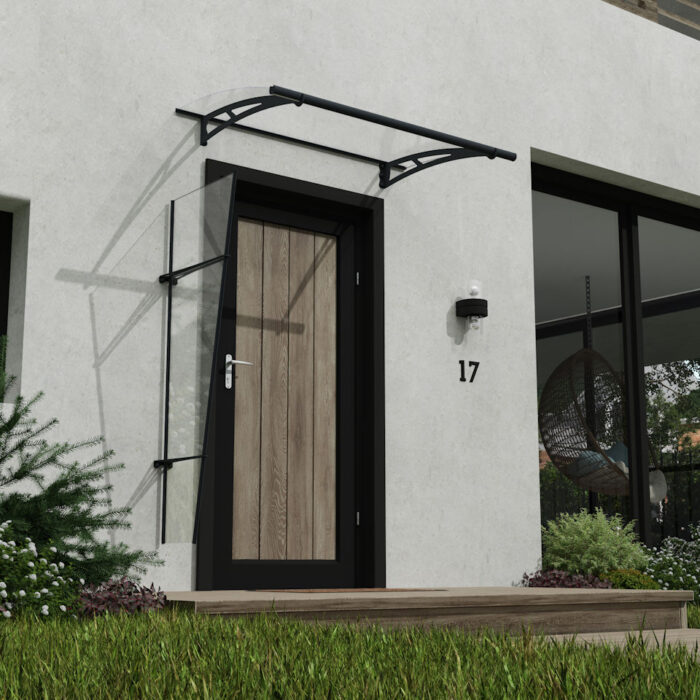

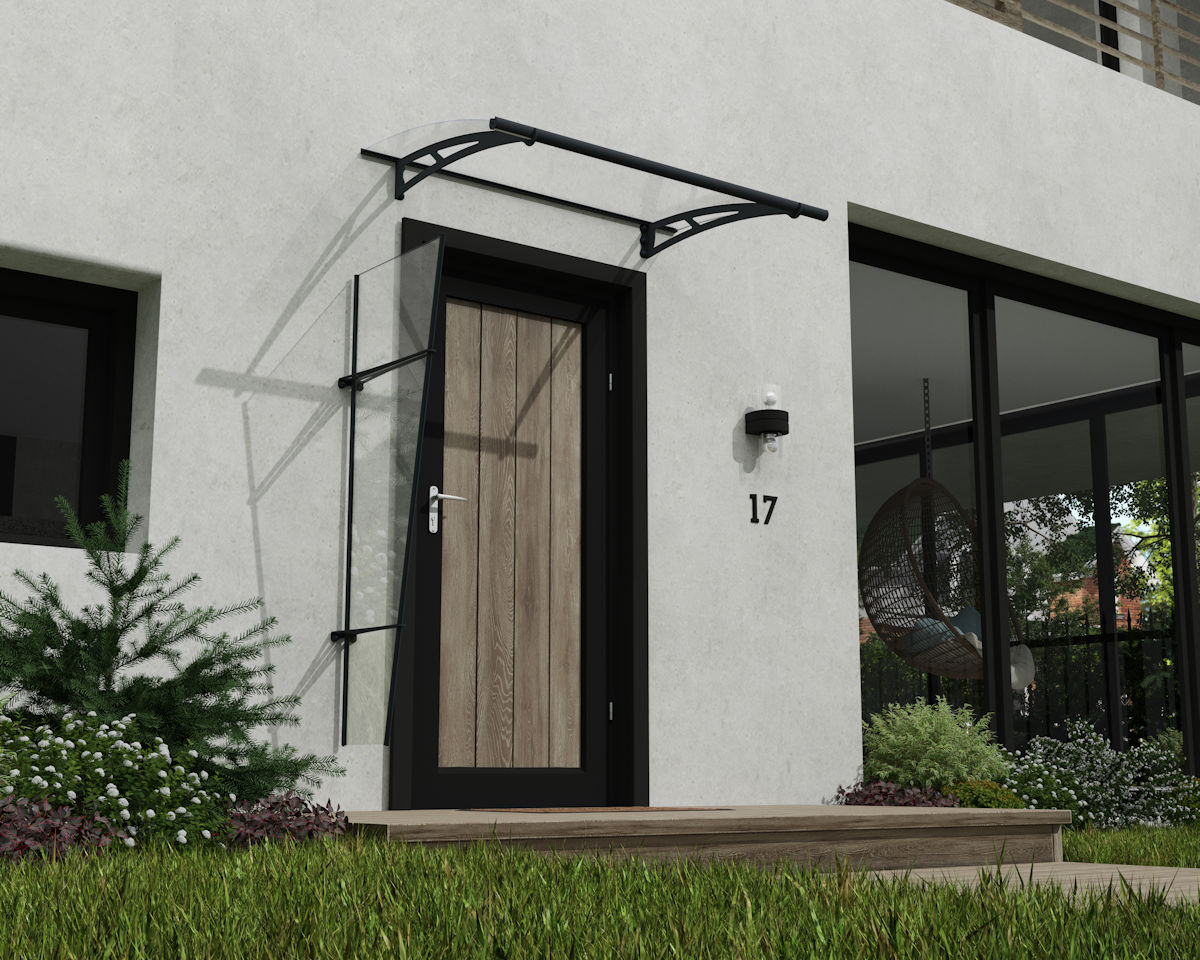

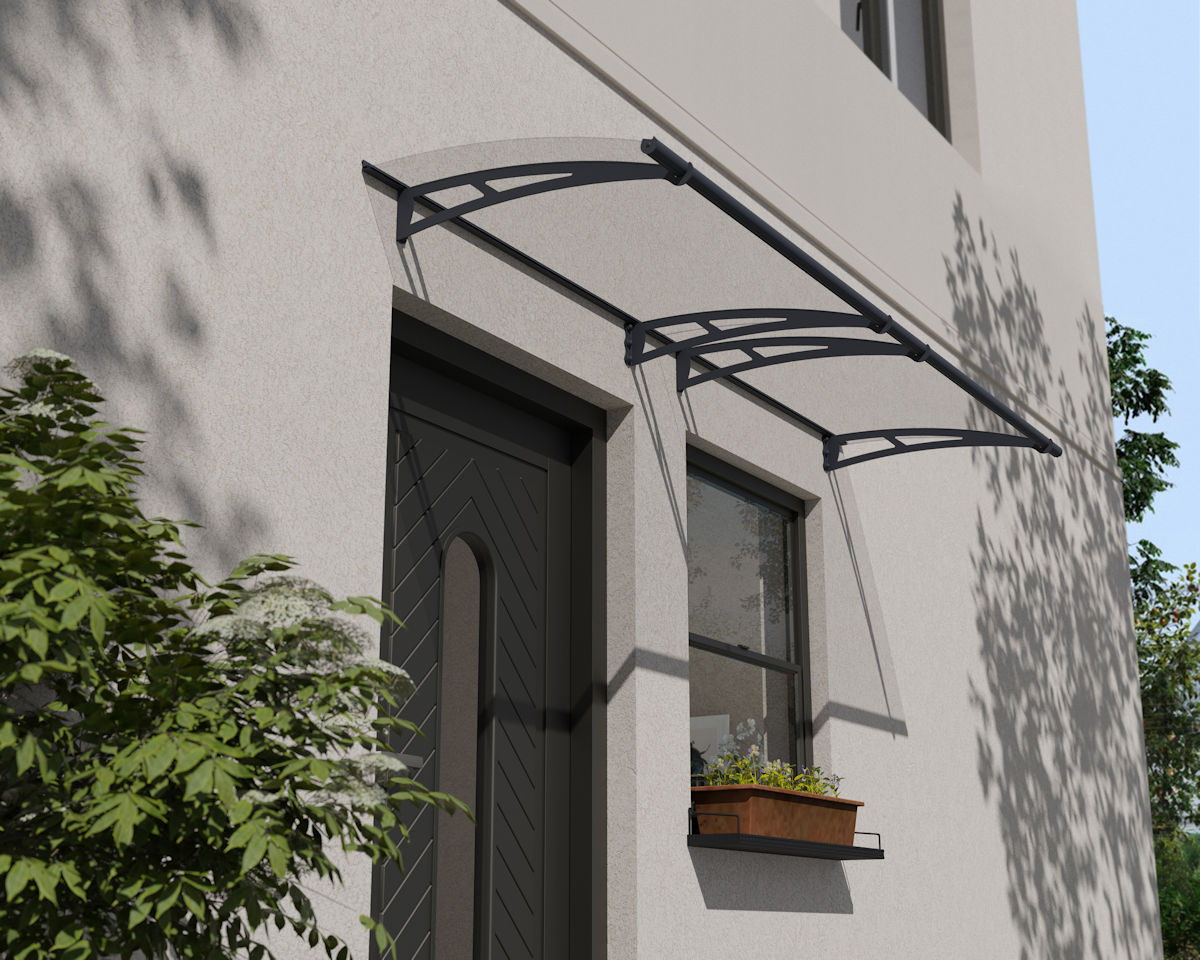

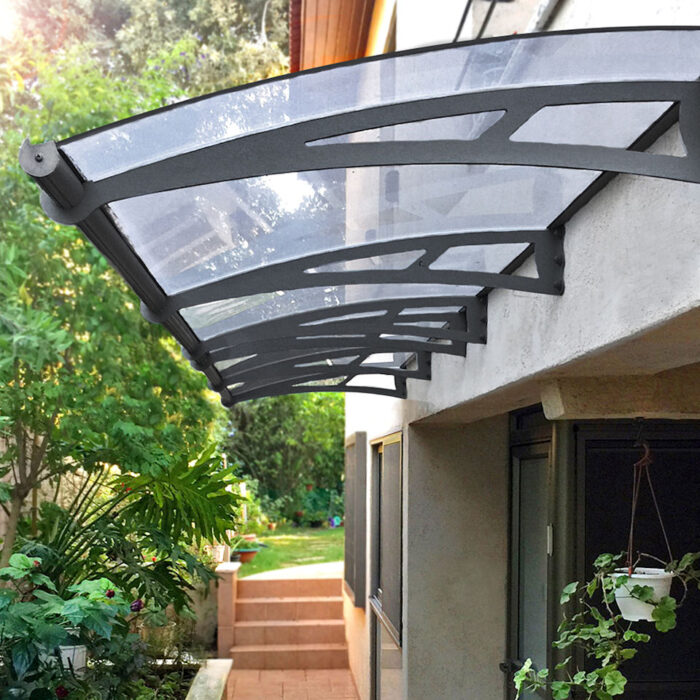

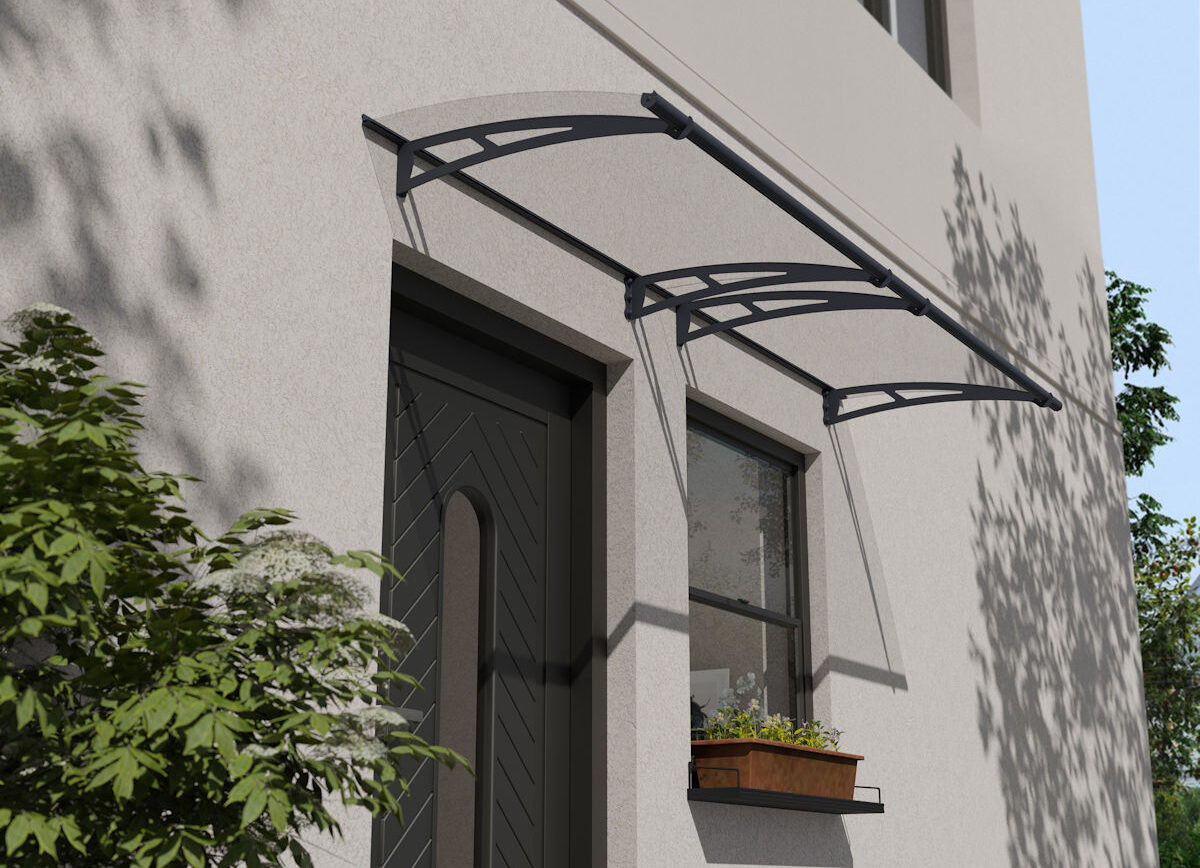

- Clear: 82% light transmission for brighter entranceways

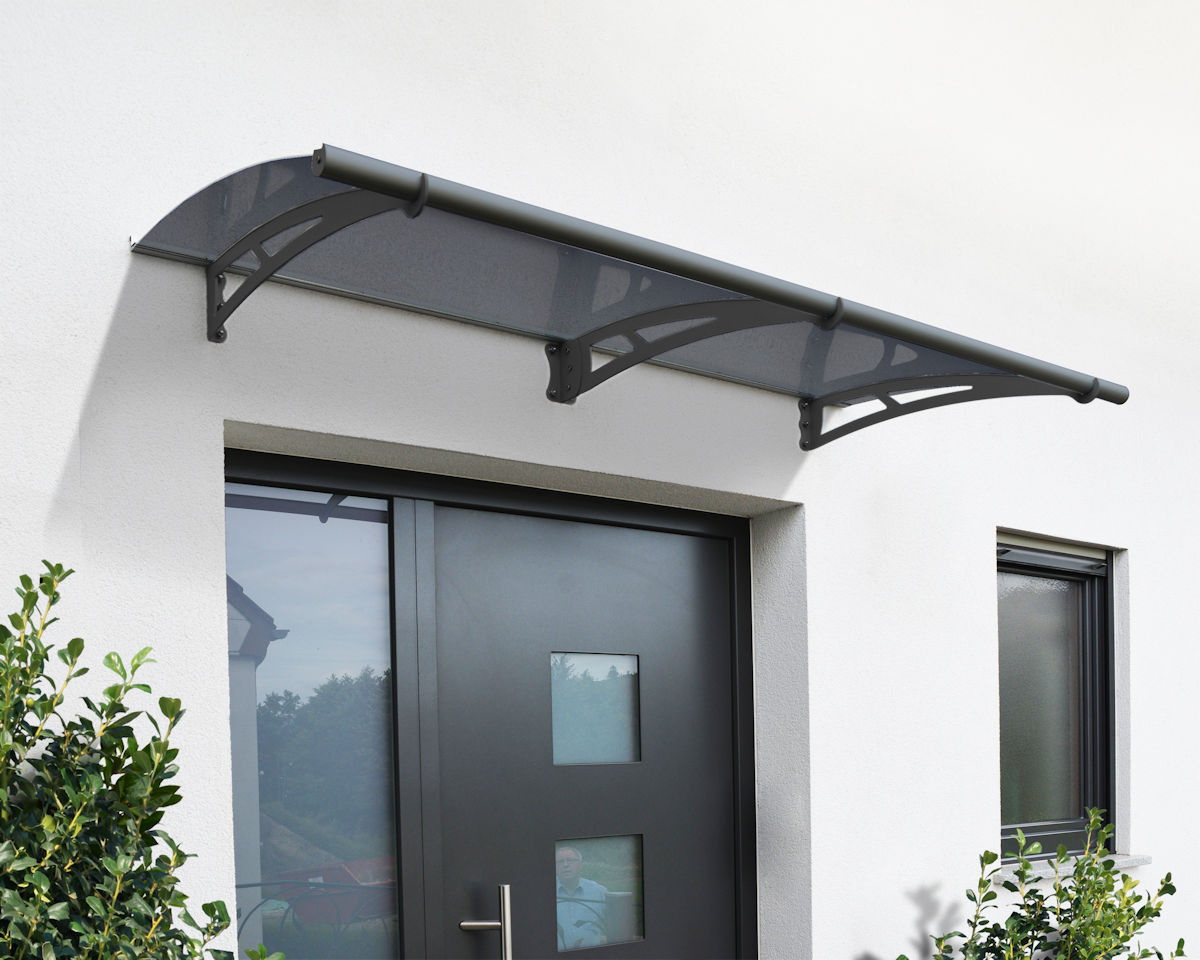

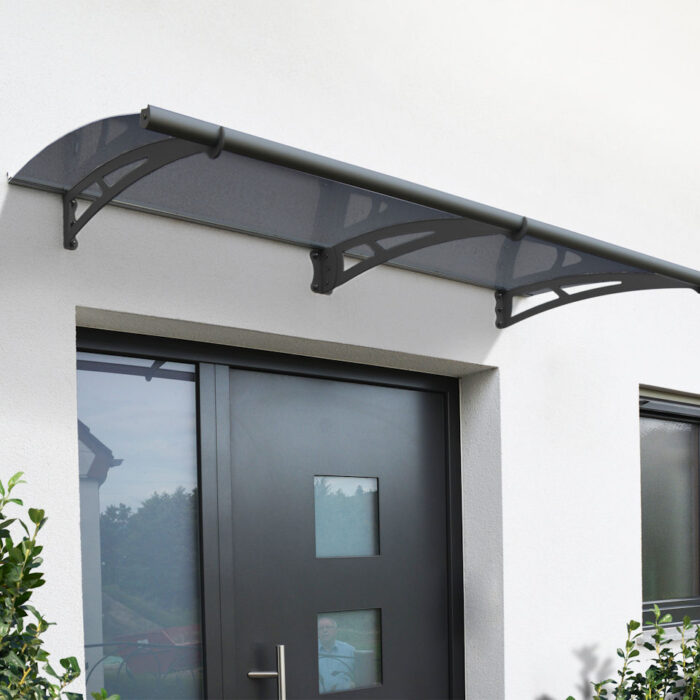

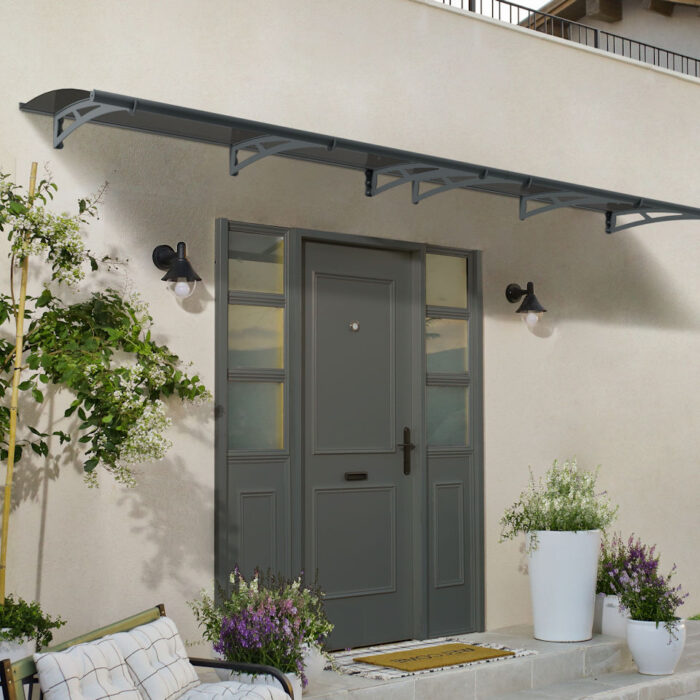

- Solar Grey: 12% light transmission to reduce glare while providing shade
- Effective UV Protection: The panels block 100% of harmful UV rays, helping to keep the area underneath cooler, and reducing the amount of heat let in from the sun over windows and doors
- Strong Weather Performance: The Dalwood Entrance Canopy has a wind resistance up to 120 km/h and a snow load capacity of 100 – 150 kg/m², ensuring year-round reliability.
- Fire Performance: The roof panels meet European fire safety standards, passing EN 13501-1 and BS 476 Part 7 Equivalent – UK Class 3
- Efficient Rainwater Management: Integrated front aluminium gutter directs rainwater sideways, keeping entrance areas clear and dry without the need for additional drainage solutions
- Low Maintenance, Long-Lasting Finish: Maintenance-free materials ensure the canopy remains in excellent condition with minimal effort, saving time and upkeep costs
- Stylish Contemporary Appearance: The frame is finished in a textured Grey RAL 7016 colour, offering a sleek, modern look that complements a wide range of architectural styles
- Reliable Warranty: Supplied with a 3-year warranty for added peace of mind.
Contact Us
Would you like to find out more? Get in touch to find out more about the Dalwood Entrance Canopy.
Design & Specification
Downloads:
Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:
Product Data Sheet:
Click here to view the Dalwood Entrance Canopy Technical Specification Sheet
Technical File Downloads:
- Download Dalwood Entrance Canopy PDF file (coming soon)
- Download Dalwood Entrance Canopy DXF file (coming soon)
- Download Dalwood Entrance Canopy STL file (coming soon)
- Download Dalwood Entrance IGES file (coming soon)
NBS & BIM
Please see below the NBS specs and BIM models for you to download and add to your project.
NBS:
(coming soon)
BIM:
(coming soon)
Colour Options
Aluminium Framework:
The Dalwood Entrance Canopy framework including the aluminium main frame and the steel support arms are powder coated in Anthracite Grey (RAL 7016).
The steel support arms are also galvanized as standard.
Roof Sheets:
We offer two standard roof panel colour options for the Dalwood Entrance Canopy: Clear and Solar Grey.
Canopy Brochure
Download our product brochure to view our full range of canopies and shelters:
