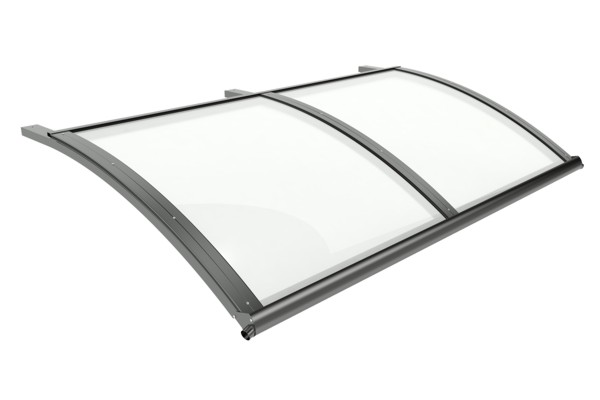

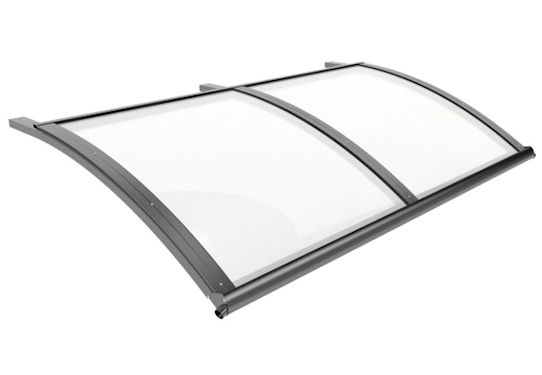

The Fenwick Entrance Canopy has an attractive curve to the roof and has been designed for buildings that have an existing overhang. It is fixed to the overhang with brackets that are extended from the canopy roof bars for a sleek, minimalistic appearance.

This canopy has an unlimited length and a projection of up to 1.5m. It is ideal for creating shade and shelter above doors, windows, walkways and loading bays. It can also offer additional protection to buildings that have existing integrated canopies which do not offer a large enough projection.

Features & Benefits:

  • Length – Unlimited (minimum of 1.4m)
  • Projection – from 0.6m – 1.5m
  • Framework – The frame is constructed from high grade aluminium for ultimate strength and corrosion resistance
  • Roof Panels – The Fenwick is covered high impact resistant, 4mm solid polycarbonate roof panels
  • Low Cost – The Fenwick is a cost effective canopy that is ideal for smaller budgets, yet it does not compromise on quality
  • Unique Fixing Details – The Fenwick is fixed to the underside of the existing building overhang or canopy with brackets which extend from the roof bars
  • Integrated Gutter – the canopy features drip spouts at the sides of the canopy to disperse water
  • High UV Protection – The roof panels are treated with a coating that protects people from high levels of UV rays and also prevents the panels from discolouring
  • High Fire Resistance – The clear roof panels meet the UK fire rating BS 476 Part 7 Class 1Y and the European fire rating EN 13501-1 B s1 d0
  • Snow Loading Capabilities – The Fenwick has been tested by TÜV for snow loads up to 170daN/m² and showed no signs of breakage or wear
  • 2 Year Guarantee – Supplied with a 2 year guarantee for peace of mind

Design & Specification

Roof Panels

The Fenwick Entrance Canopy is covered with high strength, solid polycarbonate panels that are 4mm thick and offer:

High Fire Resistance – The clear roof panels that are supplied as standard have been tested to and meet the UK fire rating BS 476 Part 7 Class 1Y and the European fire rating EN 13501-1 B s1 d0.

Protection from the Sun – The roof panels are treated with a high UV protective coating that shields those underneath from high levels of harmful UV rays. It also prevents the polycarbonate panels from discolouring.

Fantastic Light Transmission – The roof panels let through excellent levels of light. This varies for the different colours chosen, please see the chart below for the results from the method DIN 5036:

Polycarbonate Colour Light Transmission %
Clear (Supplied as standard) 87%
Bronze 50%
Grey 55%
Green 73%

Please note: We do not have the results for embossed or opal polycarbonate.

Framework

The framework is made from high strength aluminium that is naturally corrosion resistant. The frae is also treated with powder coating to offer a range of colours.

Integrated Guttering

An aluminium guttering system is integrated into the canopy frame for a streamlined appearance.

Snow Loading Capabilities

The Fenwick Entrance Canopy has been tested and approved by TÜV for uniformly distributed snow loads up to 170daN/m².

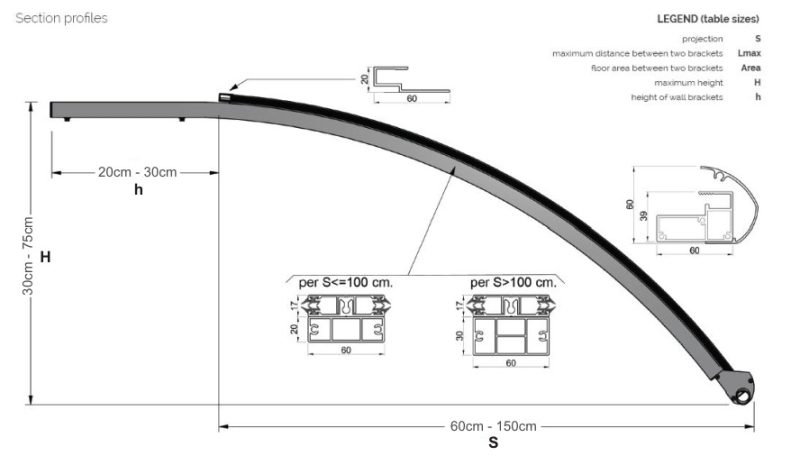

Technical Drawing


Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet

Click here to view the Fenwick Entrance Canopy Technical Specification Sheet

Technical File Downloads

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

(Coming soon)

BIM:

(Coming soon)

Colour Options

Frame

The Fenwick frame is available in 7 colours; please click here to view the colour chart

Polycarbonate

The polycarbonate is available in a choice of 5 different colours; please click here to view the colour chart

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
