Ferndale Entrance Canopies

Ferndale Entrance Canopies

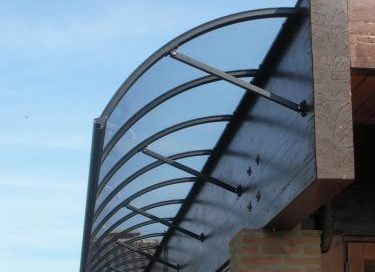

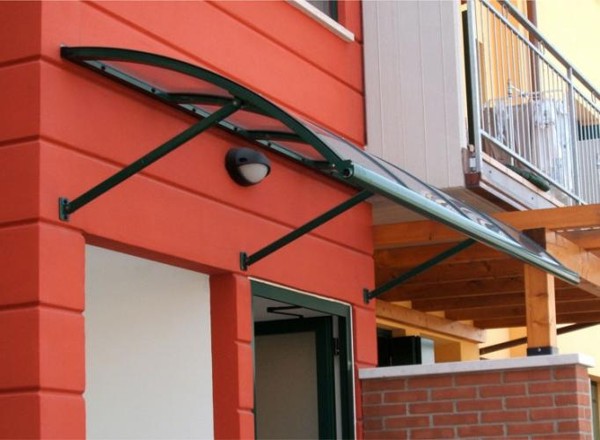

Product Gallery

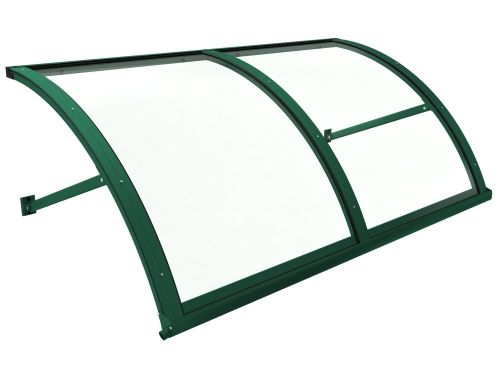

The Ferndale Entrance Canopy benefits from a strong curved roof design to offer enhanced protection from the weather. The roof panels are robust polycarbonate sheets that offer high UV protection, making this canopy the ultimate weather shield for entrances.

The frame is constructed from aluminium which is naturally rust resistant and is coated with polyester powder that is available in a choice of 7 colours as standard. It is fixed to the wall with supporting aluminium arms and small brackets for an elegant, minimal appearance.

The contemporary design of this canopy makes it ideal for leisure centres and shop entrances.

Features & Benefits:

  • Minimal and Contemporary Design – Perfect for shop entrances, hospitals, schools and sports centres
  • Cantilevered Canopy with stylish wall brackets – Giving the Ferndale a stylish, minimal appearance
  • Ideal for Smaller Budgets – Even though this is a cost effective canopy it is still a high quality structure
  • Frame – Constructed from T5 grade aluminium
  • Roof Sheets – 4mm solid polycarbonate panels
  • Lengths Available – From 1.4m – unlimited
  • Projections Available – From 0.8m – 1.5m from the wall
  • Integral Aluminium Guttering – That disperses rainwater through drip spouts at the front of the canopy
  • Robust Structure – That has been tested and approved by TÜV for loads up to 170daN/m²
  • Fire Resistance – The clear roof panels adhere to the UK fire standard BS 476 Part 7 Class 1Y and European fire rating EN 13501-1 B s1 d0
  • High UV Protection – The roof panels offer high UV protection from the sun
  • Frame Colour – The aluminium can be powder coated in a choice of 7 colours as standard, alternative colours are available on request at an additional cost
  • Polycarbonate Colour – The roof panels are clear as standard with a choice of 6 alternative colours which are available at an additional cost
  • 2 Year Guarantee – Supplied with a 2 year guarantee for peace of mind

Design & Specification

Polycarbonate Roof Panels

4mm solid polycarbonate sheets that are robust, offer high UV protection, have a high light transmittance and a good fire rating. Please see below for further information.

High UV Protection – The polycarbonate is treated with a special UV coating on both sides. This protects those underneath from harmful UV rays and also prevents the panels from yellowing due to UV degradation.

High Light Transmittance – The roof panels let through excellent volumes of light subject to the colour. Please see the table below shows for the results from the test method DIN 5036:

Polycarbonate Colour Light Transmission %
Clear (Supplied as standard) 87%
Bronze 50%
Grey 55%
Green 73%

Please note: We do not have the results for embossed or opal polycarbonate.

Good Fire Rating – The standard (clear) polycarbonate roof panels have a good fire rating and meet the European standard EN 13501-1 B s1 d0 and the UK standard BS 476 Part 7 Class 1Y.

Aluminium Frame

The framework is constructed from T5 grade aluminium that is naturally rust resistant.

Integral Guttering

The Ferndale has integral aluminium guttering that disperses rainwater out of drip spouts which are located at the front of the canopy.

Loading Capabilities

The Abberton has been approved and passed the tests by TÜV for loads up to 170daN/m².

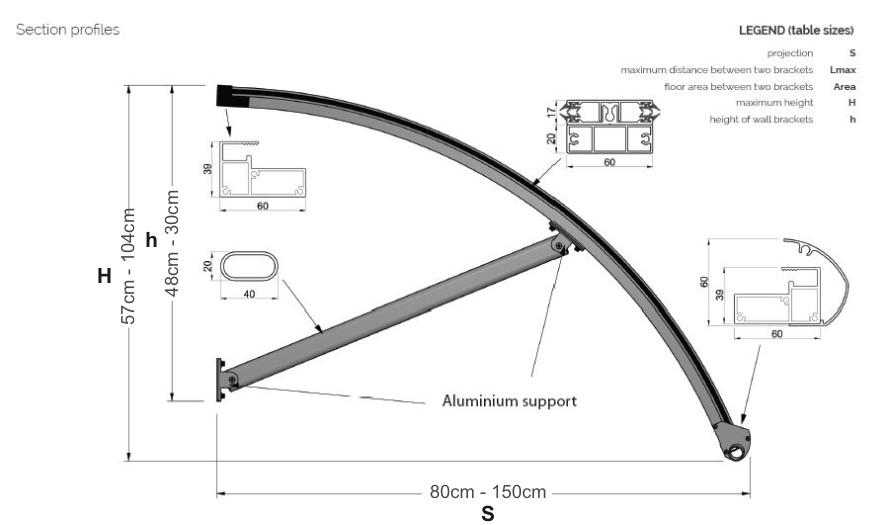

Technical Drawing


Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet

Click here to view the Ferndale Entrance Canopy Technical Specification Sheet

Technical File Downloads

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

(Coming soon)

BIM:

(Coming soon)

Colour Options

Frame

The Ferndale frame is available in 7 colours; please click here to view the colour chart.

Polycarbonate

The polycarbonate is available in a choice of 5 different colours; please click here to view the colour chart.

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
