Tintern Entrance Canopy

Tintern Entrance Canopy

Product Gallery

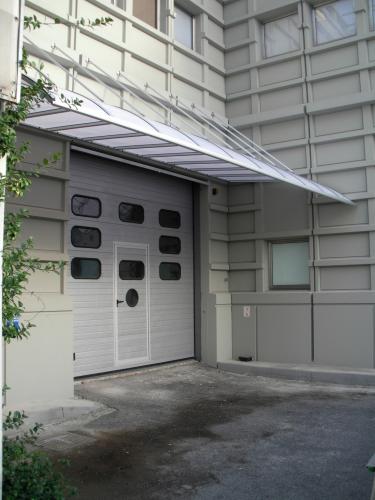

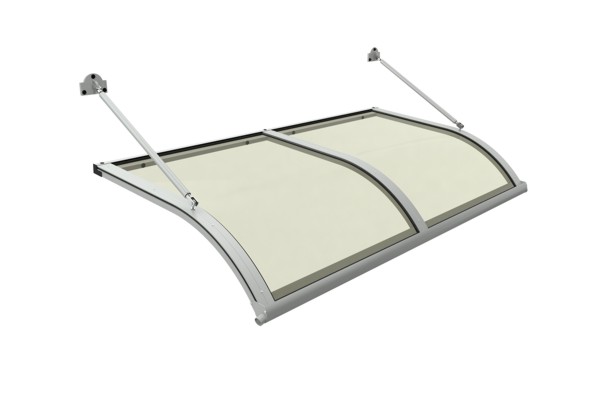

The Tintern Entrance Canopy features a simple curved roof with stainless steel tie rods fixings to create sophisticated yet unobtrusive addition to a building.

This canopy can project up to 2.5 metres from the wall and can be constructed to an unlimited length – making it perfect for extended cover to outside areas such as retail loading bays and busy school or hospital walkways.

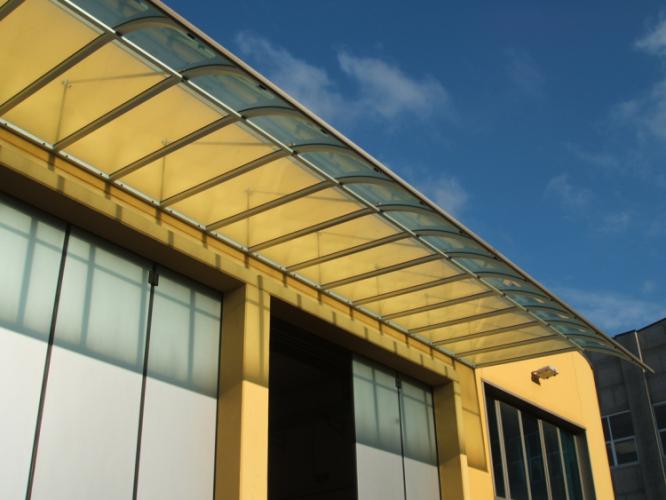

The Tintern can be installed with internal and external corners to allow it to follow the shape of your building, perfect for creating a covered walkway around the whole perimeter of your building.

Features & Benefits:

  • Cantilevered Canopy – Fixed to the wall with aluminium wall plates and stainless steel support rods that are encased within aluminium tubes
  • Unlimited Length – From 1.4m – unlimited
  • Large Projection – From 0.8m – 2.5m from the wall
  • Covers More Than Just Entrances – Cover outside walkways, create shade above windows and follow internal and external corners of buildings
  • Ideal for Smaller Budgets – The Tintern is constructed from cost effective materials that also offer high strength and quality
  • Main Frame – Made from high quality T5 grade aluminium components that are naturally resistant to corrosion and are extremely strong
  • Roof Covering – The roof is covered with 4mm solid polycarbonate panels
  • High UV Protection – The polycarbonate panels are treated with a coating that offers high UV protection and prevents the panels from yellowing due to sun damage
  • Fire Resistance – The clear polycarbonate panels meet the UK fire rating BS 476 Part 7 Class 1Y and the European fire standard EN 13501-1 B s1 d0
  • Robust Design – The canopy has been tested and approved by TÜV for loads up to 170daN/m²
  • Integral Guttering – Supplied with integral aluminium guttering that disperses water through drip spouts at the front sides of the canopy
  • 2 Year Guarantee – Supplied with a 2 year guarantee for peace of mind

Design Specification

Roof Panels

The Tintern is sheltered with 4mm solid polycarbonate roof panels that offer many benefits and are extremely robust.

Fire Resistance – The clear polycarbonate roof panels that we supply as standard meet the European fire rating EN 13501-1 B s1 d0 and the UK fire rating BS 476 Part 7 Class 1Y.

UV Protection – The roof panels protect persons underneath against high levels of UV radiation that is generated by the sun. The protective UV coating also prevents the panels from yellowing due to sun damage.

Light Transmittance – The roof panels have excellent light transmittance subject to the colour chosen. The table below shows the results from the test method DIN 5036:

Polycarbonate Colour Light Transmission %
Clear (Supplied as standard) 87%
Bronze 50%
Grey 55%
Green 73%

Please note: We do not have the results for embossed or opal polycarbonate.

Framework

The Main frame is constructed from high grade aluminium components that are fixed to the wall with aluminium wall brackets and stainless steel support rods that are enclosed within aluminium tubes for extra durability.

Integral Guttering

The Tintern is supplied with integral aluminium guttering disperses water down the guttering and out through drip spouts that are located at the front sides of the canopy.

Loading Capabilities

The Tintern has passed the tests undertaken by TÜV for uniformly distributed loads up to 170daN/m². Please note these results are only valid for projections of 1.5m or less.

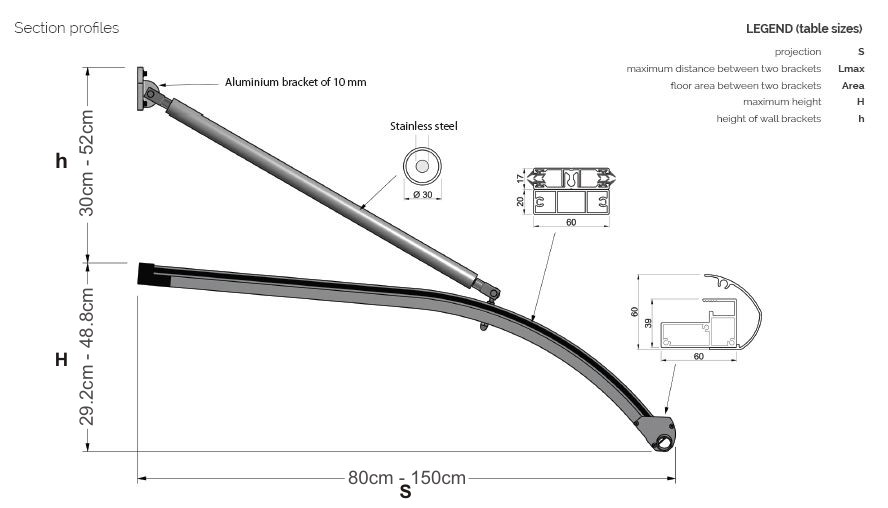

Technical Drawing


Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files:

Product Data Sheet

Click here to view the Tintern Entrance Canopy Technical Specification Sheet

Technical File Downloads

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

(Coming soon)

BIM:

(Coming soon)

Colour Options

Frame

The Tintern frame is available in 7 colours; please click here to view the colour chart

Polycarbonate

The polycarbonate is available in a choice of 5 different colours; please click here to view the colour chart

Product Brochure

Download our product brochure to view our full range of canopies:

Download Canopy Brochure
